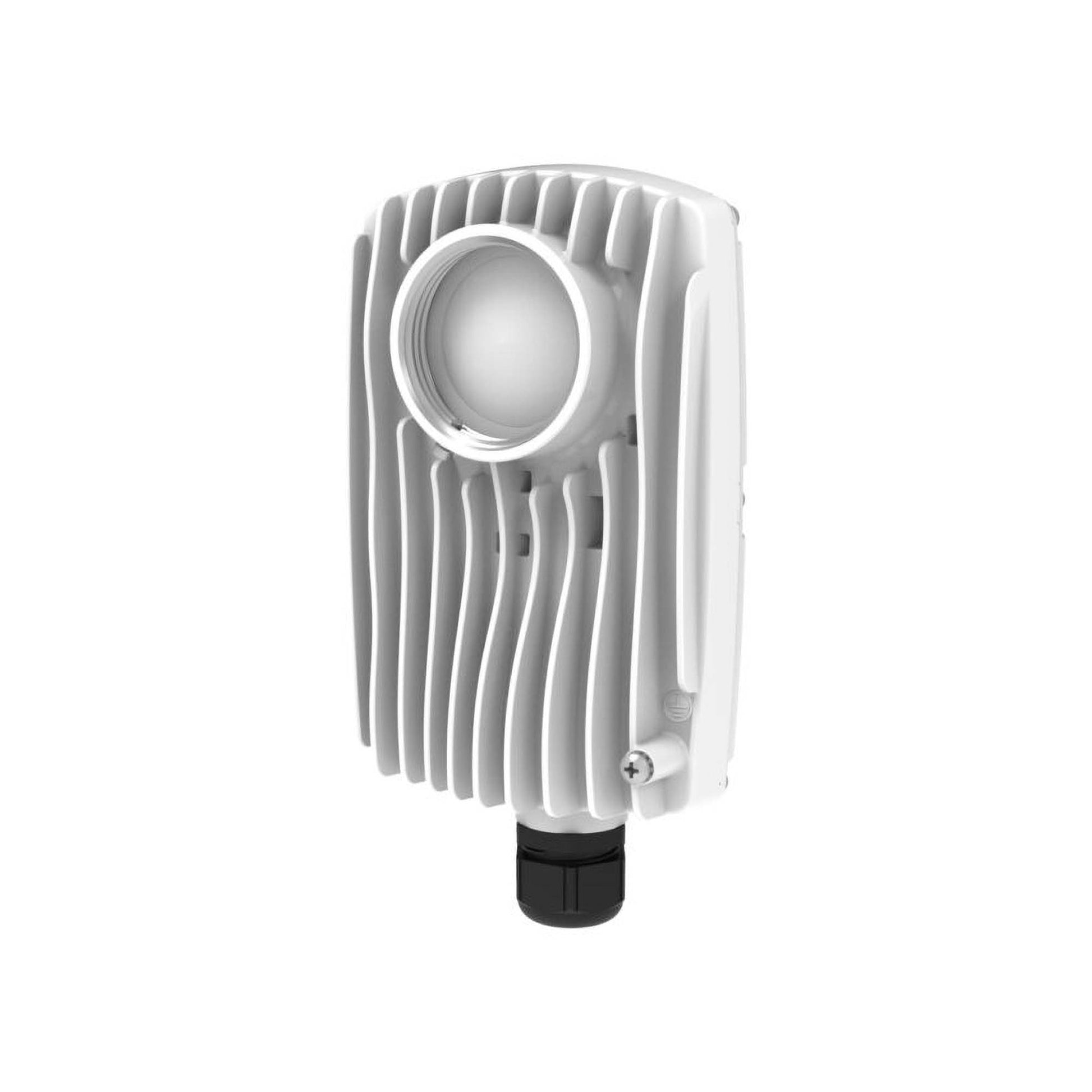

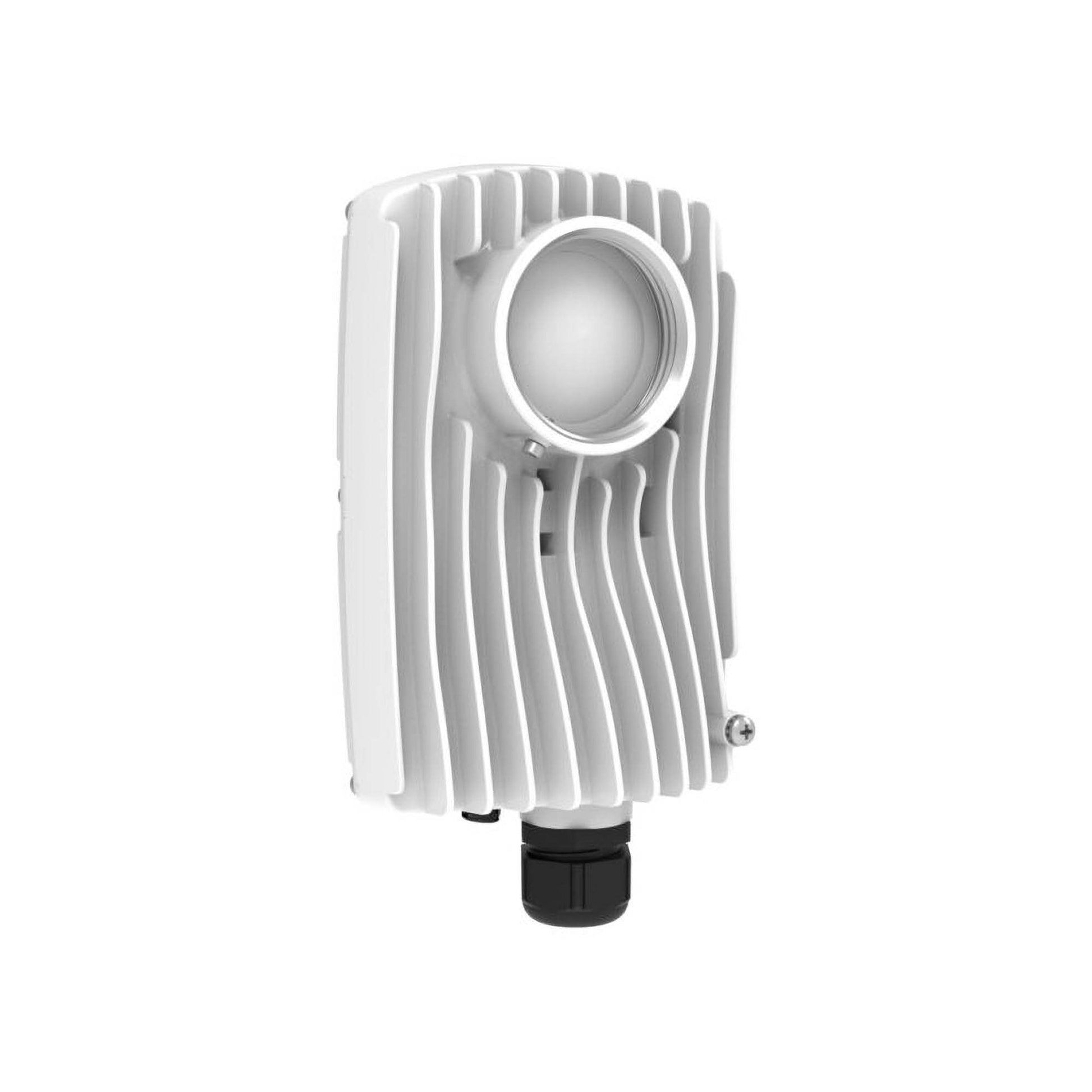

•The C6X is IP67 rated, built with an ultra-rugged design it can withstand the harshest elements
•Coupled with next-gen RF noise fighting features and new low-noise 6 GHz band support, the C6x leads the way in dependable connectivity
•New multi-user OFDMA scheduling and beamforming technologies, enabling the C6X to have massive subscriber scaling, advanced noise management
•The C6x reduces in-band noise impact across the operating channel with dramatically smaller 2 MHz resource units (RU) sizes
•Thanks to Wi-Fi 6E and OFDMA, the C6x can even be used in dense, urban environments
•8 dBi gain can be increased to 12, 16, 20, 25 dBi using Mimosa’s modular X-series twist-on antennas, offering ease and simplicity of integrated radios

•Max Throughput: 1.75Gbps IP aggregate UL/DL (2402 Mbps PHY)
•Wireless Protocols: Wi-Fi Interop; Auto-TDD (future release) TDMA (future release)
•Bandwidth: 20/40/80/160 MHz channels, tunable to 5 MHz increments
•Frequency Range: 5150-6425 MHz (restricted by country of operation)
•Sensitivity: -87 dBm @ 80 MHz / -90 dBm @ 40 MHz / -93 dBm @ 20 MHz
•Max Power Consumption: 20W
•Poe Power Supply: Passive PoE compliant, 48-56V (PoE Injector not included)
•Operating Temperature: -40°C to 55°C (-40°F to 131°F)
•Operating Humidity: 5 to 100% condensing
•Operating Altitude: 4,420m (14,500' maximum)
•Shock and Vibration: ETS 300-019-2-4 class 4M5
•Security: AES, RADIUS, 802.1x authorization

•1x Mimosa C6X
•User Manual
