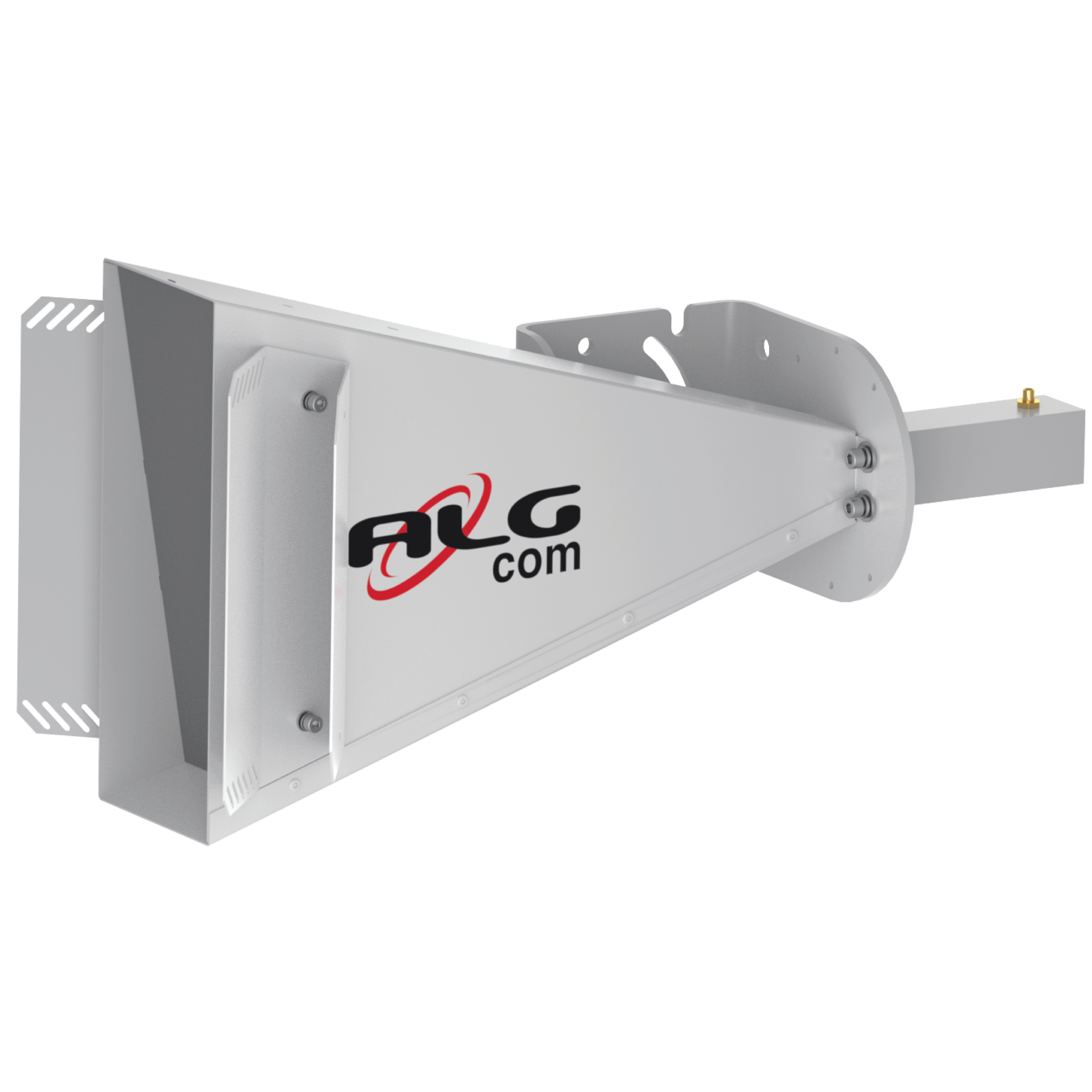

•High-performance point-multipoint
•High gain with high vertical beamwidth for better coverage with the best signal-to-noise ratio (SNR)
•Optimized radiation pattern with maximum sidelobe reduction, obtaining performance class SS2 ANATEL. This increases the immunity of the network to noise and interference and allows the installation of more equipment in the same place.
•Higher bandwidth on the market
•Designed with the latest technology to ensure the best performance in communication with end customers at 5.8 GHz frequency

•Frequency Range: 4.9 - 6.425 GHz
•Gain: 4.9 GHz - 17.8 dBi; 5.563 GHz - 18.7 dBi; 6.425 GHz - 19.3 dBi
•Angle H 3 dB: 4.9 GHz - 36 degrees; 5.563 GHz - 29.8 degrees; 6.425 GHz - 26 degrees
•Angle H 6 dB: 4.9 GHz - 46 degrees; 5.563 GHz - 41 degrees; 6.425 GHz - 36.5 degrees
•Angle V 3 dB: 4.9 GHz - 14.4 degrees; 5.563 GHz - 12.5 degrees; 6.425 GHz - 12.2 degrees
•VSWR: 1.7
•Polarization Rejection: > 26 dB
•Isolation Between Ports: > 30 dB
•Polarization: Double (V and H)
•Connection: SMA Female Reverse

•Cover
•Fixing Plate
•Radio Fixing Plate
•Rubber Sealing
•Cable Grommets
•Nylon Plug
•Strain Relief
•M5 Screw With O-ring
•M5 Screw And Washer
•M3 Screw
•Spacer Kit
