•Low profile design
•Supports 4G, 5G and LTE bands
•Small form factor
•Frequency range 617-5925MHz
•Highly rugged with IP67 rating for outdoor mobile or stationary installs

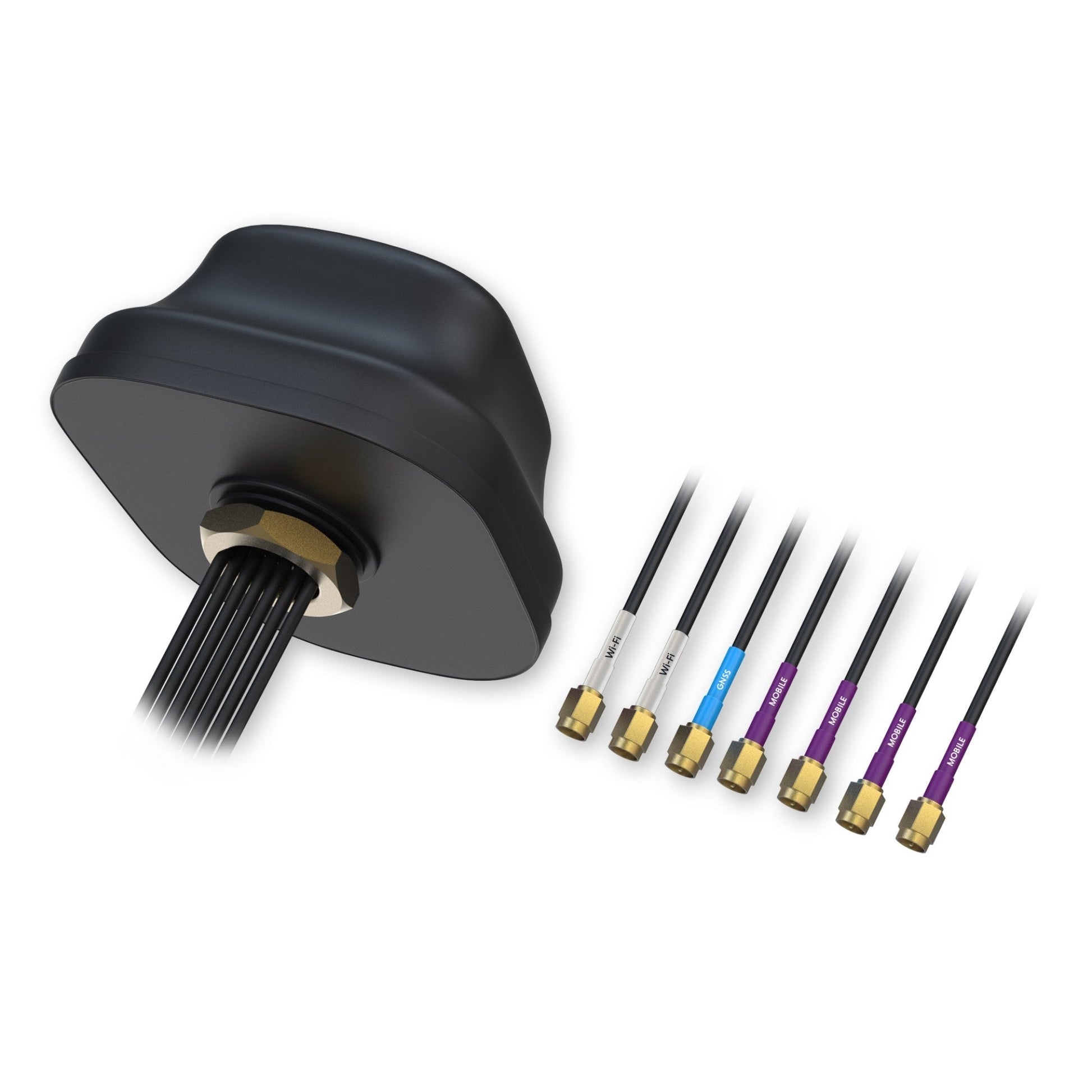

•Connectors: LTE - 4 x SMA, Wi-Fi - 2 x SMA-RP, GPS - 1 x SMA
•Frequency Range: Mobile - 617 - 960 MHz / 1710 - 2690 MHz / 2900 - 4200 MHz; GNSS - 1164 - 1300 / 1559 - 1610 MHz; Wi-Fi - 2400 - 2483.5 / 4900 - 5925 MHz
•Polarization: Linear (Mobile and Wi-Fi), RHCP(GNSS)
•Impedance: 50 Ω
•Cable: 7 x LMR100, 3000 mm
•Recommended Mounting Dimensions: Hole - ø28 mm, Panel thickness - 8 mm Max.
•Radome Material: UV-Resistant ABS/PC
•Operating Temperature: -40°C to +85°C (-40°F to 185°F)
•RoHS Compliant: Yes

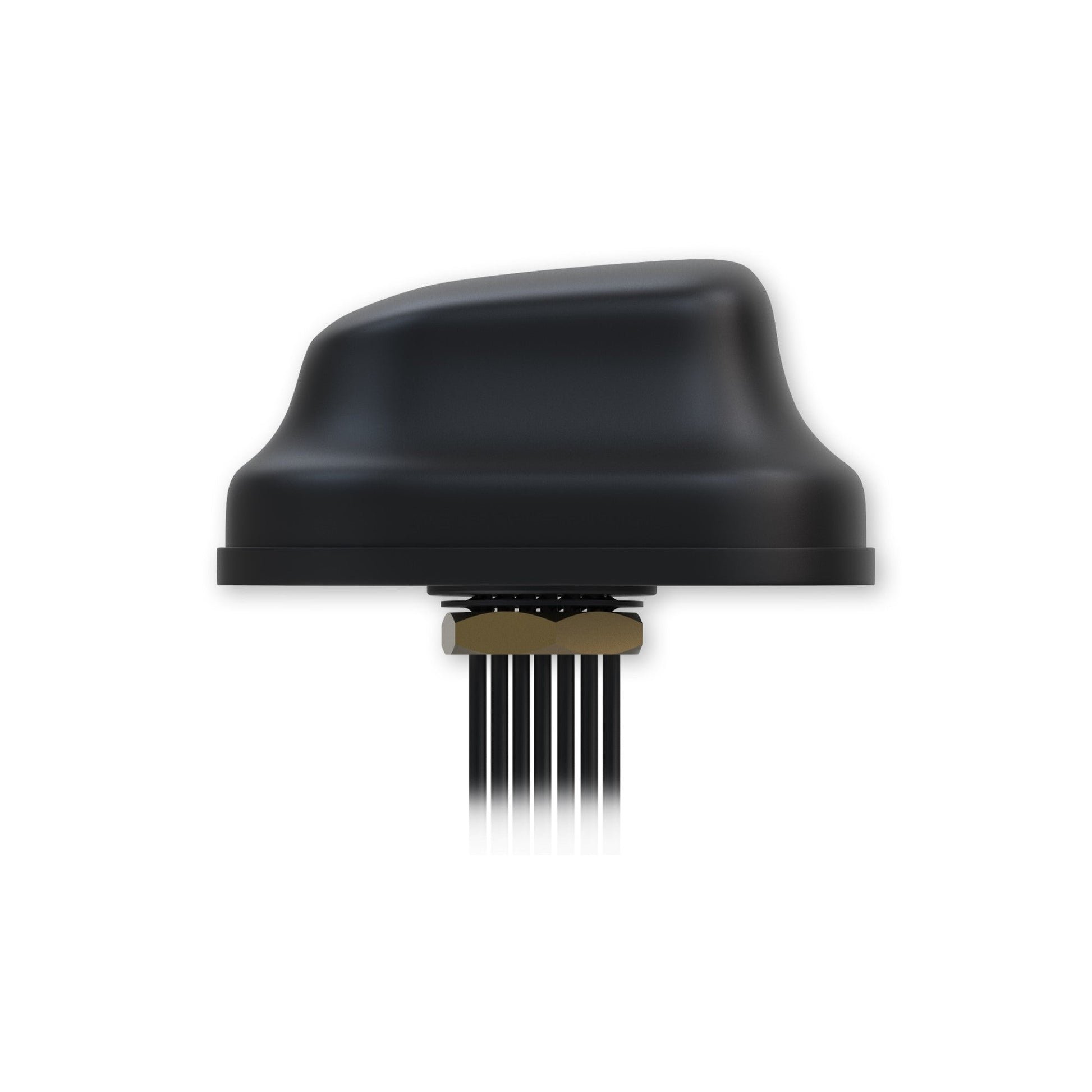

•1 x Combo bolt-mount Antenna
•7 x LMR100 cable (3-meter)
•Colour - Black
