•Alpha uniquely facilitates a ‘dying gasp’ alert when local power failures occur, saving upon unnecessary maintenance efforts
•Can be used as SU PRO, enabling an initial low-cost deployment using PtP while seamlessly migrating to Point-to-MultiPoint with network growth
•Long range - Up to 40 km (25 miles)
•Supports Jumbo frames

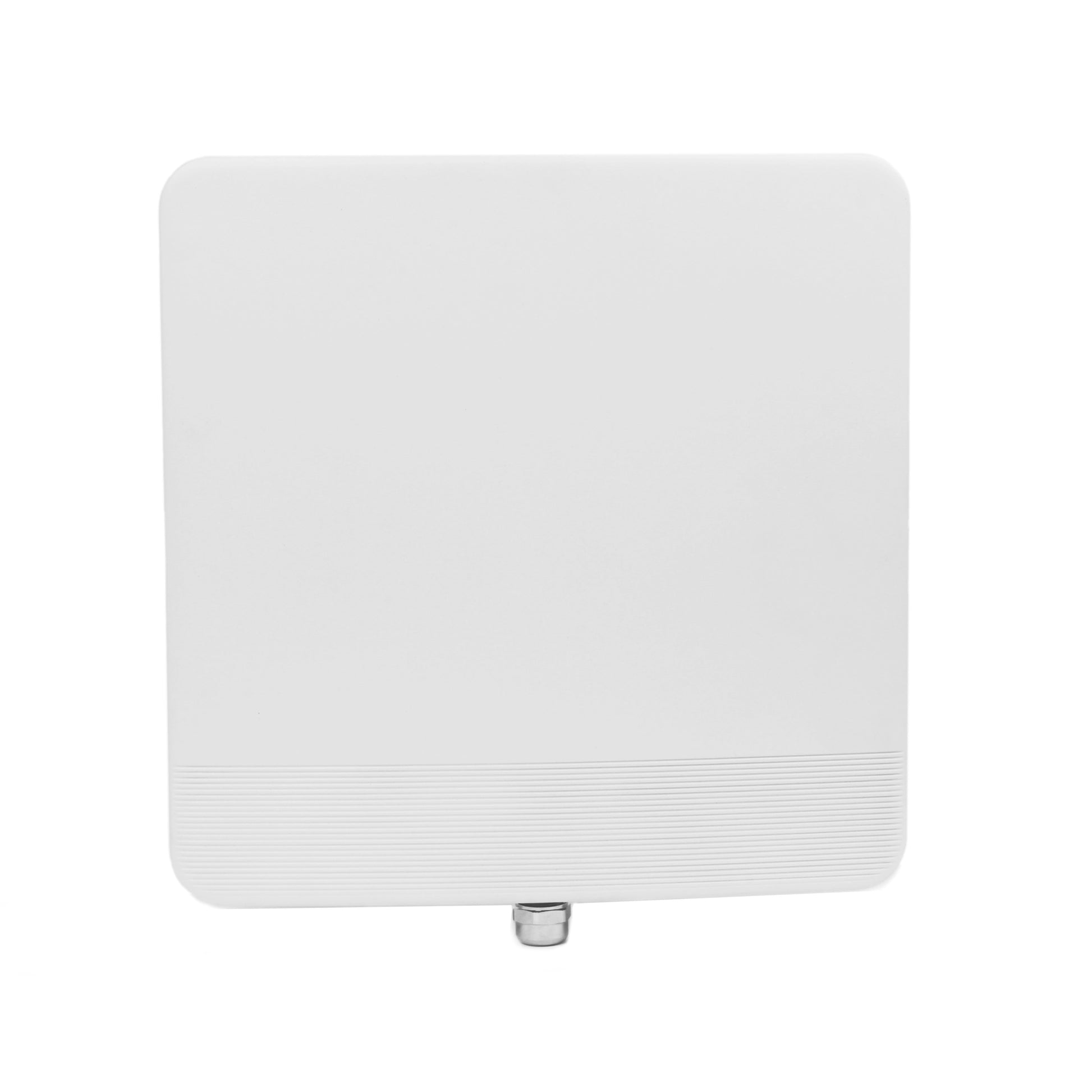

•Architecture: Outdoor Unit with 22dBi integrated antenna
•Data Interfaces: 10/100/1000 Mbps RJ45 PoE
•POE and ODU Interfaces: Outdoor CAT-5e; Maximum cable length - 75m for 1000BaseT
•Max Capacity: 500 Mbps net aggregate throughput (max 250Mbps per direction)
•Range: Up to 40 km (25 miles)
•Frequency Range: 4900 GHz – 6090 GHz (subject to regulation)
•Channel Bandwidth: Configurable - 10, 20, 40, 80 MHz (subject to regulation)
•Dynamic Channel BW Selection: 20/40/80 MHz
•Max TX Power: 26 dBm
•Power Feeding: Power provided over ODU-IDU cable
•POE Nominal Voltage: 24-56V (POE voltage >= 55V is required for dying gasp support)
•Operating Environment: Temperature -35°C to 60°C / -31°F to 140°F; Humidity 100% condensing

•1 x 2000 Alpha Integrated Antenna Radio Unit
•1 x IP67 Cable gland
•Pole mount bands
