•MultiSector is ideal for limited budget MicroPoP deployments, supporting a variety of service providers and private network applications
•Reduce base station site complexity to a minimum; save upon PoEs, switch and site wiring
•High capacity and scalable base station site: 1.5 Gbps to 3 Gbps per site, 2 to 4 sectors, 16 to 256 customers
•3rd party external antenna capability for extended reach
•Optional self-backhaul
•Spectrum efficiency using frequency reuse-2
•Better Interference immunity than an omni antenna
•IP67 protection means it is totally protected against dust and against immersion in water up to 1m

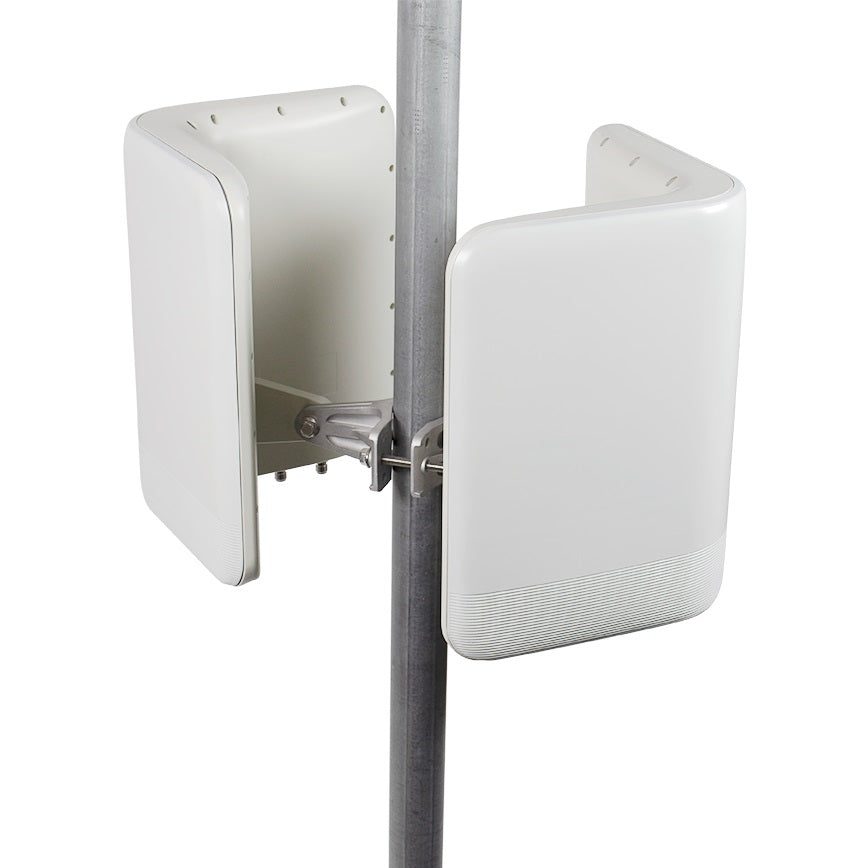

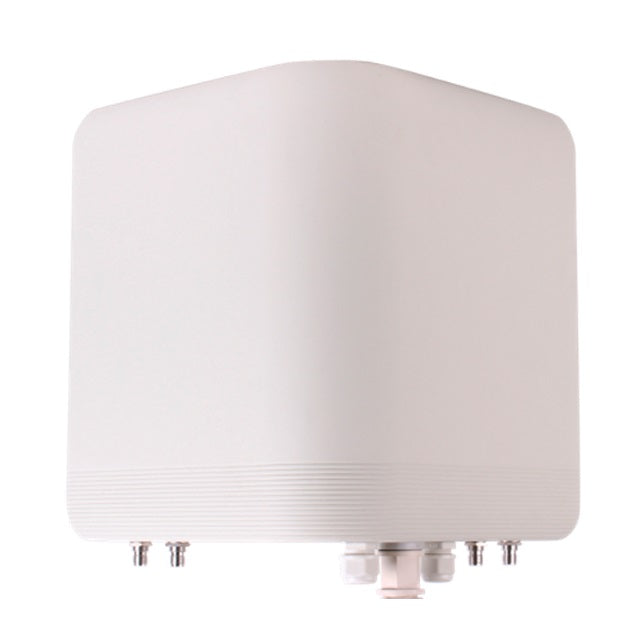

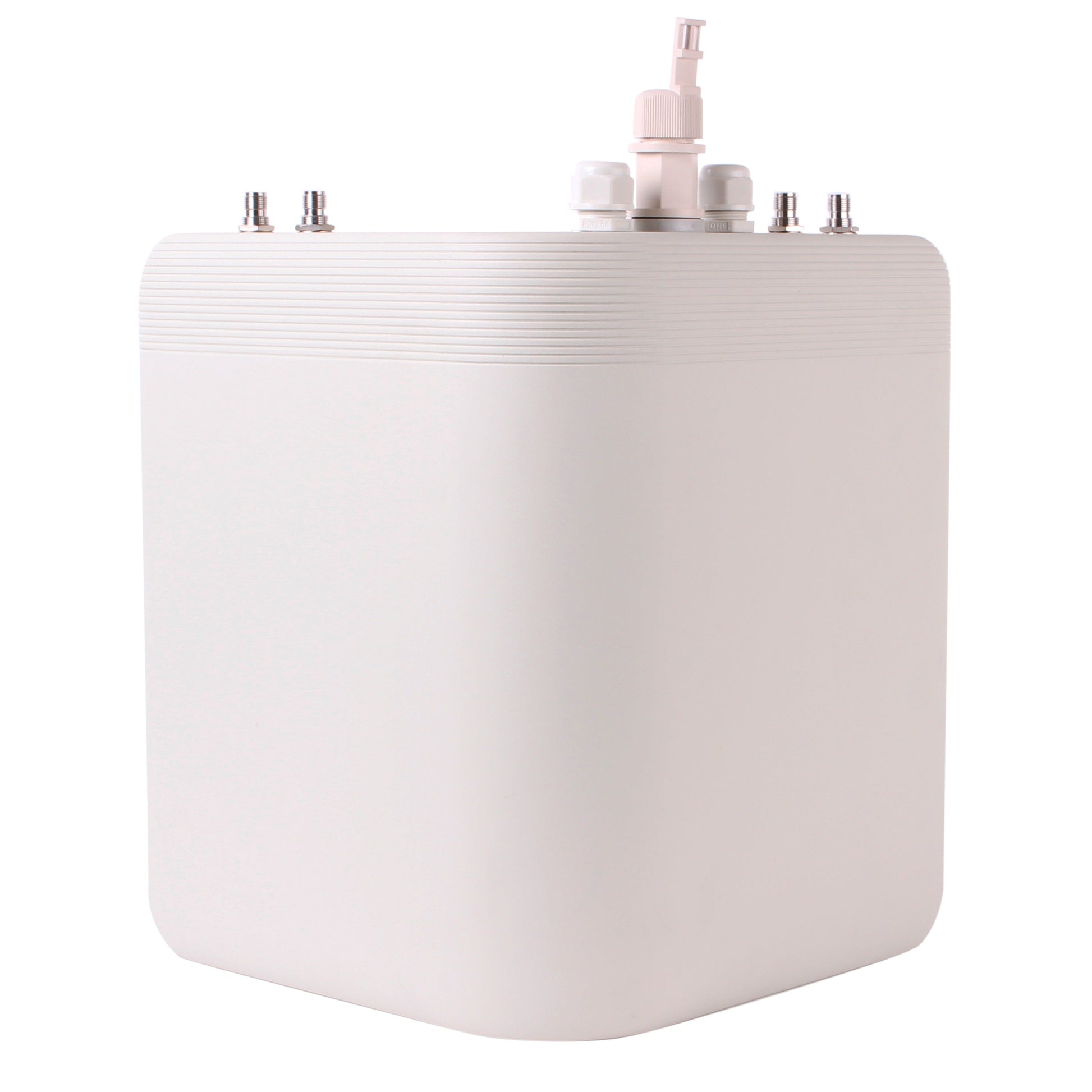

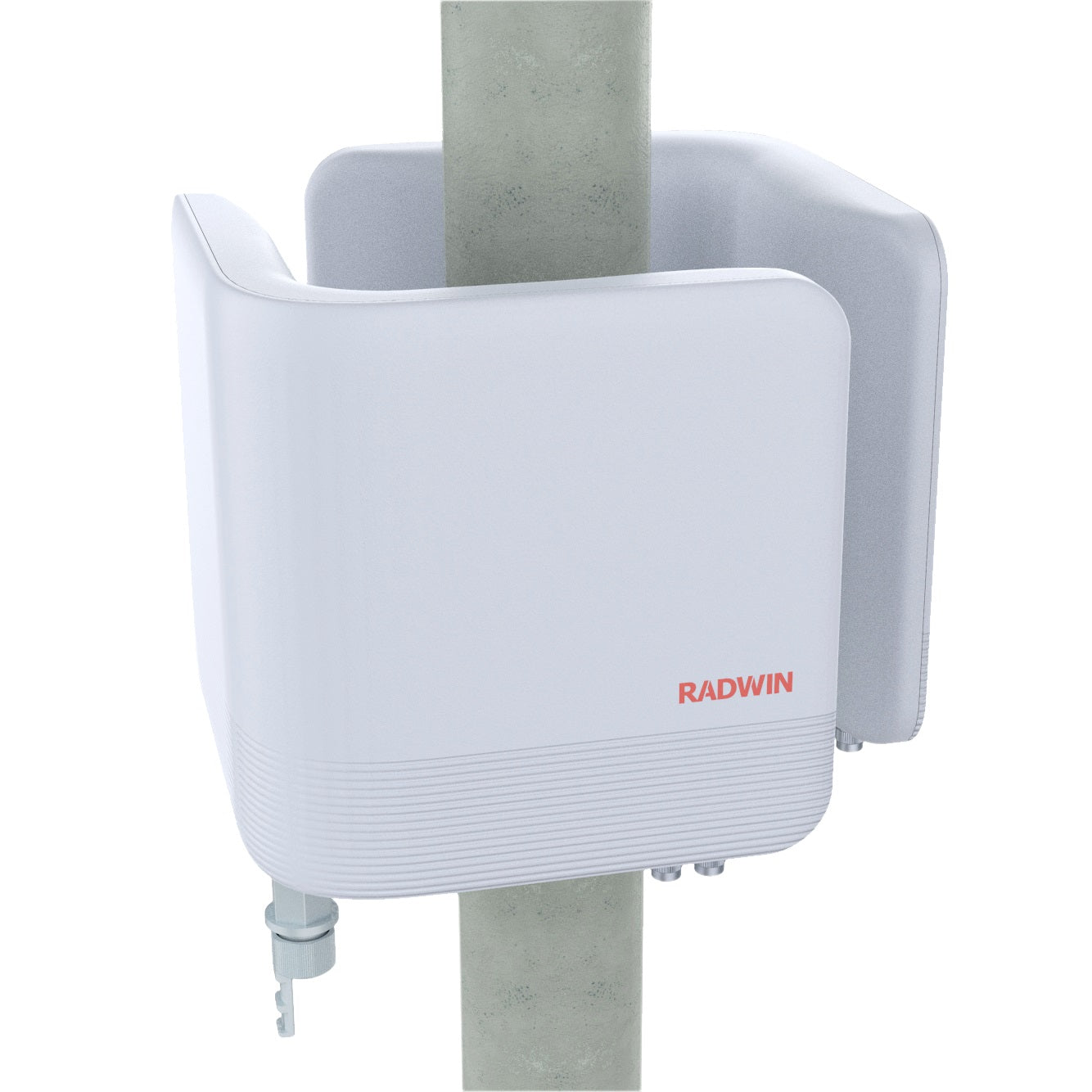

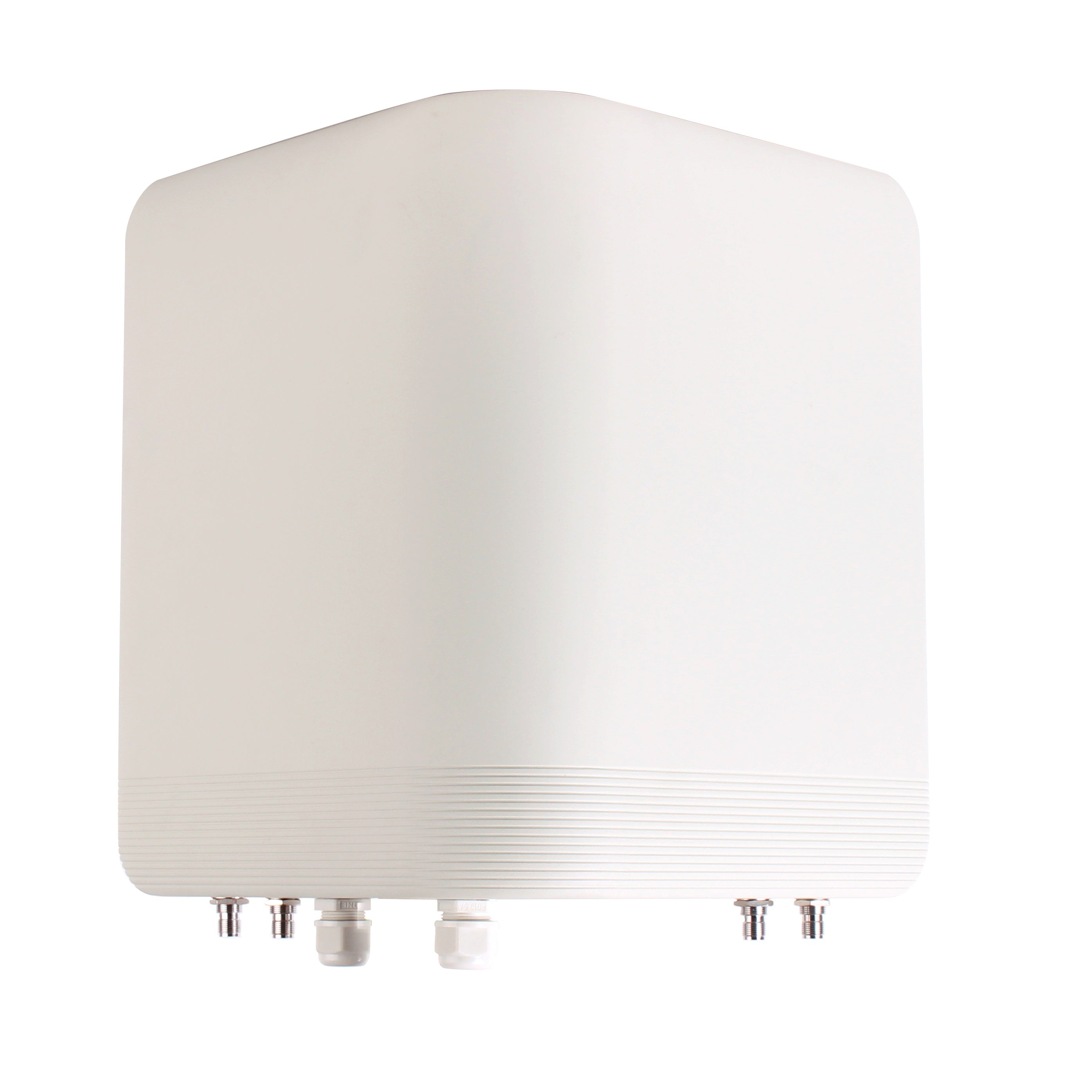

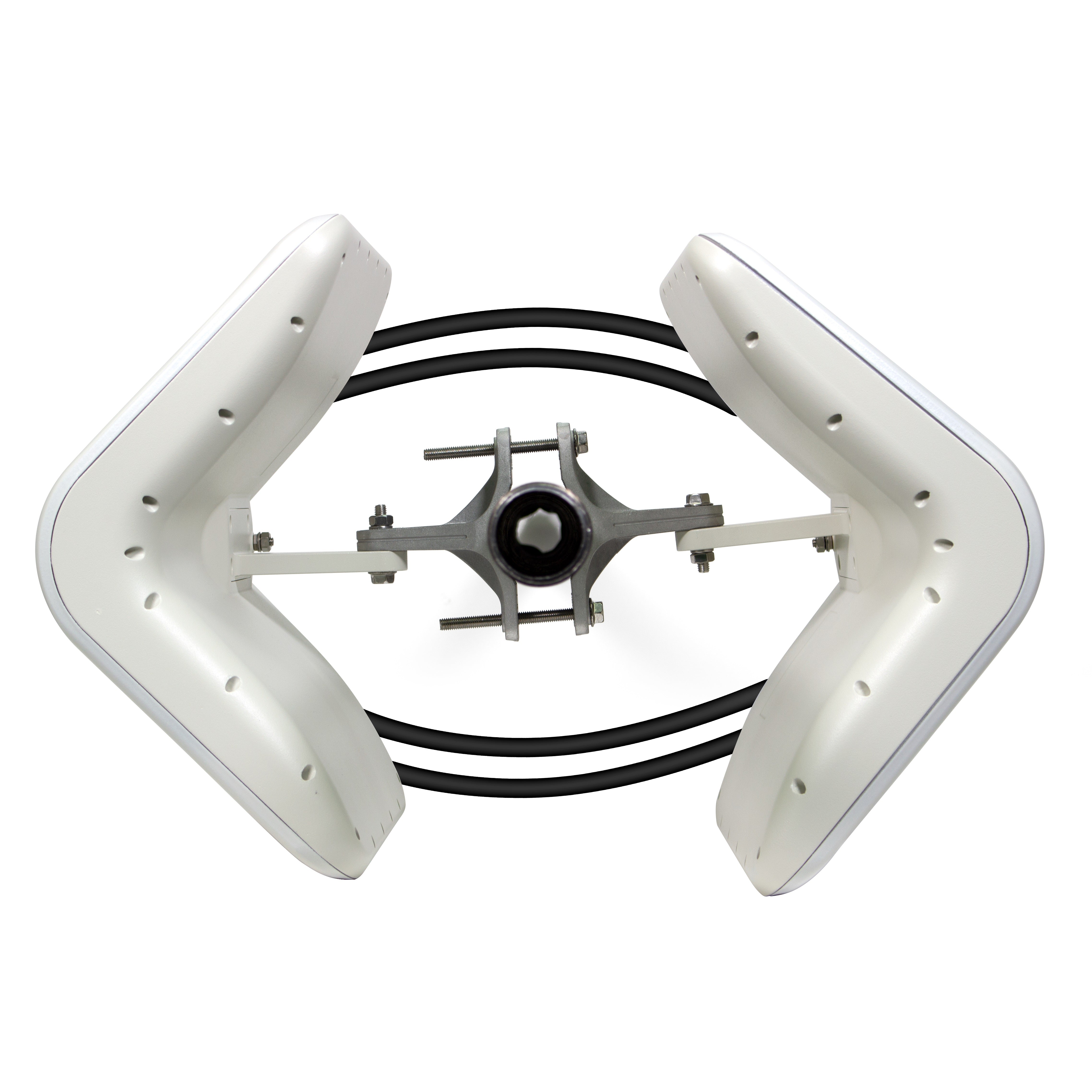

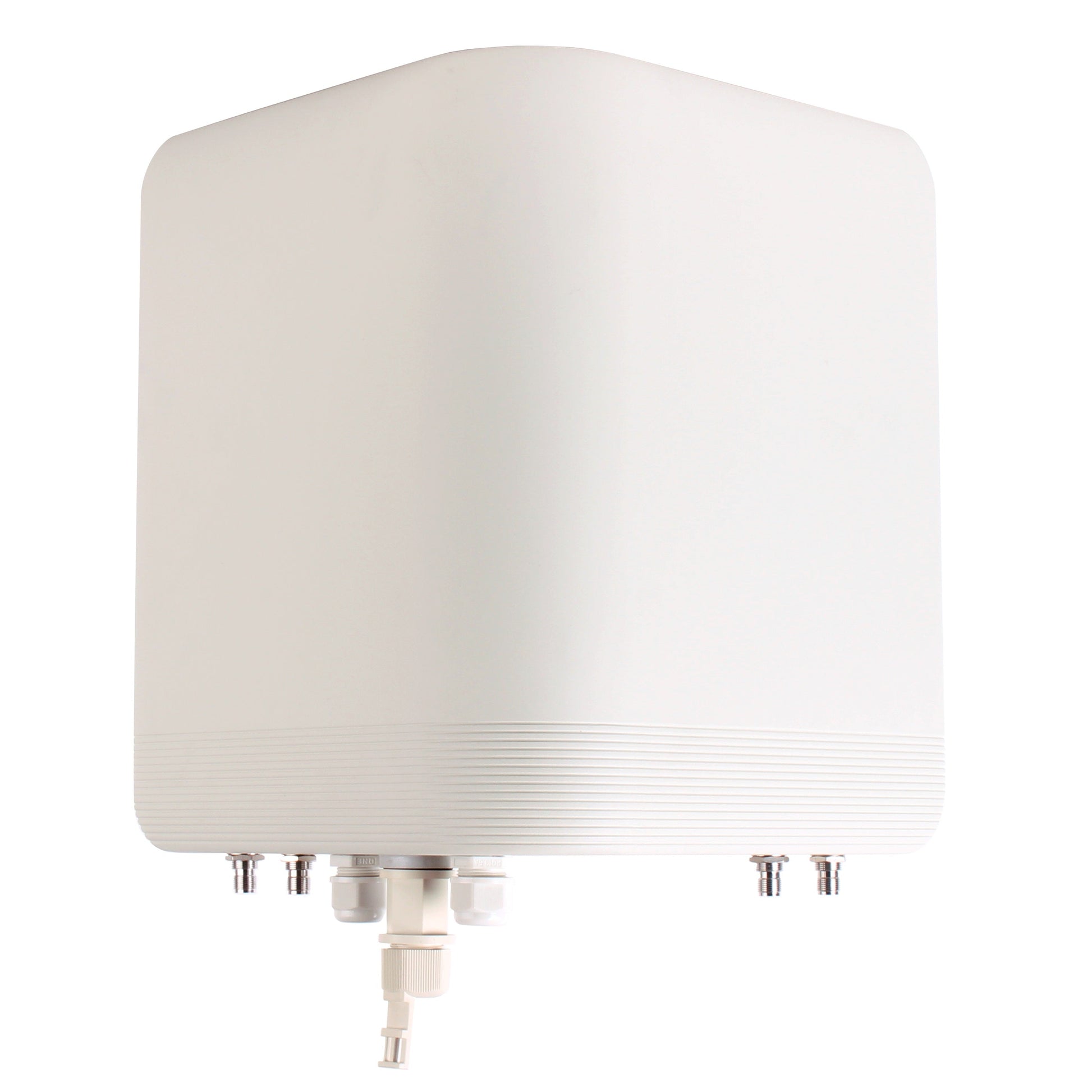

•Architecture: Outdoor unit with two 90˚ integrated antennas and connectors for 2 external antennas (4 x TNC type)
•Net Aggregate Capacity: Up to 1.5 Gbps (2 x 750 Mbps)
•Frequency Band and Regulation: FCC - 5.1, 5.8GHz, IC - 5.8GHz, Universal: - 4.9-6GHz, ETSI - 5.4, 5.8GHz
•Subscriber Units (SUs) Support: Up to 128 per unit
•End to End Latency: Typical - 3.5msec
•SLA Management: CIR, MIR, Best Effort
•Radio Access Scheme: OFDM, Auto MIMO 2x2 /Diversity per SU
•Adaptive Modulation: BPSK/QPSK/16QAM/64QAM/256QAM
•Duplex Technology: TDD, Configurable Uplink/Downlink ratio
•Max Tx Power: 23 dBm per radio per port
•QoS: Packet classification to 4 priority queues according to 802.1P or Diffserv
•Operating Environment: Temperature -35°C to 60°C / -31°F to 140°F; Humidity 100% condensing

•1 x RADWIN MultiSector Base Station
