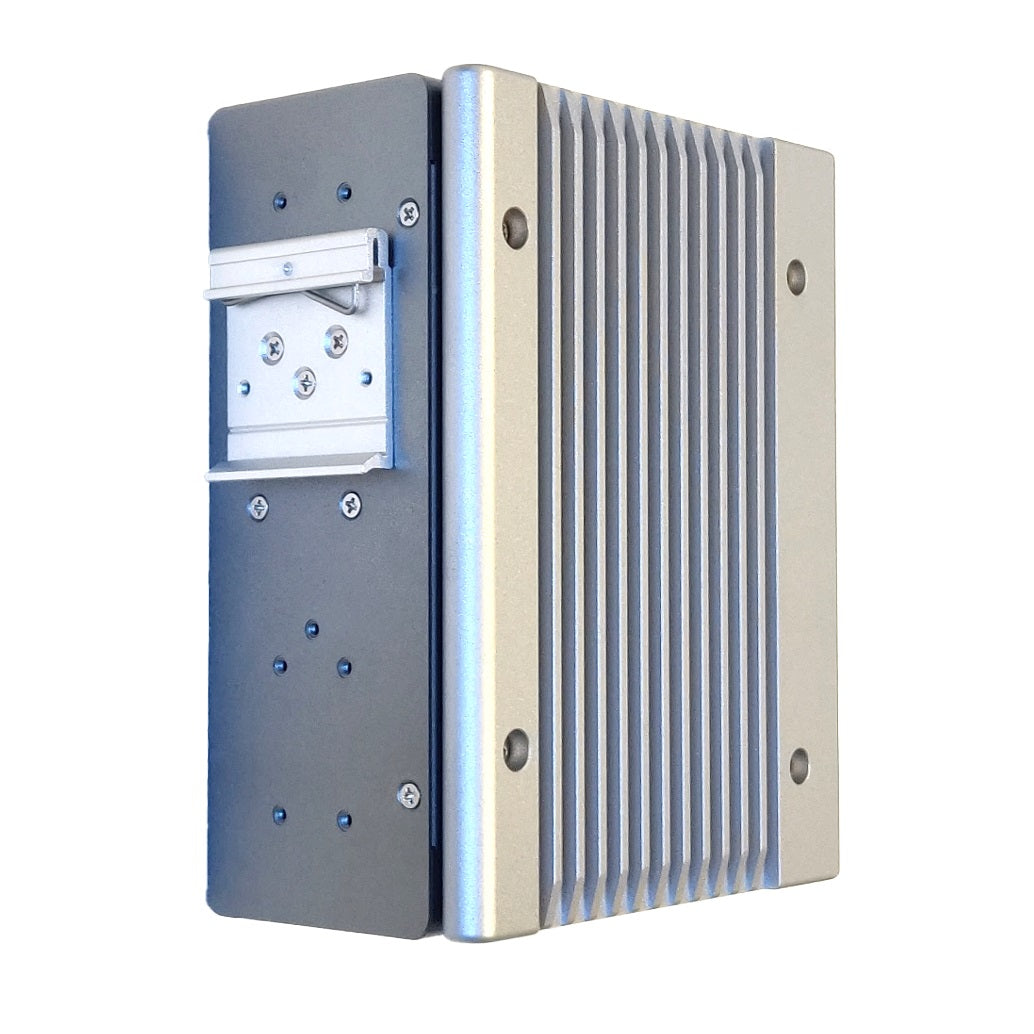

•DIN-rail mount, fanless, carrier-class, industrial-grade, extended temperature Ethernet switch
•Supports up to 8 x RADWIN ODUs and standard PoE devices
•Two uplink SFP+ ports of 10GbE/1GbE
•8 RJ45 user ports. Four rated up to 1GbE and supporting 90W, and 4 rated up to 2.5GbE supporting up to 90W PoE.
•Comprehensive Layer 2 switching and advanced Layer 3 routing capabilities
•Carrier-class protected ring topologies supporting EPS (G.8031), ERPS (G.8032) and Rapid Ring or MRP with a self-recover time of less than 20ms
•Redundant, dual DC power input
•Managed by CLI, web GUI or RADWIN WINManage NMS
•Supports Jumbo frames

•2.5 Gbps POE Ports: 4 x RJ-45 ports (100/1000/2500BaseTX with auto-negotiation); 90W POE++ (802.3af/at/bt and RADWIN POE support)
•1 Gbps POE Ports: 4 x RJ-45 ports (10/100/1000BaseTX with auto-negotiation); 90W POE++ (802.3af/at/bt and RADWIN POE support)
•PoE Features: Automatic detection of 802.3af/at/bt and RADWIN/passive POE; PoE watchdog, POE power-up delay timer
•Cable Length: CAT-5e up to 75m (1Gbps or 2.5Gbps), up to 100m (100Mbps)
•SFP Ports: 2 x dual speed 1/10Gbps SFP+ (1000BaseX / 10GBaseX)
•Console Port: RJ-45 (RS-232)
•Grounding: Ground wire connection point
•LEDs: DC Power Status, System Status, Alarm, Ring Status, POE status and Link/Activity/Speed for each POE port, Link/Activity/Speed for each SFP/SFP+ port
•Dry Contact: 1 Digital Input / 1 Digital Output Relay
•MAC Addresses Entries: 16K
•Switching Capacity: 68Gbps
•Forwarding Rate: 58Mpps

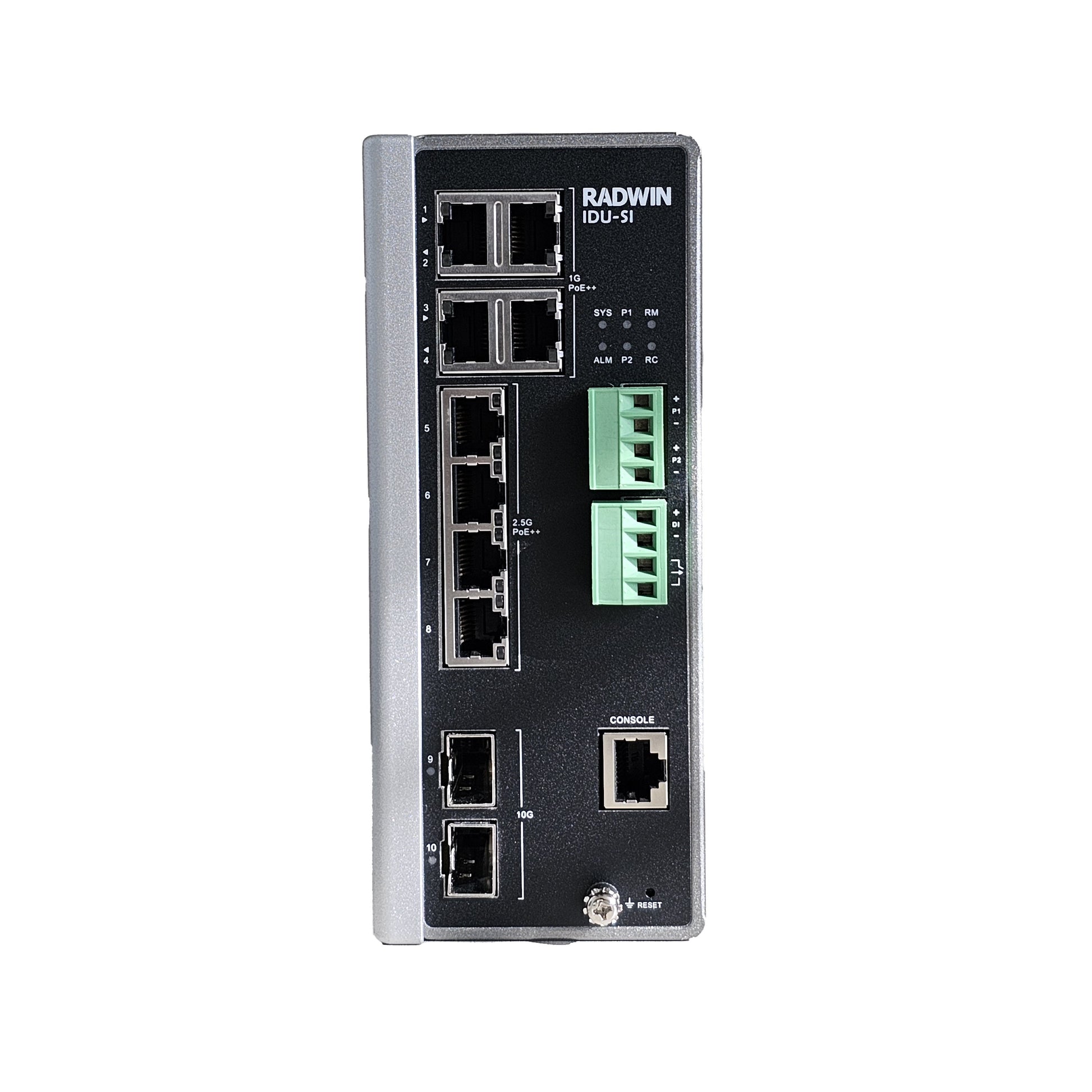

•1 x RADWIN IDU-SI Managed switch
