•Supports up to 6x RADWIN ODUs and standard POE devices
•Two uplink SFP+ ports of 10GbE/1GbE
•Four 1GbE SFP ports for fiber connectivity
•Comprehensive L2 switching capabilities

•PoE Interfaces: 6 x PoE ports operating in standard/legacy mode; Up to 90W per port; 802.3af/at/bt and all RADWIN ODUs
•Connector: Type RJ-45
•Impedance: 100Ω, Auto-negotiation 2.5Gbps/1Gbps/100Mbps, IEEE 802.3u
•SFP Ports: 2 x 10/1GbE, 2 x 1GbE, 2 x 1GbE (Combo)
•Copper Ports: 4 x 2.5GbE (100,1GbE,2GbE), 2 x 1GbE (10/100/1GbE)
•Console Port: RJ-45 (RS-232)
•Grounding: Ground wire connection point
•LEDs: 2x DC Power, 1x System, 2x POE and Link/Act/Speed mode selection, 2x (POE and Link/Act/Speed) for each POE port, 1x Link/Act/Speed for each SFP/SFP+ port
•Cable Length: Up to 75m
•Total PoE Budget: 540W
•Power Feeding: 2x DC IN redundant power feeding; 48-57VDC, up to 10A at 57V (full POE load); 802.3af @48-57VDC; 802.3at @50-57VDC; 802.3bt @52-57VDC
•Operating Environment: Temperature 0°C to 45°C / 32°F to 113°F; Humidity 100% condensing

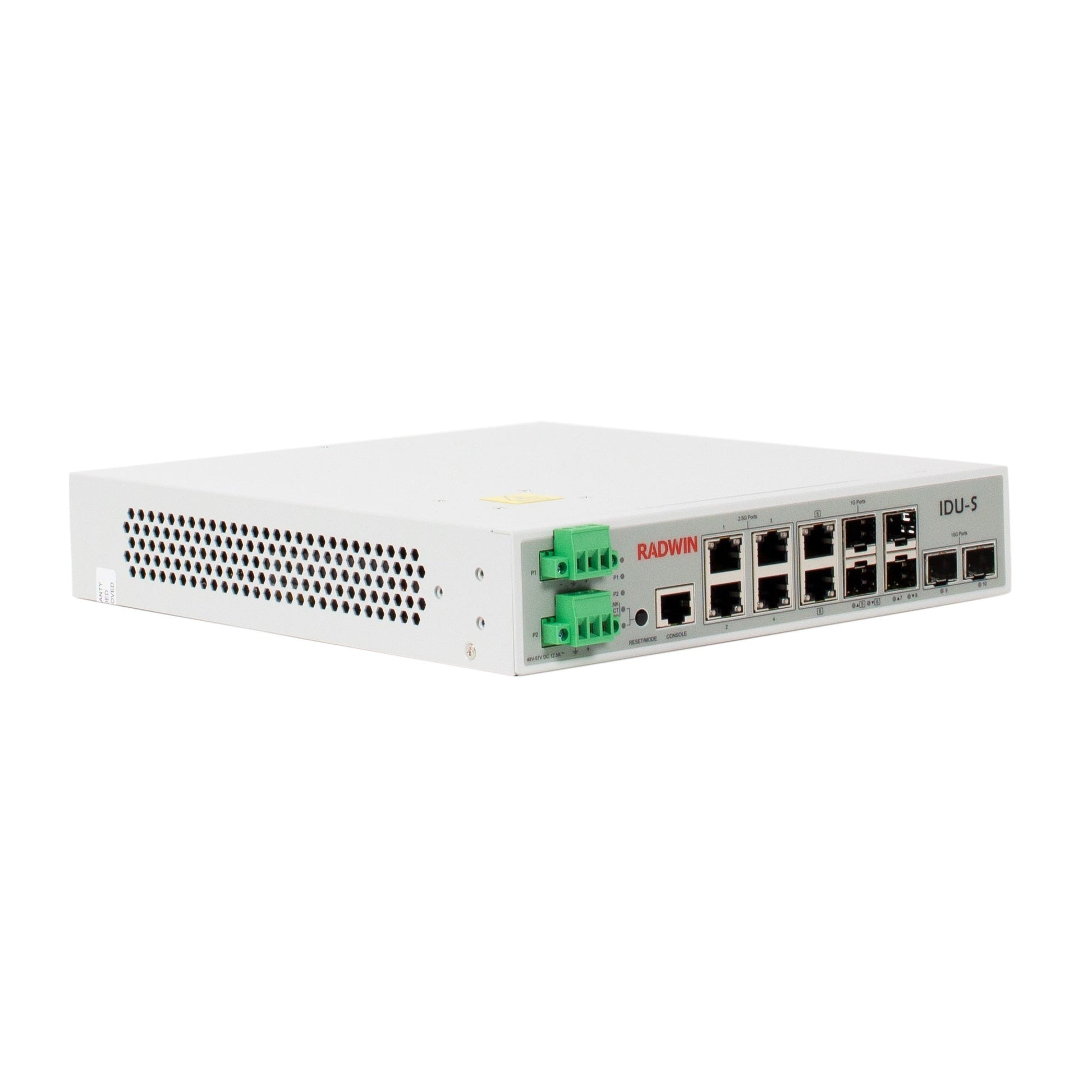

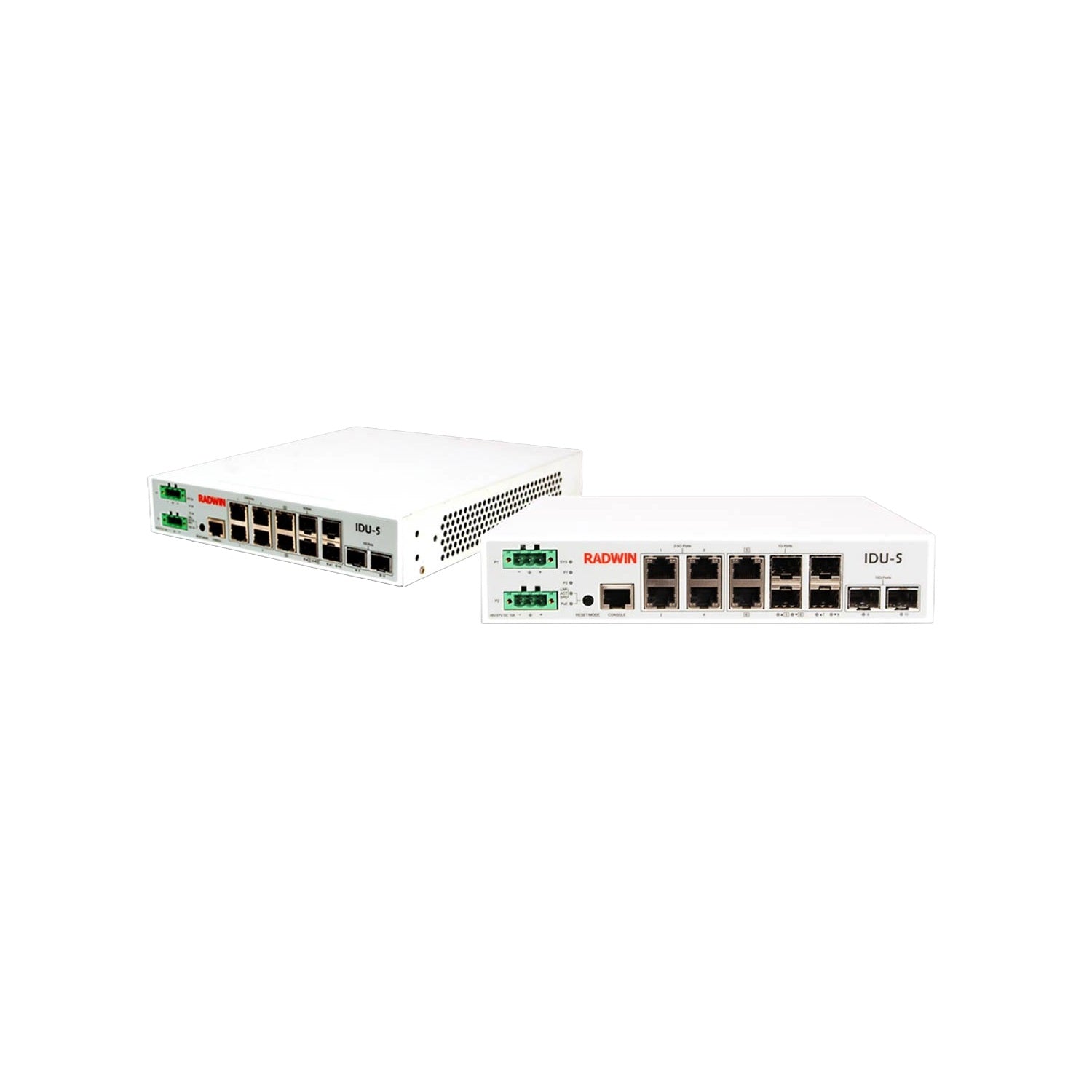

•1 x RADWIN IDU-S Managed switch
