•Extended temperature DC POE device
•Supports most of RADWIN product portfolio
•Up to 2.5Gbps Ethernet interface
•35 Watts POE power

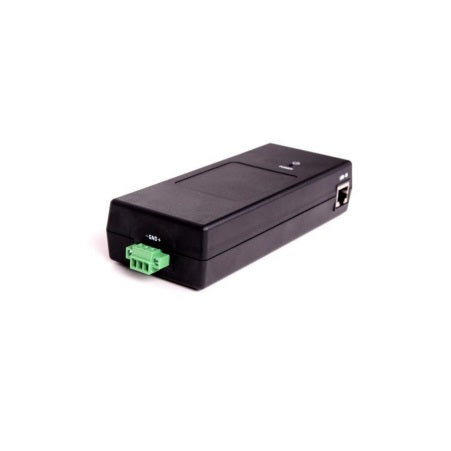

•Carrier class DC POE injector
•Wide 10-60V DC input range
•Rated power up to 35W
•Efficiency greater than 85%
•Overload, over-voltage and short circuit output protection

•DC Output Voltage: 55VDC
•POE Scheme: 2-pair passive POE (positive wires: 4,5, negative wires: 7,8
•DC Current per Wire Pair: 0.63A@35W
•Efficiency: >85%
•Rated Power: 35W
•Voltage Range: 10-60V DC
•Inrush Current: 80A@cold start
•DC Connector: Terminal Block (3 pins: +, -, ground)
•Wire Diameter: Up to 16 AWG
•Output Over Voltage/Short Circuit/Overload Protection: Supported
•Operating Environment: Temperature -40°C to 70°C / -40°F to 158°F; Humidity 0-95% non-condensing

•1 x DC PoE Injector
