•Supports data rates of up to 1000Mbps
•IP67 protection means it is totally protected against dust and against immersion in water up to 1m
•Small form factor
•High data voltage protection
•Fast response with RADWIN outdoor and indoor products
•Pole and wall mounting kits included
•Simple installations, ease of operation and maintenance

•Compatible Interfaces: 10/100/1000BaseT
•Data Rates: Up to 1000Mbps
•Nominal Operational Voltage: 48 VDC
•Maximum Operational Voltage 60 VDC - 650 mA
•Maximum Continues Current: 1 A
•Impedance: 90 to 110 Ohm
•Connection Type: RJ45 CAT5e STP (shielded)
•Pin-out: 8 wires + shielding
•Pins Protected: All pins protected
•Response Time: <5 microseconds (with ODU)
•Nominal Discharge Currents: Line to Line - 500 A @ 8/20μs; Line to Ground - 2000 A @ 8/20 μs
•Operating Environment: Temperature -40°C to 60°C / -40°F to 140°F; Humidity 100% condensing

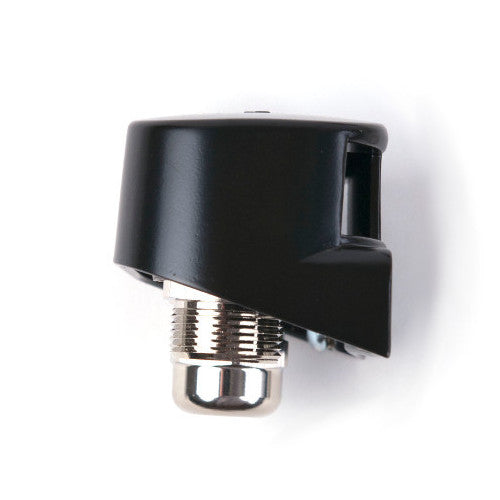

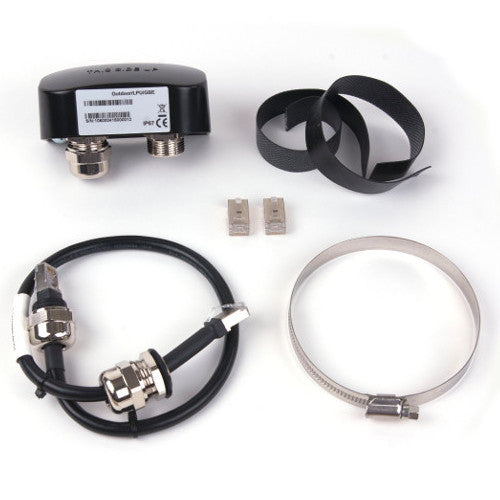

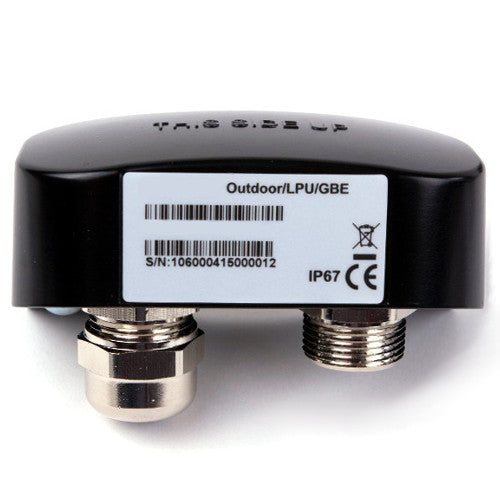

•1 x Outdoor Lightning Protector
•1 x CAT5e cable (0.5-meter)
•1 x Stainless steel pole mounting band
•1 x Wall mounting kit
