• Supports up to 32 Flex Bridges via TDMA: Enables scalable multipoint networks across multiple buildings or remote endpoints
• 120° Wide Beamwidth for Multipoint Hub Deployment: Deliver extensive, high-quality wireless coverage for wide-area deployments
• 3.1 mi (5 km) Long-Range 5 GHz Connectivity: Delivers dependable 867 Mbps speeds via powerful 16 dBi dual-polarized directional antennas

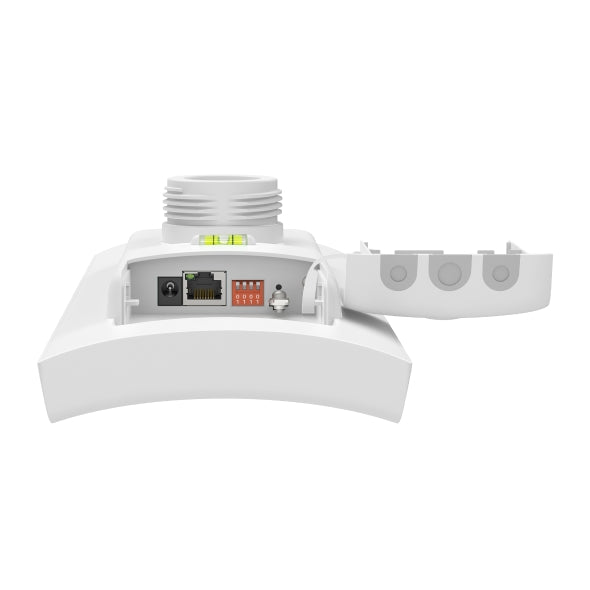

• DIP Switches for Simple Pairing: Reduces configuration and deployment complexity
• Easy & Versatile Installation: Supports wall or pole installations, with a built-in bubble level and a ball-joint mount for accurate adjustment
• Designed for Outdoor Durability & Reliability: Features an IP66 weatherproof enclosure, 6kV lightning protection, and an operating range of -40 °C to +70 °C
• App-Guided Alignment: Visual alignment guidance and instant speed testing simplify long distance setups and verify performance
• Flexible Power Supply: Supports 802.3af PoE, 24V Passive PoE (adapter included), and 12V DC
• Remote Monitoring with Standalone & SDN Management: Standalone mode or Omada SDN mode enables remote centralized management via Web UI or app

• Wireless Functions: MU-MIMO: 5G 2x2 MU-MIMO DL, Wireless Statistics, Reboot Schedule, RADIUS Accounting, Static IP/Dynamic IP, Rate Limit, Enable/Disable Wireless Radio, Enable/Disable SSID Broadcast
• Transmission Power; CE:6-23 dBm (5 GHz, U-NII-1 & U-NII-2A, EIRP)
6-30 dBm (5 GHz, U-NII-2C, EIRP), FCC: 4-23 dBm (5 GHz, U-NII-1), 4-25 dBm (5 GHz, U-NII-3)
• Interface: 1× Gigabit Ethernet Port
• Wireless Security: VLAN, Rogue AP Detection, Wireless Encryption
• Centralized Management: Omada Central (Cloud-Based), Omada Hardware Controller, Omada Software Controller
• Management Features: Omada App, Restore & Backup, Firmware update via Web, NTP, Cloud Access (Require the use of an Omada Controller), Email Alerts, LED ON\OFF Control, SNMP, SSH, Web-based Management, Zero-Touch Provisioning
• Weatherproof Enclosure: IP66
• Certifications: CE, FCC, RoHS
• Power Supply: 12V DC/1A, 802.3af PoE, 24V Passive PoE (Passive PoE Adapter Included - For Dry Indoor Use Only)
• Transmission Distance: 3.1 mi (5,000 m)
• Lightning Protection: Air discharge: ±8kV, Contact discharge: ±4kV, Common mode 10/700: ±6kV
• Environment : Operating Temperature: -40 °C–70 °C (-40 °F–158 °F); Storage Temperature: -40 °C–70 °C (-40 °F–158 °F); Operating Humidity: 10%–90% non-condensing; Storage Humidity: 5%–90% non-condensing

• 1x Sector Bridge 5
• 1x Installation Guide
• 1x Mounting Kit
• 1x Passive PoE Adapter
• 1x Power Cord

14.1-in x 4.9-in x 2.8-in
