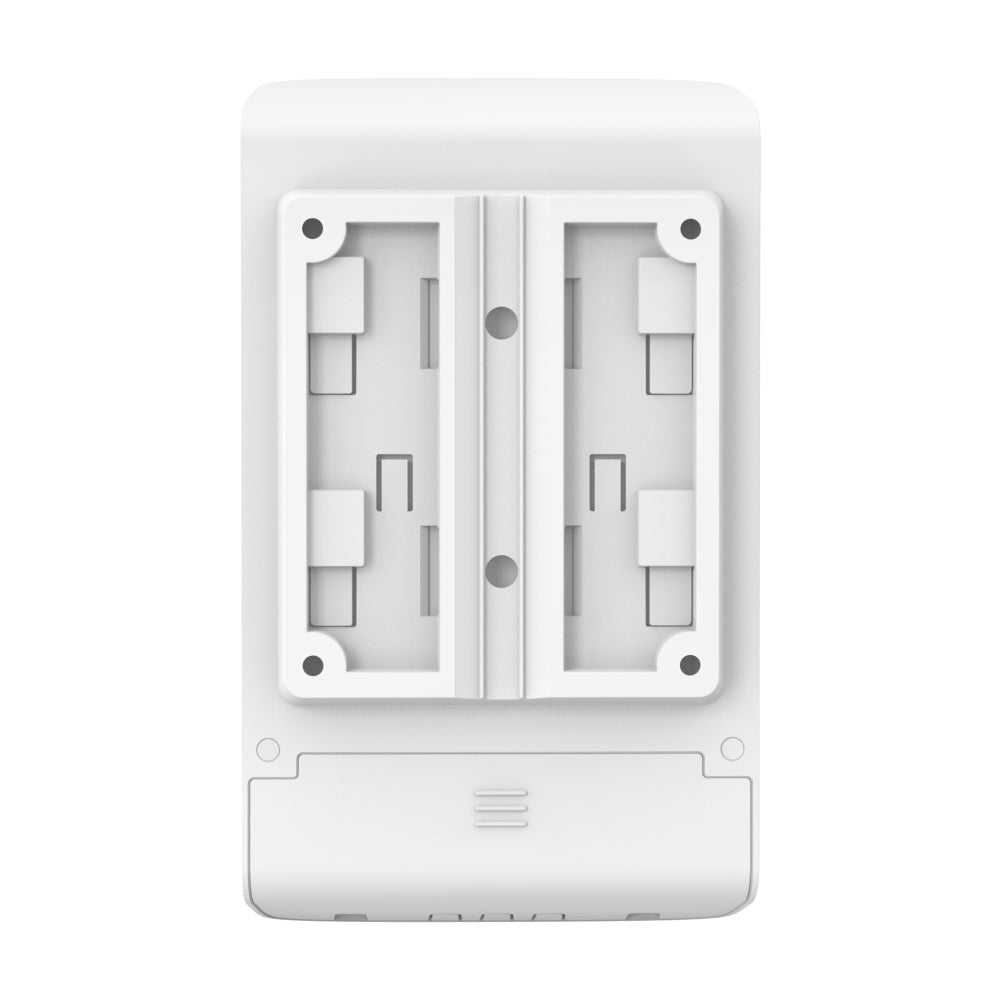

•Easy Installation: Easy to mount to a wall or pole with the provided mounting kits to flexibly fit your needs.
•Centralized Cloud Management: Integrates into Omada SDN for cloud access, remote management, and multi-site management.
•Value-Added Features Foster Touchpoint Experiences: Static Routing, Access Control List (ACL), QoS, and VLAN.
•IP55 waterproof, dustproof, and UV-resistant enclosure.
•Operation temperatures of -40 to 60 °C and 4KV lightning protection further ensure stable operation against harsh outdoor conditions.
•Static Routing - Helps route internal traffic for more efficient use of network resources
•Access Control List - obtain data in accordance with user-defined network rules and helps you create the network regulations you need
•Designate the priority of traffic based on QoS, ensuring latency-sensitive applications, like voice and video, remain clear and lag-free
•VLAN allows for logical grouping management of devices in different physical LANs, improving information security and reducing data congestion

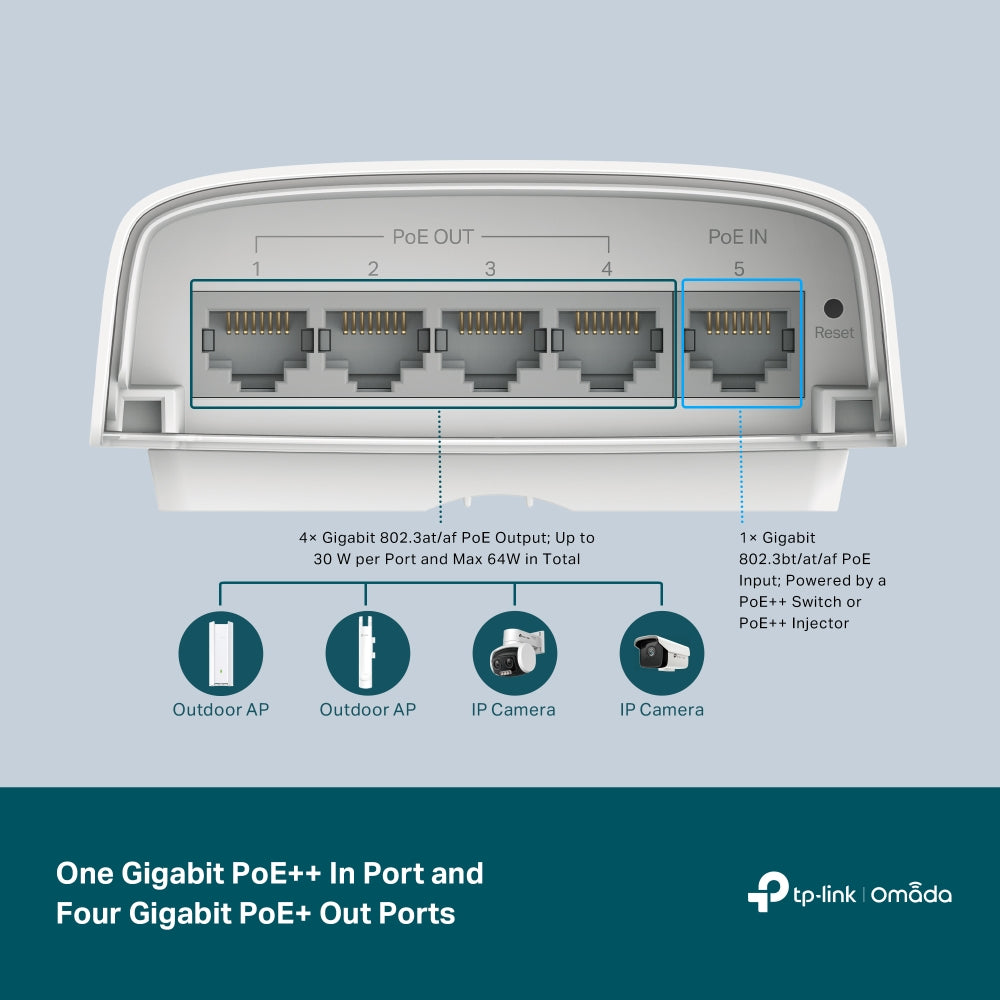

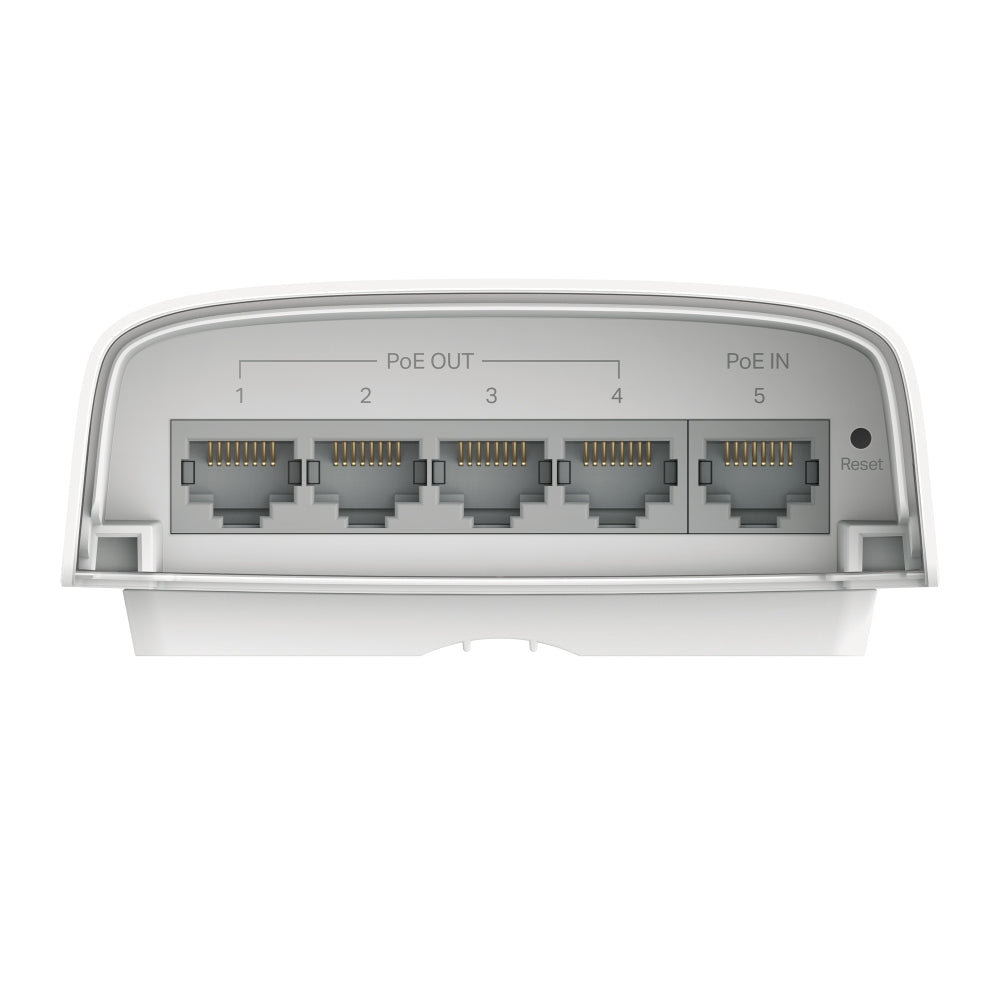

•Interface: 1 × 10/100/1000 Mbps RJ45 PoE In Ports (compliance with 802.3af/at/bt), 4 × 10/100/1000 Mbps RJ45 PoE Out Ports (compliance with 802.3af/at PoE)
•Standards and Protocols: IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1x
•Network Media: 10BASE-T = UTP category 3, 4, 5 cable (maximum 100m), 100BASE-TX/1000Base-T = UTP category 5, 5e or above cable (maximum 100m)

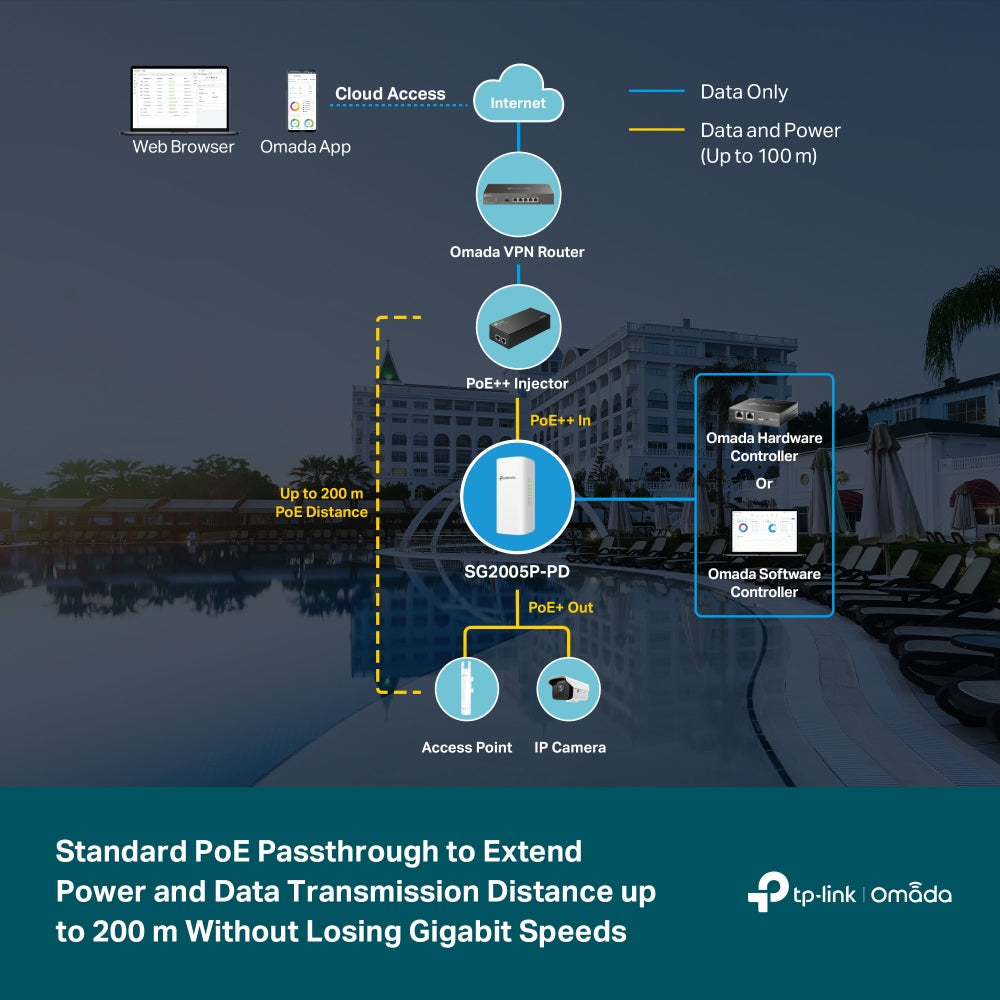

•PoE Ports (RJ45): PoE In Port = Port 5, Compliance with 802.3af/at/bt, PoE Out Ports = Ports 1-4, compliance with 802.3af/at PoE
•Max. Power Consumption: 71.5 W (when powered by 802.3bt Type 4 (90 W))
•Max. Heat Dissipation: 243.99 BTU/hr (when powered by 802.3bt Type 4 (90 W))
•Switching Capacity: 10 Gbps
•Packet Forwarding Rate: 7.44 Mpps
•MAC Address Table: 8k
•Packet Buffer Memory: 4.1 Mbit
•Certification: CE, FCC, RoHS
•Operating Environment: Temperature -40°C to 60°C (-40°F to 140°F), Humidity 10%~90% non-condensing

•1 x SG2005P-PD
•1 x Wall Mounting Kit
•1 x Pole Mounting Kit
•Installation Guide
