•Incredible bandwidth: 4.9-6.425 GHz
•Symmetric radiation pattern with excellent isolation to noise
•Mounting hardware ready to easily fix different radios
•Quick and practical azimuth and elevation adjustment

•Frequency Range: 4.9 GHz - 6.425 GHz
•High band gain: 10.9 dBi; Mid band gain: 10.3 dBi, Low band gain: 9.2 dBi
•-6 dB beamwidth: 90 degrees
•-3 dB beamwidth: 61.4 degrees
•XPD: >24 dB
•VSWR: 1.8:1 (max); 1.5:1 (typ)
•Port-to-Port Isolation: >30 dB
•Polarization: Double (V and H or +/- 45 degrees)
•Antenna input: N Female or SMA Female Reverse
•Elevation Adjustment: +/- 20 degrees
•Azimuth Adjustment: +/- 20 degrees

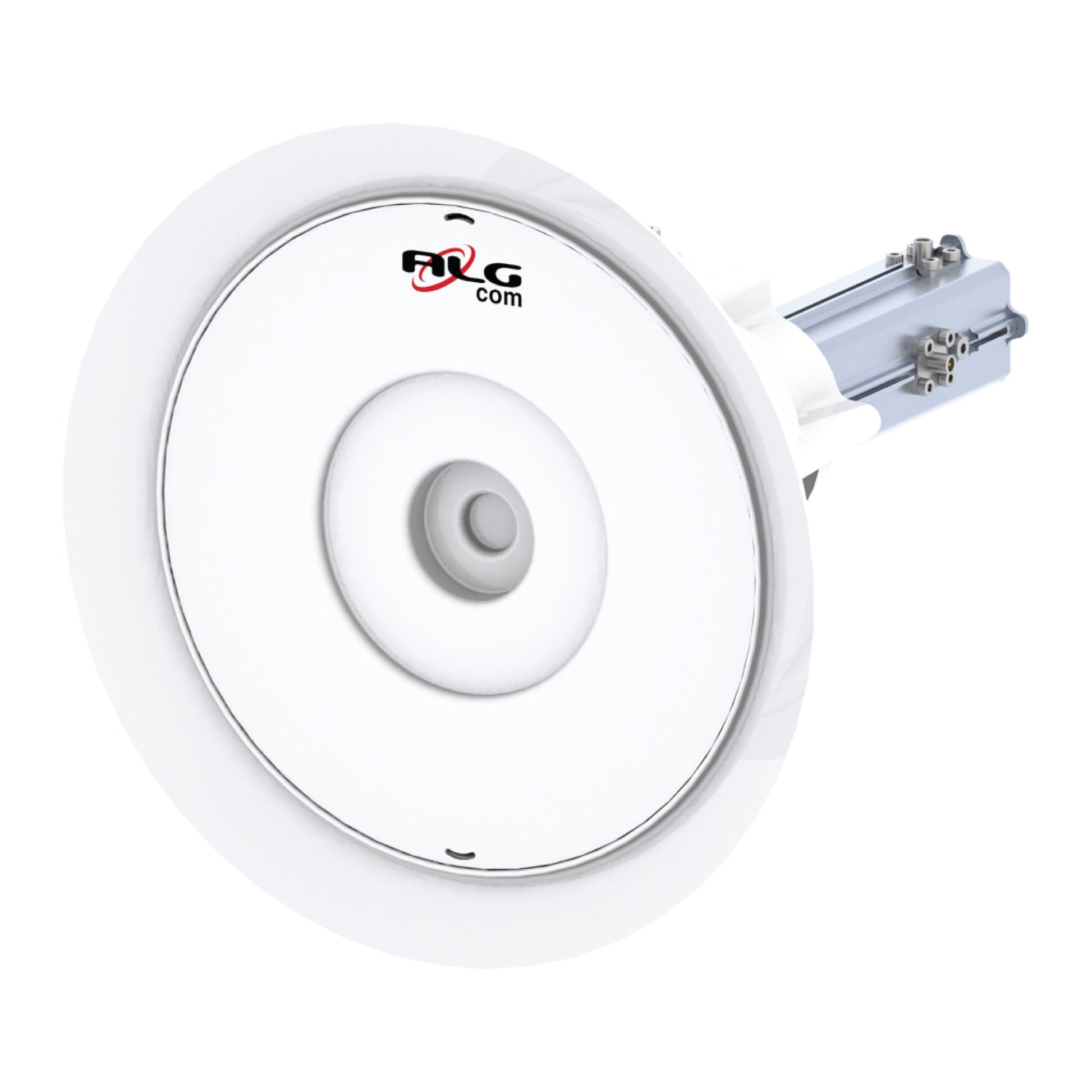

•Symmetrical Horn
