•Latest designed MoCA protected setup (MPS) allows one press pairing for the home network install
•It makes the self installation for end user to setup the network easily, and also isolate the home connection from the neighborhood
•It supports up to 3.0 Gbps throughput with low packet loss rate and low latency
•It works at high frequency range (Frequency range is between 1125~1675 MHz)
•Link layer adopts TDMA protocol, MP2MP structure so each device can communicate with any other one (All the adapters adopt the same TDD)
•Physical layer adopts advanced ACMT mode that is OFDMA, allowing a strong interference-proof capability by avoiding high noise at lower frequency

•NOTE#1: Tech Specs Provided Are For Both Adapters Individually

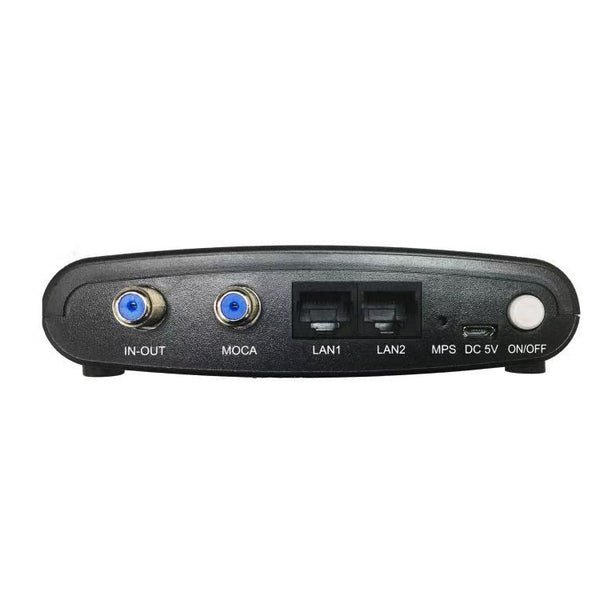

•Ethernet Ports: 2 x RJ45, 1000BASE-TX
•Maximum PHY Rate: 3.6Gbps
•Standard Channel: 1125 ~ 1625MHz
•Cable in-Port Frequency: 5 ~ 1675MHz
•MoCA Port Frequency: 1125 ~ 1675MHz
•TV Out Port Frequency: 5 ~ 1002MHz
•Maximum Nodes: 16
•Transmitting Distance: 300ft (91m)
•Compatibility: Backward Interoperable with MoCA 2.0 and MoCA 1.1

•2x Network Adapter
•2x 5V Power Adapters with Cables
•2x Ethernet Cables
•2x Coaxial Cables
•2x Network Adapters
•1x User Manual
