•All five gigabit connecting ports provide high-speed wired connectivity
•Built-in firewall and ACS filtering for easy penetration and blocking settings
•Works with standard 802.1Q switches for multiple subnet separation and communication (Multi-Nets NAT for direct Internet access from any VLAN)
•Advanced ACS policies, DoS defense, IP/MAC/URL filtering, and more security functions protect your network and data

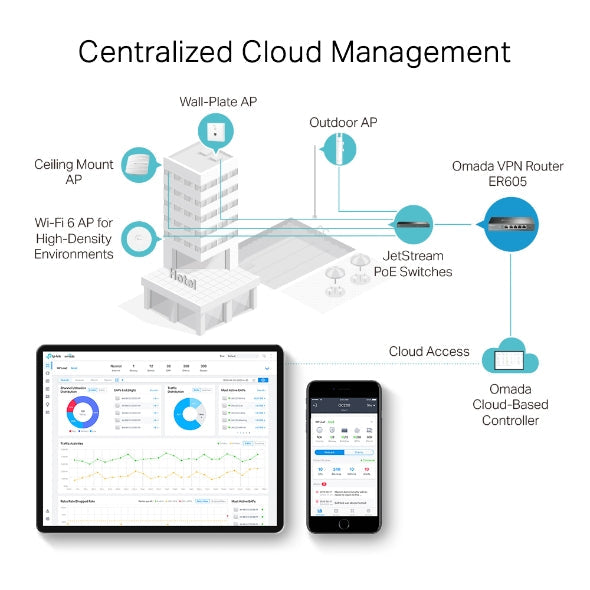

•Work with center control Omada SDN controller enables cloud access for easy management and deployment (Omada App available)
•Up to four WAN connections connecting to four different Internet service providers and private links

•Standards and Protocols: IEEE 802.3, 802.3u, 802.3ab, IEEE 802.3x, IEEE 802.1q; TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPsec, PPTP, L2TP, OpenVPN, SNMP
•Bandwidth Control: IP or Port-based Bandwidth Control, Guarantee & Limited Bandwidth
•Network Media: 10BASE-T (UTP category 3, 4, 5 cable - Max 100m; EIA/TIA-568 100? STP - Max 100m); 100BASE-TX (UTP category 5, 5e cable - Max 100m; EIA/TIA-568 100? STP - Max 100m); 1000BASE-T (UTP category 5, 5e, 6 cable - Max 100m)
•Concurrent Session: 25,000
•WAN Connection Type: Static/Dynamic IP, PPPoE, PPTP, L2TP
•VPN Connection: Supports and manages up to 20× LAN-to-LAN IPsec, 16× OpenVPN (with an Omada SDN controller), 16× L2TP, and 16× PPTP
•IPsec VPN Throughput: 41.5 Mbps (EAP-SHA1-AES256)
•Maintenance: Time Setting, Diagnostic, Firmware Upgrade, Factory Defaults/Reboot, Backup & Restore, System Log, Remote Management, Statistics, Controller Settings, SNMP
•ACL: IP/Port/Protocol/Domain Name Filtering

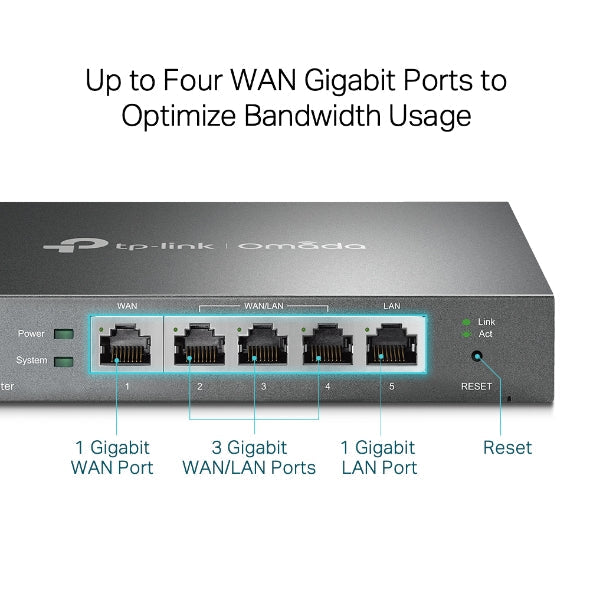

•Interface: 1x Fixed Gigabit WAN Port, 1x Fixed Gigabit LAN Port, 3x Changeable Gigabit WAN/LAN Ports
•Operating Temperature & Humidity: 0°C to 40° C (32°F to 104°F) & 10–90% RH non-condensing

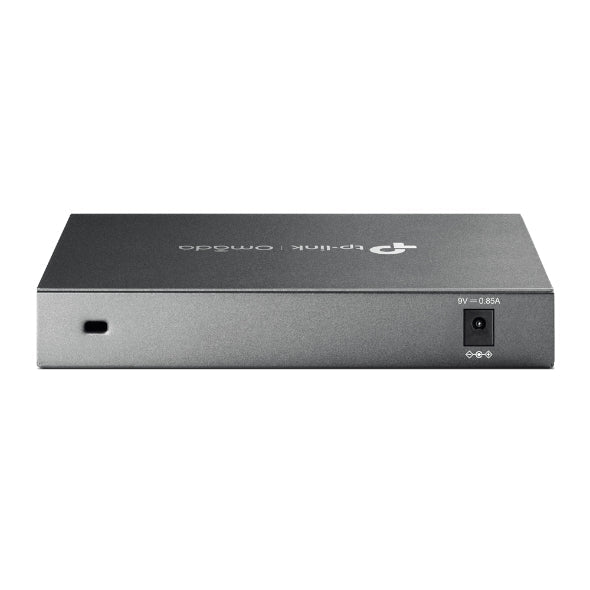

•Power Supply: External 9V/0.9A DC Adapter

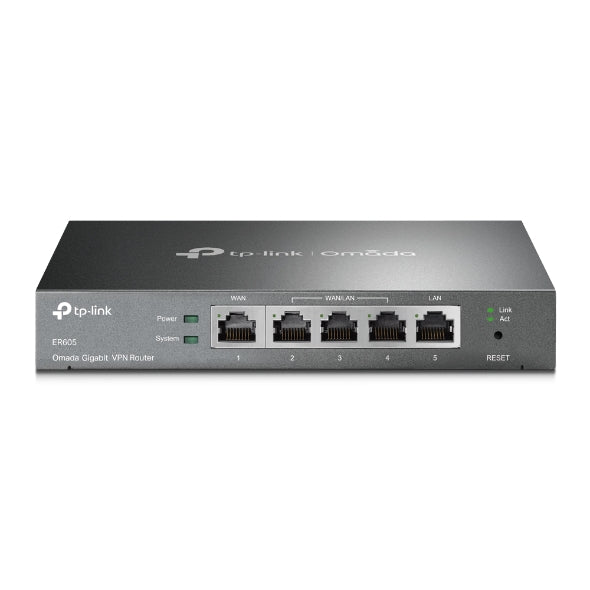

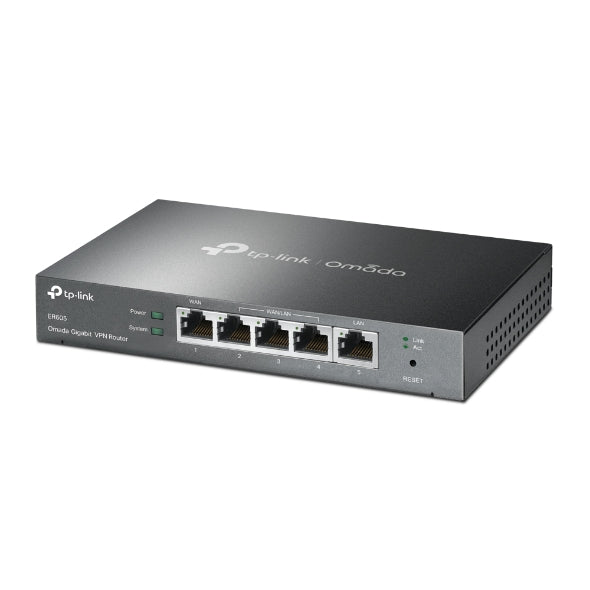

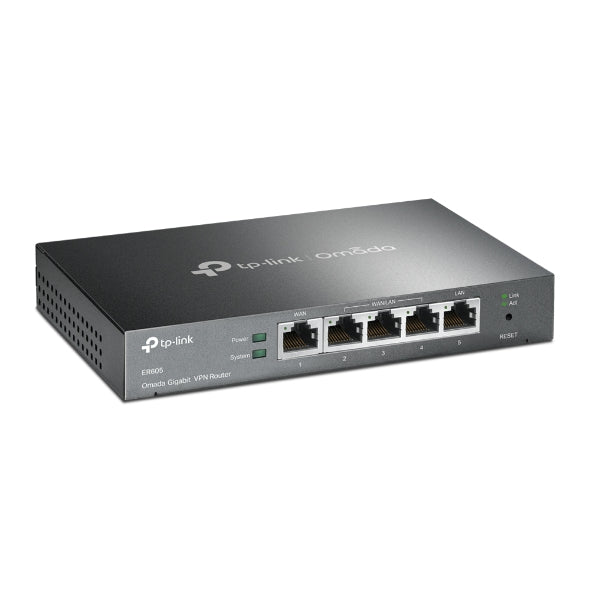

•1 x TL-R605 Unit
•1 x Power Adapter Unit
•1 x RJ45 Ethernet Cable
•Quick Installation Guide
