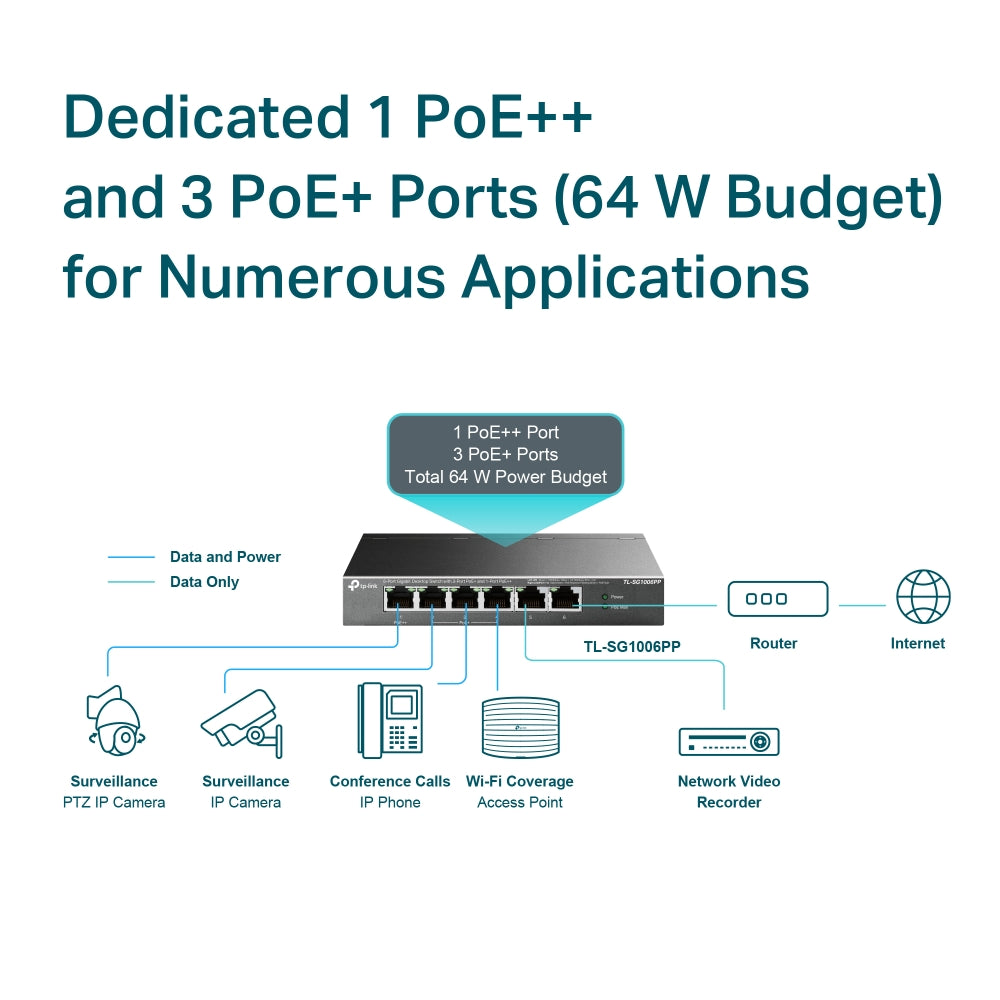

•With one PoE++ port and three PoE+ ports, transfers data and power on one single cable
•Works with IEEE 802.3af/at/bt compliant PDs
•802.1p/DSCP QoS enable smooth latency-sensitive traffic
•Supports PoE Power up to 30 W for each PoE+ port and 60W for PoE++ port
•Supports PoE Power up to 64 W for all PoE ports

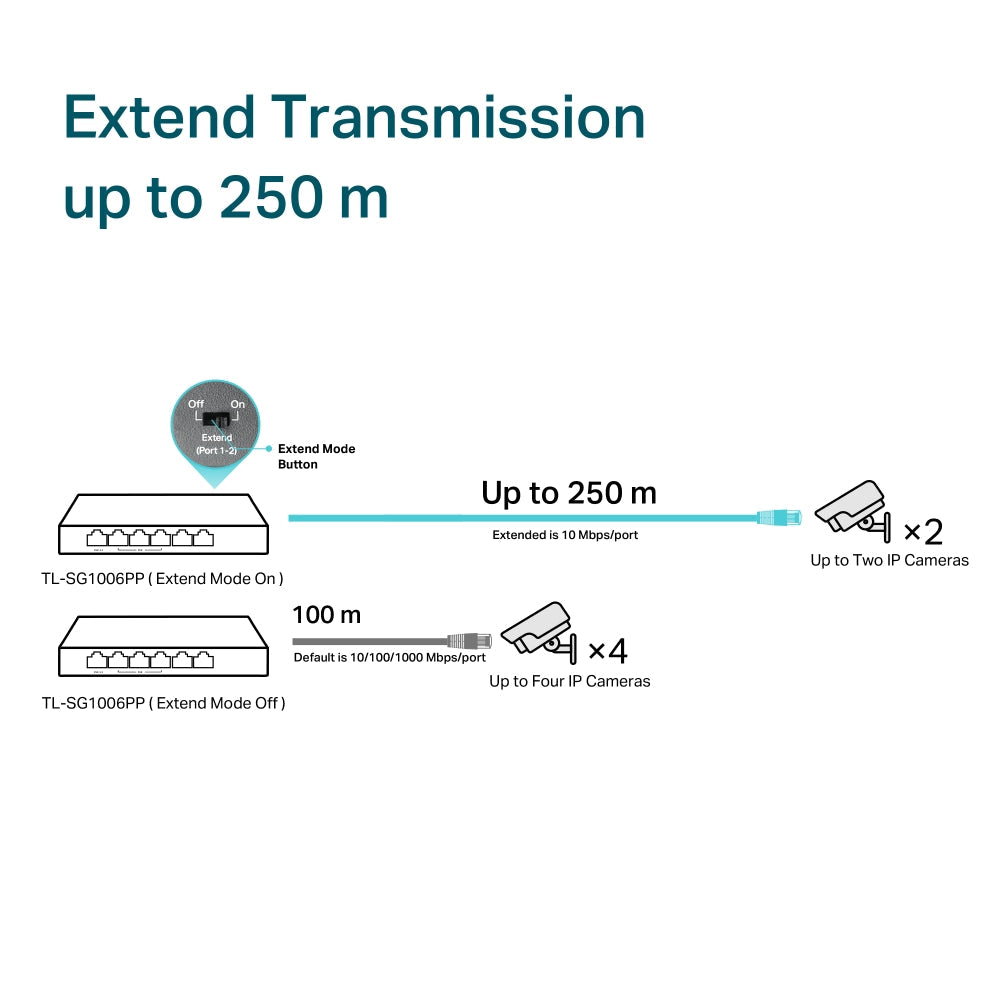

•Up to 250m data and power transmitting range under Extend Mode, perfect for IP Camera deployment in large areas

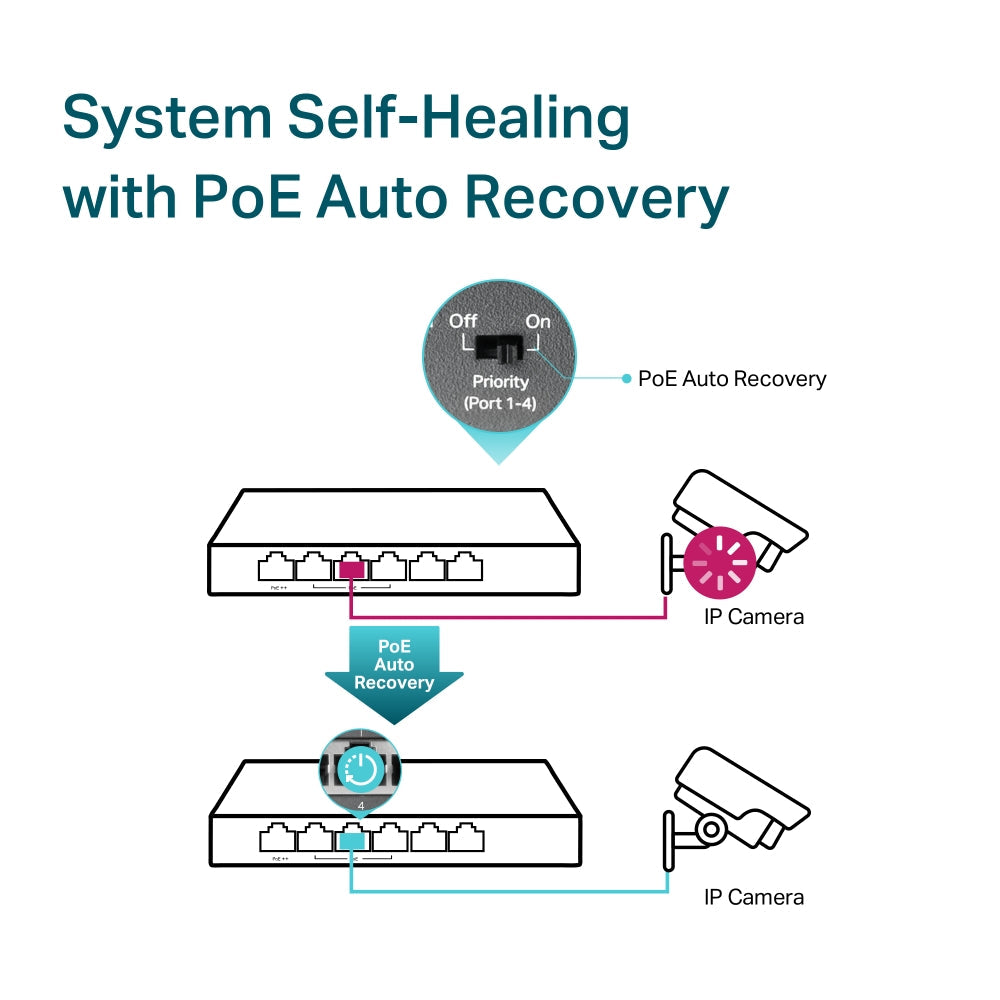

•PoE Auto Recovery guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices

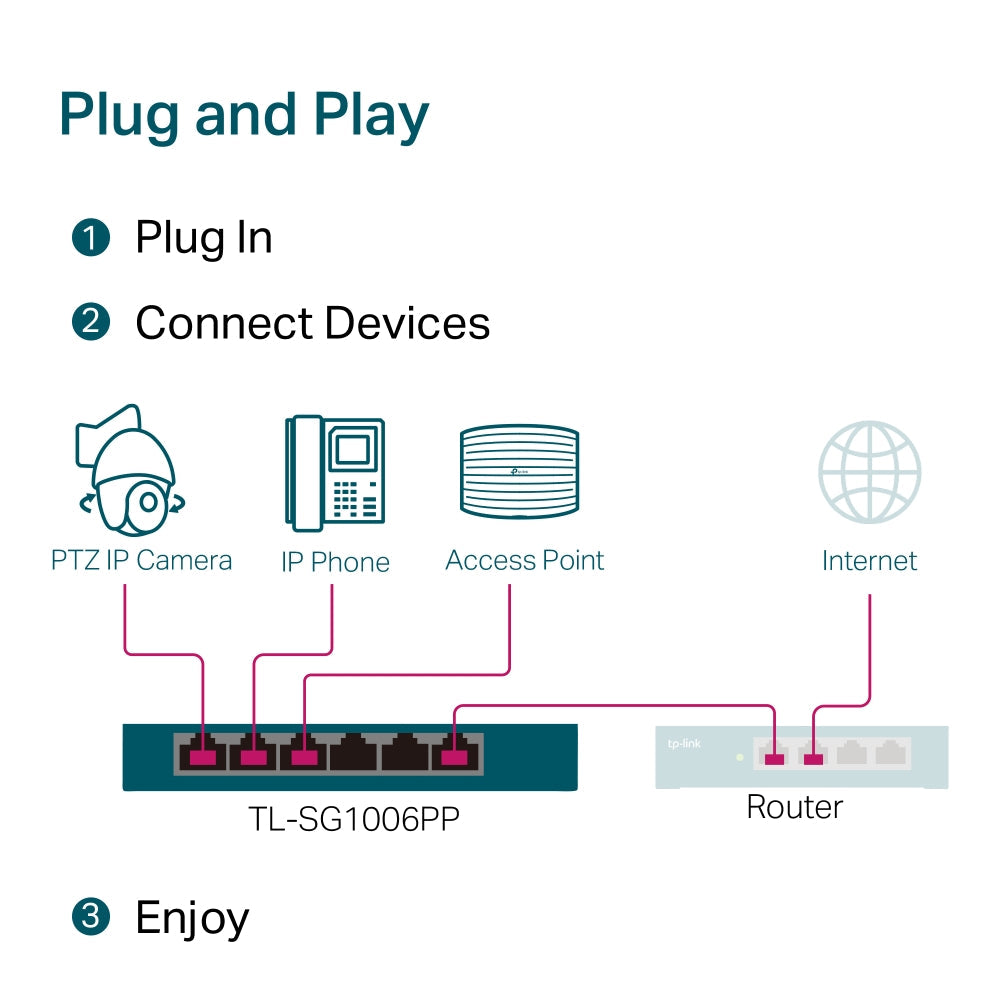

•Plug and Play, no configuration and installation required
•The interior components of TL-SG1006PP are protected by high-quality metal casing to ensure a long product life
•Having passed an array of stringent reliability tests, TL-SG1006PP delivers switching performance you can depend on

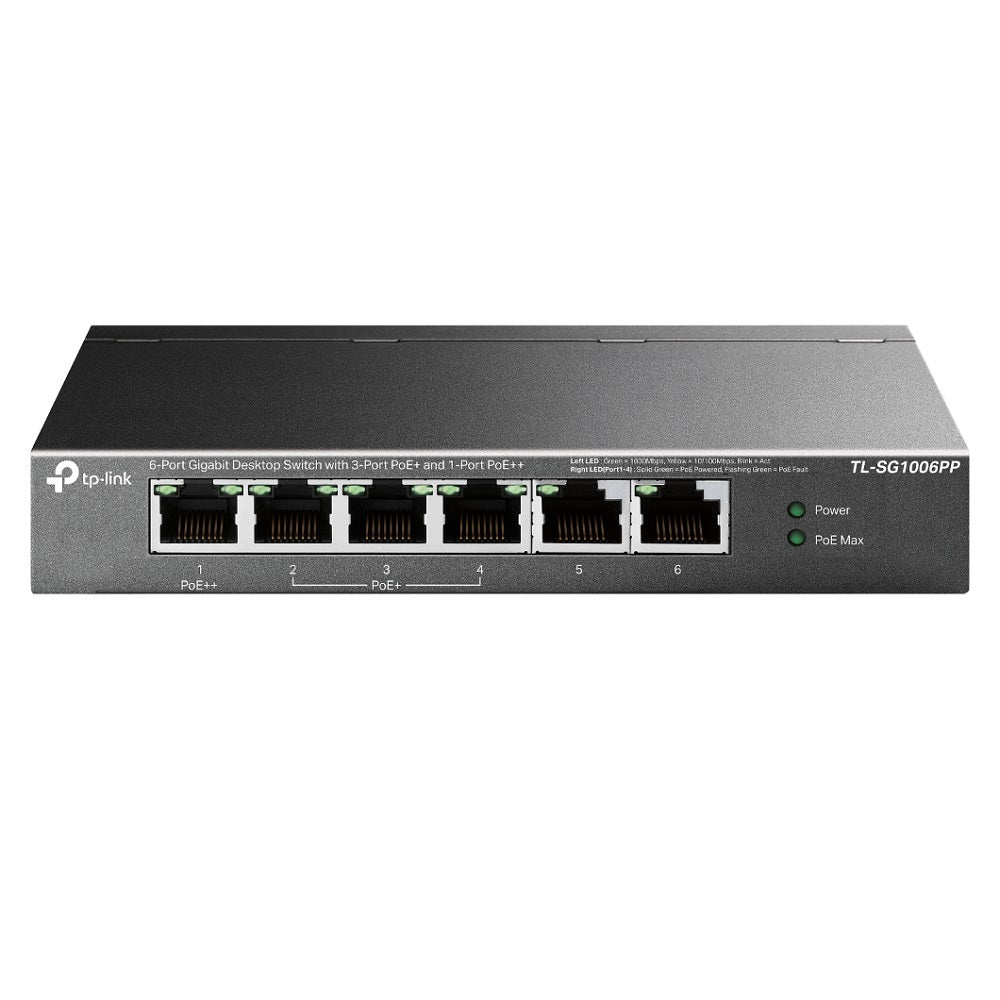

•Interface: 6 × 10/100/1000Mbps RJ45 Ports, AUTO Negotiation, AUTO MDI/MDIX
•Network Media: 10BASE-T = UTP category 3, 4, 5 cable (maximum 100m), EIA/TIA-568 100Ω STP (maximum 100m); 100BASE-TX = UTP category 5, 5e cable (maximum 100m), EIA/TIA-568 100Ω STP (maximum 100m); 1000BASE-T = UTP category 5, 5e, 6 or above cable (maximum 100m), EIA/TIA-568 100Ω STP (maximum 100m)

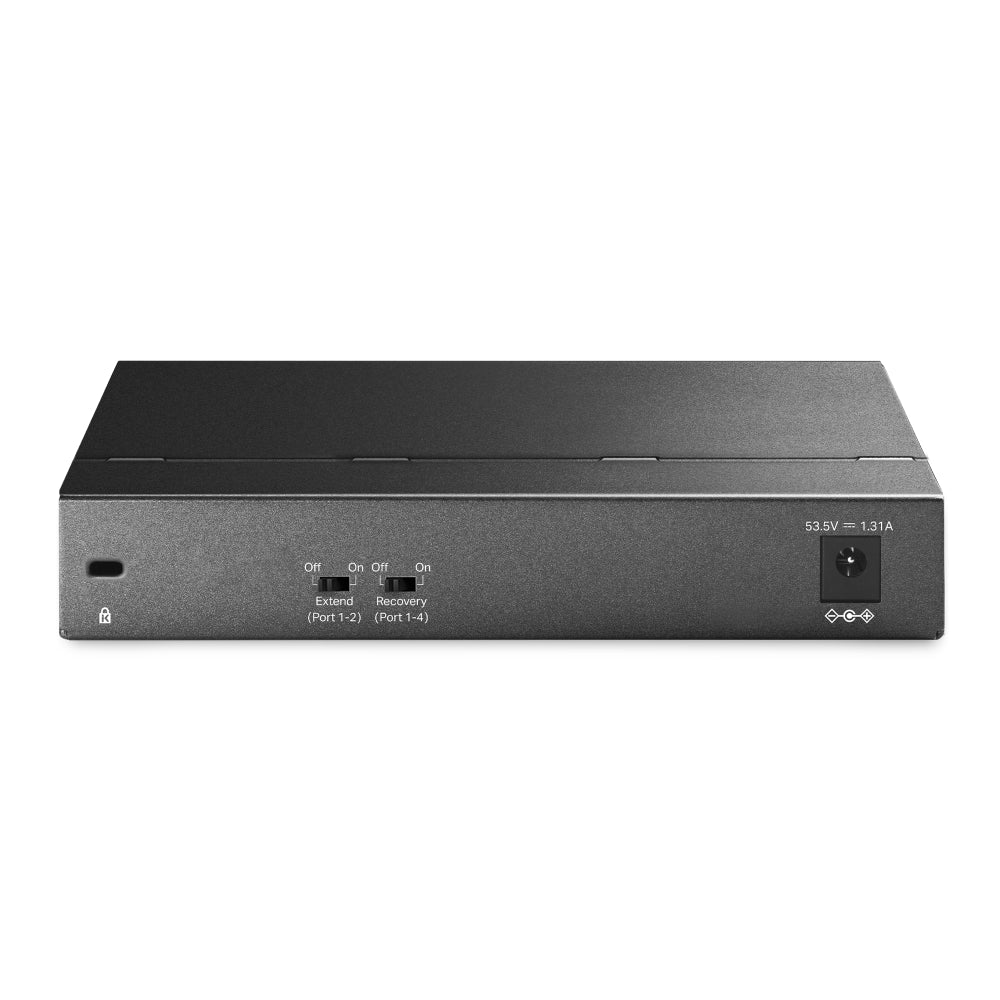

•External Power Supply: External Power Adapter (Output: 53.5 VDC / 1.31 A)
•Packet Forwarding Rate: 8.928 Mpps
•PoE Ports (RJ45): Port 1 compliances with 802.3af/at/bt; Ports 2-4 compliance with 802.3af/at (Power Supply - 64 W)
•MAC Address Table: 4K
•Switching Capacity: 12 Gbps
•Max Power Consumption: 4.75 W (220/50 Hz. no PD connected); 71.46 W (220/50 Hz. with 64 W PD connected)
•Max Heat Dissipation: 16.20 BTU/h (220/50 Hz. no PD connected); 243.68 BTU/h (220/50 Hz. with 64 W PD connected)
•Certification: FCC, CE, RoHS
•Operating Environment: Temperature 0°C to 40°C (32 °F to 104 °F), Humidity 10%~90% non-condensing

•1 x TL-SG1006PP
•Power Adapter
•Installation Guide
