•Works with IEEE 802.3af/at/bt compliant PDs
•802.1p/DSCP QoS enable smooth latency-sensitive traffic
•Supports PoE Power up to 30 W for each PoE+ port and 60 W for PoE++ port
•Supports PoE Power up to 123 W for all PoE ports
•Plug and Play, no configuration and installation required
•Up to 250m data and power transmitting range under Extend Mode
•PoE Auto Recovery guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices
•Isolation Mode allows one-click client traffic separation for higher security and performance
•Priority Mode guarantees the quality of sensitive applications like video monitoring in critical business areas by prioritizing the data of ports 1-2

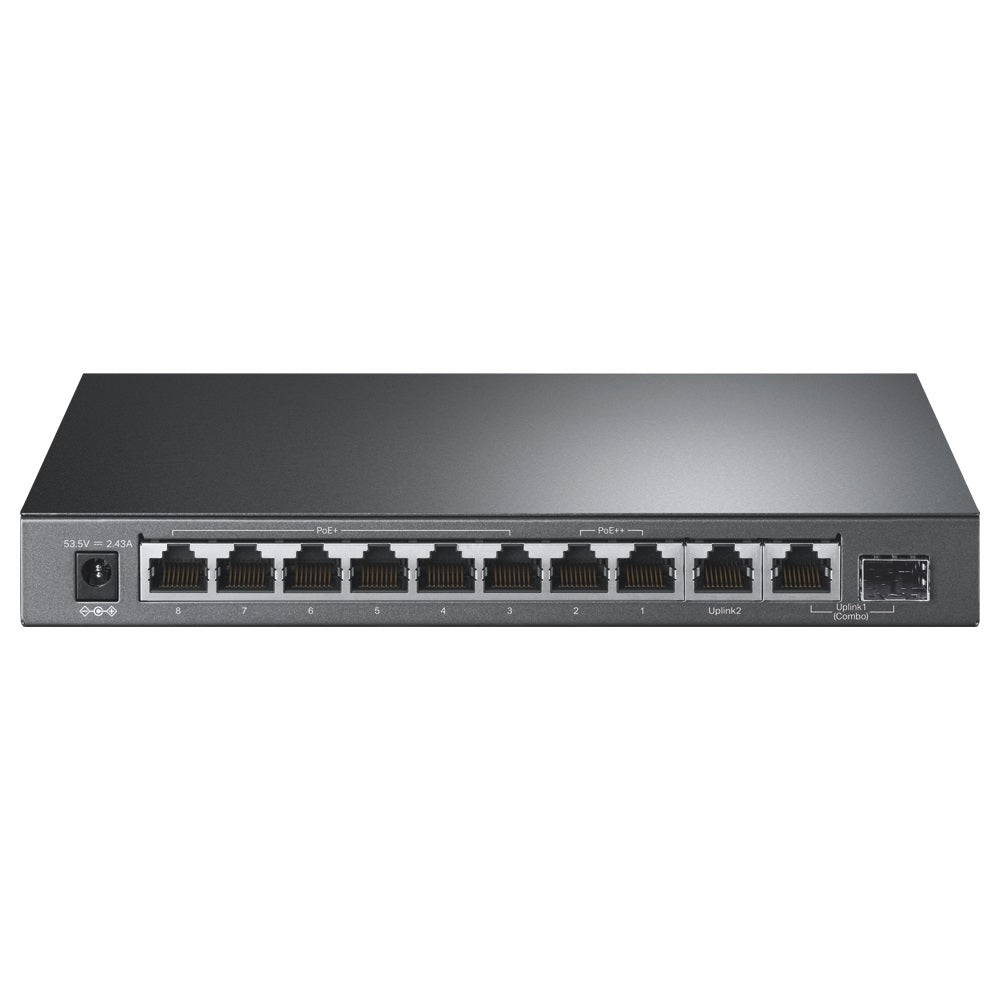

•Interface: 9 × 10/100/1000Mbps RJ45 Ports, 1 × 1000Mbps Combo SFP/RJ45 Port, AUTO Negotiation, AUTO MDI/MDIX
•Network Media: 10BASE-T = UTP category 3, 4, 5 cable (maximum 100m), EIA/TIA-568 100Ω STP (maximum 100m); 100BASE-TX = UTP category 5, 5e cable (maximum 100m), EIA/TIA-568 100Ω STP (maximum 100m); 1000BASE-T = UTP category 5, 5e, 6 or above cable (maximum 100m), EIA/TIA-568 100Ω STP (maximum 100m)
•External Power Supply: External Power Adapter (Output: 53.5 VDC / 2.43 A)
•Packet Forwarding Rate: 14.88 Mpps
•PoE Ports (RJ45): Port 1-2 compliance with 802.3af/at/bt; Ports 3-8 compliance with 802.3af/at (Power Supply - 123 W)
•Max Power Consumption: 8.7 W (220/50 Hz. no PD connected); 144.1 W (220/50 Hz. with 123 W PD connected)
•Max Heat Dissipation: 29.67 BTU/h (220/50 Hz. no PD connected); 491.38 BTU/h (220/50 Hz. with 123 W PD connected)
•Switching Capacity: 20 Gbps
•MAC Address Table: 4K
•Fan Quantity: Fanless
•Certification: FCC, CE, RoHS
•Operating Environment: Temperature 0°C to 40°C (32 °F to 104 °F), Humidity 10%~90% non-condensing

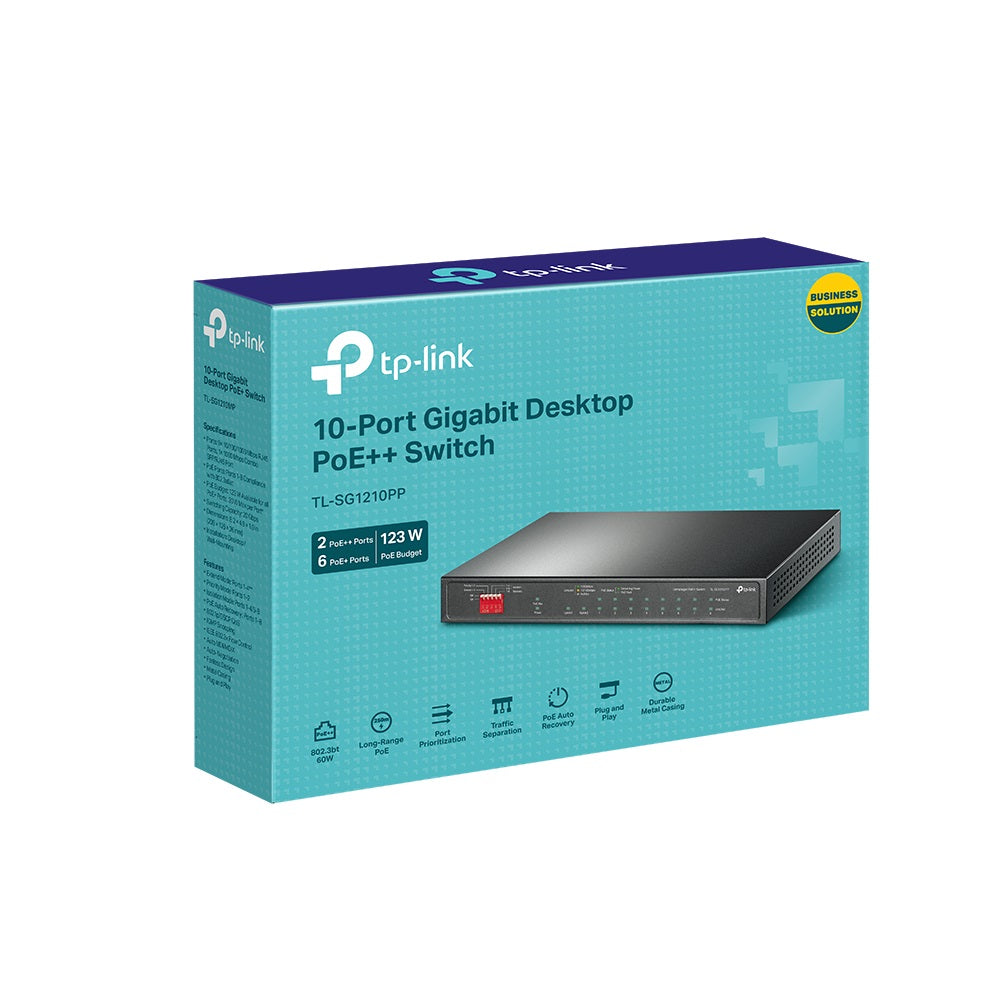

•1 x TL-SG1210PP
•1 x Power Adapter
•Installation Guide
