• Highly rugged for most any environment indoor or outdoor (enclosed)
• 2-pin industrial DC power socket

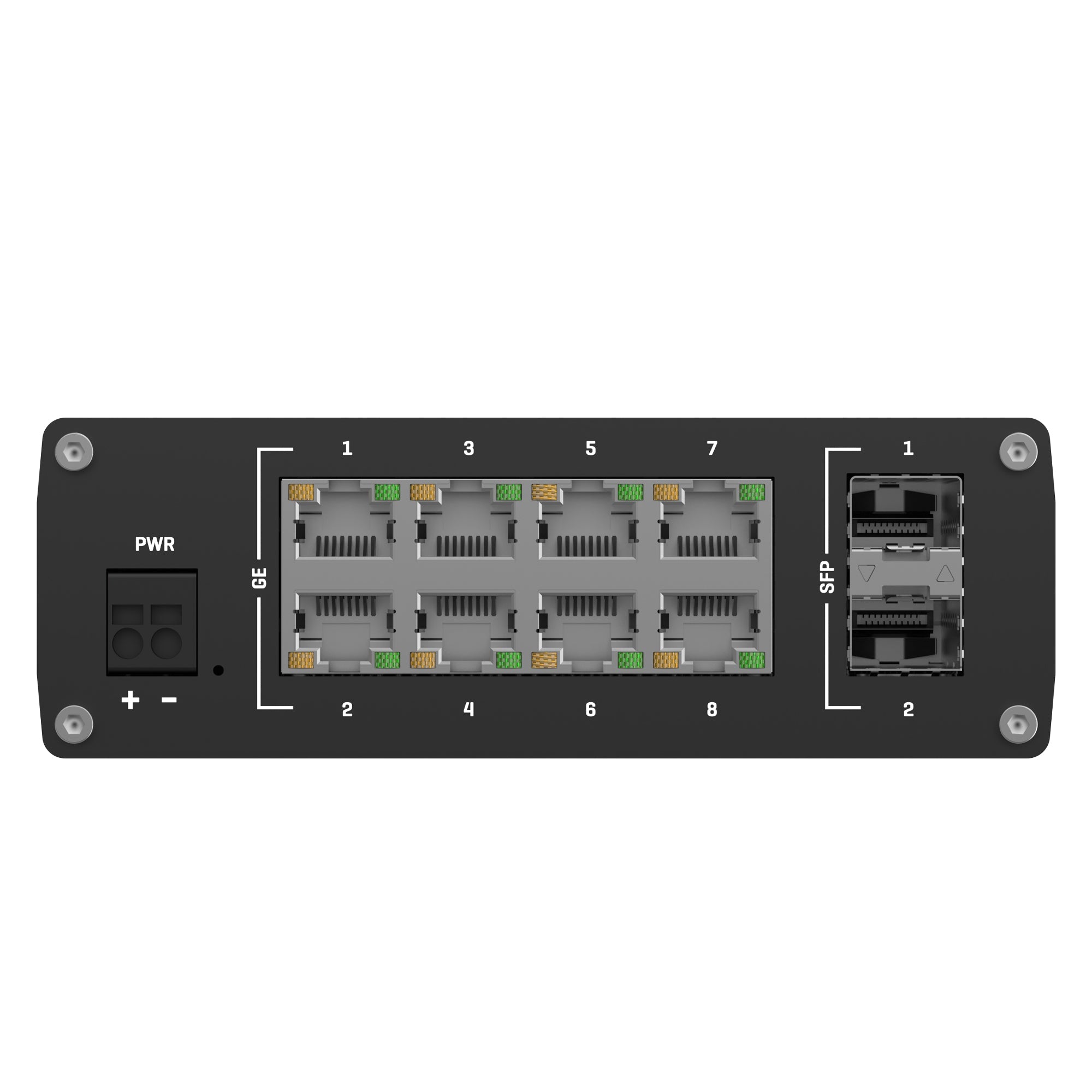

• 8 x RJ45 ports 10/100/1000Mbps
• 2 x SFP ports
• Easy to read LED for Power and Status
• Full aluminum housing
• Integrated DIN rail bracket with optional wall and surface mountability
• 2 Year warranty

• Ethernet Ports: 8 x 10/100/1000 Mbps, supports auto MDI/MDIX crossover
• Fibre: 2 x SFP ports
• Bandwidth (Non-blocking): 20 Gbps
• Packet Buffer: 128 KB
• MAC Address Table Size: 2K entries
• Jumbo Frame Support: 9216 bytes
• Voltage Range: 7 - 57 VDC
• Power Consumption Idle: ~1.03 W / Max: 3.71 W
• Mounting Options: Integrated DIN rail bracket, wall mount, flat surface (additional kit needed)
• Ingress Protection: IP30
• Operating Temp: -40 to 75C
• Operating humidity: 10% to 90% non-condensing

• 1 x TSW210
• Quick start guide
• Note - PSU not included

1.1 lbs

5.2-in x 1.74-in x 3.74-in
