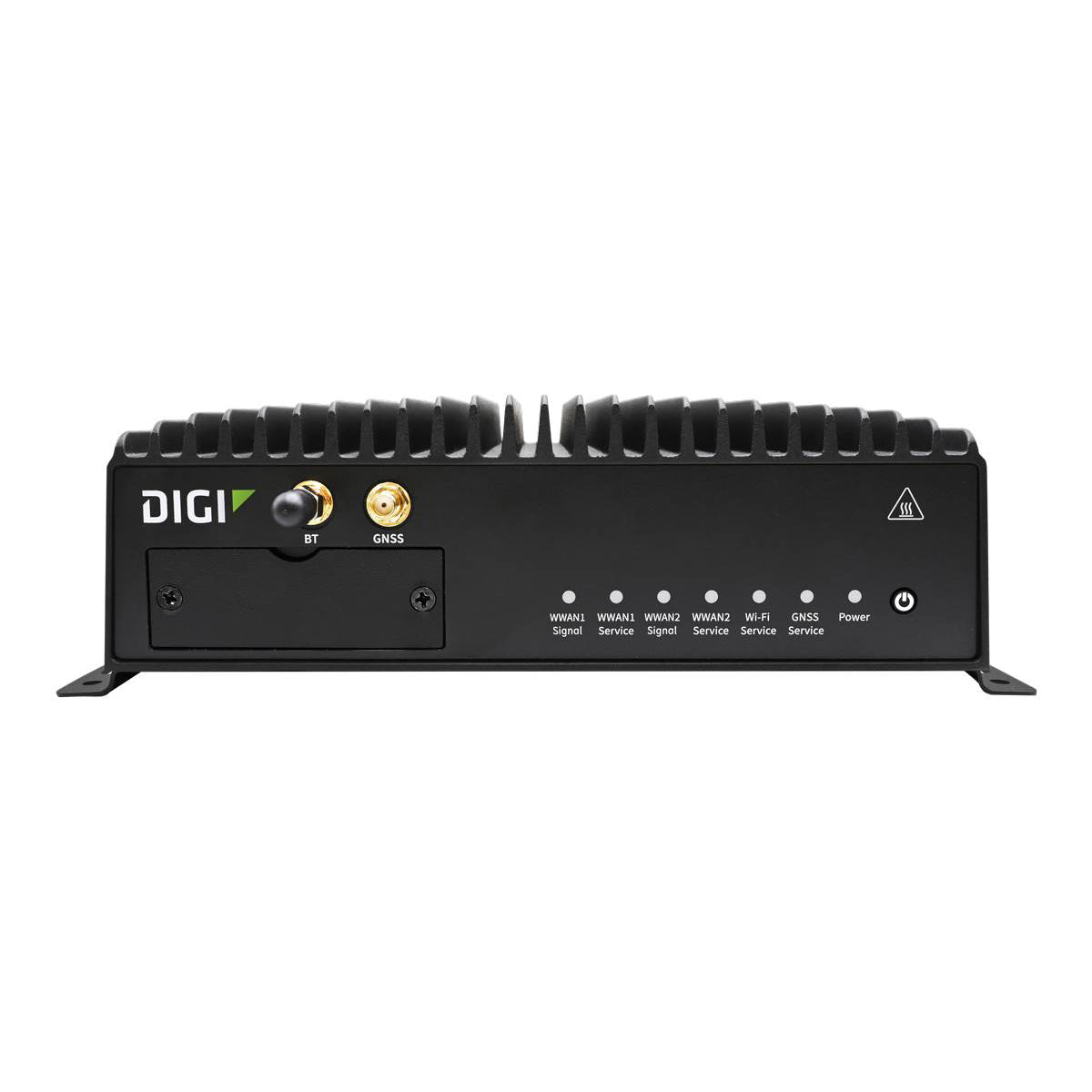

• Digi TX54 4/5G LTE Advanced-Pro Cellular router w/WiFi5/GNSS/Bluetooth (GLOBAL)
• x2 LTE radio modules inside for Carrier failover
• 5G, LTE-A Pro and LTE-A single and dual cellular models
• Capable of segmenting private and public data communication across dual cellular modules
• High-speed Wi-Fi 5 (802.11ac) for WAN or LAN service and optional dual Wi-Fi radios and Power Class 1.5
• Cryptographic co-processor with secure key generation
• Built-in Digi TrustFence for device security, secure encrypted connections, ongoing monitoring and support

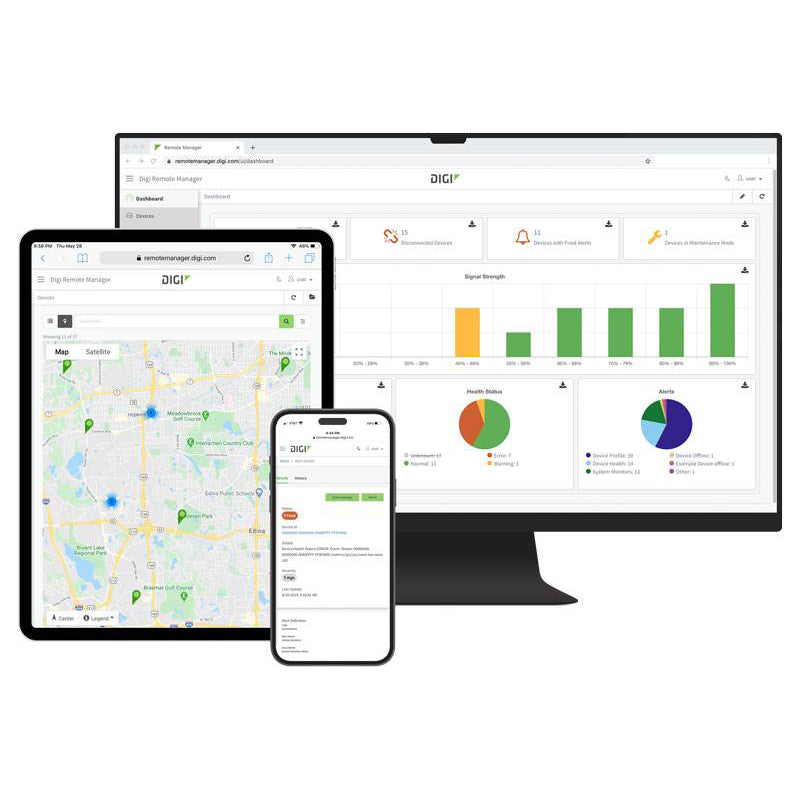

• Includes the Digi 360 solution with warranty, customer care and SOC 2 Type 2 compliant Digi Remote Manager cloud management, enabling you to easily deploy, mass configure and maintain devices
• Value-added services include Digi Containers, Digi WAN Bonding 5G/LTE WAN aggregation with immediate failover and Digi Mobile VPN for secure, persistent mobile connectivity
• A256-2 refers to DUAL radio version
• TX models are specific (but not limited) to Mobile/vehicle/train applications

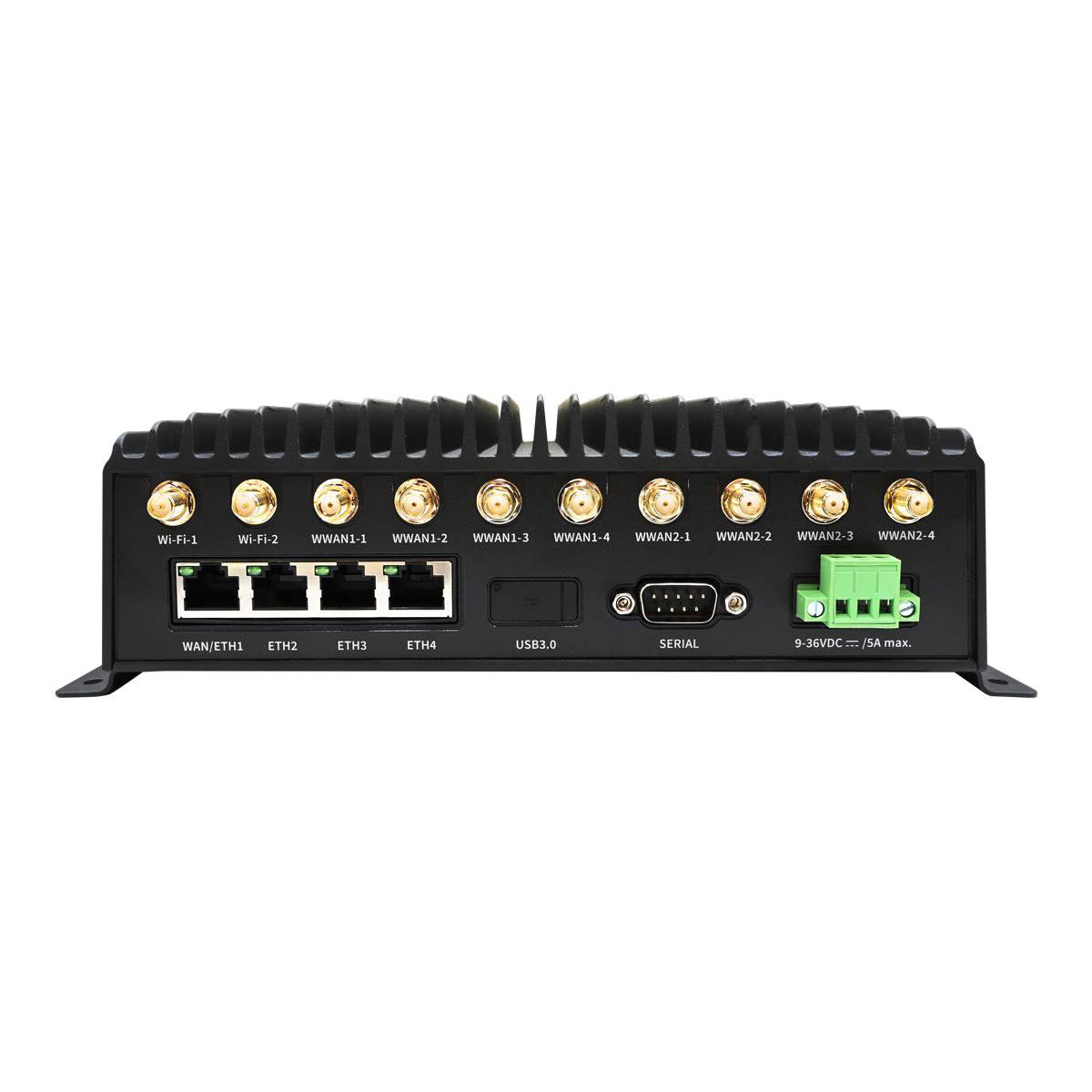

• Ethernet Ports: (4) RJ-45; 10/100/1000 Mbps Base-T (auto-sensing); IEEE 802.3; configurable as WAN or LAN
• Serial Ports/Connector: (1) RS-232; DB-9 male (DTE)
• USB Ports/Connector: (1) USB 3.0 Type A
• Remote Management: Digi Remote Manager (cloud based), SNMP v2c/v3 (user installed/managed), SMS
• Local Management: Web UI (HTTPS); CLI (SSH, serial)
• Management Tools: SFTP, SCP; protocol analyzer with PCAP for Wireshark; event logging with Syslog
• RAM/Flash: 256 MB / 512 MB
• Power Input: 9 – 36 VDC, ignition sense, reverse polarity protection
• Power Connector: Screw down removable terminal block
• Power Consumption: TX54 4G dual cellular models: 13 W typical; 20 W (peak RF Tx/Rx) TX54 5G dual cellular models: 18 W typical; 30 W (peak RF Tx/Rx)
• Operating Temperature: −34 °C to 74 °C (−29 °F to 165 °F) Storage Temperature: −40 °C to 85 °C (−40 °F to 185 °F)

• TX54-A256 Device
• Power Adapter
• Ethernet Cable
• Quick Start Guide
• Warranty Information
• *** Warranty may vary on model ***

5.75-in x 8.25-in x 2.5-in

3.3 lbs
