• Delivers up to 15W of PoE
• Surge, peak pulse, and overcurrent protection

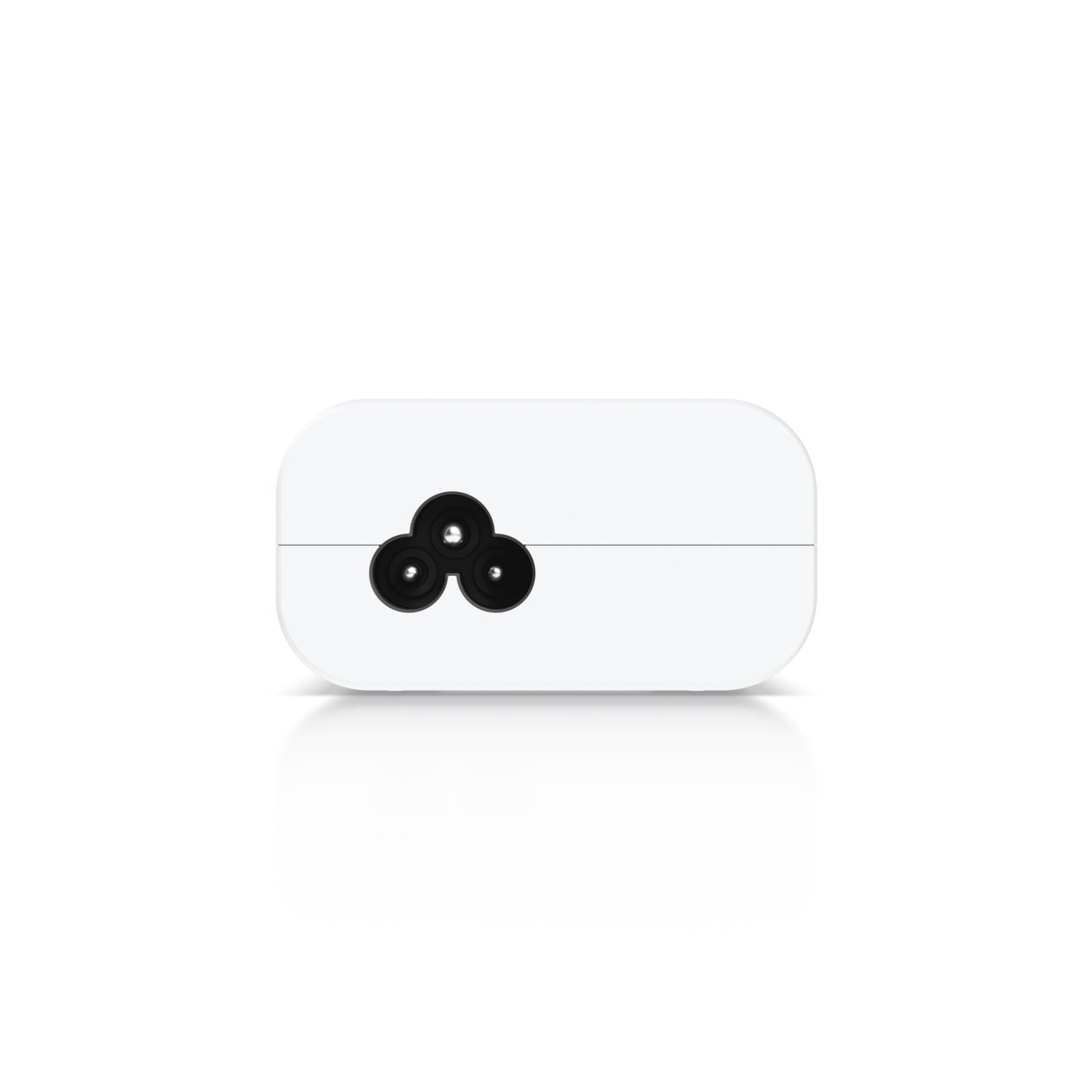

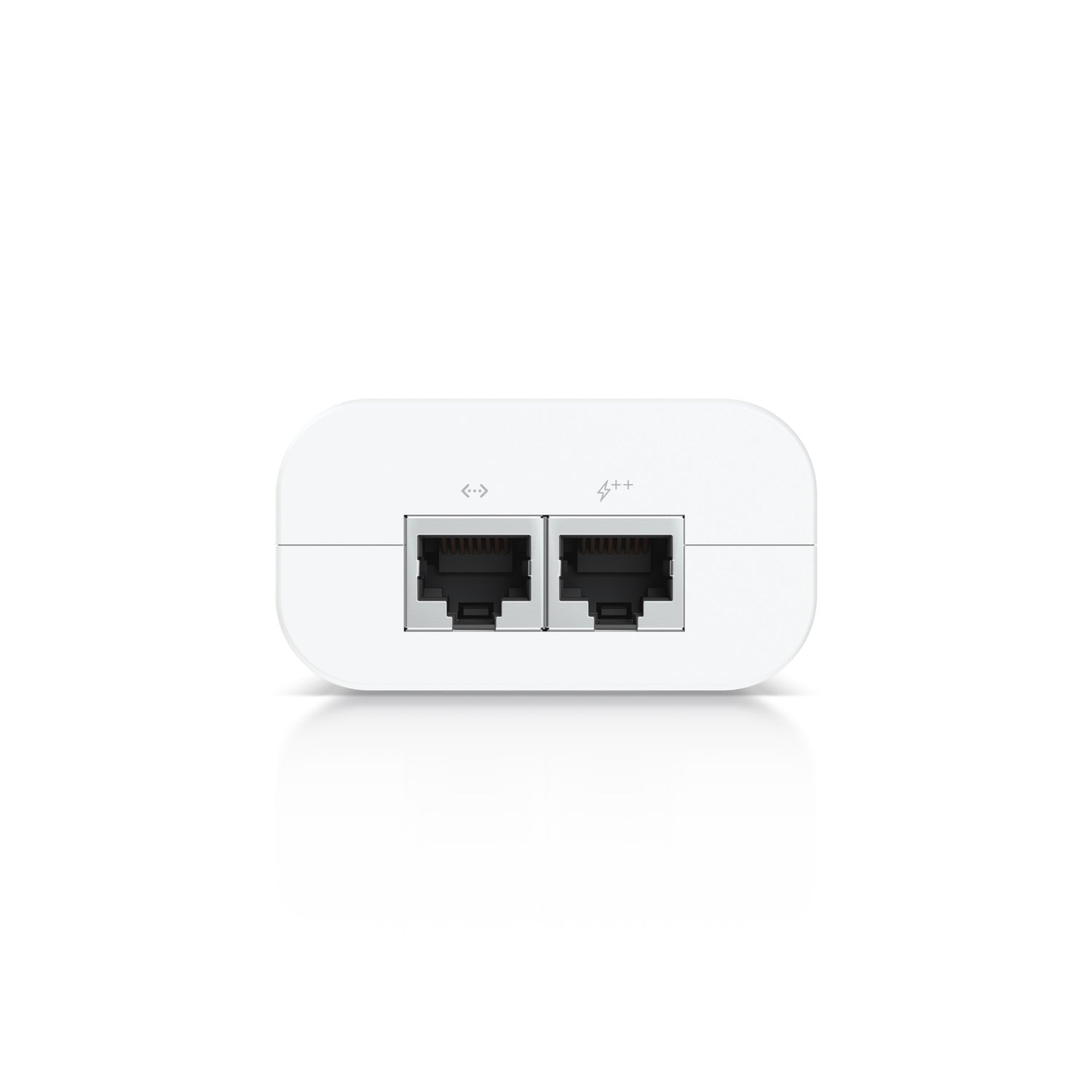

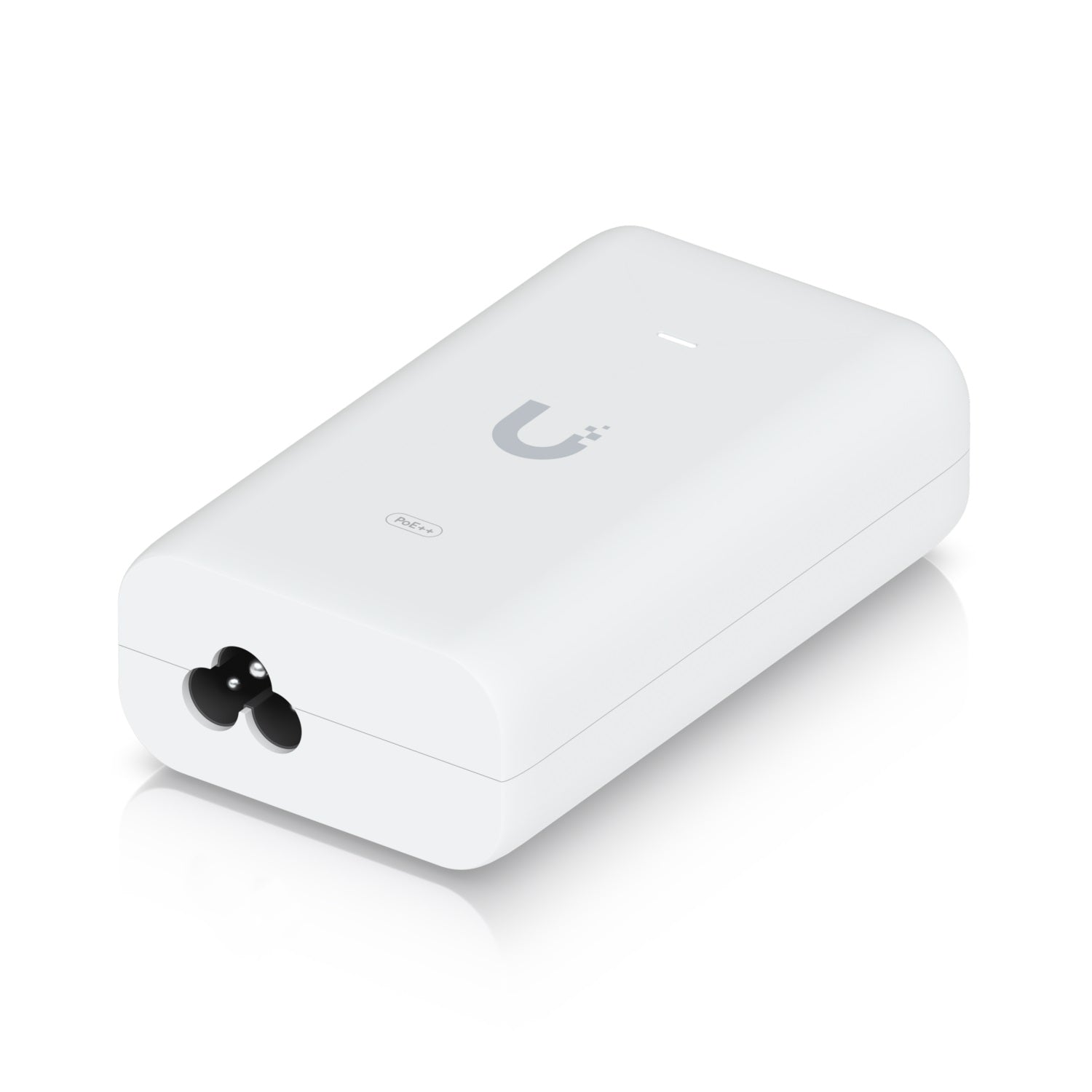

• Contains RJ45 data input, AC cable with earth ground, and PoE output

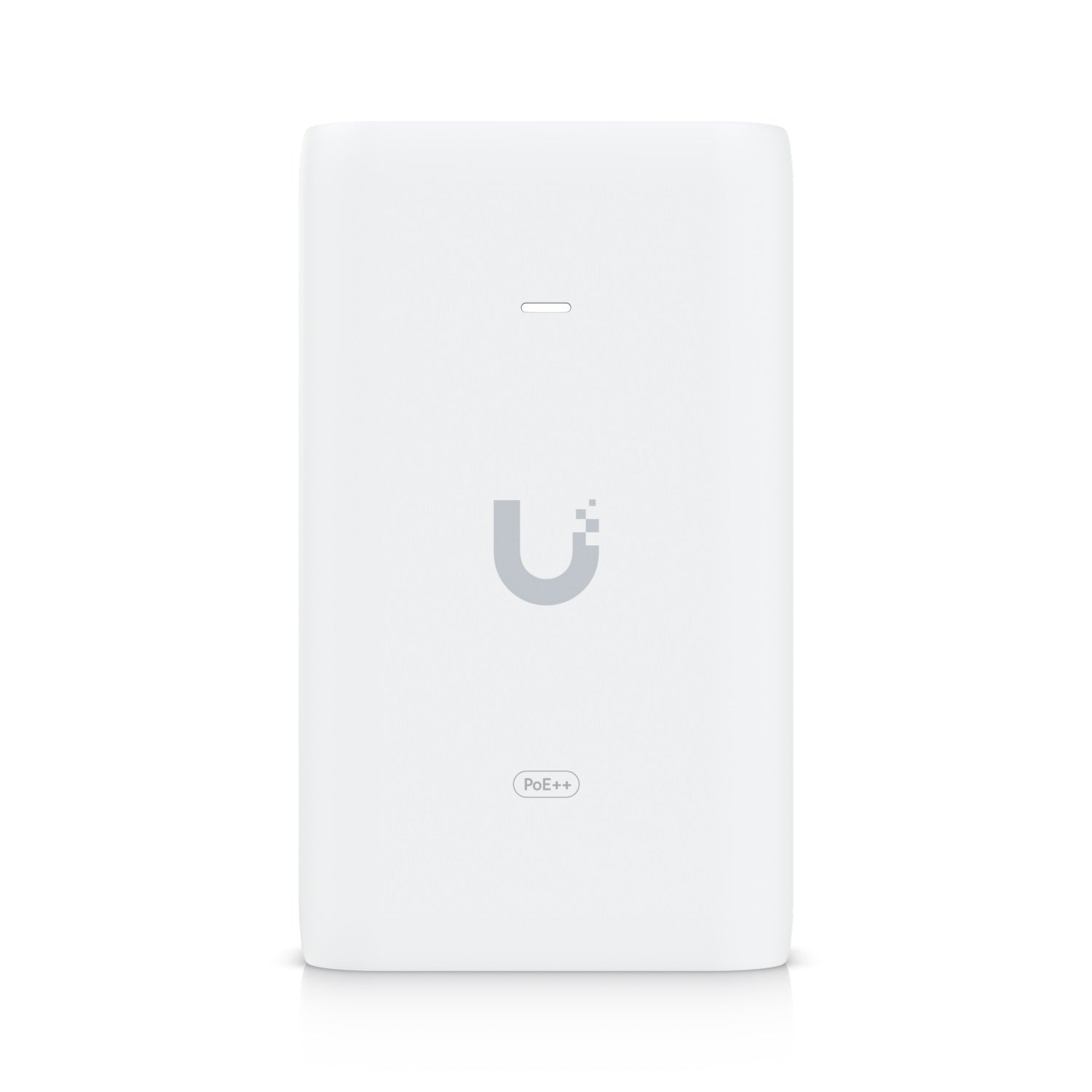

• LED indicator for status monitoring

• Output Voltage: 48V DC @ 0.32A
• Rated Voltage: 100—240V AC @ 50/60Hz
• 2-pair Powering: Pins 4, 5 (+) and 7, 8 (-)
• Clamping Protection: 11V Data, 60V Power
• Input Current: 500mA Max.
• Inrush Current: <100A peak at 25°C
• Efficiency: 84.25+%
• Switching Frequency: 65 kHz
• Response Time: <1 ns
• Peak Pulse Current: 36A (10/1000 μs) data
• Surge Protection: Difference and Common Mode

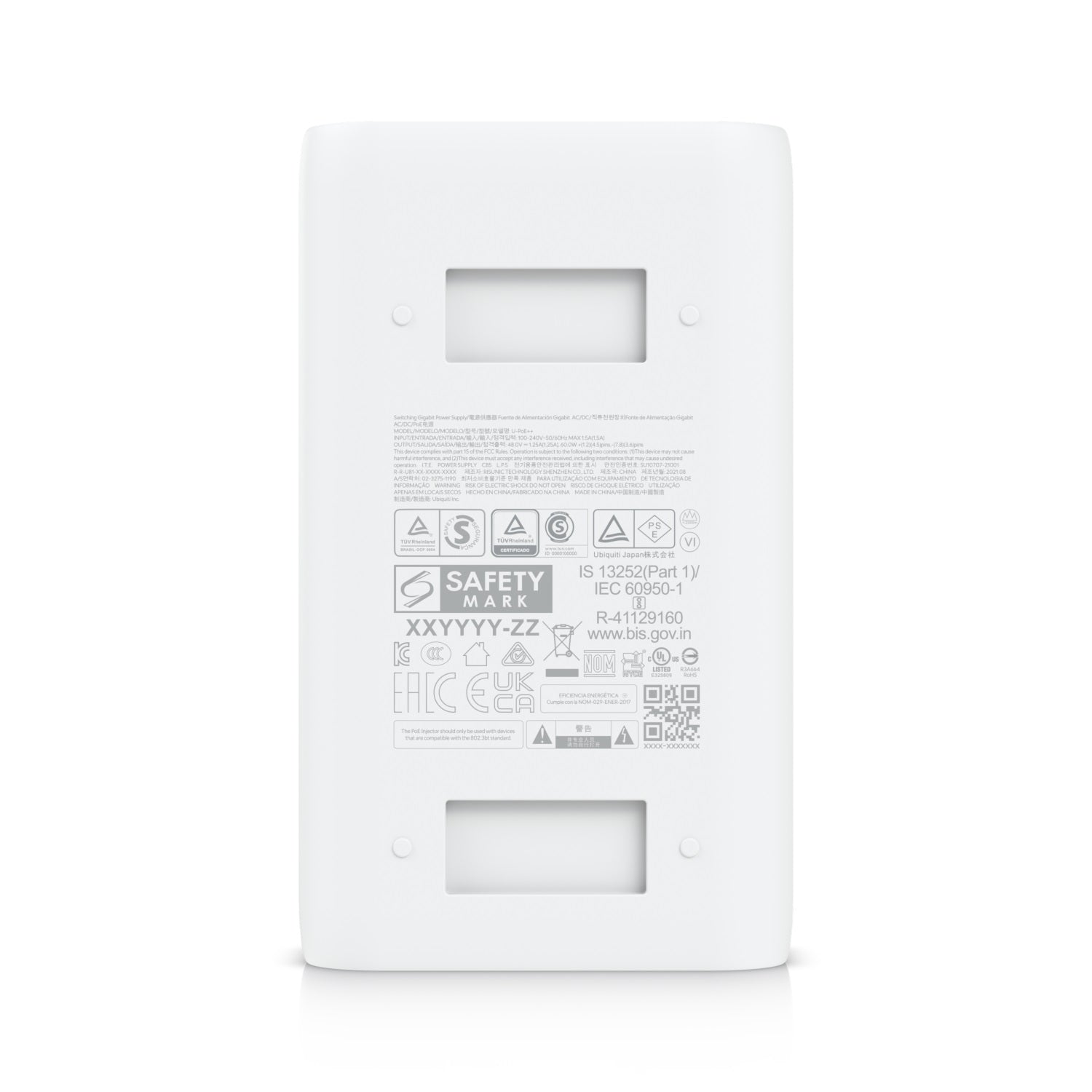

• Certifications: CE, FCC, IC, UL

• 1 x PoE Adapter (15W)

0.22 lbs

3.4-in x 1.8-in x 1.3-in
