• Delivers up to 30W of PoE+
• Surge, peak pulse, and overcurrent protection

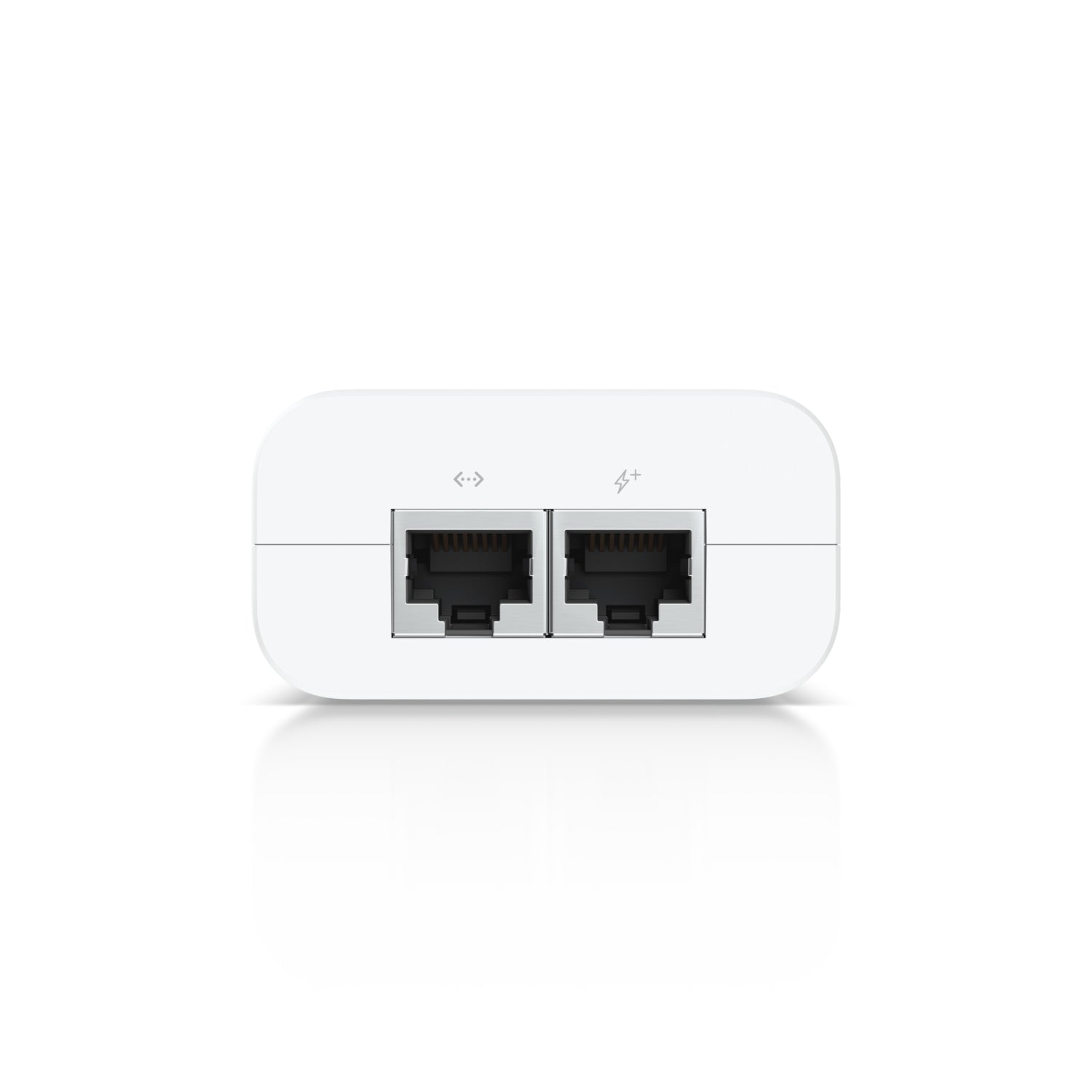

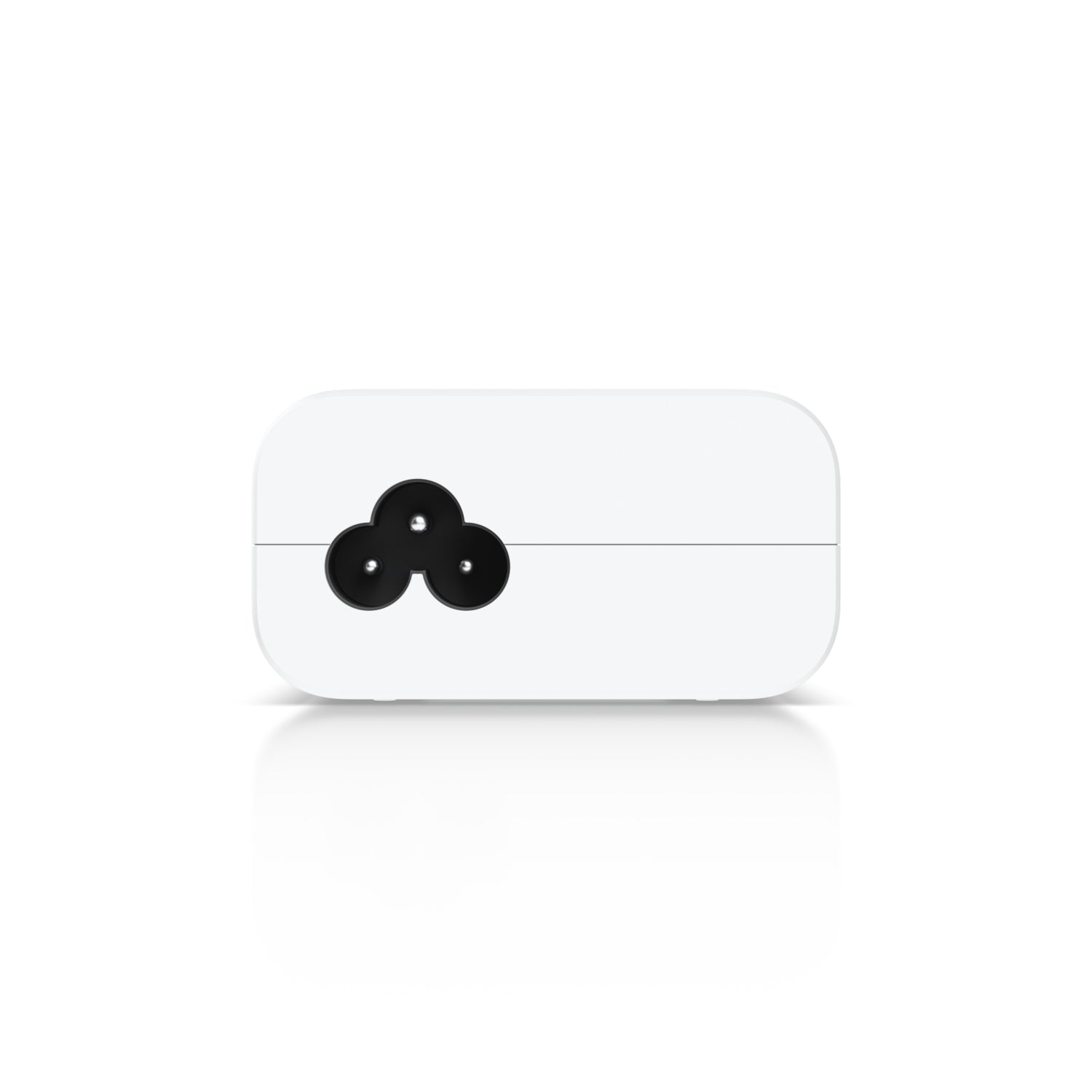

• Contains RJ45 data input, AC cable with earth ground, and PoE+ output
• LED indicator for status monitoring

• Output Voltage: 48V DC @ 0.65A
• Rated Voltage: 100—240V AC @ 50/60Hz
• 2-pair Powering: Pins 4, 5 (+) and 7, 8 (-)
• Clamping Protection: 11V Data, 60V Power
• Input Current: 0.75A Max.
• Inrush Current: <100A peak at 26°C
• Efficiency: 87%
• Switching Frequency: 70 kHz Max.
• Response Time: <1 ns
• Peak Pulse Current: 36A (10/1000 μs) data
• Surge Protection: Difference and Common Mode

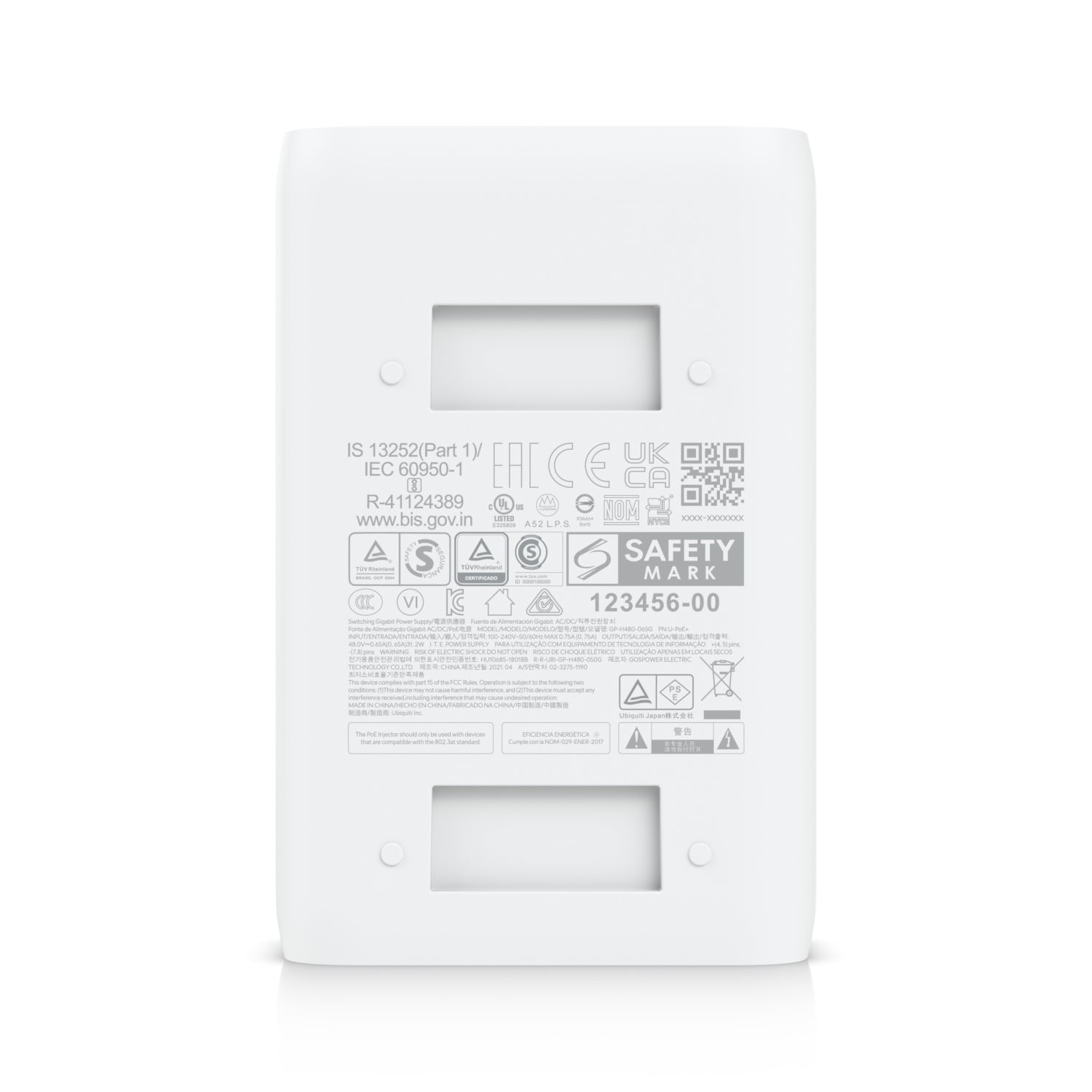

• Certifications: CE, FCC, IC, UL

• 1 x PoE+ Adapter (30W)

0.34 lbs

3.7-in x 2.4-in x 1.4-in
