•Wideband performance with 2,225 MHz wideband covering 5 & 6 GHz unlicensed spectrum bands
•29 dBi of nominal gain
•Excellent VSWR
•TwistPort™ waveguide connector - Connect directly to waveguide or use TPA with coaxial connectors
•Built of high grade aluminum for extreme outdoor resistance including harsh salt water environments
•All aluminum construction for low weight
•UBR mounting bracket with dual pole clamp for better grip
•Stainless steel hardware with anti-seize coating
•Industry leading ergonomics with integrated handle for easy deployment
•Optional side strut for increased wind resistance (sold separately)

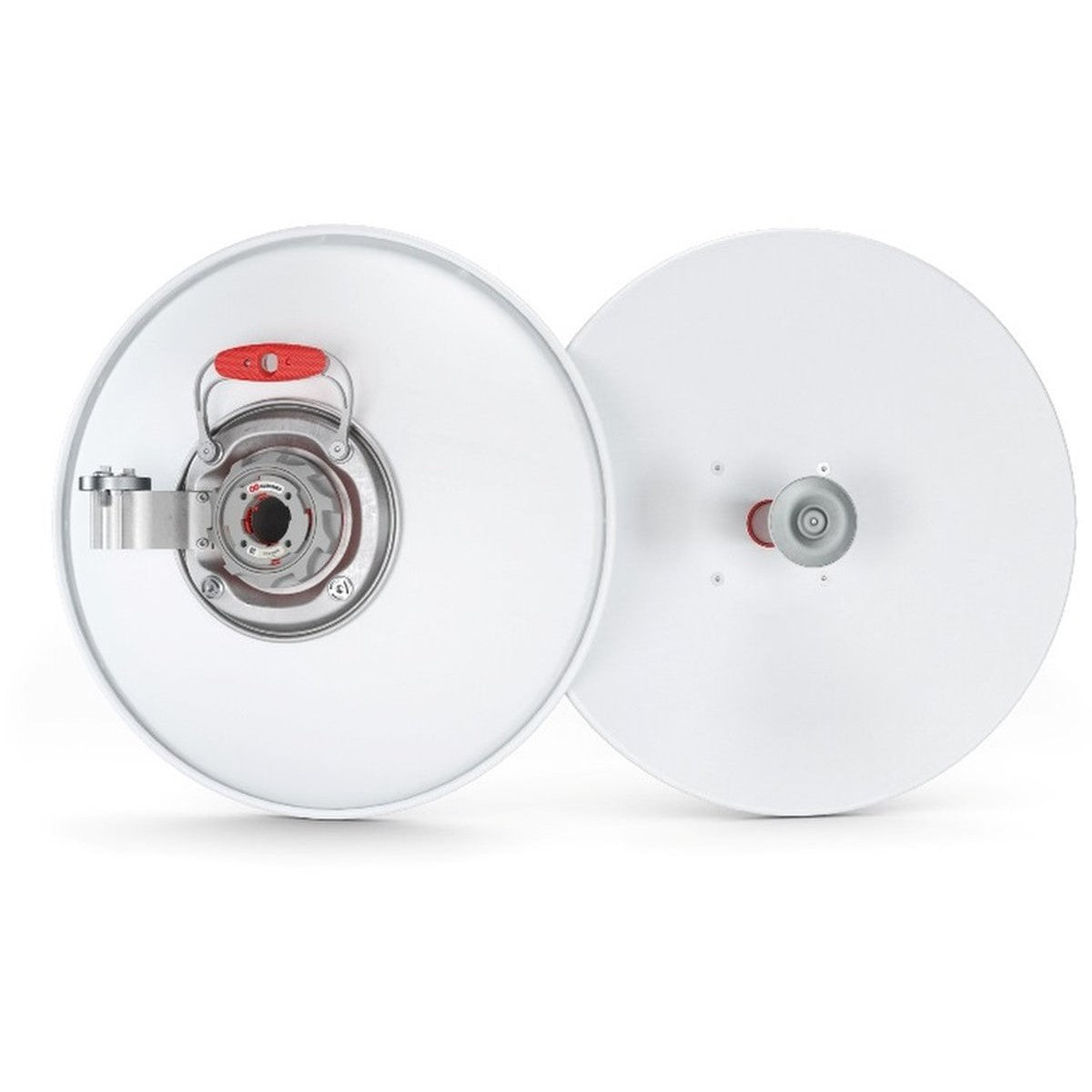

•Optional radome (sold separately)

•Wind Load: 371/42 N - Front/Side at 160 km/h (100 mi/h)
•Effective Projected Area: 3002/281 cm² - Front/Side (465.3/43.5 in²)
•Mechanical Adjustment: ± 20° Elevation, ± 20° Azimuth
•Frequency Range: 4900 - 7125 MHz Antenna on WG Port
•Gain: 29 dBi
•Azimuth Beam Width -3 dB/-6dB: H 5.5°, V 5.5° / H 7.6°, V 7.6°
•Elevation Beam Width -3 dB/-6dB: H 5.5°, V 5.5° / H 7.6°, V 7.6°
•Beam Efficiency: 59 %
•Front-to-Back Ratio: 40 dB
•Polarization: Dual Linear H + V
•Impedance: 50 Ohm
•Pole Mounting Diameter: 40-80 mm (1.5-3.1 inch); Recommended as close to 80 mm (3.1 inch) as possible

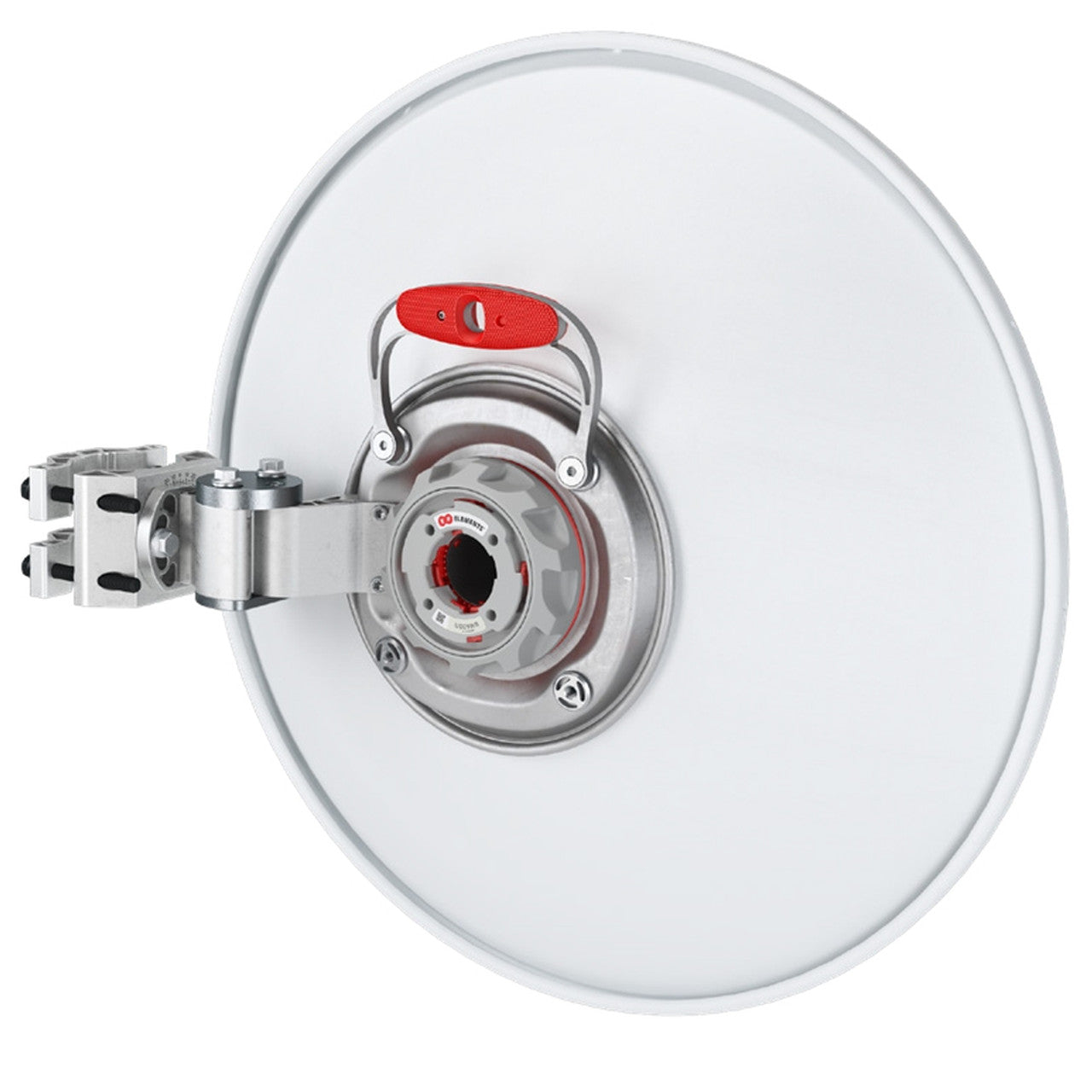

•1 x RF Elements UltraDish™ 29 WB Dish Antenna with Wideband Performance
