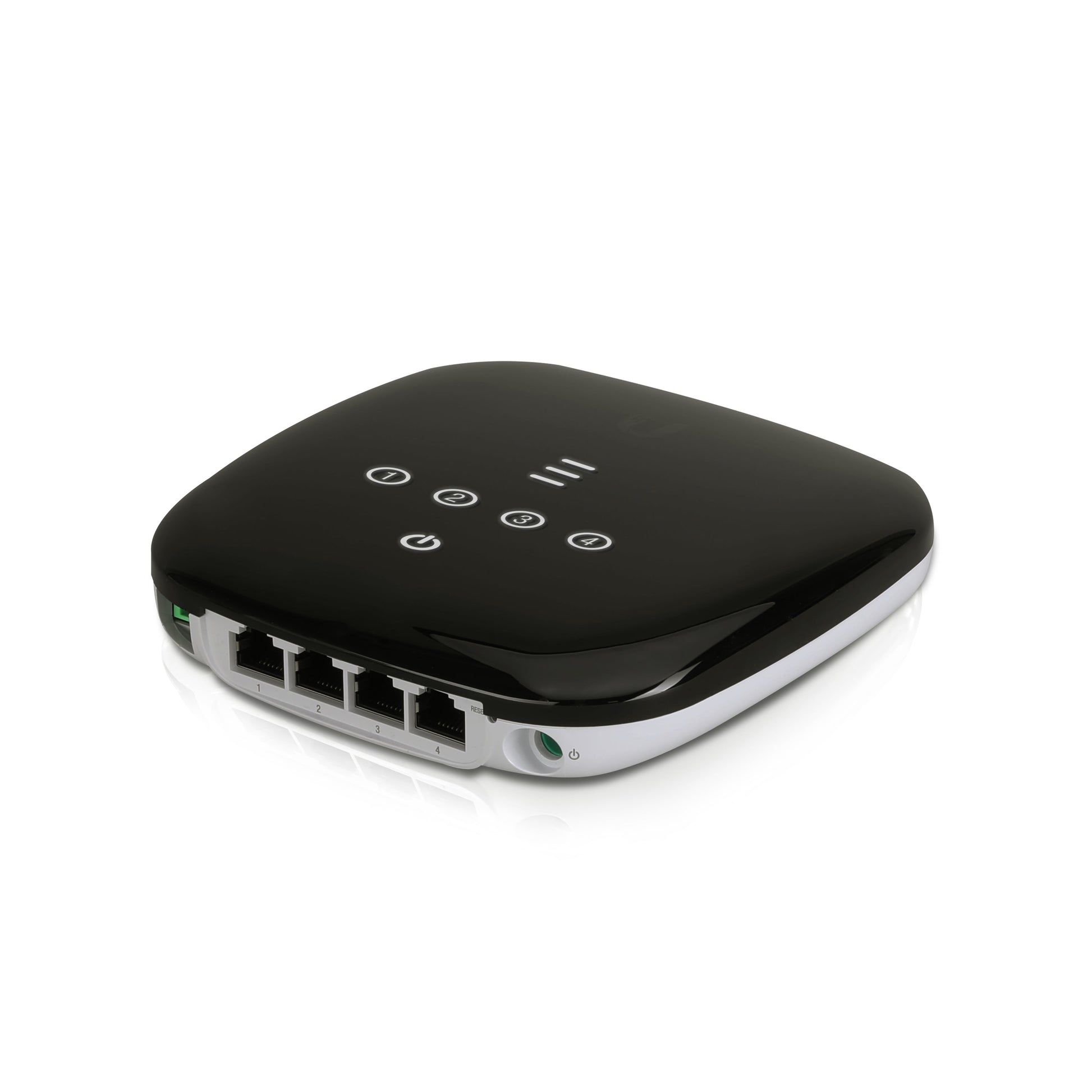

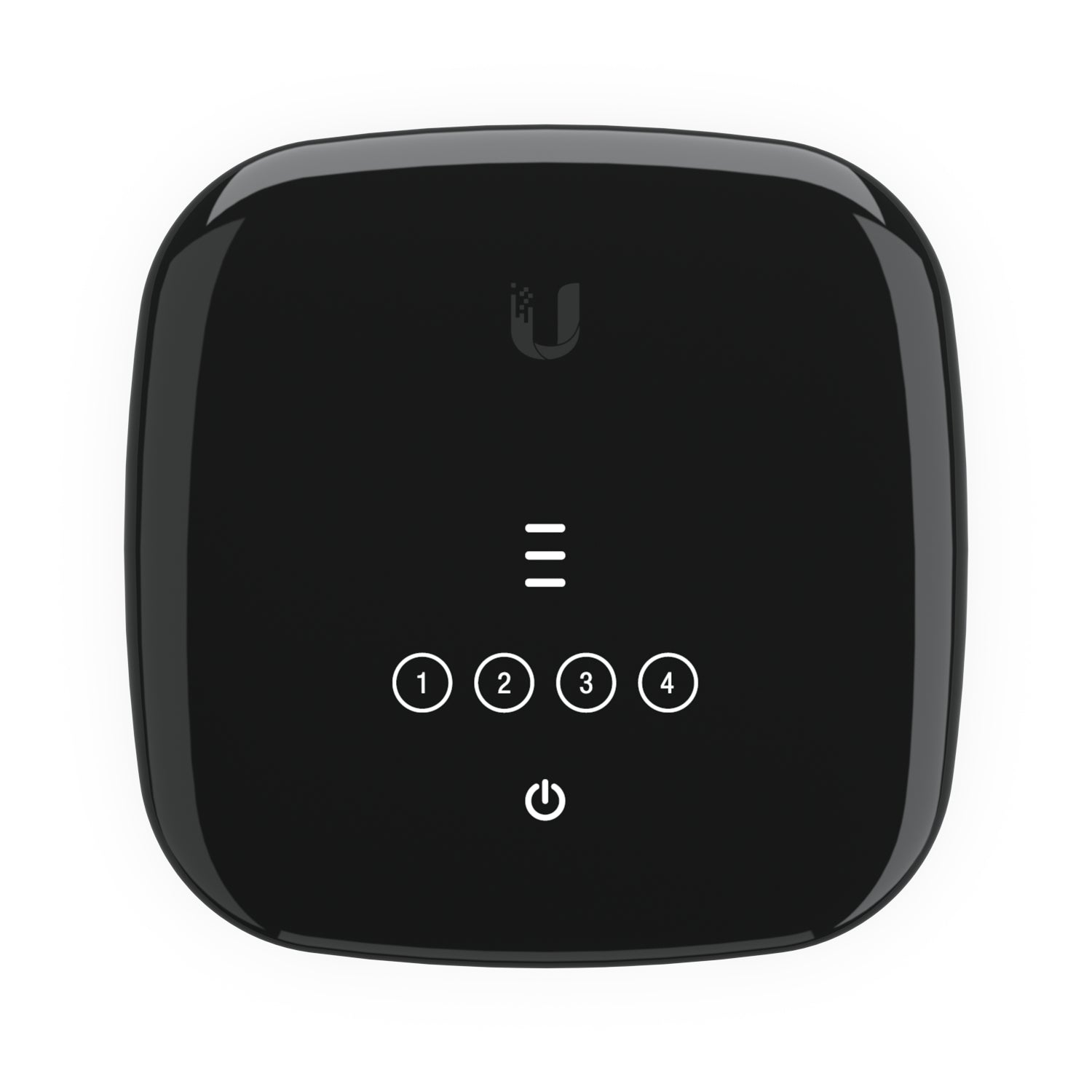

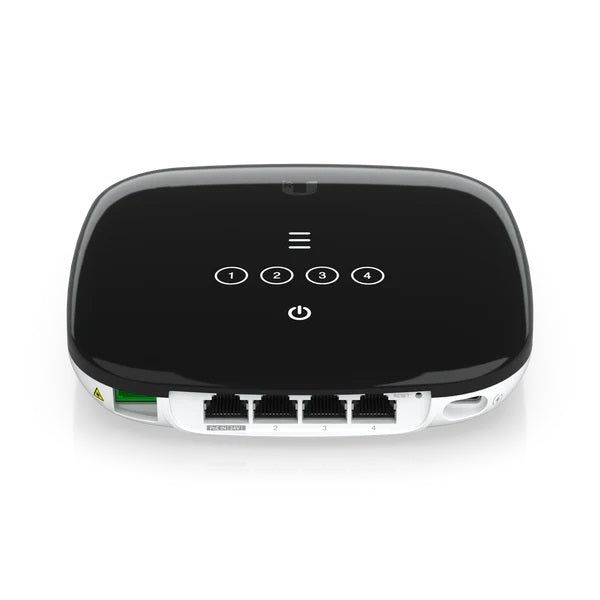

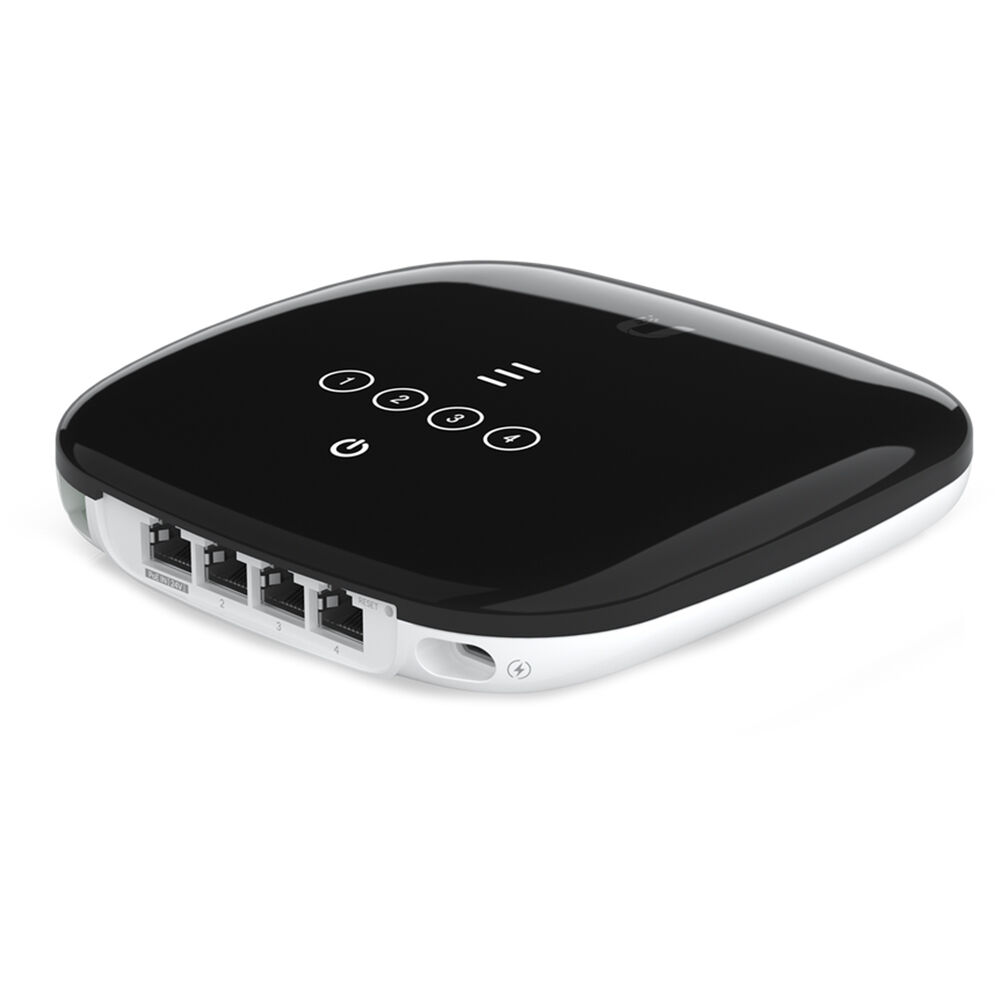

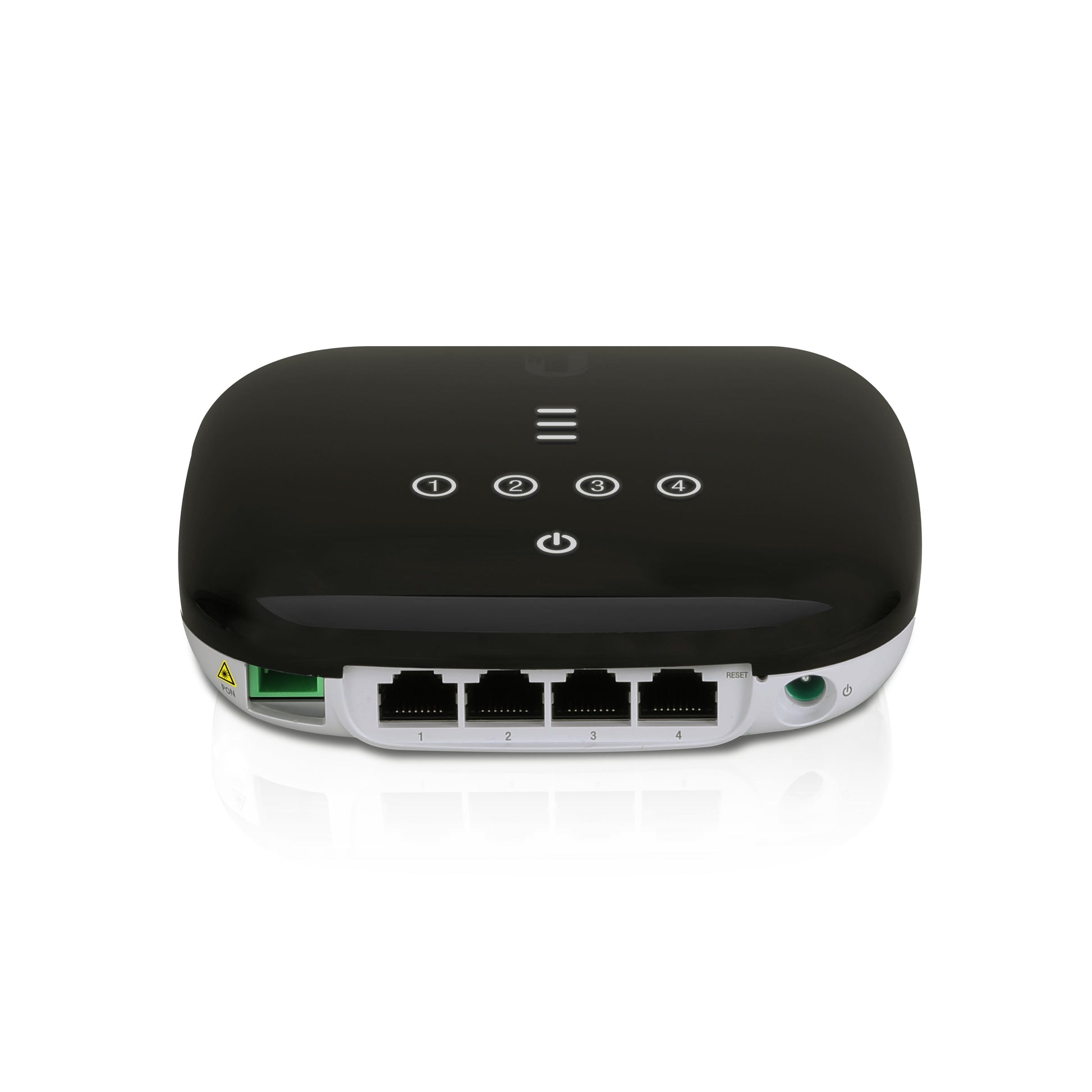

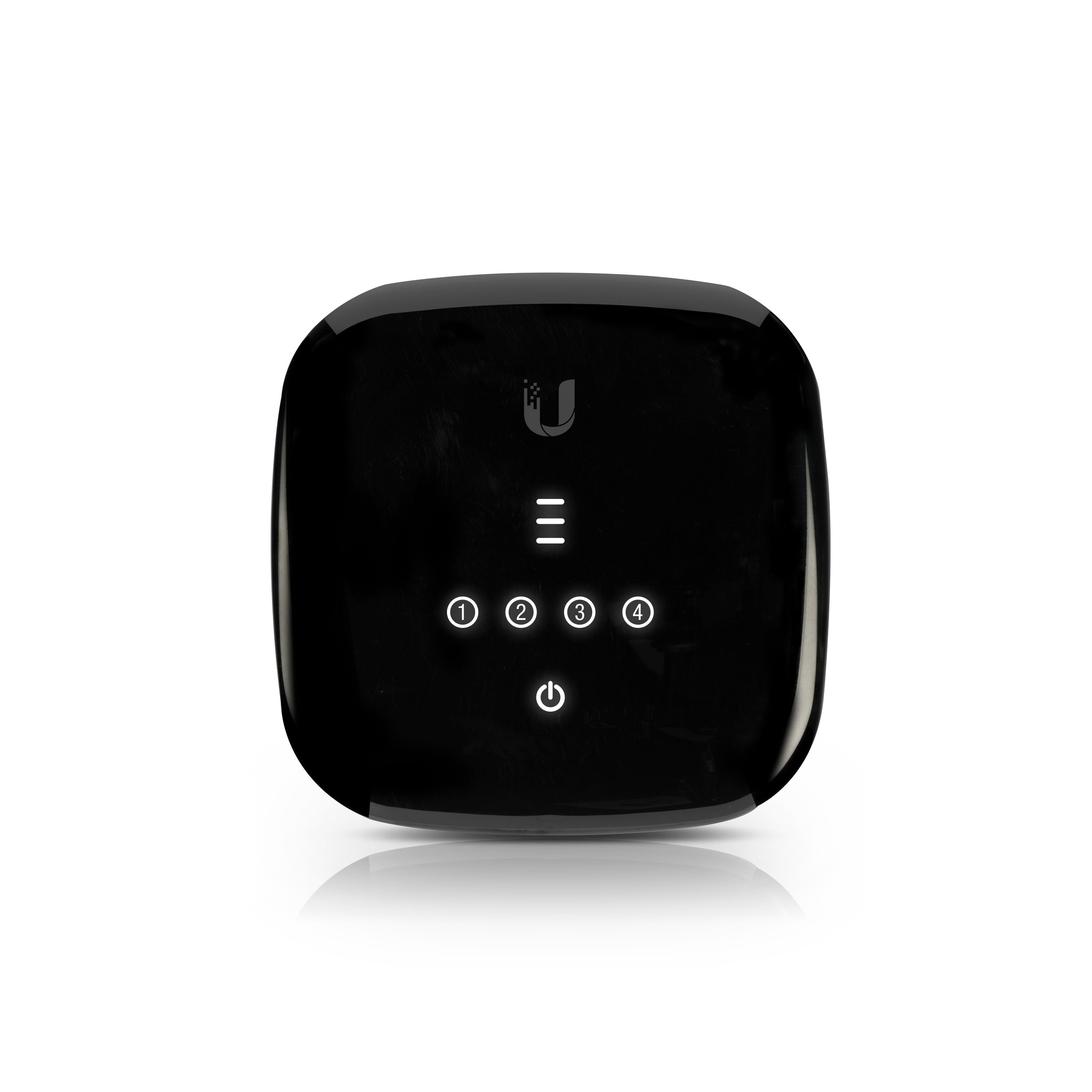

•The easy-to-read LEDs provide status information: Ethernet connection, signal strength, and power
•The UFiber Wi-Fican be powered using 24V passive PoE on Port 1, or by 24VDC
•High-Performance GPON CPE
•Up to 2.4 Gbps Downstream and 1.2 Gbps Upstream
•Supports up to 20 km GPON Links
•Powerful Layer 2/3 Management Features
•Powered via supplied PSU or passive PoE
•WiFi 802.11n with internal antennas

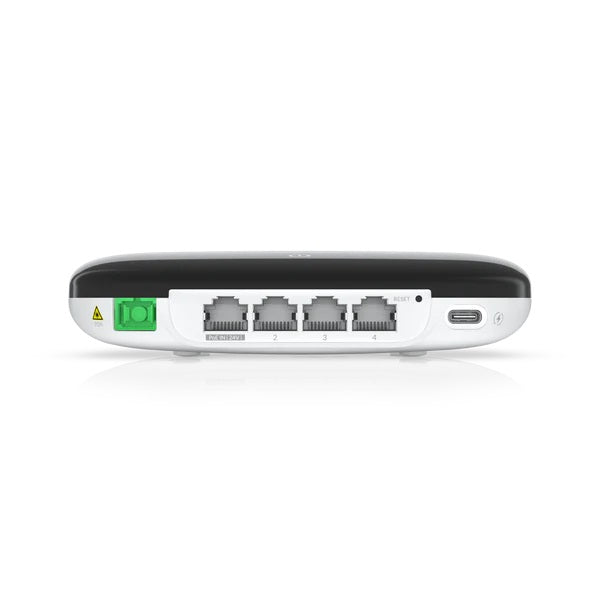

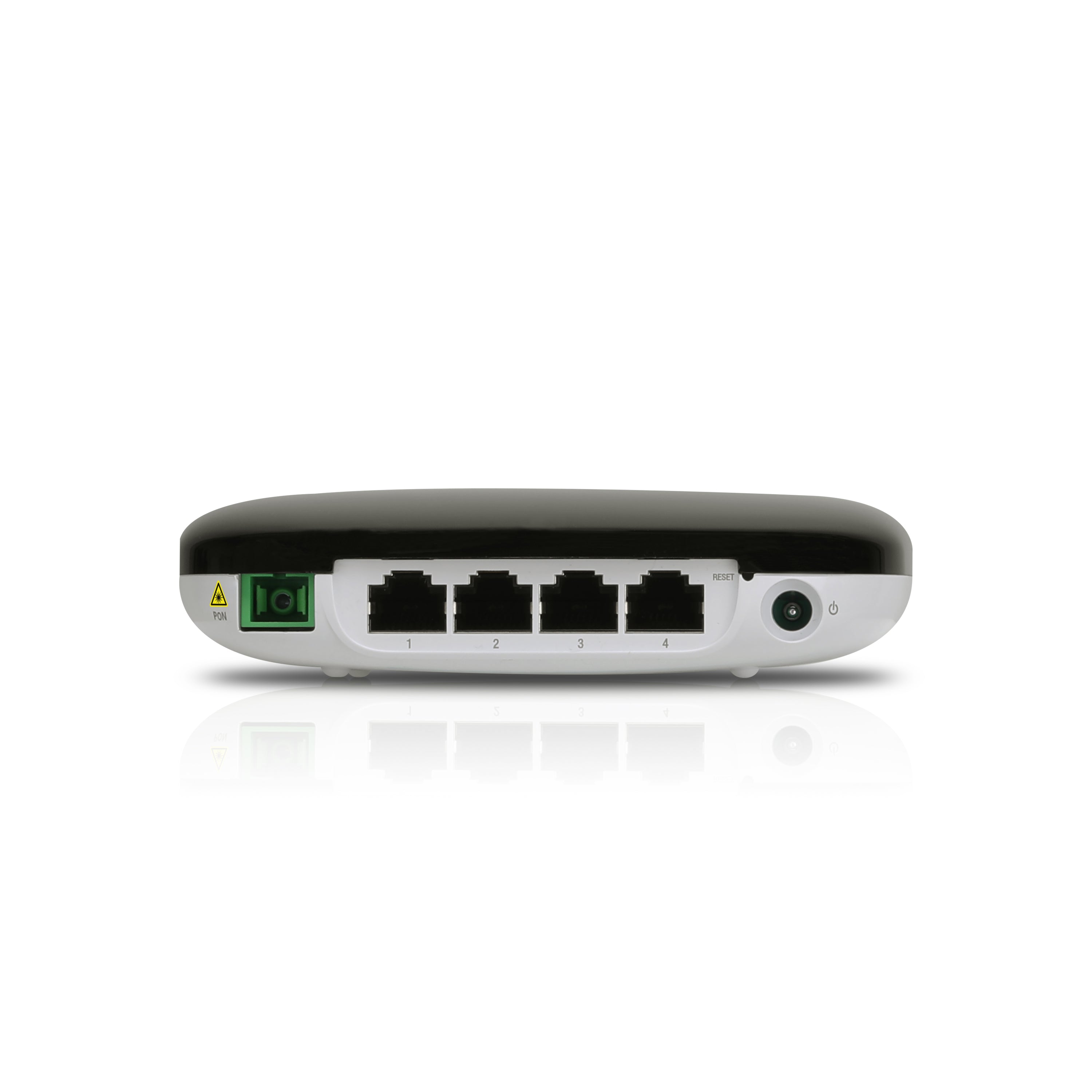

•Networking Interfaces: (1) SC/APC, GPON WAN, (4) Gigabit RJ45, Ethernet LAN, (1) Wi-Fi, 802.11n
•GPON WAN, ITU G.984: 2.4 Gbps Down, 1.2 Gbps Up
•LAN: 10/100/1000 Mbps
•Wi-Fi: 300 Mbps
•Management Interface: In-Band Ethernet PON
•Normal Optical Power Range: TX (Class B+): 1.5 to 5 dBm RX: -28 to -8 dBm
•Power Method: DC Jack, 24VDC 24V Passive PoE (Pins 4, 5+; 7, 8-)
•Power Supply: 100-240VAC / 50-60 Hz Universal AC/DC 24V / 0.5A
•Max. Power Consumption: 7W
•Supported Voltage Range: 20 to 28V
•Operating Temperature: -10°C to 45°C (14°F to 113°F)
•Operating Humidity: 10 to 90% Noncondensing

•1 x UFiber UF-WIFI
•4 x Screws
•4 x Screw Anchors
•1 x Power Adapter (24V, 0.5A)
