• Site-to-site VPN and VPN client routing

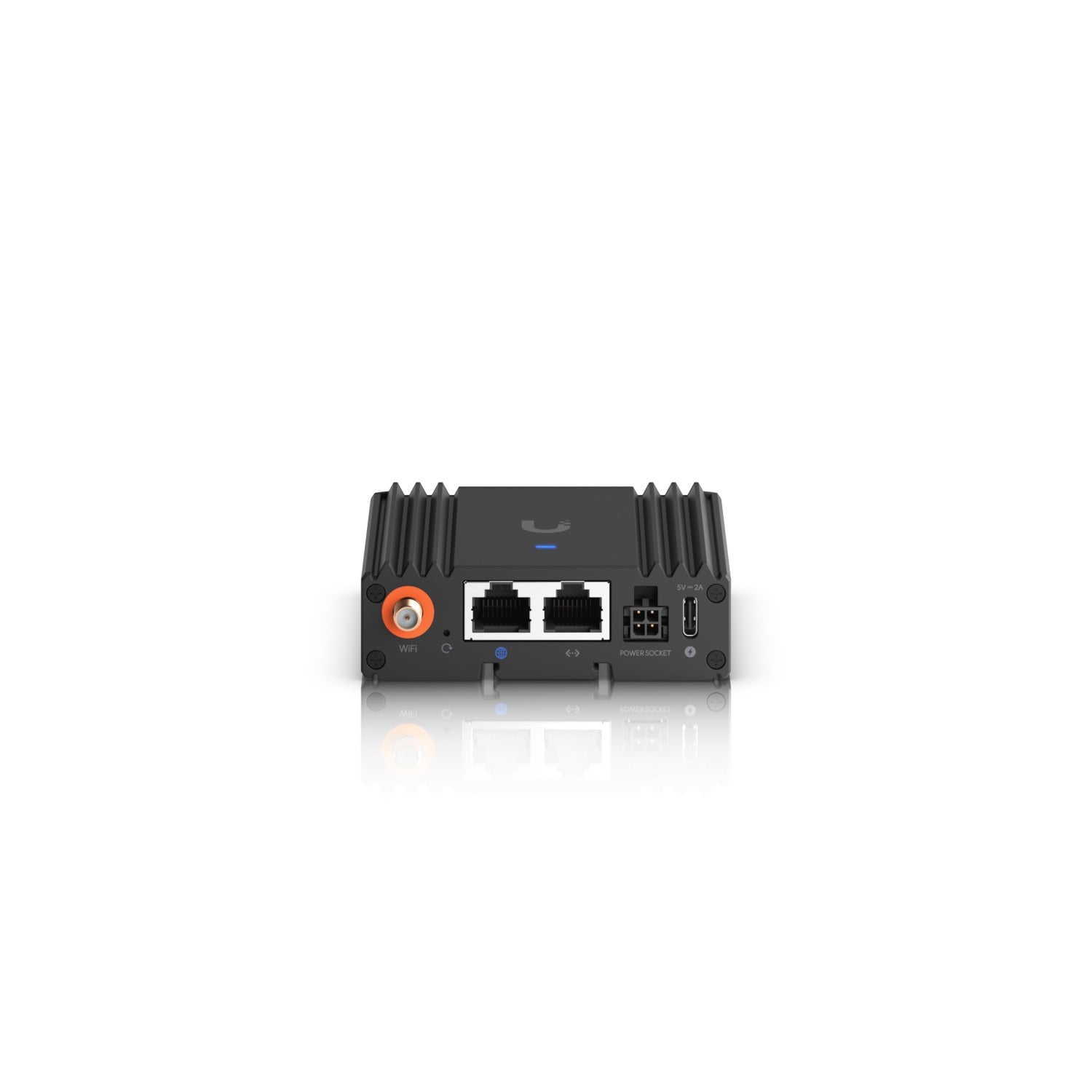

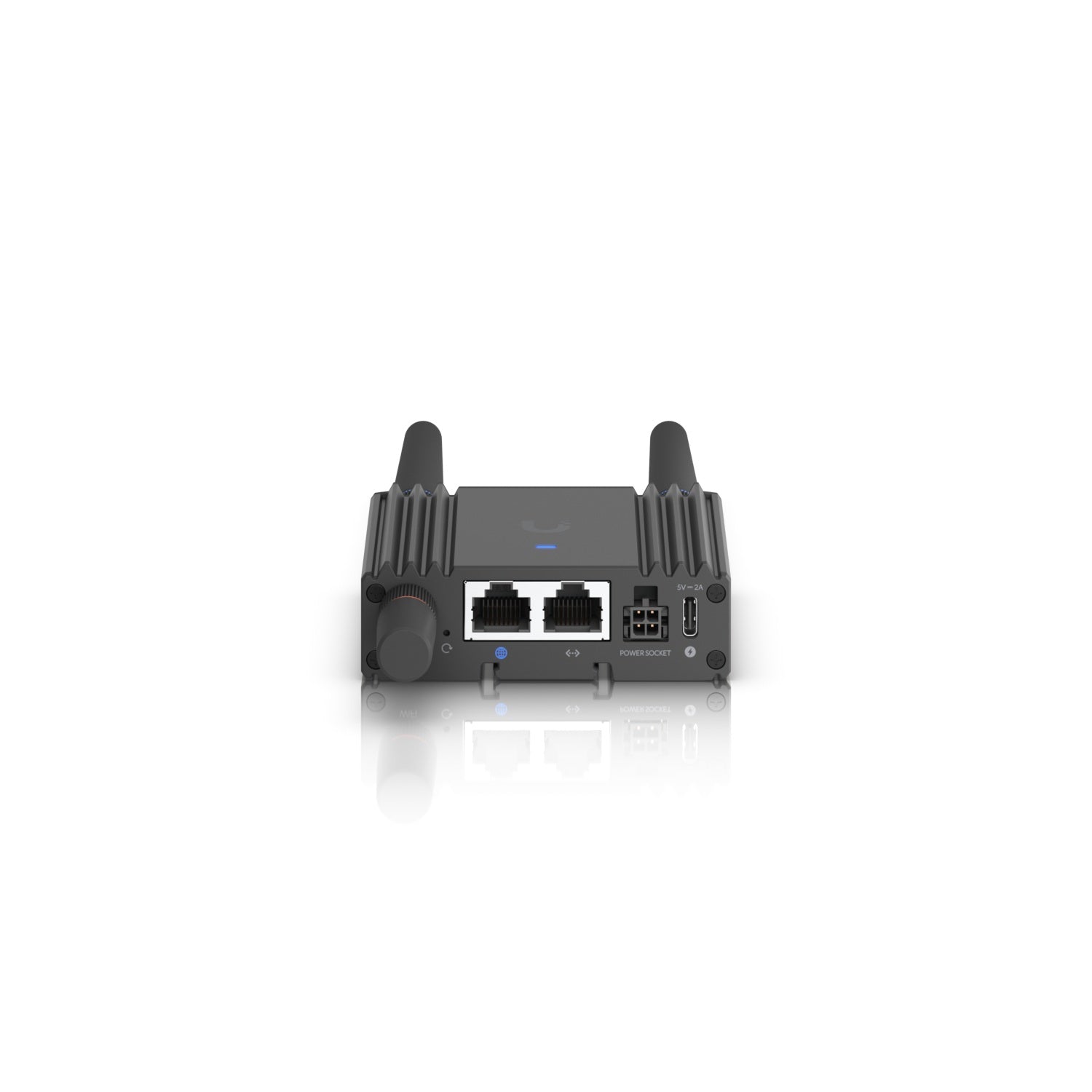

• 2 x FE RJ45 ports
• Automatic failover among LTE, wired WAN and Wi-Fi
• Powered using USB Type-C or 4-pin DC power socket
• Wall and DIN rail mount options
• Optional Mobility Cloud Subscription
• Wi-Fi 4 single chain 2.4 GHz radio
• Power adapter and cable not included; please use a 10W USB-C or ATX power supply

• Management Interface: Ethernet, Wi-Fi
• Networking Interface: 2 x FE RJ45 ports, LTE Category 4 radio, Wi-Fi 4
• Power supply: USB Type-C (5V DC/2A); 4-pin* ATX DC power socket (9—30V DC) *Please refer to the Installation Guide for detailed power socket pinout
• Max. Power Consumption: 5.7W
• LTE Throughput Speed: Download 150 Mbps / Upload 50 Mbps
• Wi-Fi Standards: Wi-Fi 4, 2.4 GHz, 20/40 MHz
• Max. Wi-Fi TX Power: 17 dBm

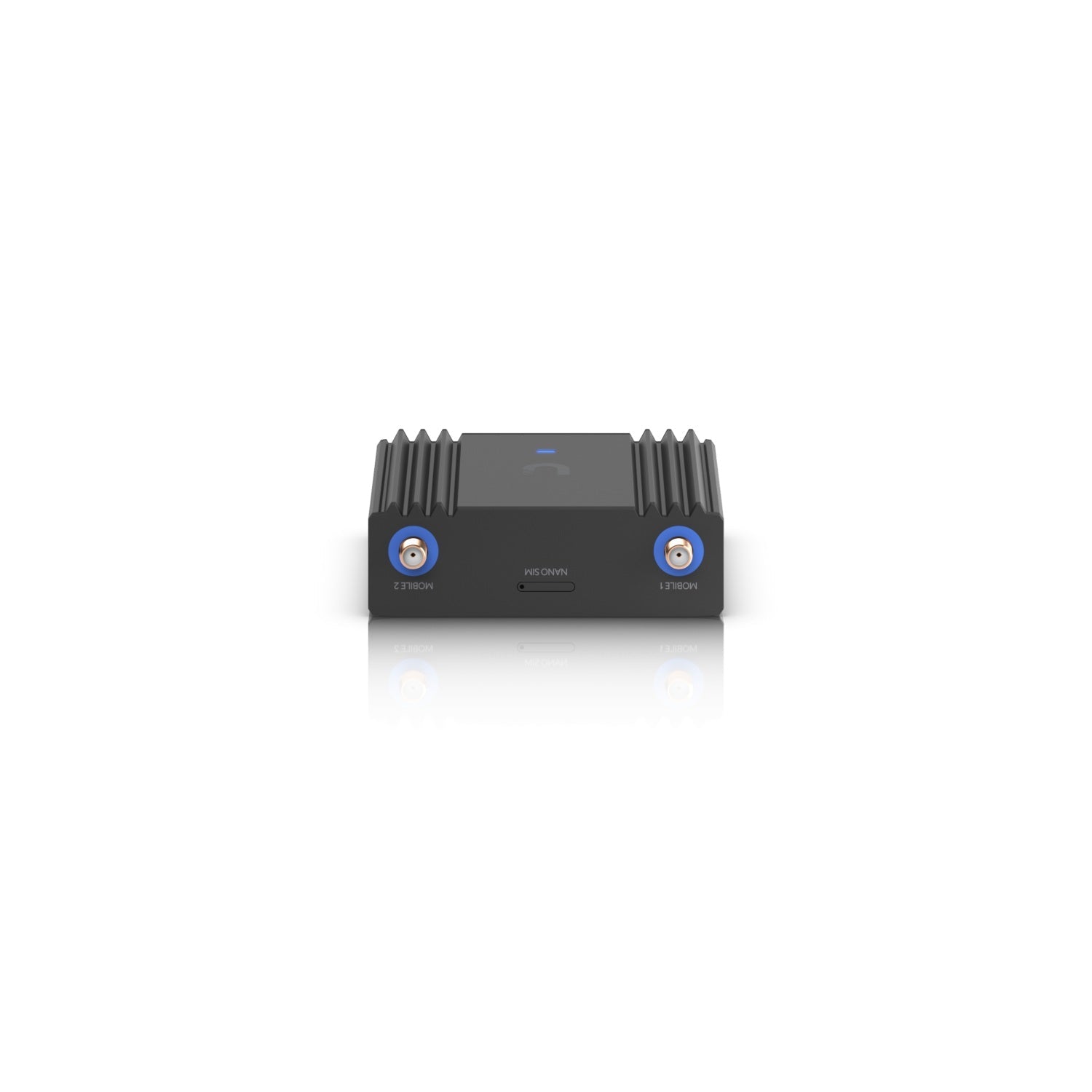

• Antenna SMA ports: 1 x Mobile 1: SMA female connector, supports 1Rx only; 1 x Mobile 2: SMA female connector, supports 1Tx and 1Rx; 1 x Wi-Fi: RP-SMA female connector
• External Antennas: 2 x Mobile/LTE antennas with SMA male connectors; 1 x Wi-Fi antenna with RP-SMA male connector
• Mounting: DIN rail/wall mount (Included)
• Certifications: FCC, IC, PTCRB, GCF, AT&T, T-Mobile, Verizon, Wi-Fi Alliance®
• Operating Temperature: -30°C to 70°C (-22°F to 158°F)

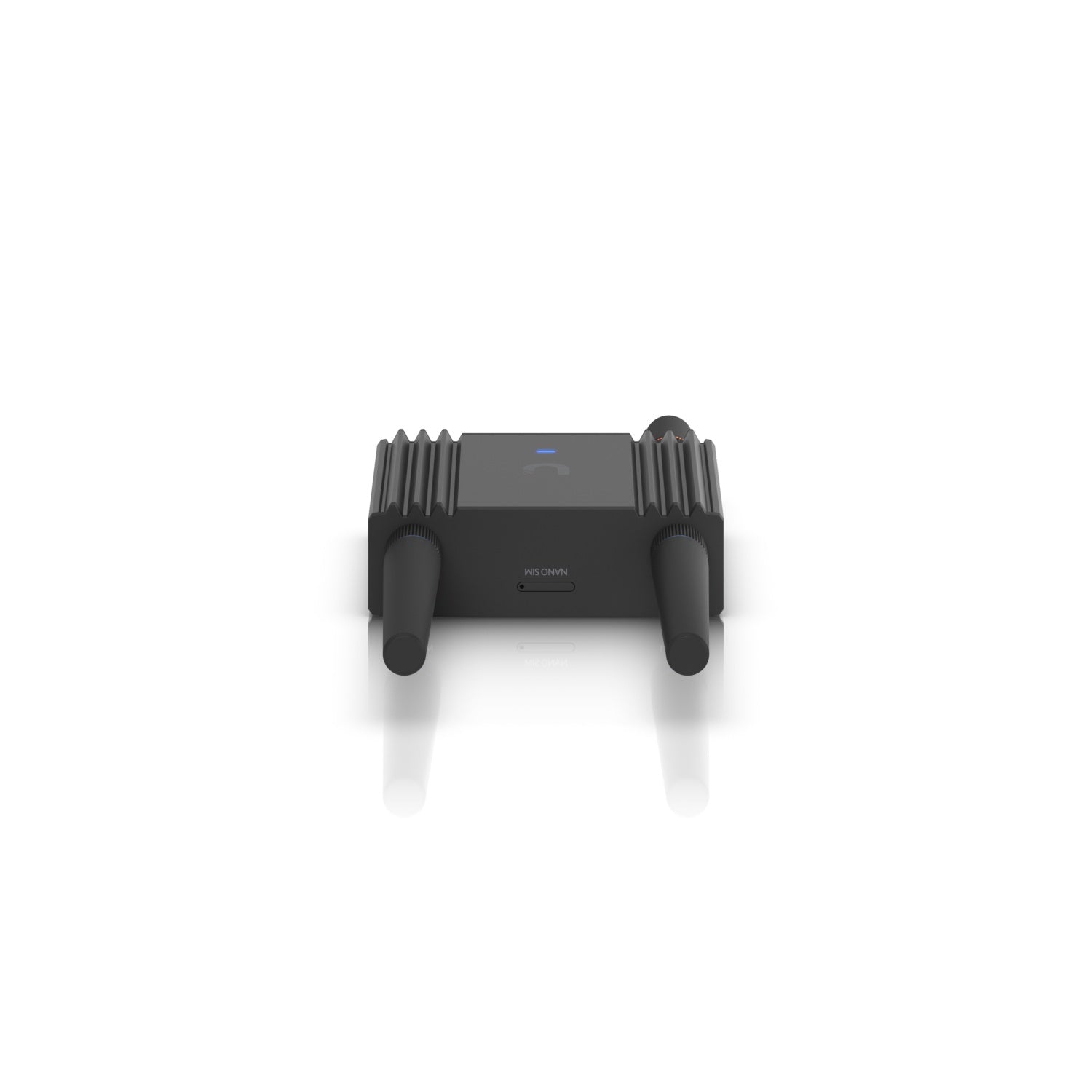

• 1 x Mobile Router Ultra
• Mounting hardware

0.44 lbs

3.3-in x 3.2-in x 1-in
