• Compatible with UISP-FIBER-OLT-XGS, UF-OLT, and UF-OLT-4
• 1.2 Gbps uplink and 2.5 Gbps downlink up to 20km

• Networking Interface: 1 x SC/APC, ITU-G.984 GPON WAN port; 1 x 1/2.5 GbE RJ45 LAN port
• Management Interface: Ethernet in-band, PON
• Power Method: PoE, 0.3A
• Power Supply: 24V passive PoE 2-pair (4, 5+; 7, 8-)
• Supported Voltage Range: 20–28V DC
• Max. Power Consumption: 5W
• Total Non-Blocking Line Rate: Downstream 2.488 Gbps, Upstream 1.244 Gbps
• Normal Range of Optical Module: TX @ 1.5 dBm to 5 dBm, RX @ -8 dBm to -28 dBm
• Operating Wavelength: TX 1310 nm, RX 1490 nm
• Physical Reach: 20 km
• Operating Environment: Temperature -15°C to 45°C (5°F to 113°F); Humidity 10% to 90% noncondensing
• Certifications: FCC, IC, CE

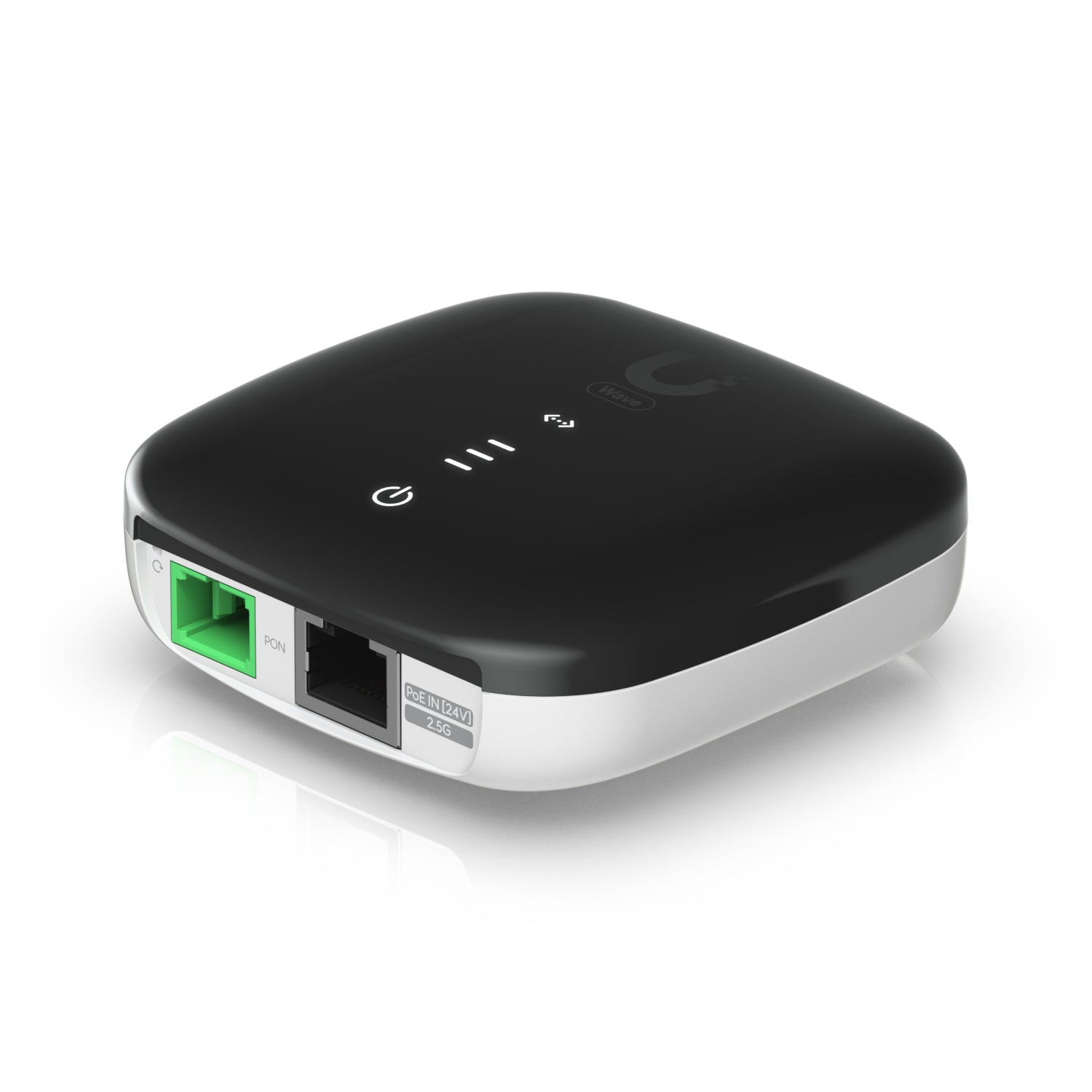

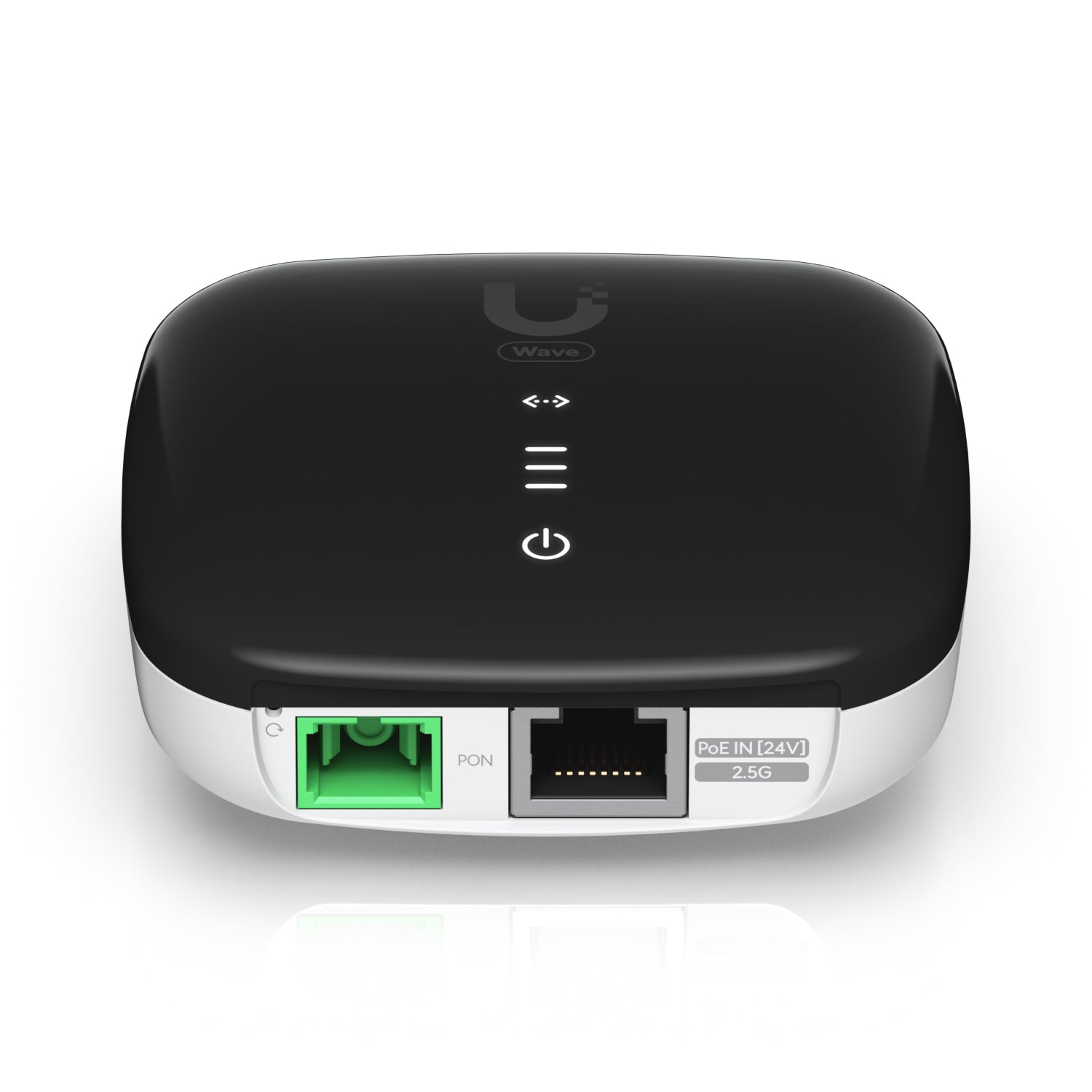

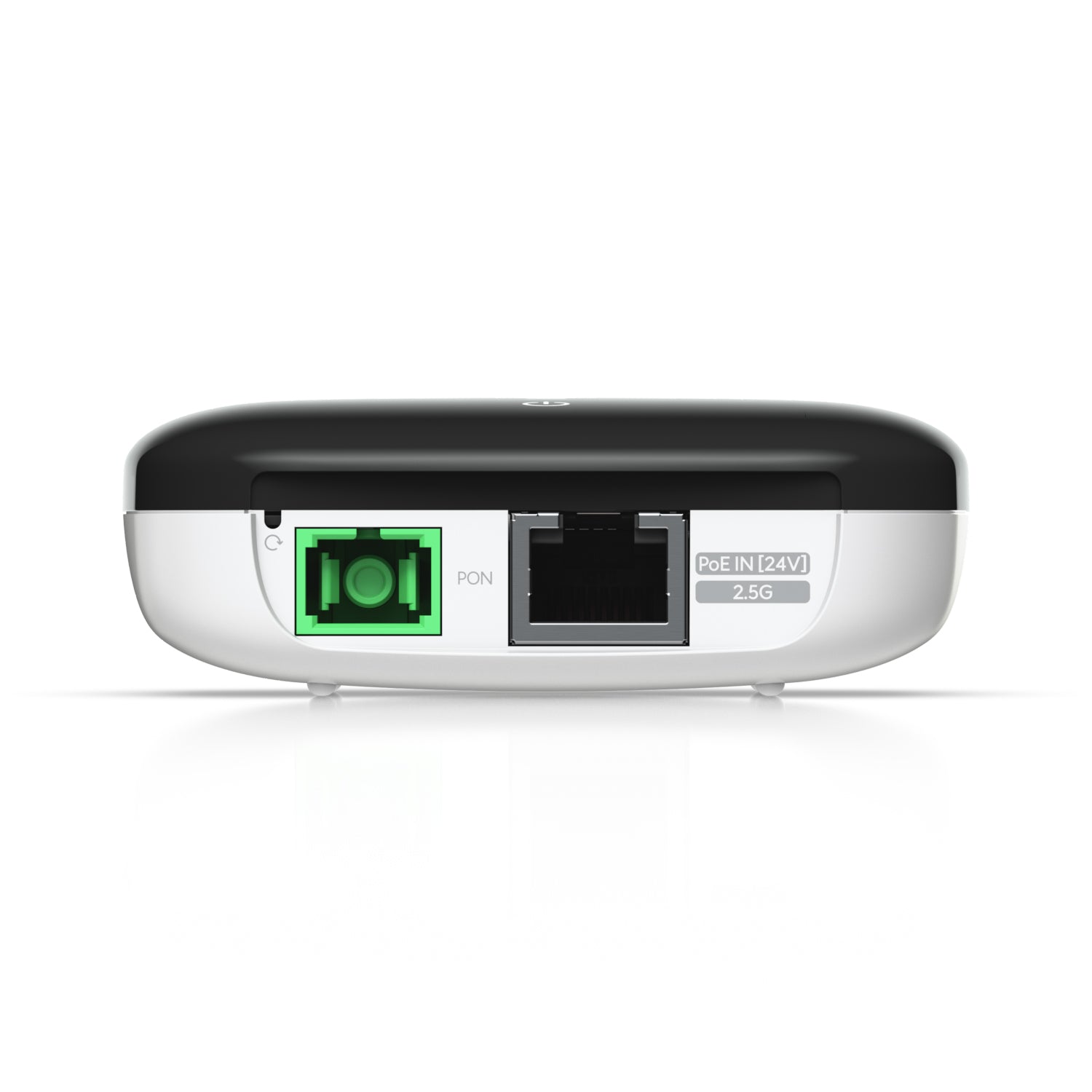

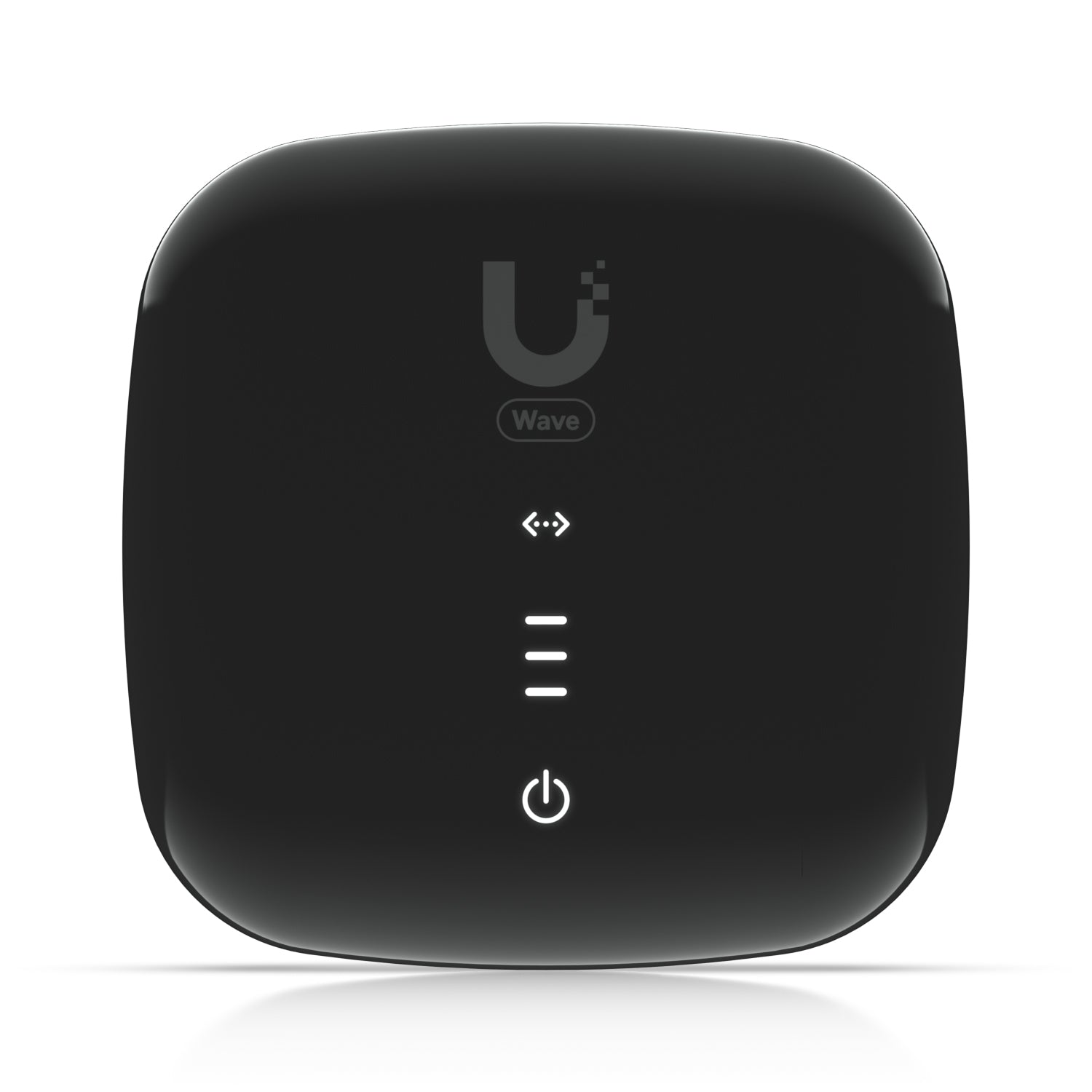

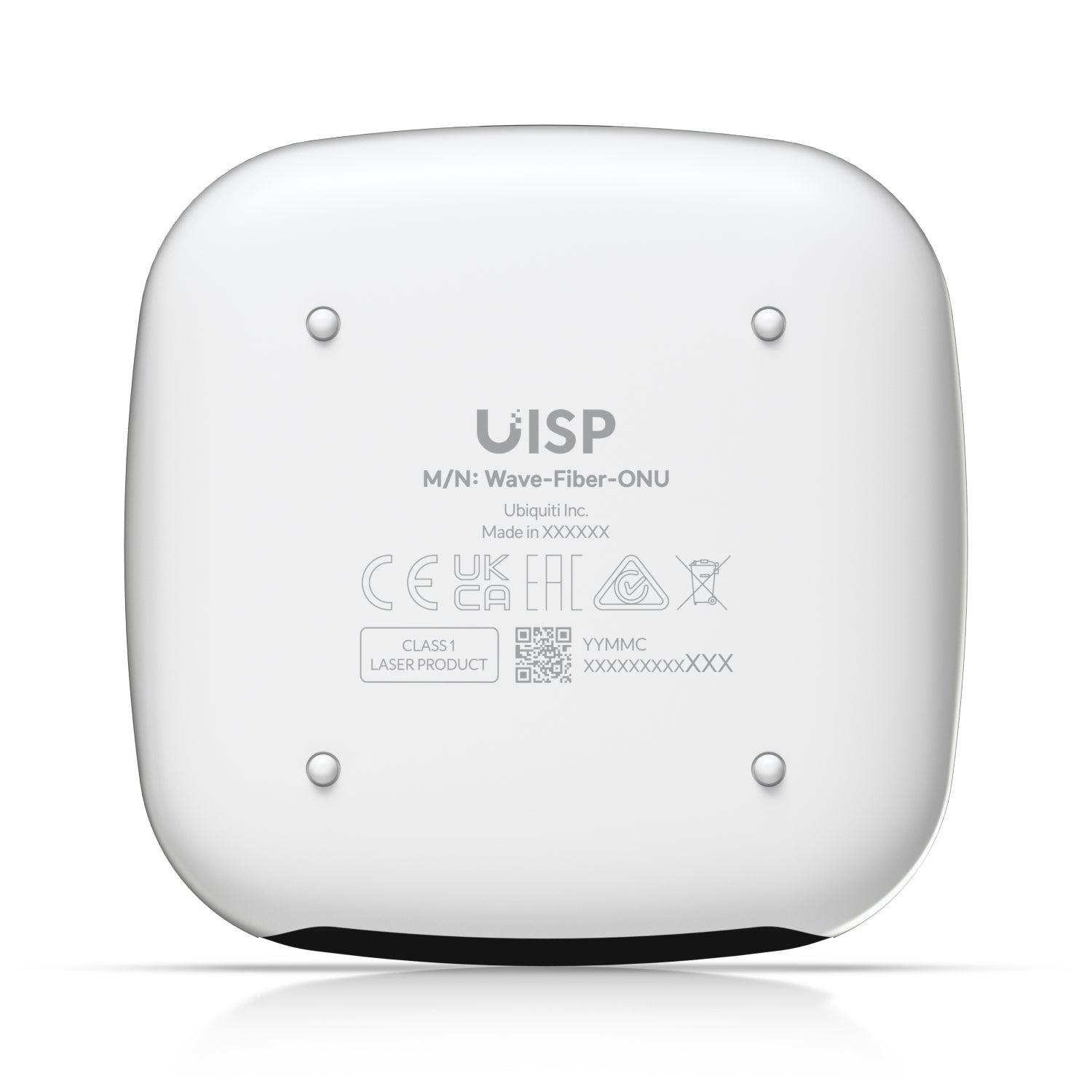

• 1 x WaveFiber ONU
• 1 x Mounting Template
• Mounting Hardware

3-in x 3-in x 1-in

0.175 lbs
