• 5 GHz, 100+ km link range
• 5+ Gbps throughput
• Dedicated spectral analysis radio
• Channel puncturing
• 1 x 10 GbE and 1 x SFP+ port
• Integrated Bluetooth
• Compatible with airMAX antenna, airFiber X antenna, UISP Dish and UISP Horn

• Processor: Quad-core IPQ5322 at 1.5 GHz
• Memory: DDR4 1 GB

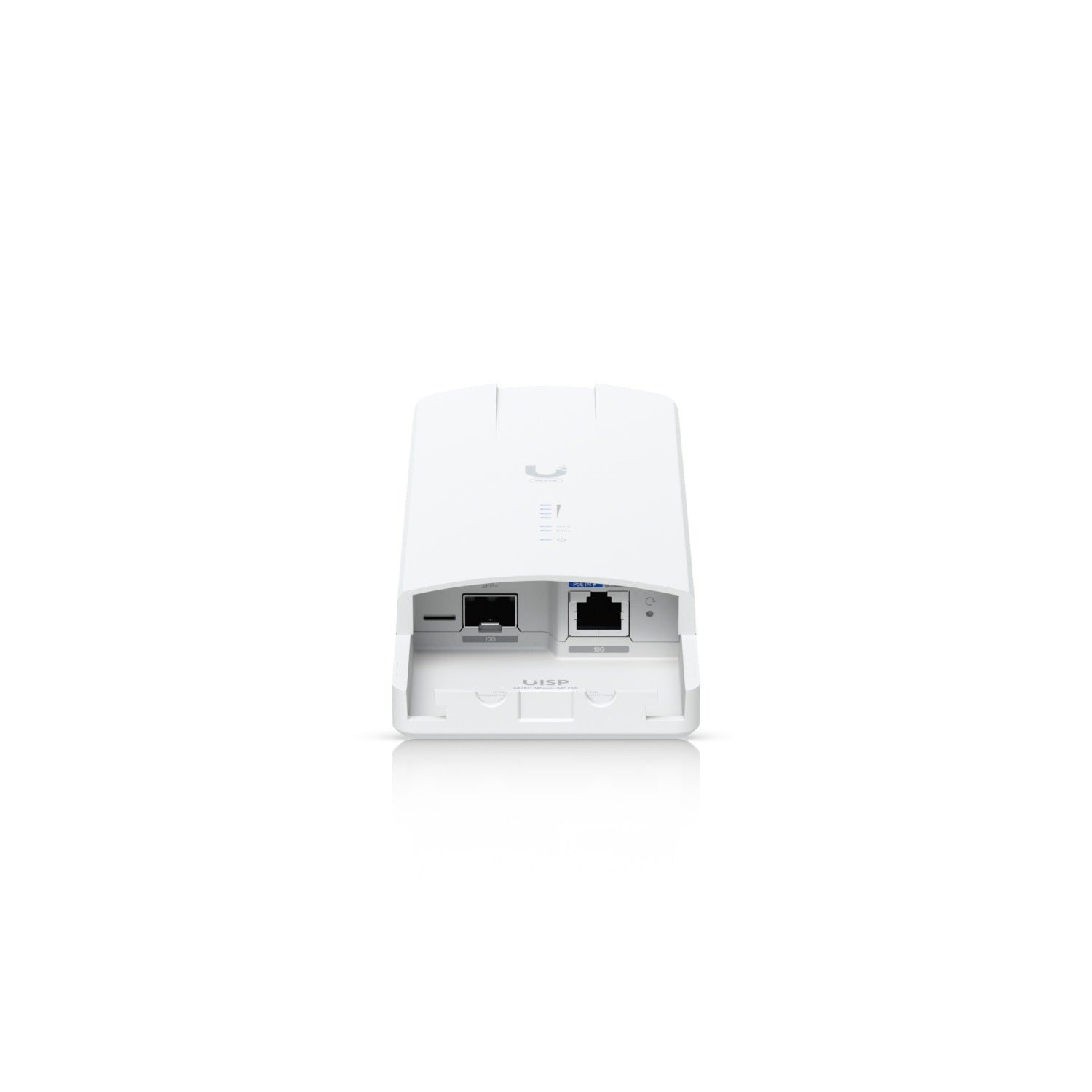

• Networking Interface: 1 x 10 GbE RJ45 port, 1 x 10G SFP+ port
• RF Connectors: 2 x RP-SMA (Waterproof); 1 x GPS (Waterproof)
• Max. Power Consumption: 20W
• Power Method: Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-); Passive PoE 2-pairs (4, 5+; 7, 8-), for 44–54V DC only
• Power Supply: 54V DC, 0.56A, 10 GbE PoE adapter (Included)
• Supported Voltage Range: 44–54V DC; 22–27V DC
• Max. TX Power: 24 dBm@5 GHz (depends on regulatory region)
• MIMO: (2) 2 x 2 @ 5 GHz
• Total Throughput: 5+ Gbps
• Operating Environment: Temperature -40 to 60° C (-40 to 140° F); Humidity 5 to 95% noncondensing

• 1 x Wave MLO5

9.8-in x 3.2-in x 1.9-in 1.3 lbs
