• Symmetrical 10G Connectivity - XGS-PON technology delivers 10 Gbps upstream and downstream transmissions simultaneously
• 10G Wired Connections - 1 x 10GE LAN port enables ultra-fast network sharing and connections
• Ease of Use - Quick and hassle-free installation with intelligent power-saving
• Remote Management - Supports the OMCI (ONU Management Control Interface) protocol for centralized configuration and management

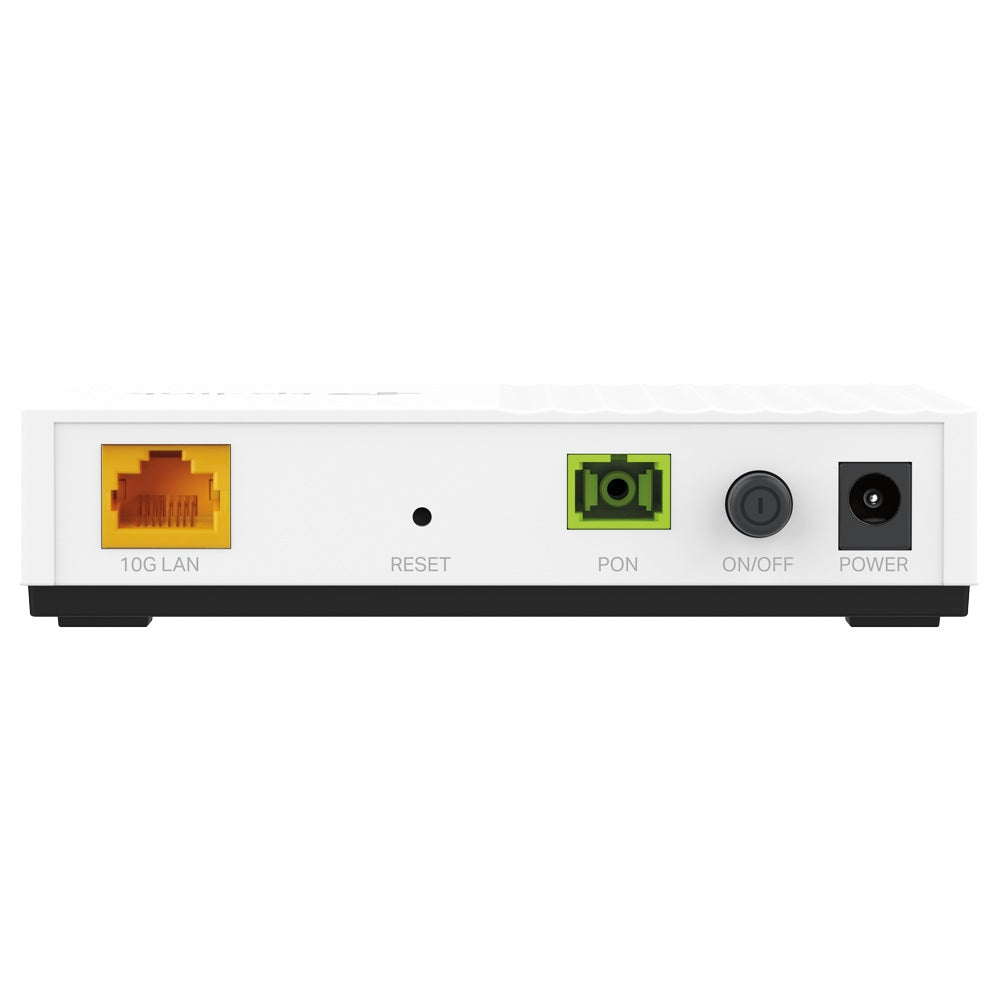

• Interface: 1 x XGS-PON Port; 1 x 10G RJ45 Port
• External Power Supply: 12V/1A
• IEEE Standards: IEEE 802.1p, 802.1Q, 802.1X, 802.1D, 802.1w; IEEE 802.3, 802.3.u, 802.3ab, 802.3x
• Data Rates: Downstream Speeds: 10 Gbps; Upstream Speeds: 10 Gbps
• Wave Length: Upstream - 1270 nm; Downstream - 1577 nm
• Distance: 0–20 Km Max
• GPON Standards: ITU-T G.9907.1, ITU-T G.988
• Optical Module: Class E1
• Receiver: Super-TIA
• Transmitter: DFB laser
• Certifications: CE, FCC, RoHS
• Operating Environment: 0°C–40°C (32°F–104°F); Humidity 5%–90% non-condensing

• 1 x XGS-PON Terminal
• 1 x Power Adapter
• 1 x RJ45 Ethernet Cable
• Quick Installation Guide

4.72-in x 4.72-in x 1.1-in

0.35 lbs
