• Gigabit Internet Access:  One PON port and one gigabit LAN port provide fast transfer speeds
• XPON Support:  EPON + GPON dual mode offers greater flexibility for fiber internet access
• Durability:  Intelligent power-saving method
• Remote Management:  Supports the OMCI (ONU Management Control Interface) protocol for centralized configuration and management

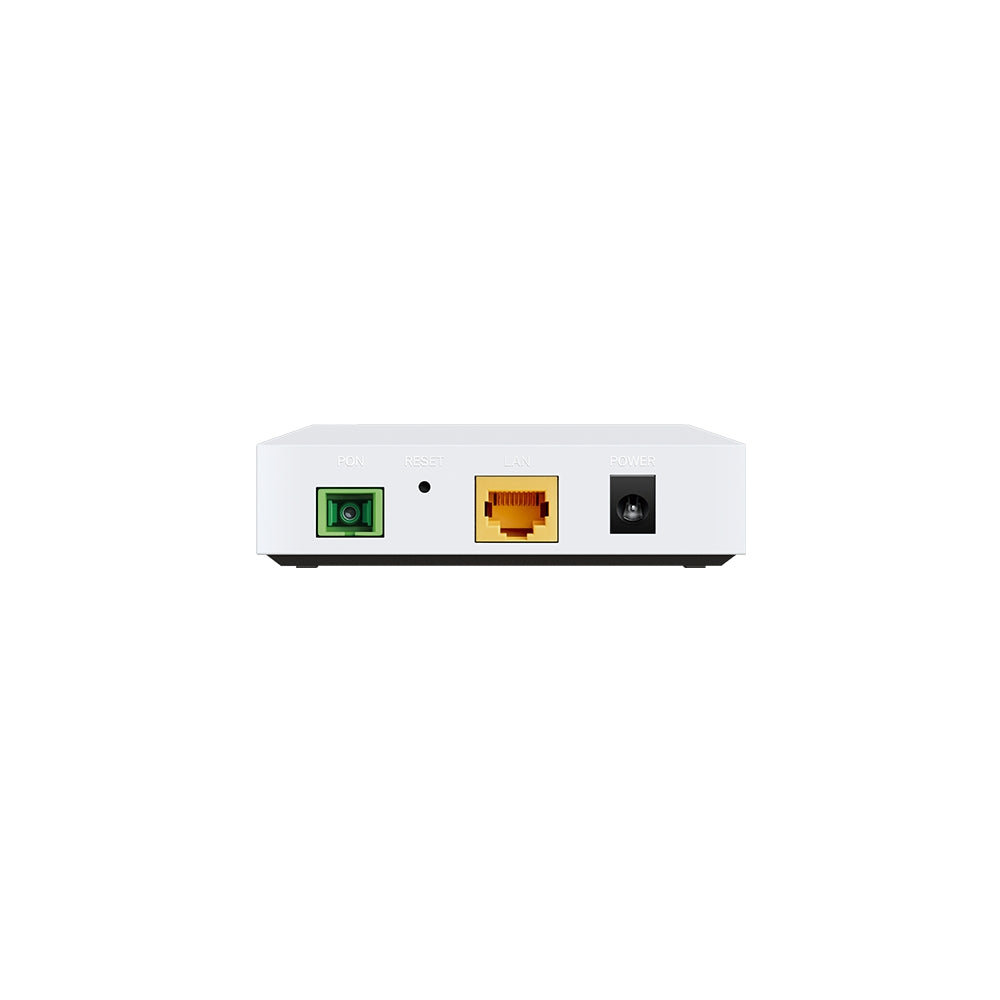

• Interface: 1 x PON Port; 1 x 10/100/1000 Mbps RJ45 Port
• External Power Supply: 9VDC/0.6A
• IEEE Standards: IEEE 802.3, 802.3u, 802.1p, 802.1Q
• Data Rates: Downstream Speeds - 2.488 Gbps (GPON), 1.25 Gbps (EPON); Upstream Speeds - 1.244 Gbps (GPON), 1.25 Gbps (EPON)
• Wave Length: Upstream - 1310 nm; Downstream - 1490 nm
• Distance: 0–20 Km Max
• GPON Standards: ITU-T G.988, G.984.1, G.984.2, G.984.3, G.984.4
• Optical Module: Class B+
• Receiver: Super-TIA
• Transmitter: DFB Laser
• Certifications: CE, RoHS
• Operating Environment: Temperature 0°C–40°C (32°F–104°F); Humidity 10%–90% non-condensing

• 1 x XZ000-G7
• 1 x Power Adapter

3.7-in x 3-in x 1.2-in

0.16 lbs
