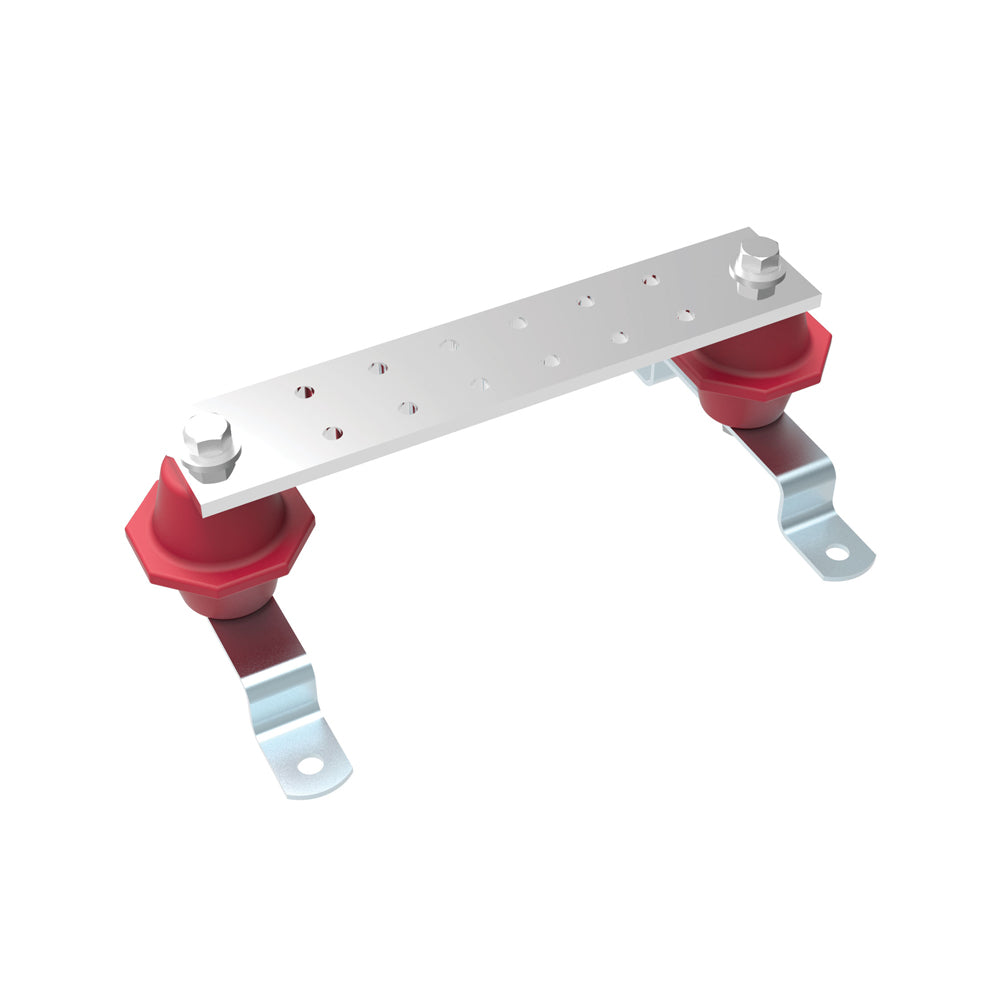

•Electro Tin Plated Copper Bus Bar, 100/300 micro inches of plating
•The thin tin coating acts as a shield, inhibiting copper oxidization
•Copper oxidization causes a poor electrical contact which then gets hot and increases the copper oxidization rate
•Oxides, because of their poor conductivity, also cause arcing at the electrical contacts, eroding the copper

•RoHS Compliant: Yes
•REACH Compliant: Yes
•TAA Compliant: Yes
•Material Finish: Tin-Plated
•3200 Volt rated Glass-Reinforced Thermoset Polyester insulators
•180+ seconds of arc resistance
•UL 94 V0 flame resistance
•Mounting bracket holes 0.375 Degree diameter
•2" in width
•10" in length
•UPC: 623980031569
•Shipping Dimensions: 7.5" x 12" x 6", 3.8 lbs

•12x 1/4-20 x 0.75" length stainless steel Phillips machine screw
•12x 1/4 stainless steel lock washer
•12x 1/4-20 stainless steel hex nut
