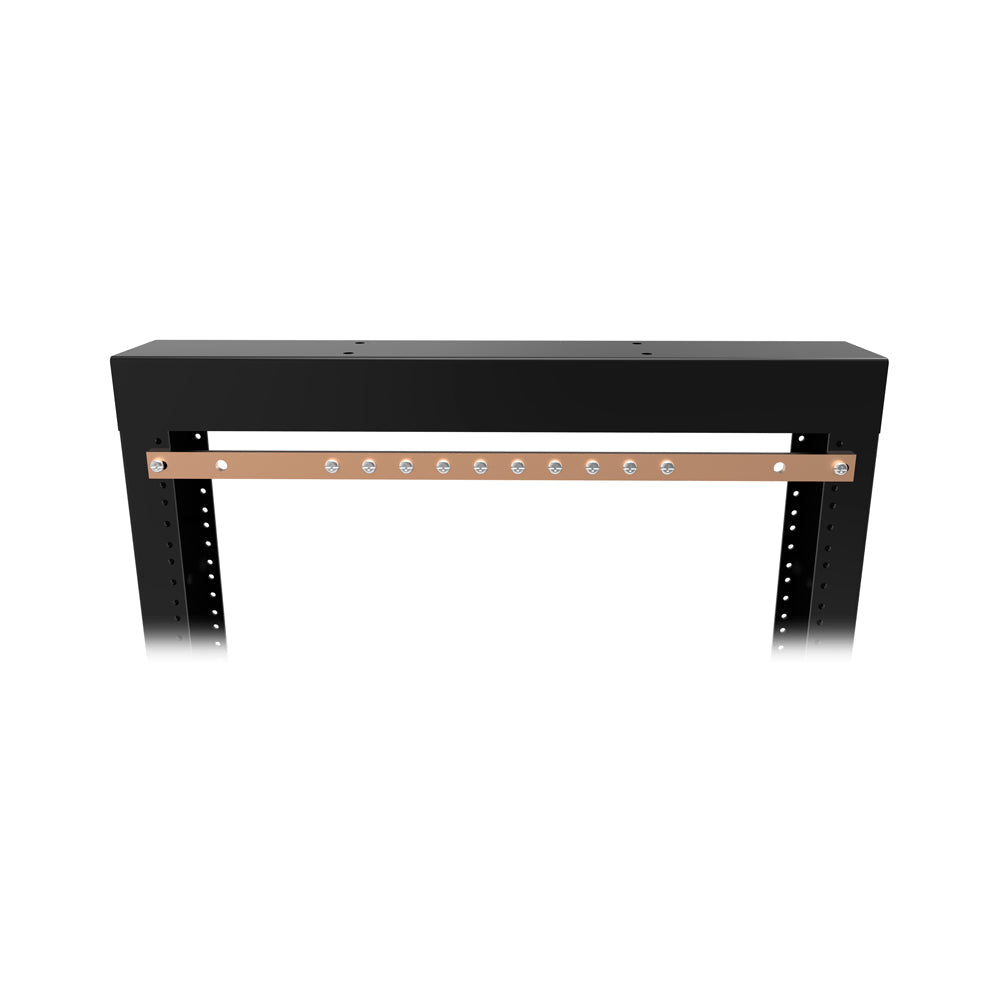

•The grounding bar is made from heavy-gauge copper that attaches to the inside of an enclosure, cabinet or open frame rack to provide consolidated equipment grounds
•Ground points have been drilled and tapped to accommodate a #10-32 screw (included)
•Use with our Bonding Wire Kits to bond your equipment to the busbar
•Constructed of Solid 0.188"Copper Bar
•Includes ten (10) 10-32 drilled and tapped holes spaced at one (1) inch
•Includes two (2) Ø 0.31 ground lug holes
•Mounts directly to EIA mounting rails

•RoHS Compliant: Yes
•REACH Compliant: Yes
•TAA-Compliant: Yes
•UPC: 623980935003
•Shipping Dimensions: 2.25" x 21.75" x 2.25", 1.1 lbs

•Copper Busbar
•10x 10-32 x 0.375" Screws
•2x 10-32 x 0.625" Screws
•2x 12-24 x 0.625" Screws
•2x 0.25" Flat Washers
•12x #10 Flat Washers
•Instruction bulletin
