Winegard 24-dB 54-1000-MHz Distribution Amplifier
Winegard 24-dB 54-1000-MHz Distribution Amplifier
Special Order Item
Manufacturer's Warranty: 1-Year
Winegard's new HDA series of Distribution Amplifiers was designed to meet the market demand for a heavy duty, quality built, cost effective solution for the amplification and distribution of analog/digital broadcast signals from Off-Air and cable TV stations. Both the HDA-100 & HDA-200 are housed in an industrial grade, weather resistant enclosure. Each unit has an RF input, amplified RF output, and DC power insertion jack. Each amplifier also provides a 5-42 MHz 2-way bi-pass.

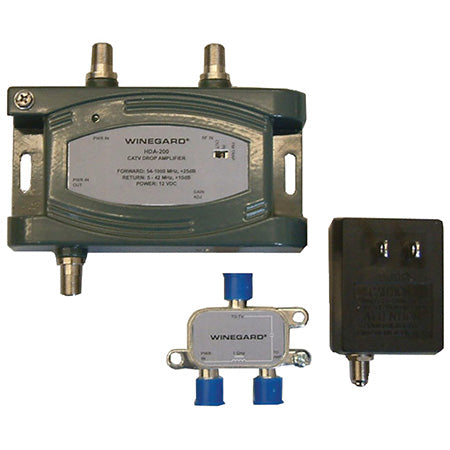

The HDA-200 has a single RF input, 24 dB gain, single RF output, with a 5-42 MHz 2-way bi-pass at +12 dB gain. The HDA-200 has 0-18 dB gain control and 20 dB "switchable" FM trap, and a return path.
The HDA-200 has a single RF input, 24 dB gain, single RF output, with a 5-42 MHz 2-way bi-pass at +12 dB gain. The HDA-200 has 0-18 dB gain control and 20 dB "switchable" FM trap, and a return path.
Features
Features
Technical Specifications
Technical Specifications
Box Contents
Box Contents
Weights & Dimensions
Weights & Dimensions
1.05 lbs
