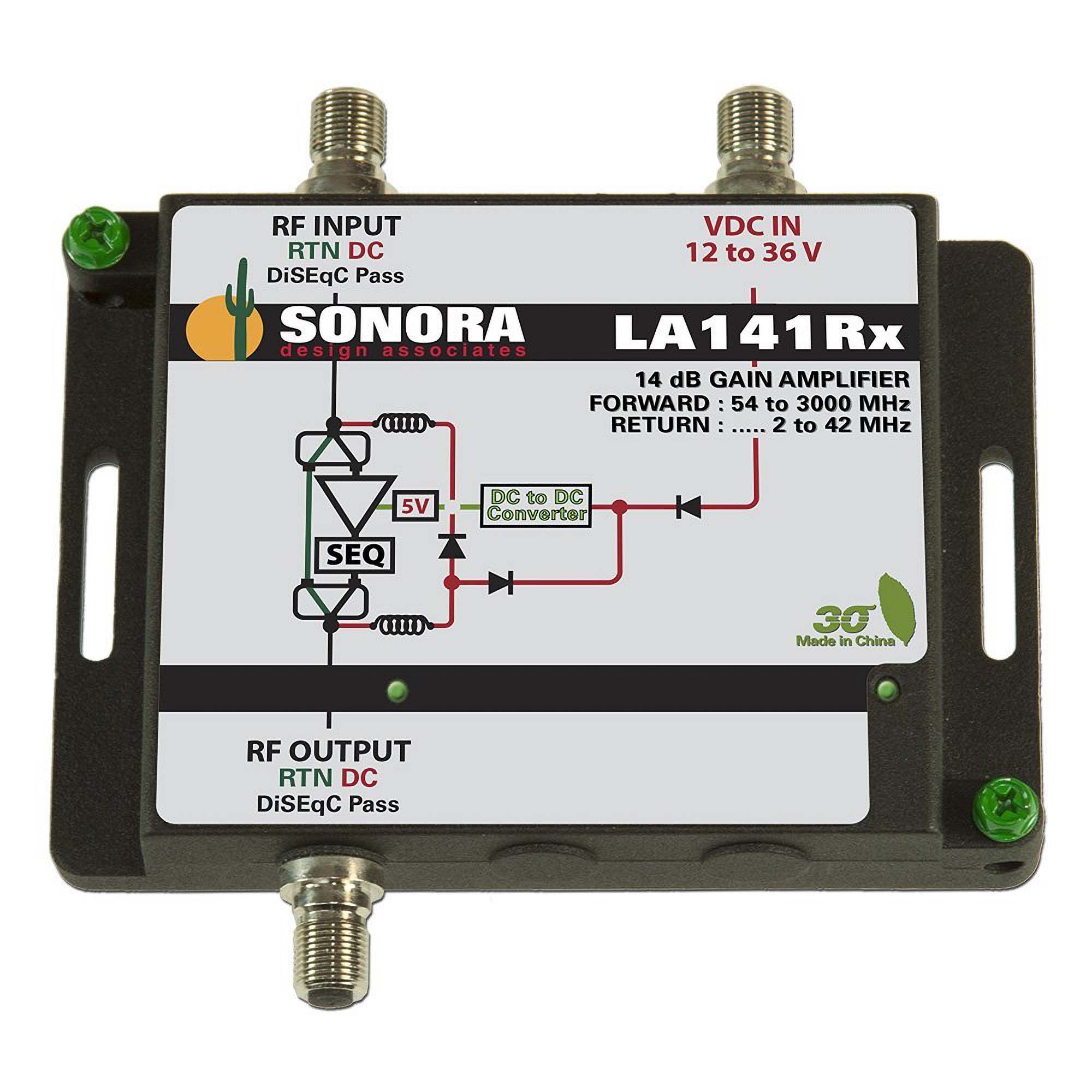

•The LA141Rx-T amplifier is compatible with OTA, CATV, DBS, and SWM
•This amplifier features a passive 2 to 42 sub-band return
•Model LA141RX-T uses an SCTE outdoor rated case with weather sealed F connectors

•Wide Bandwidth: 54 to 3000 MHz Forward, 22 kHz to 42 MHz return
•High Output Ability: 0 dBm
•DC Passing RF Out to RF IN: DiSEqC & 2.3 MHz pass
•High Efficiency Power Supply: low current use
•Multiple Power Options: line or external DC
•Maximum Output (32 equal transponders): 0 dBm
•Voltage: 12 to 29 VDC
•Power Consumption: 0.9 watts
•Gain, Typical, QC Limit: 2 to 42 MHz -1 dB, -4 dB; 54 MHz 8 dB, 7 dB, 250 MHz 9 dB, 8 dB; 1450 MHz 12 dB, 11 dB; 2150 MHz 14 dB, 13 dB; 3000 MHz 14 dB, 13 dB
•Operating Environment: Indoor/Outdoor (Lock box)
•Ambient Temperature:-30°C to 60°C (-22°F to 140°F)

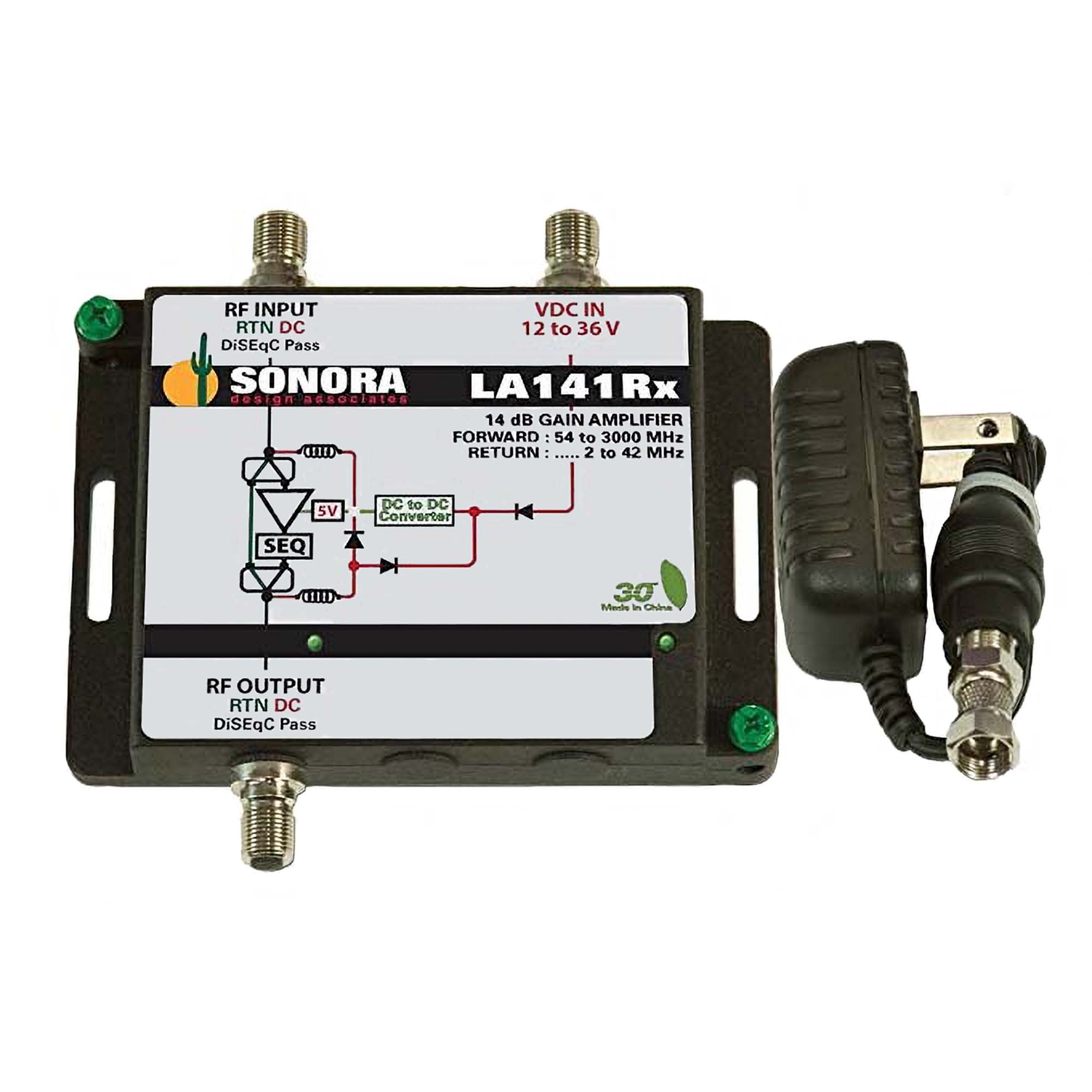

•1x Sonora LA141RX-T
•1x Power Adapter
