•Easy to implement
•28 dB gain so you will never be short on signal again
•Weather sealed die-cast housing

•Operating Frequency Range: 250 - 2150 DBS MHz, 22 (Communication Channel) kHz, 13 to 20 V DC
•F-Connector Power Input
•Input / Output Return Loss: 250 to 2150 MHz >10 dB
•Gain / Loss Note: 250 MHz 13 dB minimum, 950 MHz 18 dB minimum, 1750 MHz 24 dB minimum, 2150 MHz 25 dB minimum
•Flatness @ 25 MHz: +/- 0.5 dB
•Noise Figure: < 7 dB
•LNB Powering: 14V / 19V
•External Power Suppl: 100 to 240 VAC supply
•Operating Temperature Range: -34 C to + 60C
•Indoor Only
•Power Consumption: 240 mA
•Humidity: 95% relative humidity over operating temperature

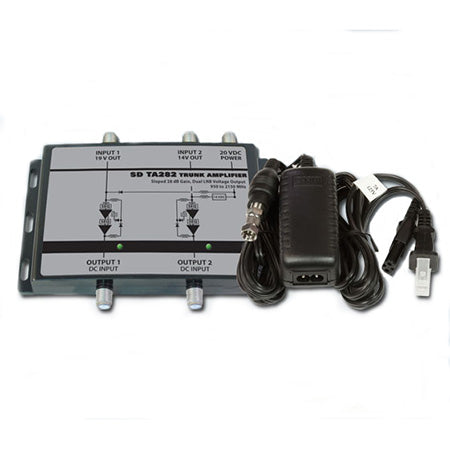

•Sonora DBS 28 dB Gain Trunk Amplifier
