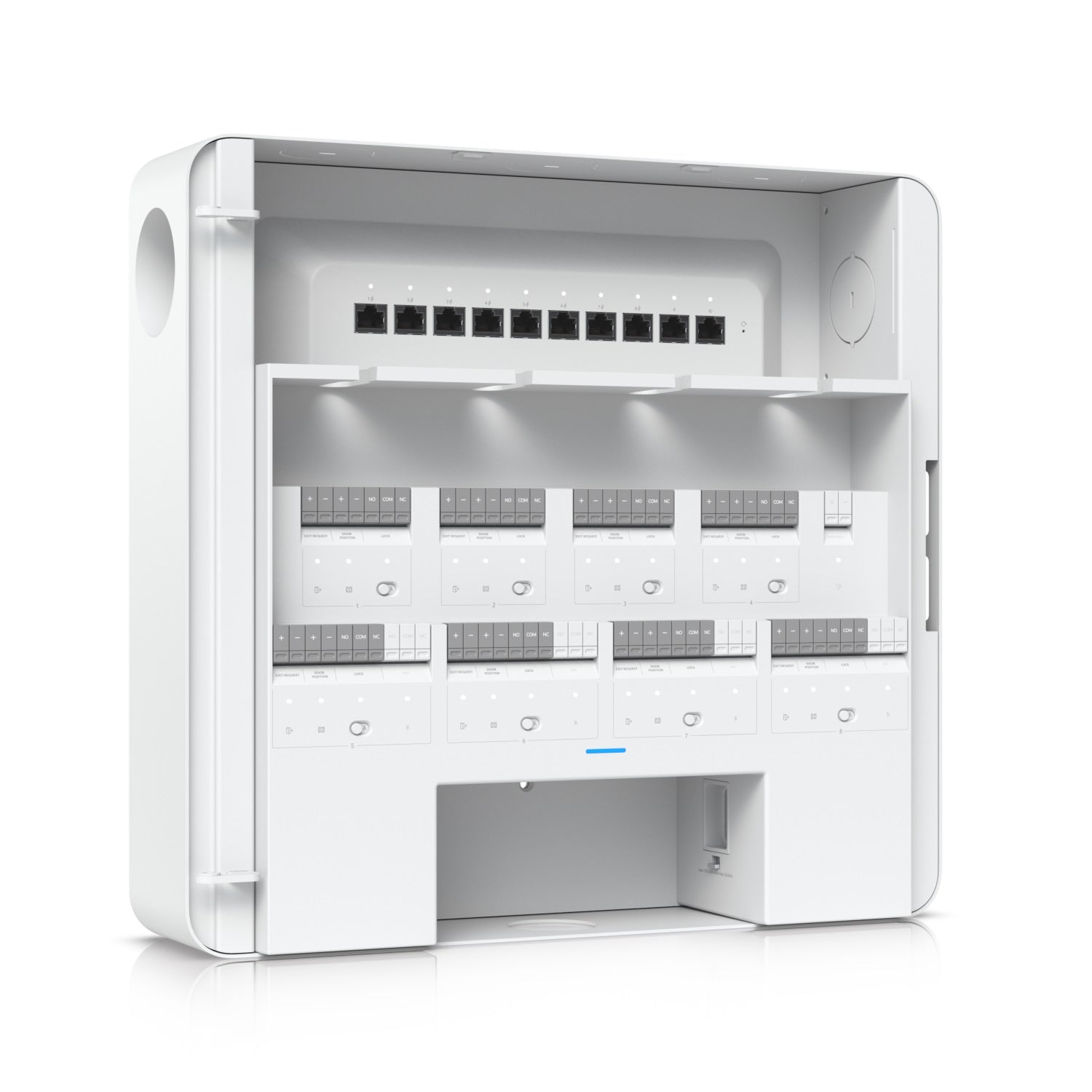

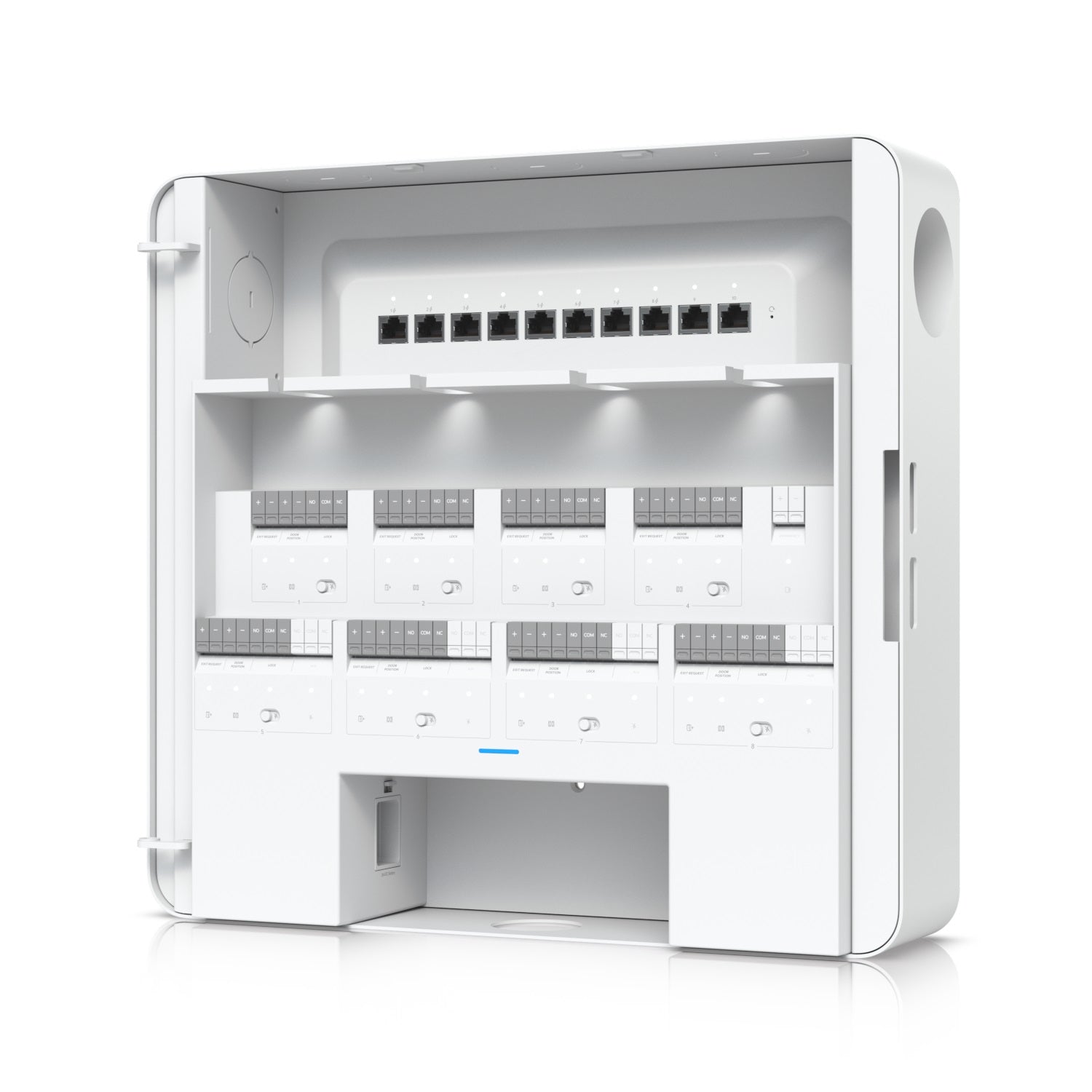

•8 Lock terminals (12V or Dry)
•16 (8+8) Inputs for request-to-exit devices and door position sensors
•8 PoE ports for Access Readers
•4 AUX terminals for chimes, sirens, or door openers
•1 Battery backup input (32–48V)
•Managed with UniFi Access application (version 1.22.17 and later)

•Networking Interface: 10 x 10/100/1000 Base-T
•Power Method: Universal input, 100–240V AC, Max. 4.4A, 50/60Hz; 32–48V DC Lead Acid Battery, Max. 7.5A @32V
•Power Supply: AC/DC, internal
•Max. Power Consumption: 240W
•PoE interface: 8 x PoE ports (Pins 1, 2+; 3, 6-)
•Voltage Range PoE Mode: 44–57V DC
•Total Available PoE: 60W
•Max. PoE Wattage per Port: 15.4W
•Enclosure Material: SGCC housing with PC cover
•Operating Temperature: 0°C to 40°C (32°F to 104°F)
•Operating Humidity: 5% to 95% noncondensing
•Certifications: CE, FCC, IC, UL 294, CAN/ULC-60839-11-1

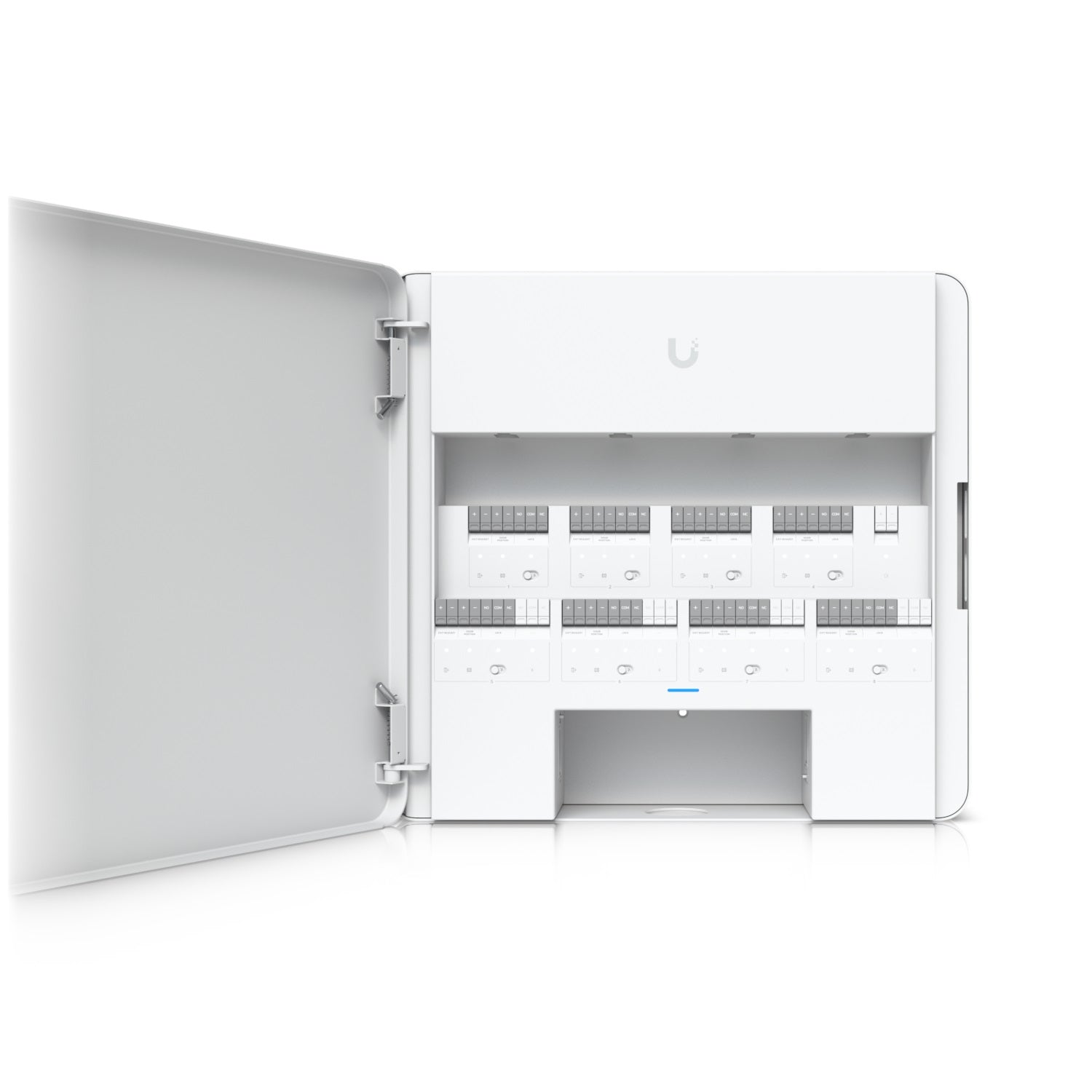

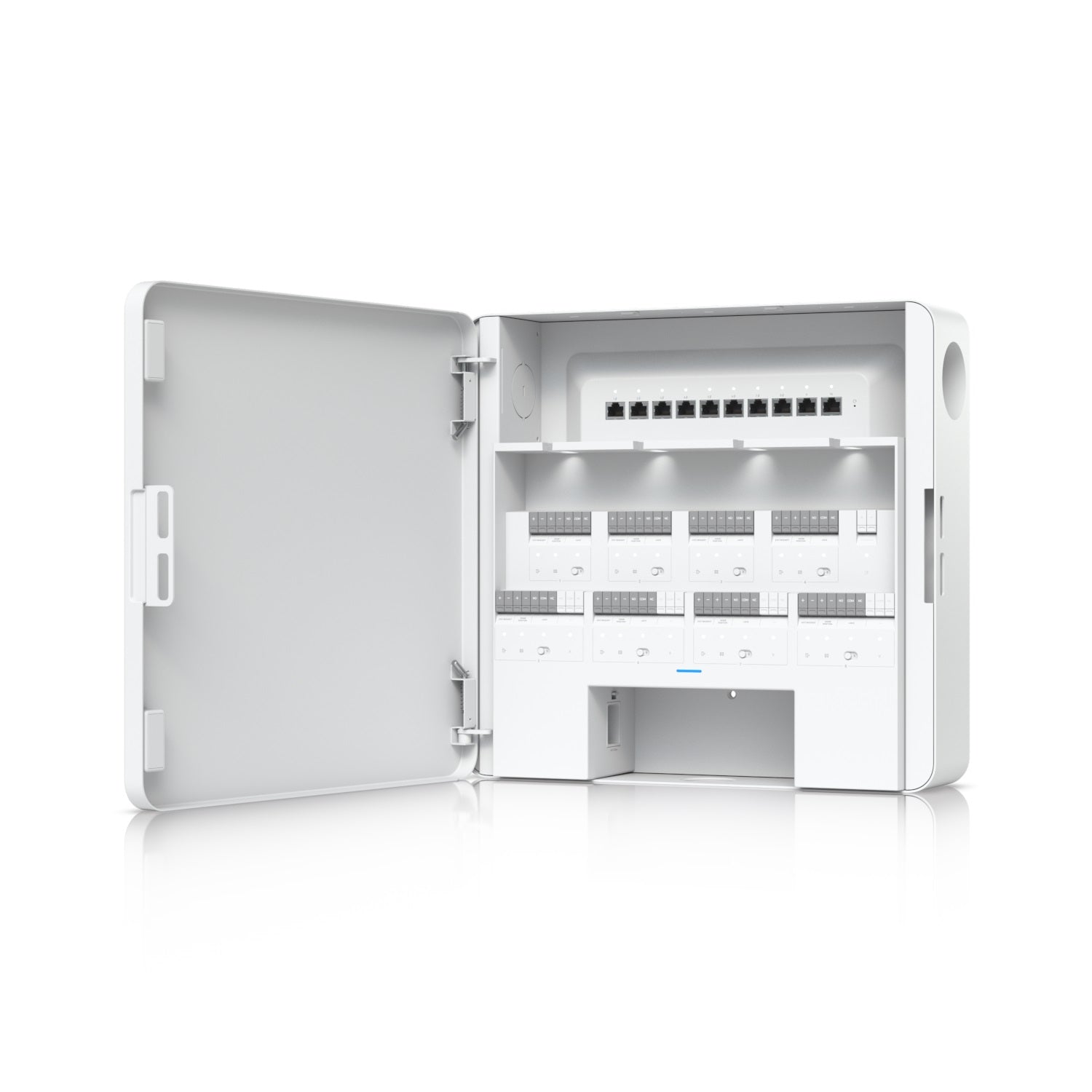

•1 x Enterprise Access Hub
•1 x Mounting Template

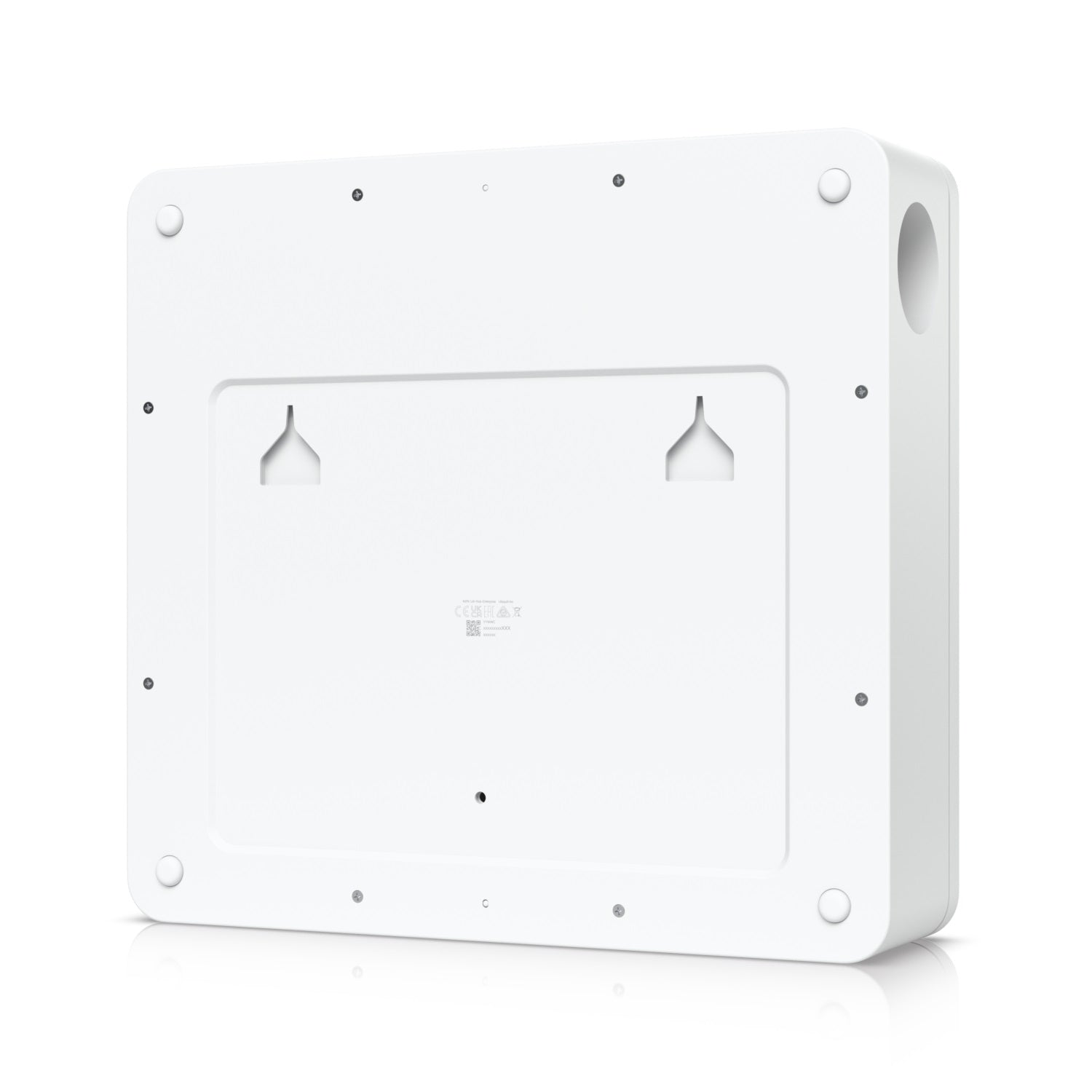

•1 x Wall Mount Plate
•1 x Power Cable
•1 x Backup Battery Cable
•Screws and anchors
