• PoE and voltage testing for quick diagnostics
• Supports 2.4G Wi-Fi for flexible wireless access
• Built-in battery for portable, on-site use
• Secure connectivity with IP filtering and RTSP authentication
• Compatible with IEEE 802.3af/at/bt standards

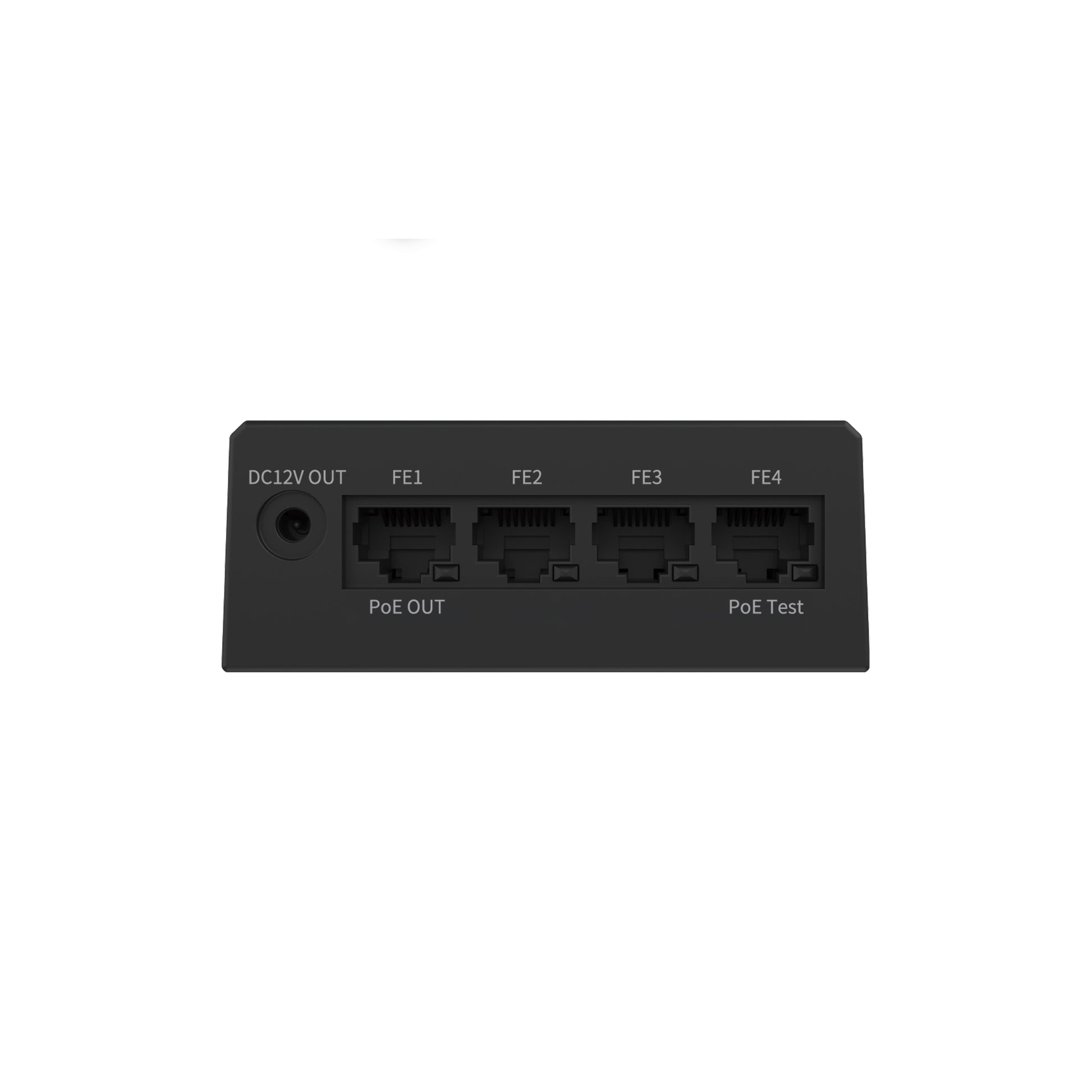

• Network Interface: 4 x RJ45 10M/100M Base-TX Ethernet; Network Port 1 Support POE (IEEE802.3af)

• Network Output: Port 4 Support PSE Voltage Test
• Voltage Test: 1 x PSE Voltage Test(PSE voltage detection Range： 1V~56V; IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt); 1 x DC voltage Test(DC voltage detection Range: 1V~56V)
• Wi-Fi: 2.4G Wi-Fi (IEEE802.11b/g/n)
• Battery Capacity: 18650 lithium battery, 7500mAH

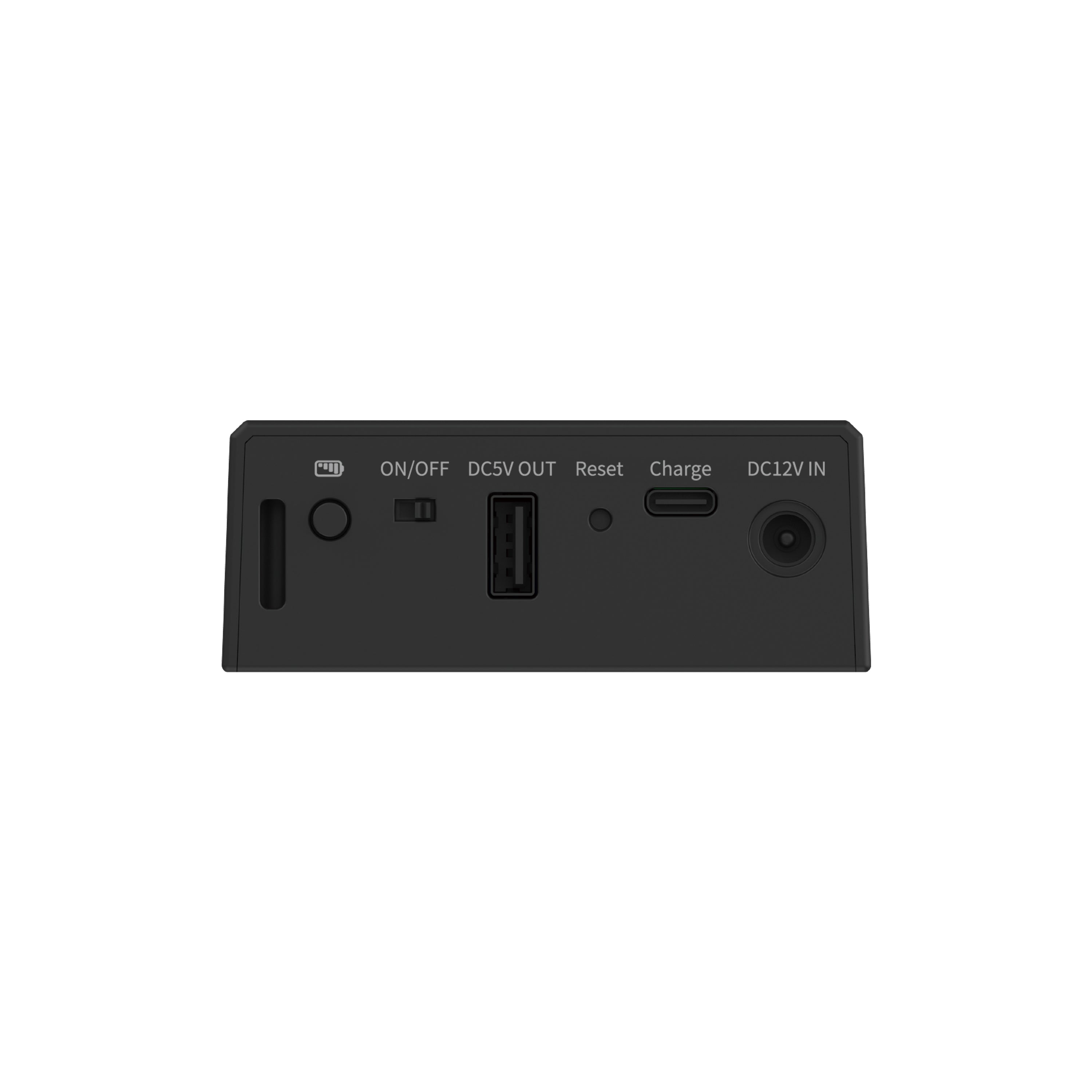

• Power Input: 1 x DC 5V/2A max, type-c
• Power Output: 1 x DC 12 V/1 A output; 1 x DC 5 V/1 A output, type-A
• Operating Environment: -20°C to 60°C (-4°F to 140°F), Humidity: ≤ 95% RH (non-condensing

• 1 x UNV-Link Pro connect Box

5.1-in x 3.3-in x 1.3-in
