• Supports Ultra 265/H.265/H.264 video formats
• Plug & Play with 8 independent PoE network interfaces
• Supports mainstream cameras of ONVIF conformance(Profile S, Profile G, Profile T ) and RTSP protocols
• Supports 1-ch HDMI, 1-ch VGA. HDMI up to 4K (3840x2160) resolution
• VGA and HDMI independent outputs
• Up to 16 Megapixels resolution recordings
• ANR technology to enhance the storage reliability when the network is disconnected
• Supports cloud upgrade

• Channels: 8
• Hard Drive Interface: 2 SATA HDD interfaces (up to 16TB for each)
• Alarm In/Out: 8/2
• USB Interface: 1 x USB 2.0 (Front), 1x USB 3.0 (Rear), 1 x USB 2.0 (Rear)
• Recording Resolution: Up to 16MP
• Incoming/Outgoing Bandwidth: 320Mbps/160Mbps (Smart Off); 160Mbps/160Mbps (Smart On)
• Remote Users: 128
• Network Interface: 1 x RJ-45 10M/100M/1000M self-adaptive Ethernet Interface
• Audio Input: 1-ch, RCA
• Power Supply: AC 100~240V
• PoE Ports: 8 x RJ45 10M/100M self-adaptive Ethernet Interface
• Operating Environment: Temperature -10°C ~+ 50°C (+14°F~+122°F), Humidity ≤ 90% RH (non-condensing)

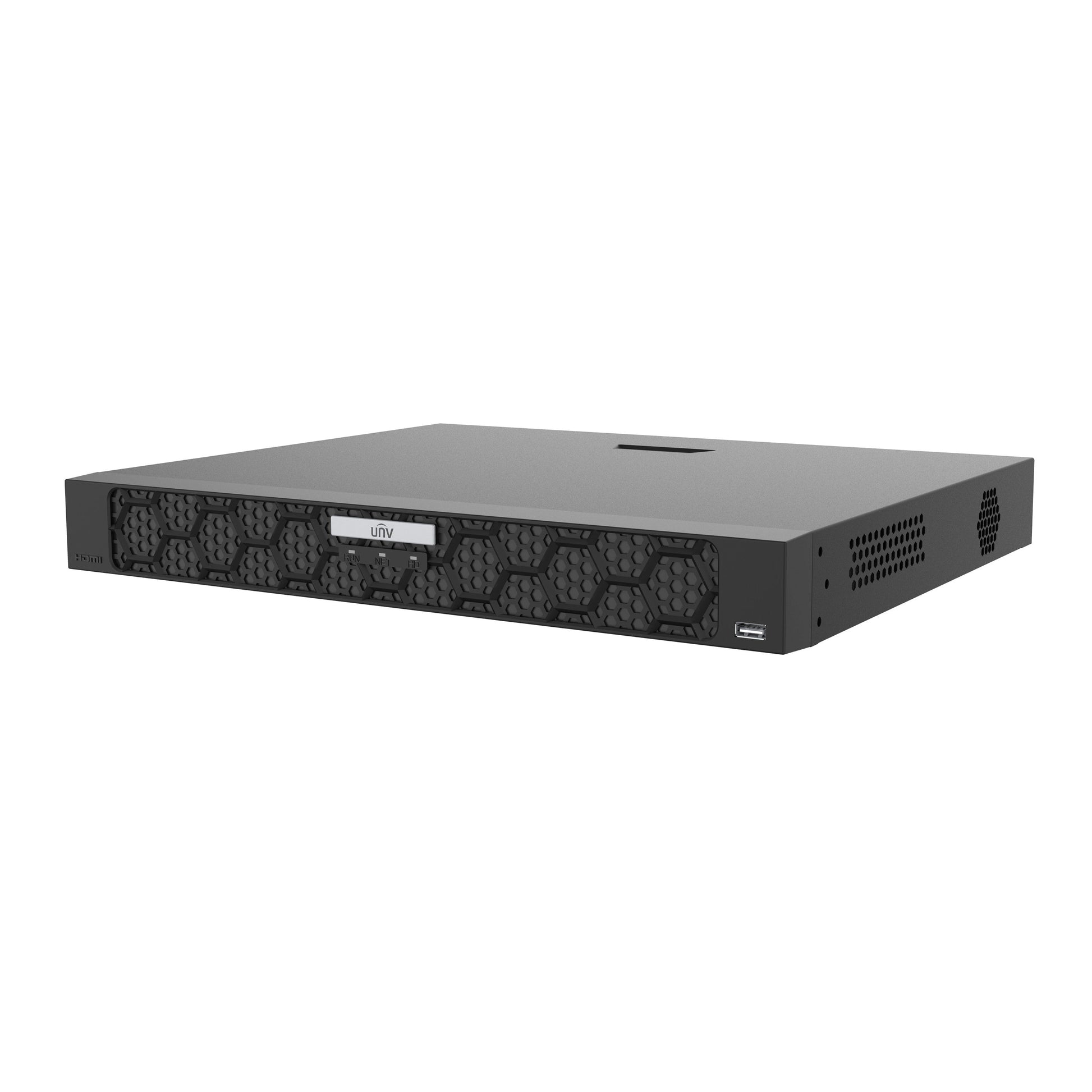

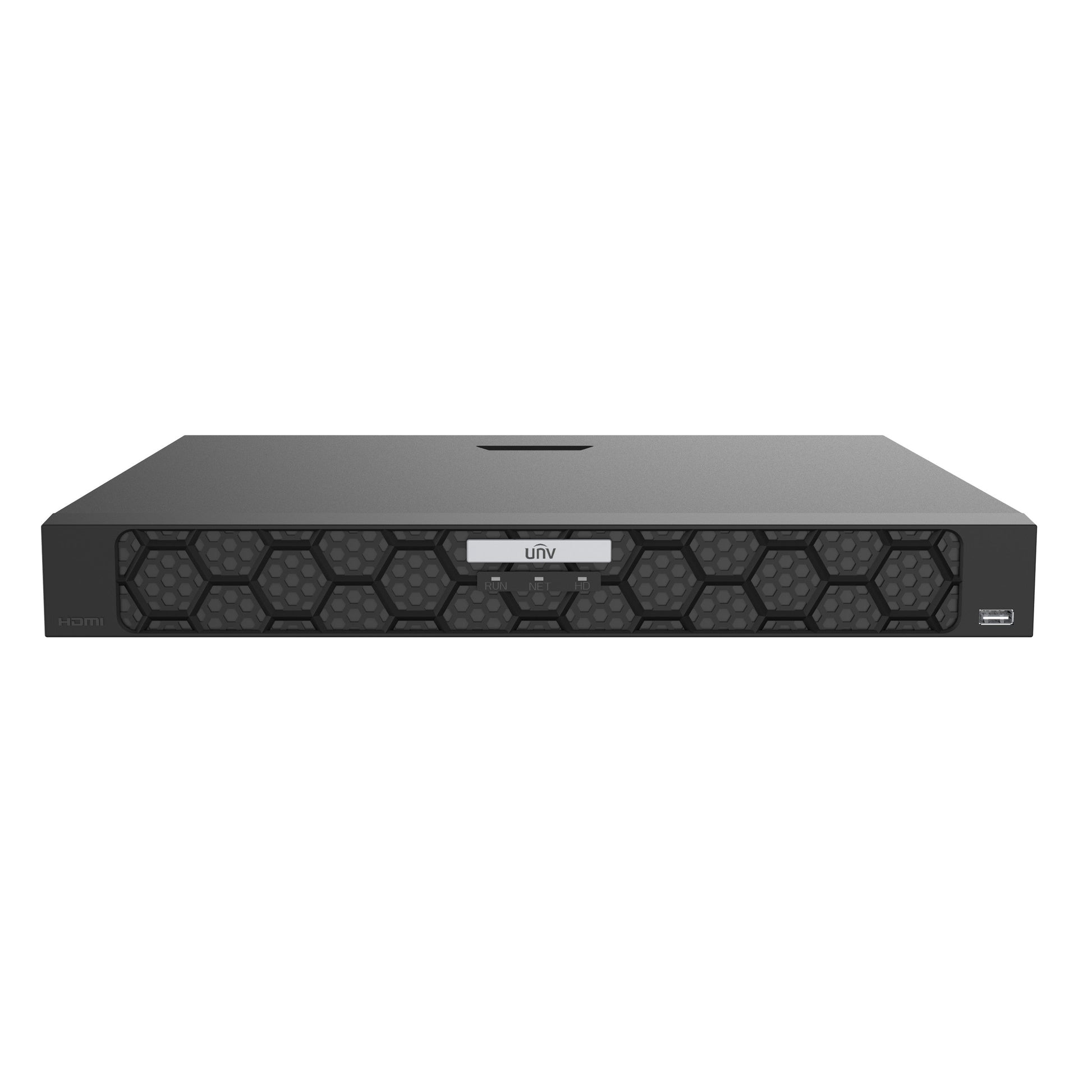

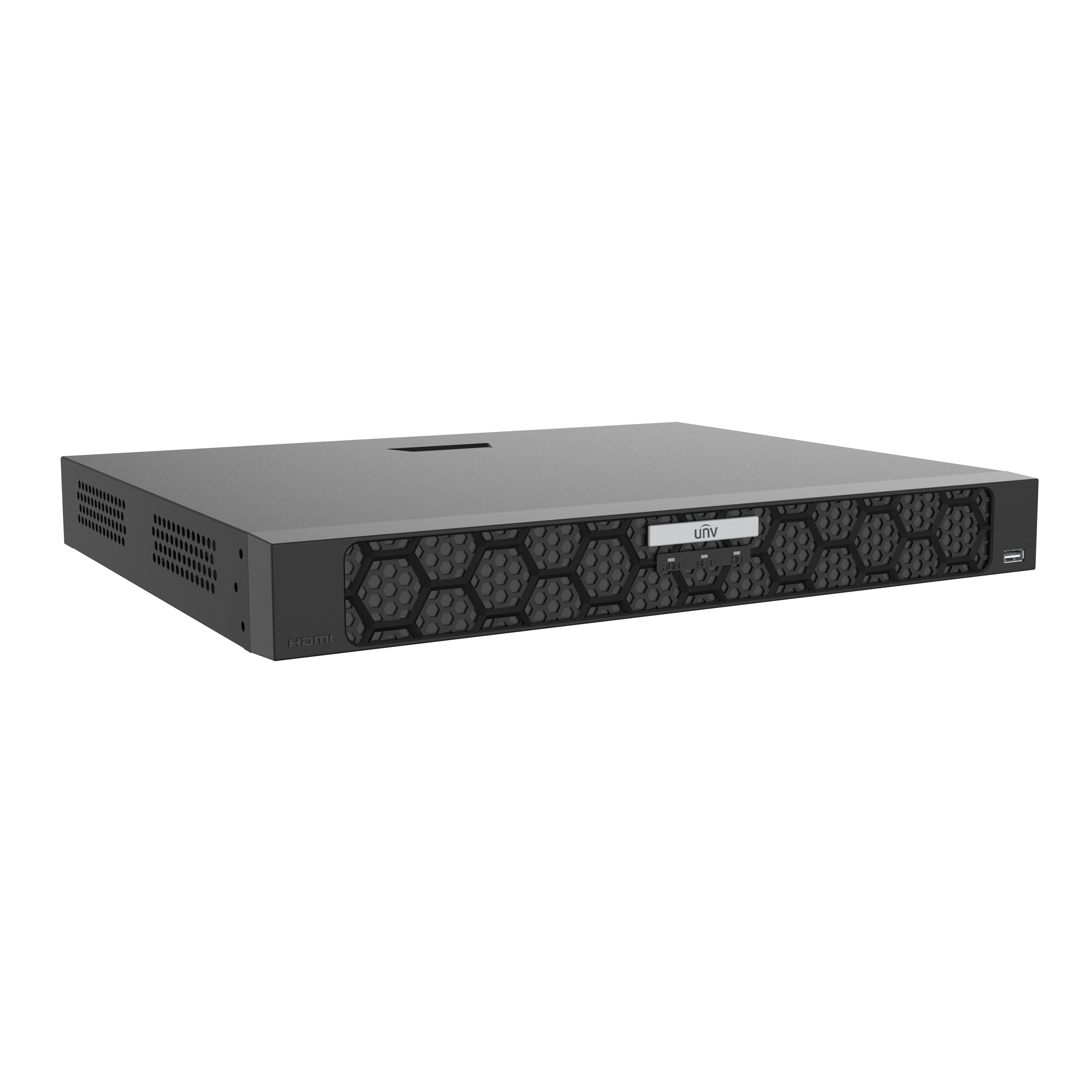

• 1 x NVR502-B Series 8-channel 2 SATA Interface NVR

15-in x 12.7-in x 2.1-in

6 lbs
