•Supports Ultra 265/H.265/H.264 video formats
•VGA and HDMI independent outputs to support two separate video layouts
•ANR technology to enhance the storage reliability when the network is disconnected
•Up to 16 Megapixels resolution recording
•Supports fisheye dewarping
•Built-in 16-port PoE switch
•16 alarm inputs and 4 alarm outputs

•Channels: 32
•Hard Drive Interface: 4 SATA HDD interfaces (up to 16TB for each)
•Alarm In/Out: 16/4
•USB Interface: 1 x USB 2.0 (Front), 1x USB 3.0 (Rear), 1 x USB 2.0 (Rear)
•Recording Resolution: Up to 16MP
•Incoming/Outgoing Bandwidth: 320Mbps/160Mbps
•Remote Users: 128
•Network Interface: 2 x RJ-45 10M/100M/1000M self-adaptive Ethernet Interface
•Audio Input: 1-ch, RCA
•Power Supply: DC 12V/5A
•PoE Ports: 16 (IEEE802.3at)
•Operating Environment: Temperature -10°C ~+ 55°C (+14°F~+131°F), Humidity ≤ 90% RH (non-condensing)

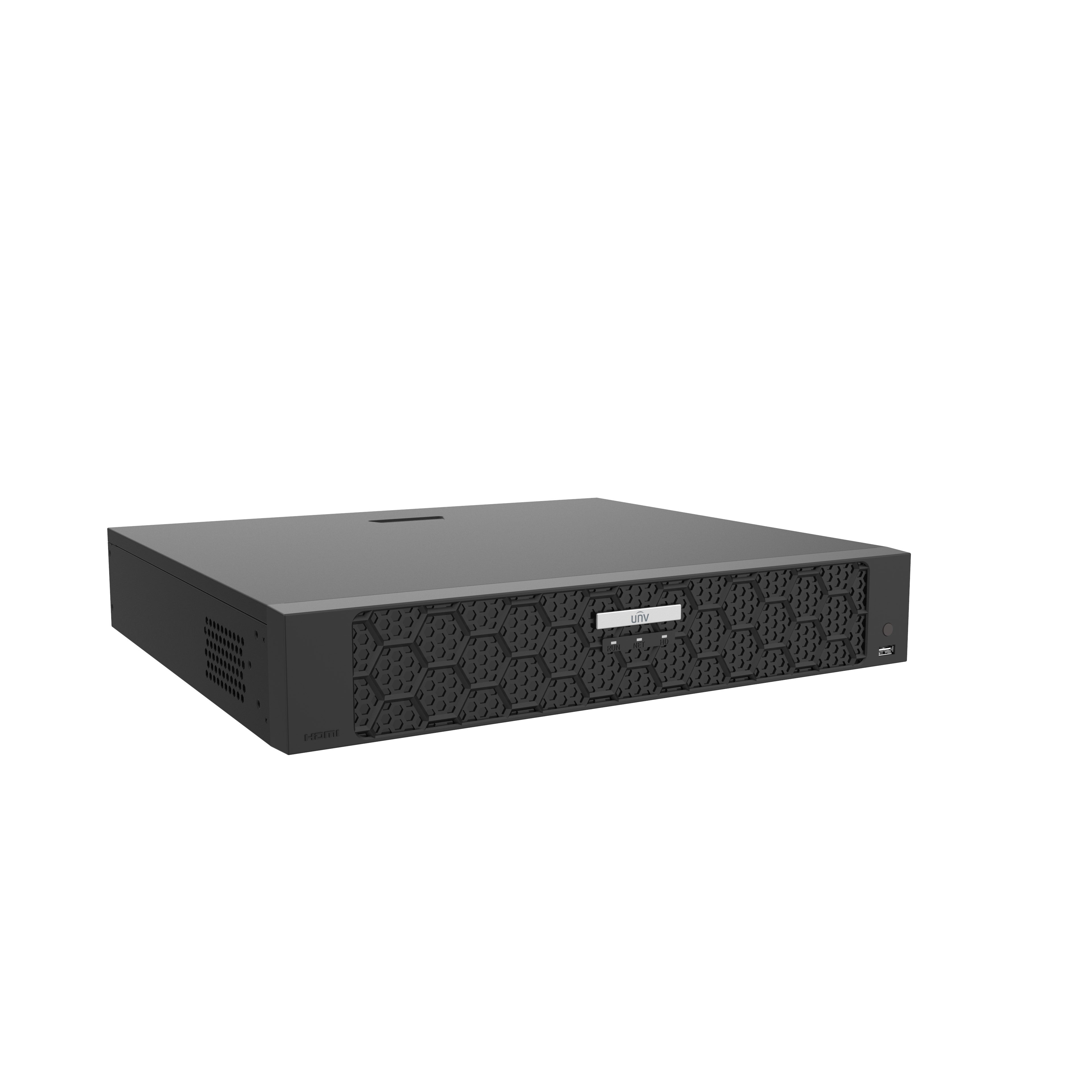

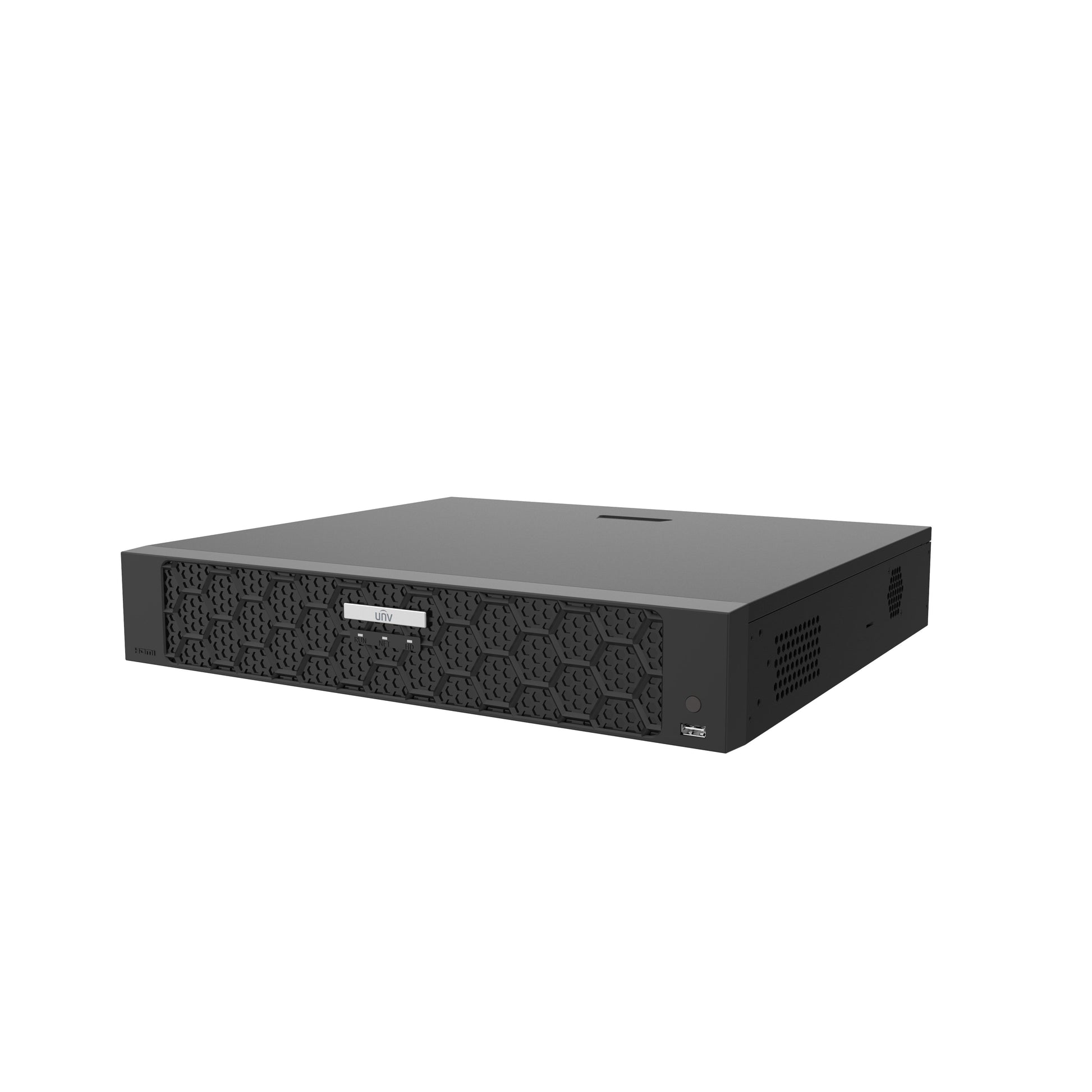

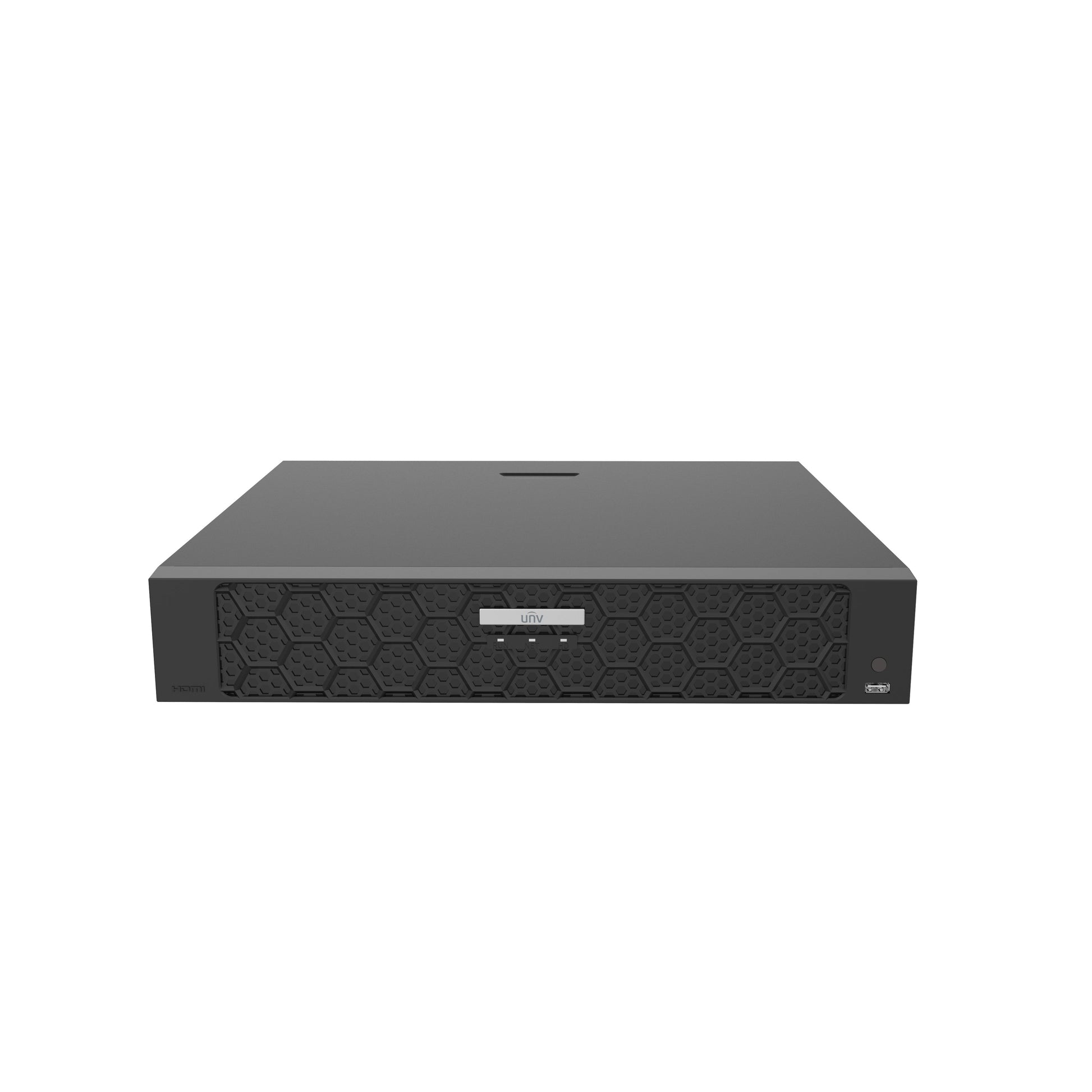

•1 x NVR504-B Series 32-channel NVR
•2 x Rackmount bracket
