• Using CAT5 network patch cords support power for the wireless AP/CPE and IP camera/PTZ
• Networking standard: IEEE802.3af/at/bt
• POE power light blinks to determine the power status of the receiving end, and each blink is 2.7 watts
• PoE Watchdog AI Function: Detection front-end PoE cameras and PD, Automatic detection, Automatic restart
• 6KV lightning protection, 8KV surge protection, anti-reverse connection, over-current protection, over-voltage protection, over-temperature protection, short circuit protection
• The Max output power of the port is 60W, which is convenient for hi-power equipment
• Zero configuration feature power supply is automatically supplied to the adaptive equipment

• Ports: 4 x 10/100/100Mbps PoE ports (RJ45); 2 x 10/1000Mbps uplink port (RJ45)
• Transmission Rate: 200Mbps Full Duplex; 10 or 100 Mbps Half Duplex
• Transmission Distance: 100Mbps /10Mbps Adaptive 250m MAX
• Bandwidth: 1.2Gbps
• Network Latency (10 to 1000Mbps): ≦16μs (use the 64byte package size)
• MAC Address Table: 2K
• Frame Filter Transmission Rate: 14800pps max. for 10M port, 148800pps max. for 100M port
• Power input: AC 110~220V Total≤65W
• PoE Watchdog: Port 1 to 4
• Power Output: PoE1~3Port:1/2(+52V),3/6(GND)≤30W; PoE 4 Port:1245(+53V),3678(GND) compatible1/2(+52V),3/6(GND)≤60W
• Protection Level: Lightning Protection - 6KV, Per: IEC61000-4-5; ESD Protection - 8KV, Per: IEC61000-4-2
• Operating Temperature: -30°C to 60°C ( -22°F to 140°F); Operating Humidity 10% to 90% non-condensing

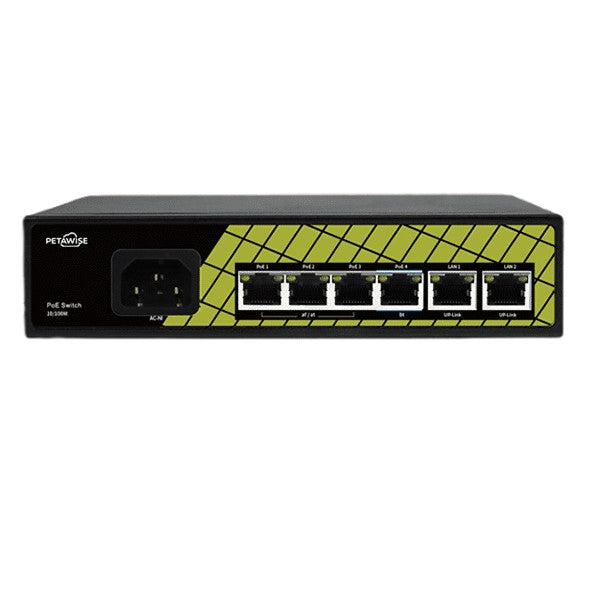

• 1 x POE Extend Switch

7.36-in x 5.47-in x 1.69-in
