• Users can remotely monitor the working status of the smart management box and its loaded devices and receive alarm notifications via mobile app and EZCloud
• Supports automatic restart of output port. When the smart management box detects a network disconnection, it will automatically power down the network devices and restart them
• Supports manual restart of output port. If devices such as IPC or IP Speaker are faulty, users can manually restart the power supply output port via mobile app and EZCloud
• Equipped with surge protector, circuit breaker, and software protection function, forming a three-layer protection to resist risks such as lightning, short circuit, overvoltage, and overcurrent

• Power Input: DC 10.8 V to DC 14.4 V; 3-pin Connector
• Power Output DC 12V: 1-ch 2.5A, DC5521, Used for powering the router
• Power Output PoE: 8 x RJ45 10M/100M self adaptive Ethernet Interface
• PoE Power: Max 30 W for single port, Max 75 W in total
• Hard Dish Interface: 1 x SATA interface, up to 16TB HDD (2.5" or 3.5"), or up to 4TB SSD (2.5")
• Bandwidth: 80 Mbps
• IP Video Input: 8-ch
• Recording Resolution: 16 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080P/960P/720P/D1/2CIF/CIF
• Surge Protection: 6 kV
• No-Load Power Consumption: 12.6 W
• Full-Load Power Consumption: 134.8 W
• Operating Temperature: When using HDDs -40°C to 60°C (-40°F to 140°F); When using SSDs -40°C to 70°C (-40°F to 158°F)

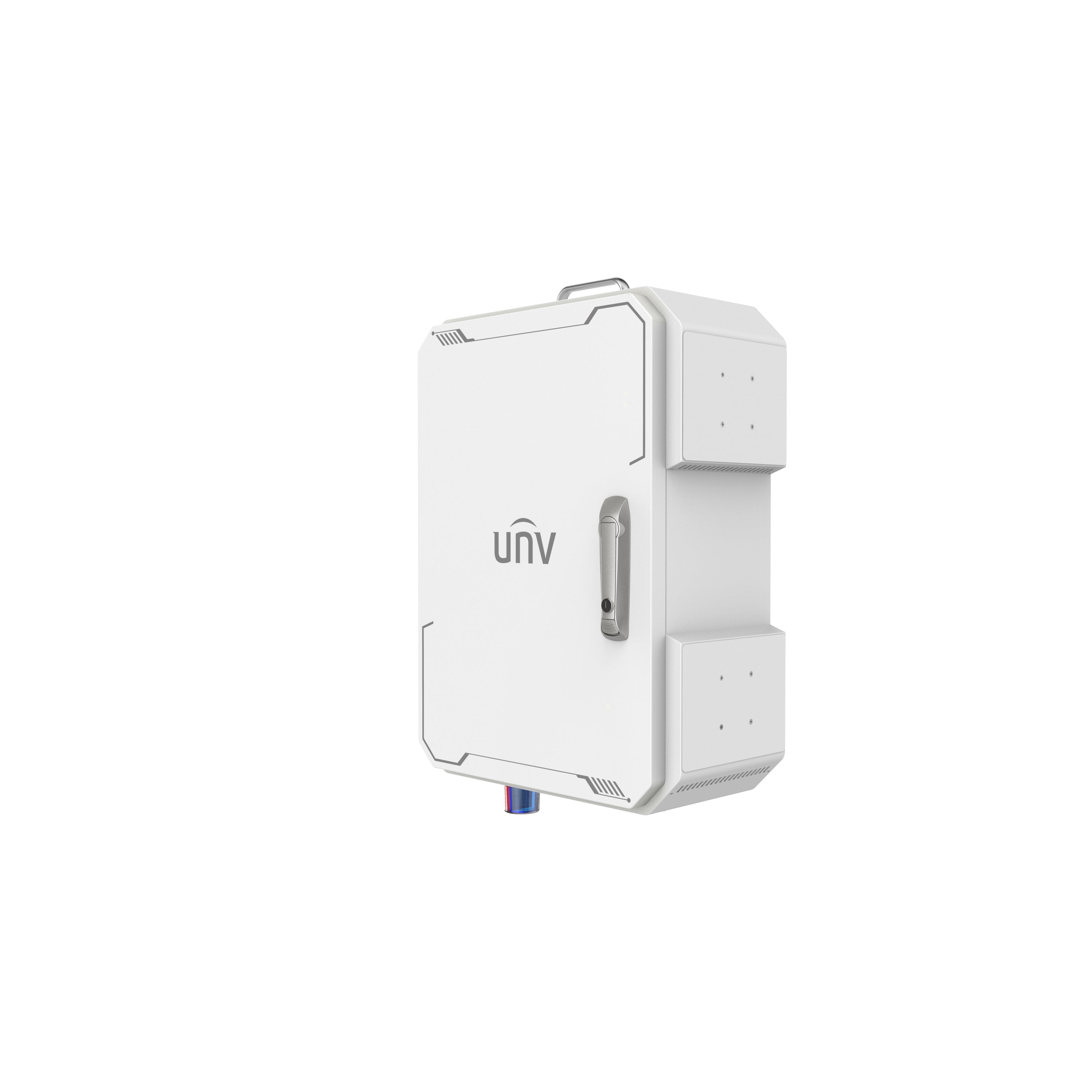

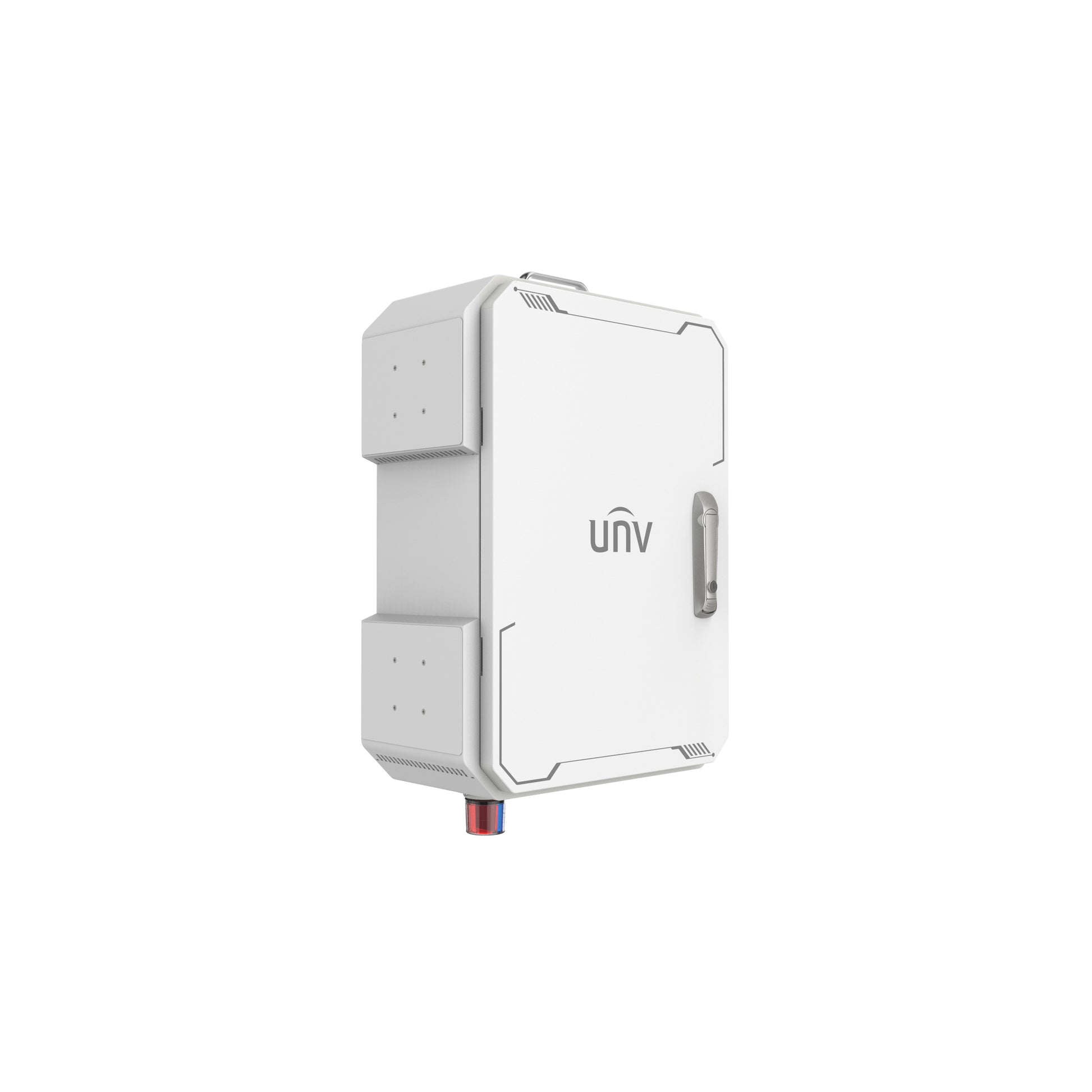

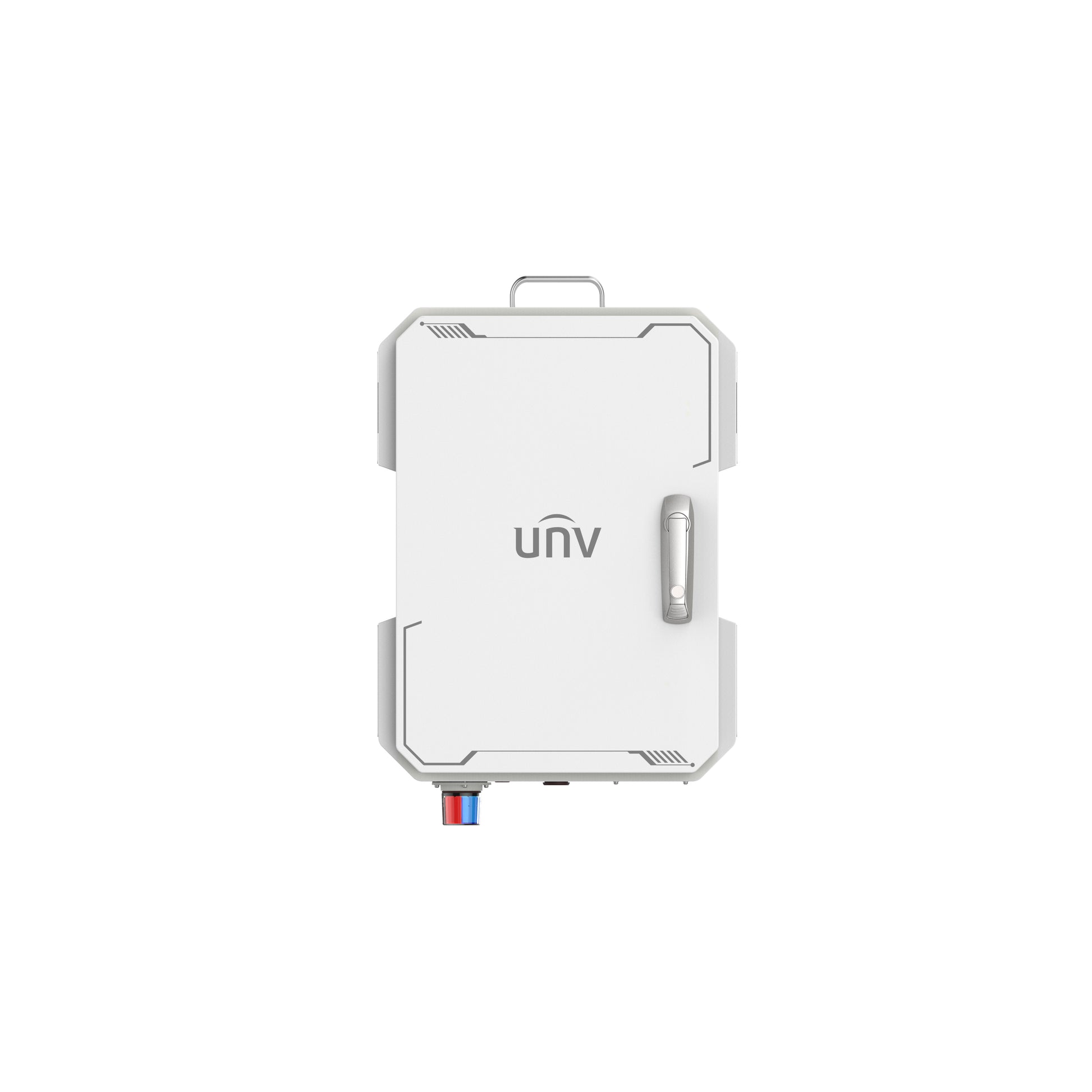

• 1 x Uniview - 8ch NVR Smart Box - DC power

33.07 lbs

25.59-in x 16.69-in x 9.06-in
