• Gate Hub has input for emergency and an AUX relay to connect an external siren

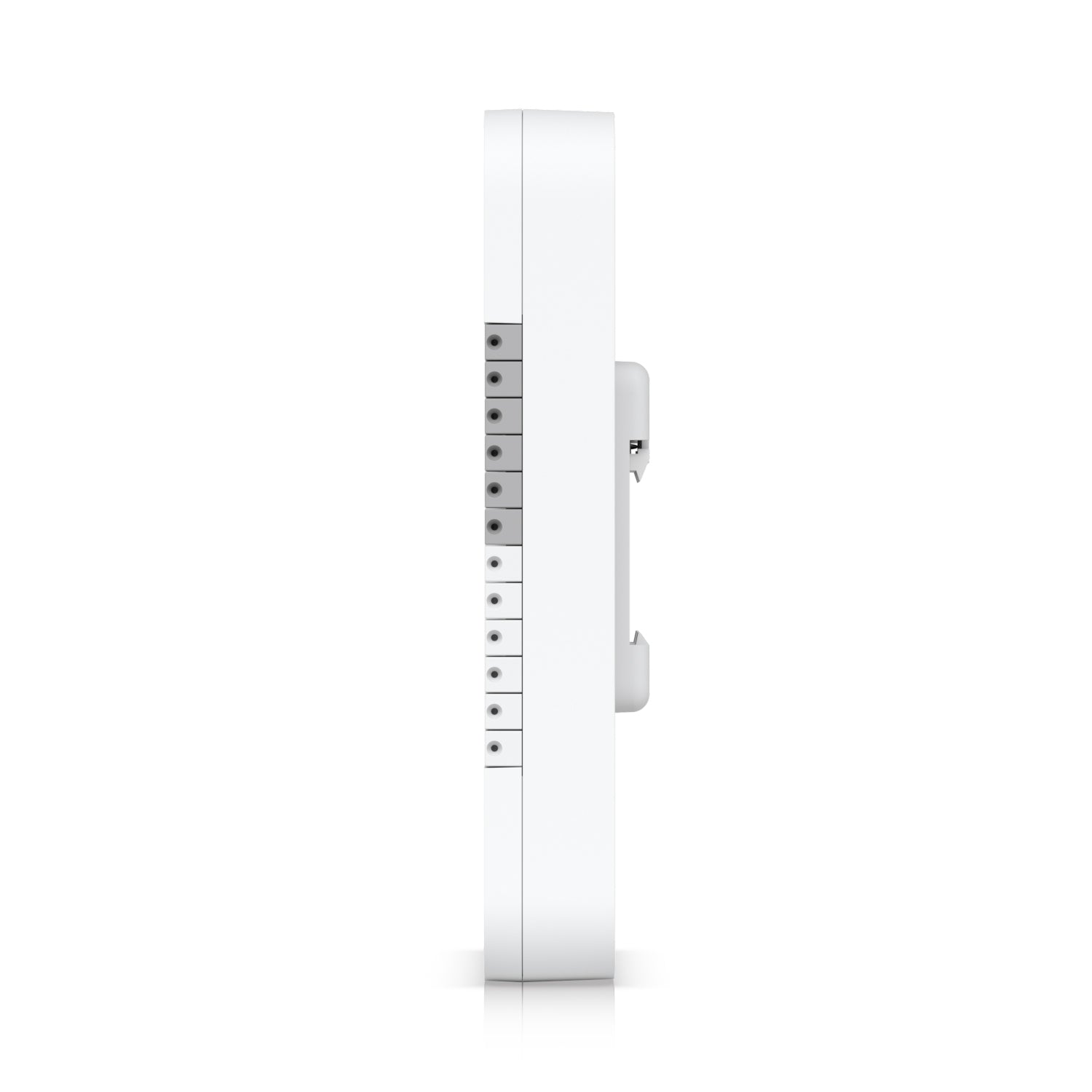

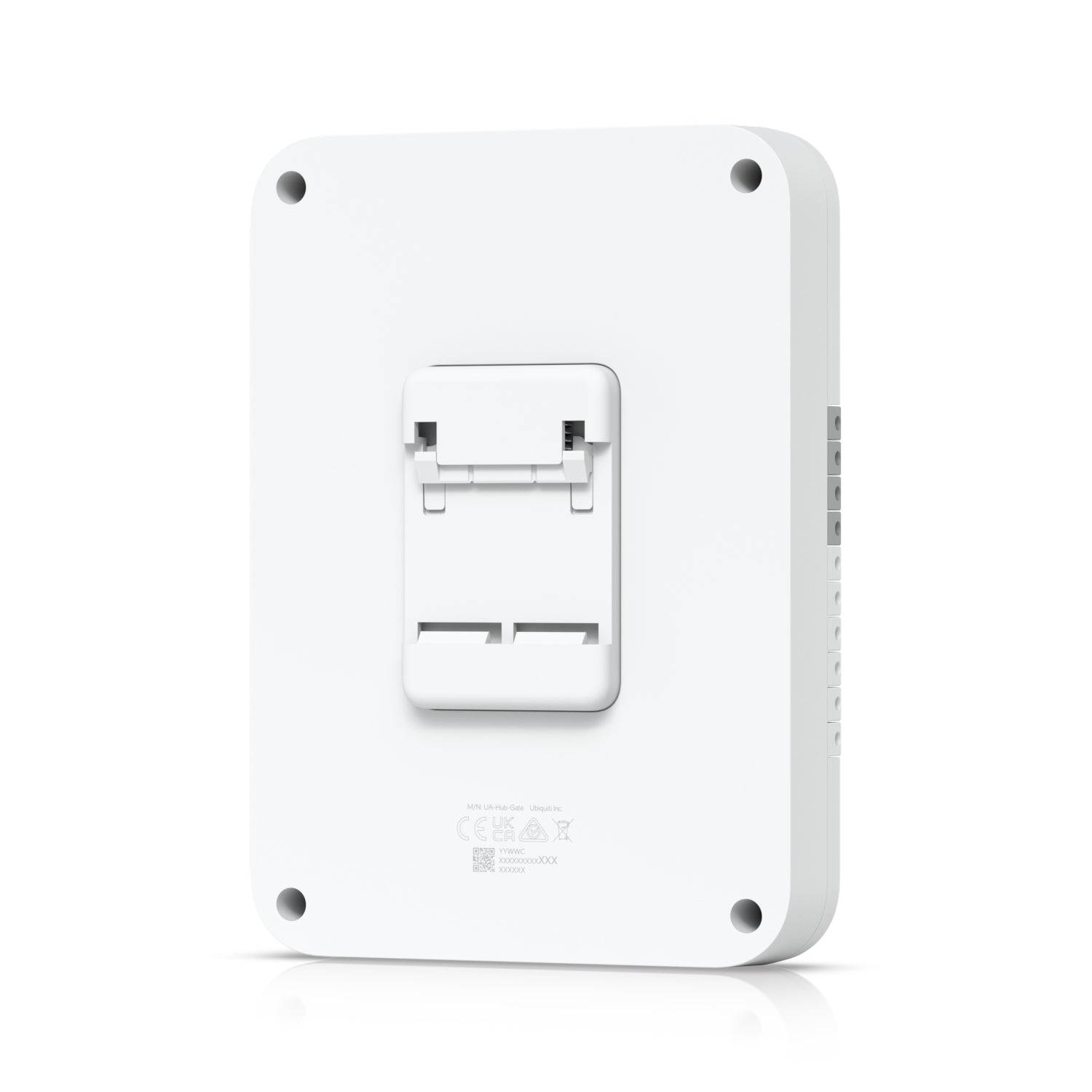

• Gate hub is DIN rail mountable

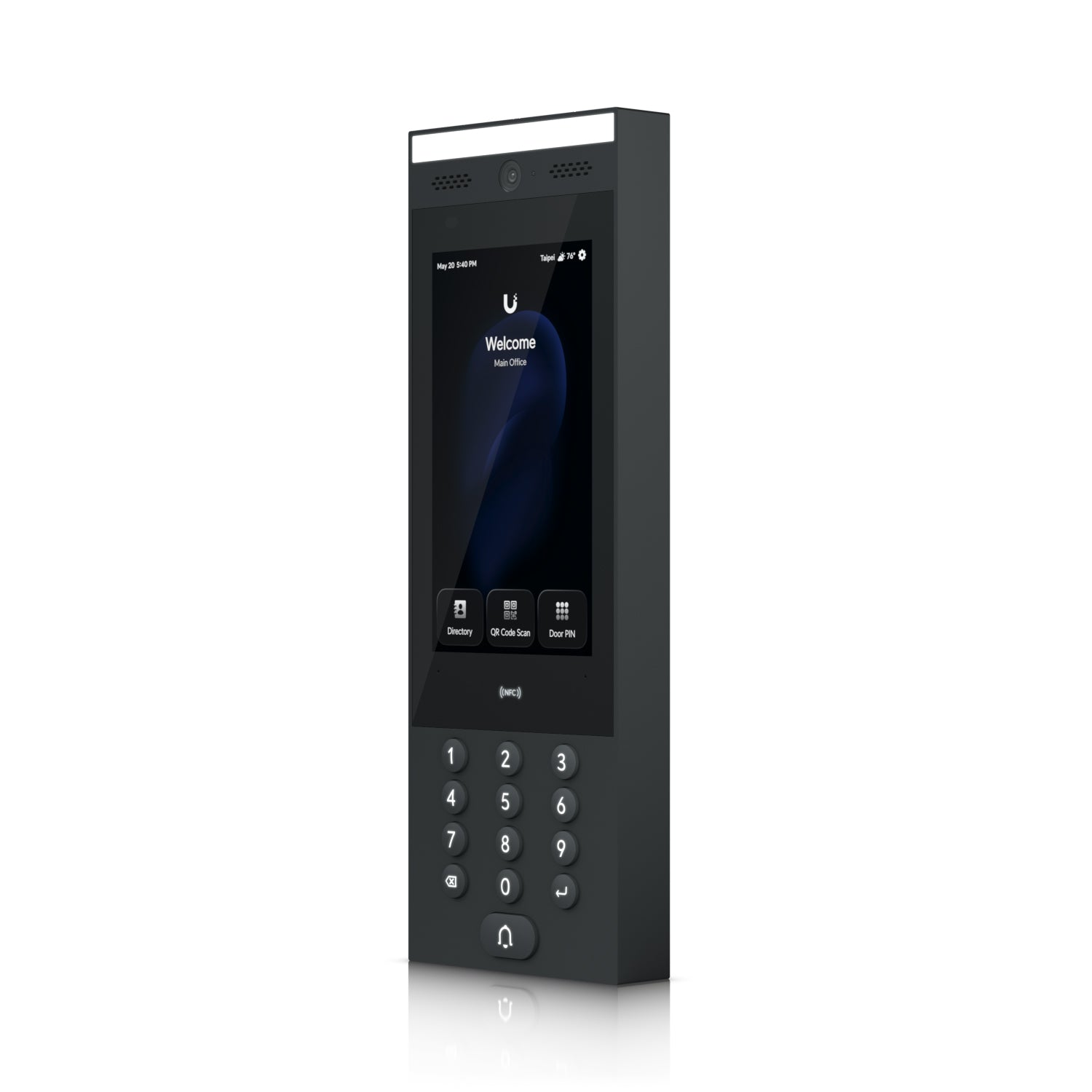

• G3 Intercom features directory and doorbell to request entry
• G3 Intercom unlocks using UniFi Identity mobile app, QR code, Touch Pass, NFC card/keyfob, or PIN
• G3 Intercom is weatherproof IP65 rated (outdoor exposed 30°C to 60°)
• G3 Intercom features integrated camera, microphone, LED floodlight, ambient and proximity sensors
• 10 free 1-year Touch Passes included

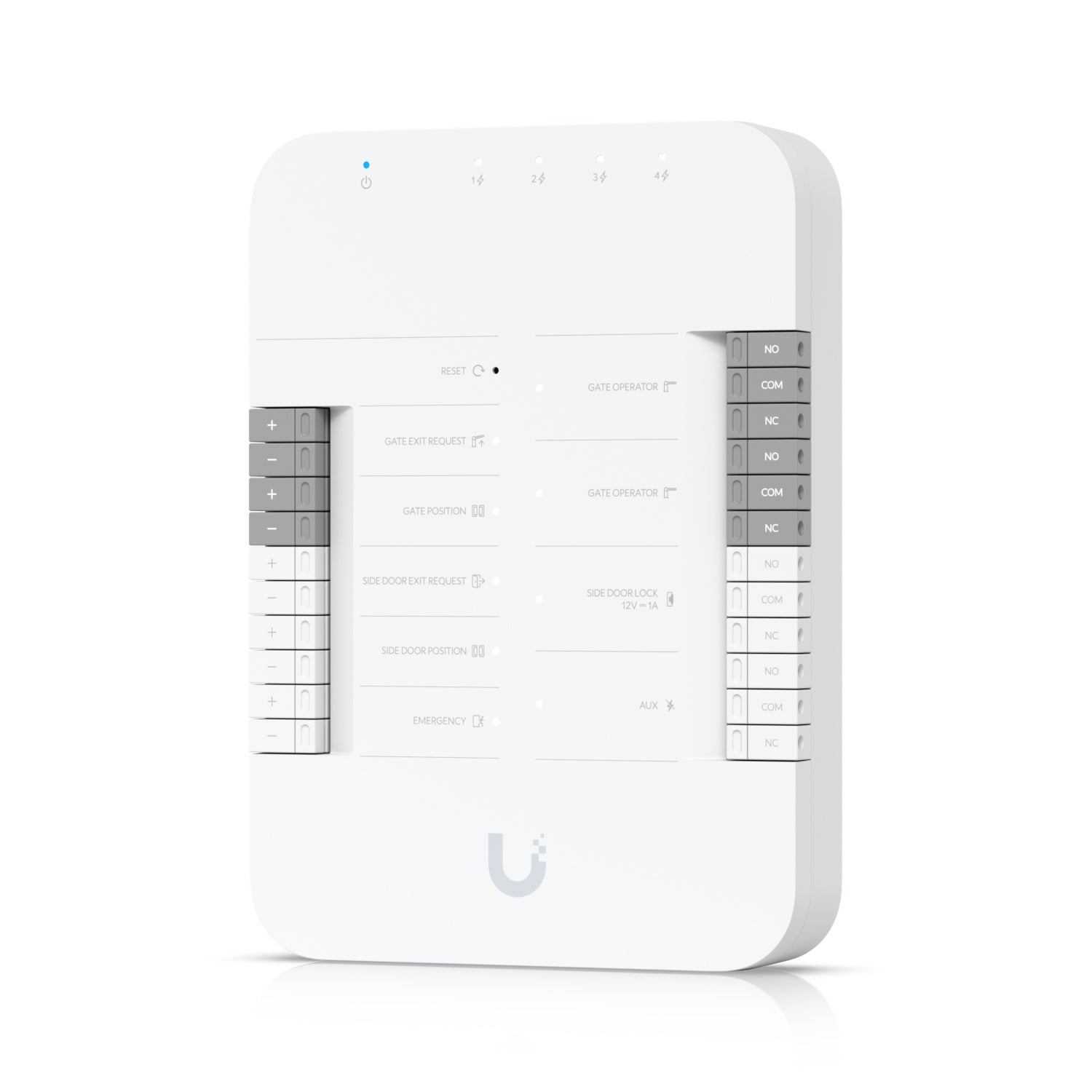

• Gate Hub Input Terminals: 1 x Gate exit request, 1 x Gate position, 1 x Side door exit, 1 x Side door position, 1 x Emergency
• Gate Hub Dry Output Relay: 2 x Operator (rated 30V DC, up to 1A); 1 x Aux (rated 30V DC, up to 1A)
• Gate Hub Powered Output Relay: Side door lock (12V DC, up to 1A)
• Gate Hub Power Method: PoE++; UL 294 Power-limited Class 2 PSU; UL 60950-1/62368-1 LPS/PS2 PSU

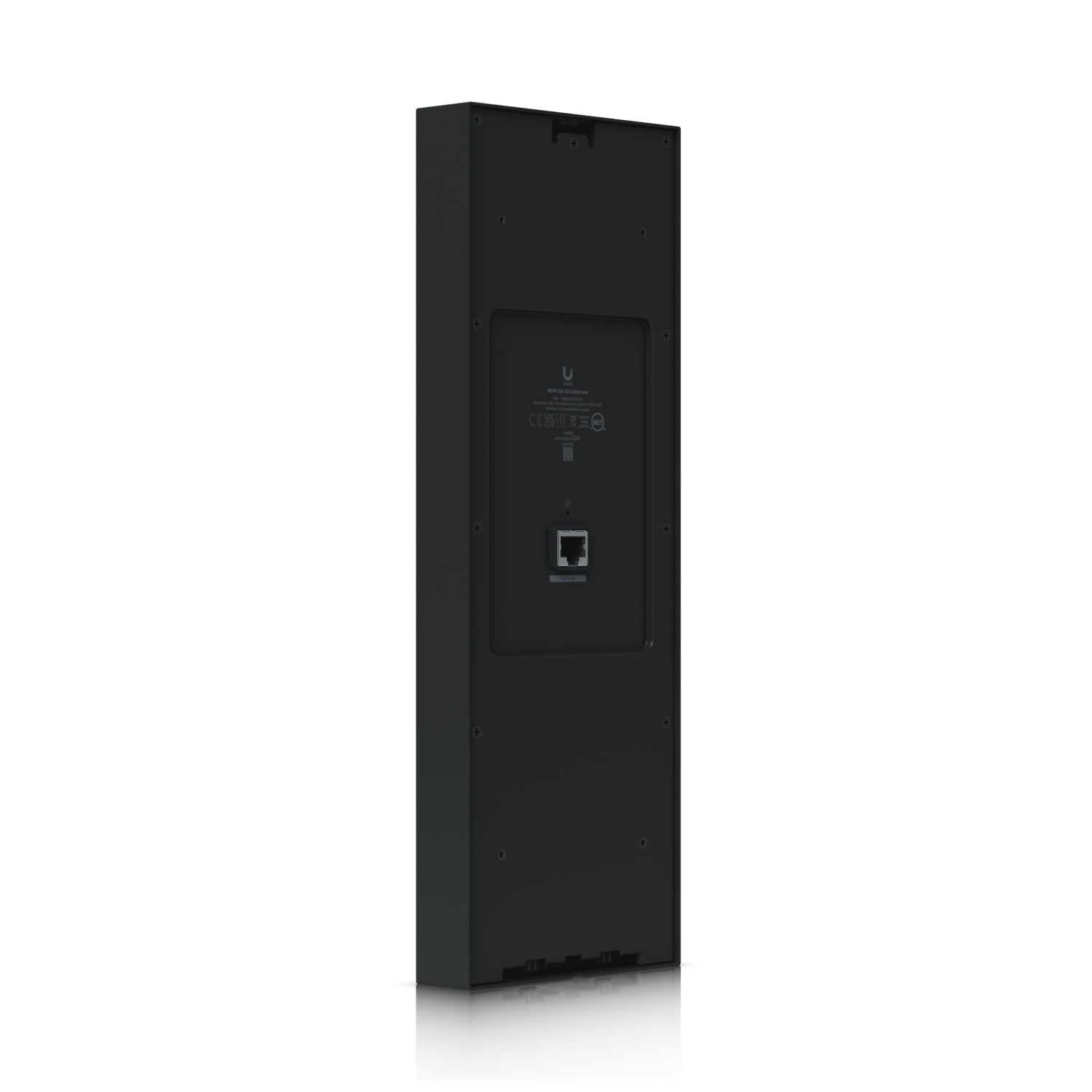

• G3 Intercom Networking Interface: 1 x GbE RJ45 port
• G3 Intercom Connectivity: BLE 4.2, NFC
• G3 Intercom Power Method: PoE; UL 294 Power-limited Class 2 PSU; UL 60950-1/62368-1 LPS/PS2 PSU
• G3 Intercom Display: 177 mm (7") diagonal, Capacitive multi-touch (1024 x 600 px)

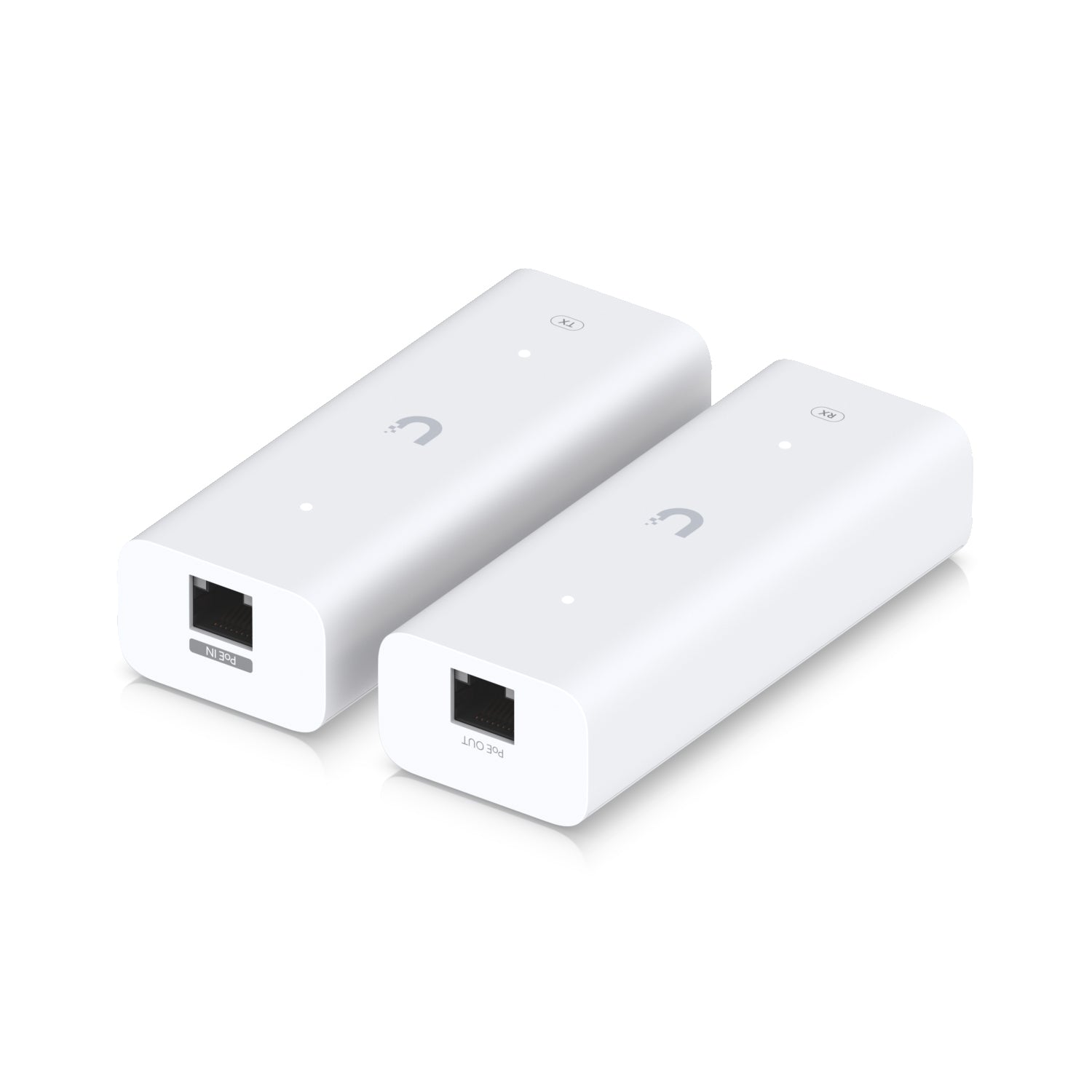

• Retrofit Extender PoE Interface: PoE in - 1 x PoE++, 50V DC, 1.2A; PoE out - 1 x PoE+, 48V DC, 0.6A
• Retrofit Extender ESD/EMP Protection: Air: ±8kV, contact: ±4kV

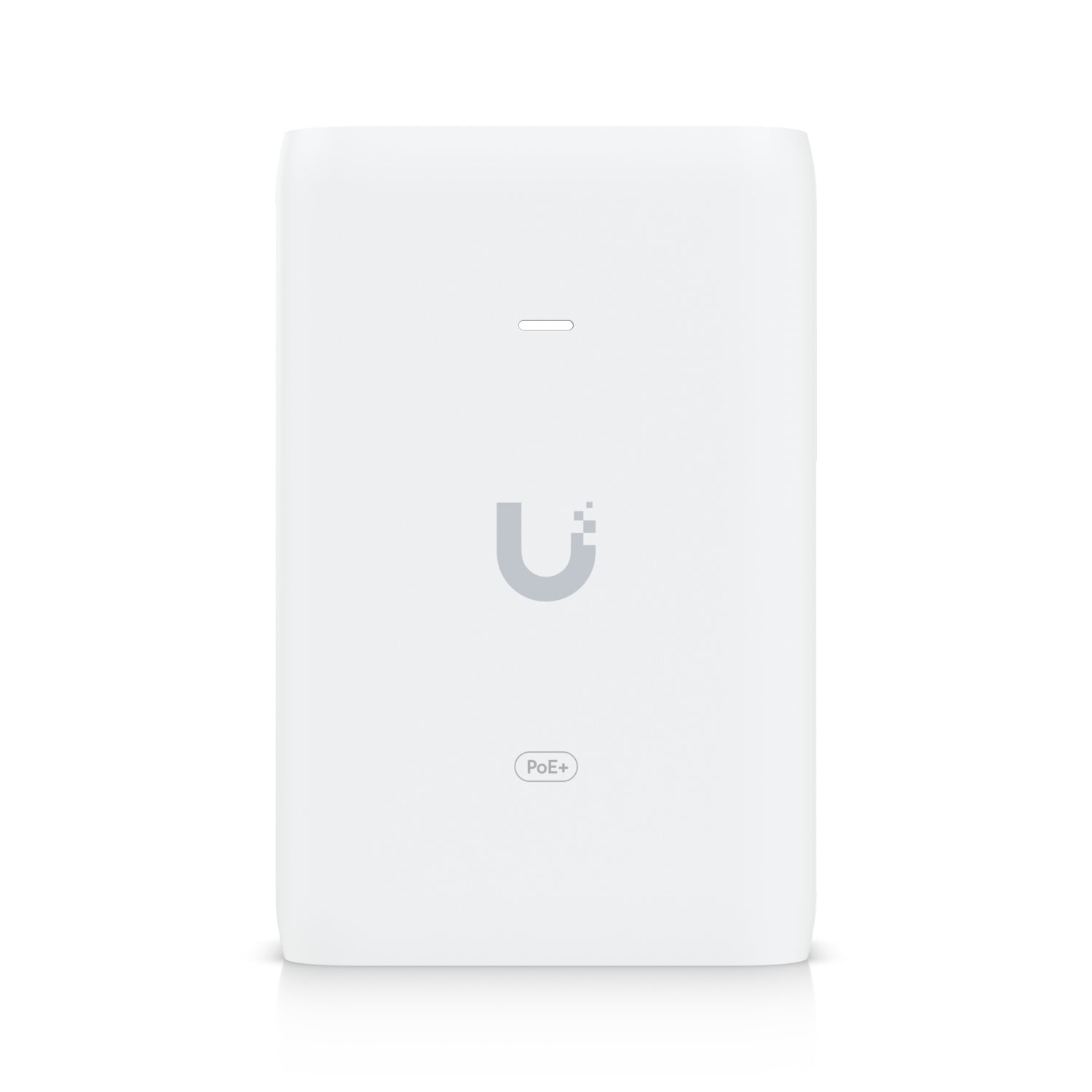

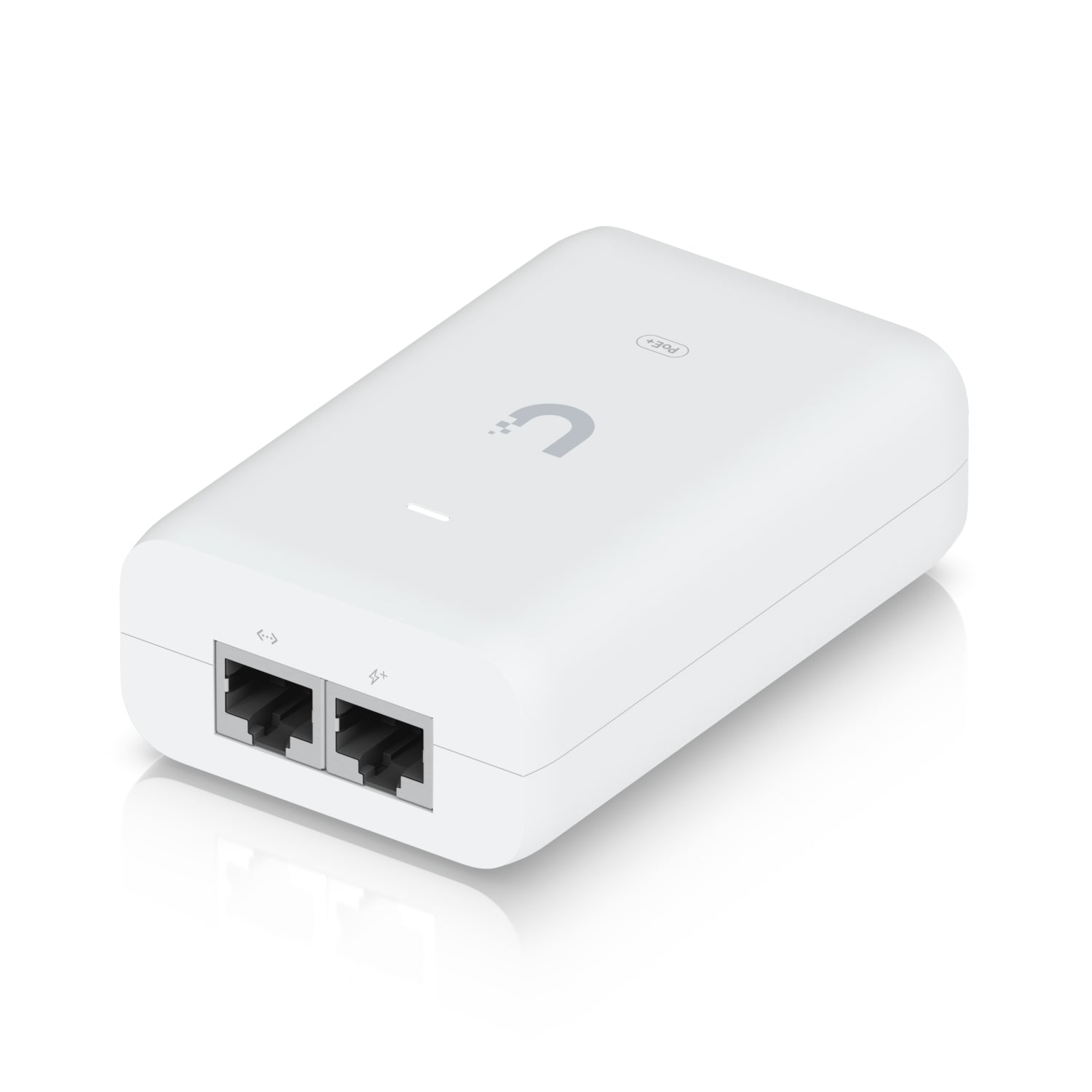

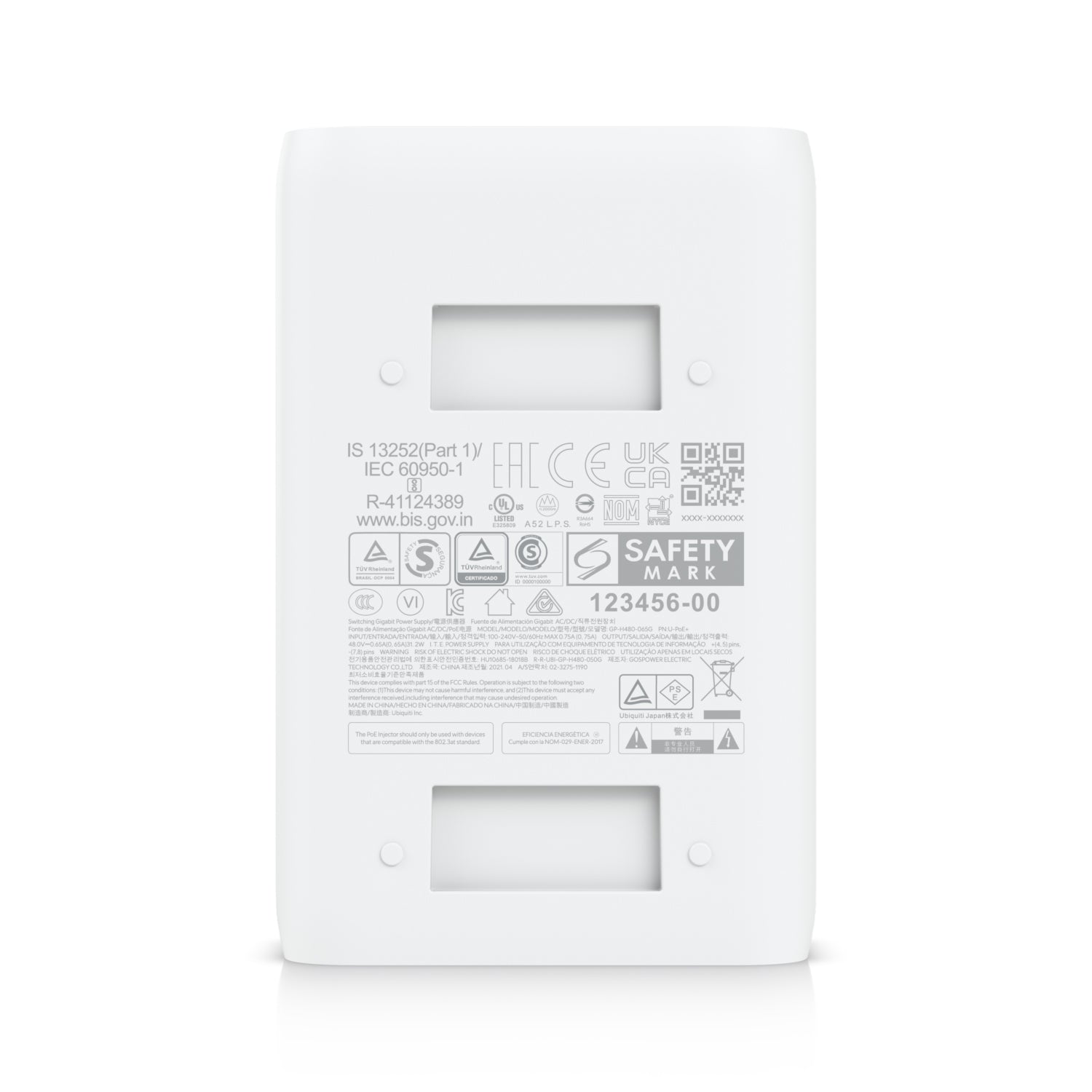

• PoE++ Adapter Input Current: 1.3A @ 120V AC; 0.75A @ 230V AC
• PoE++ Adapter Max. PoE+ Wattage per Port by PSE: 60W

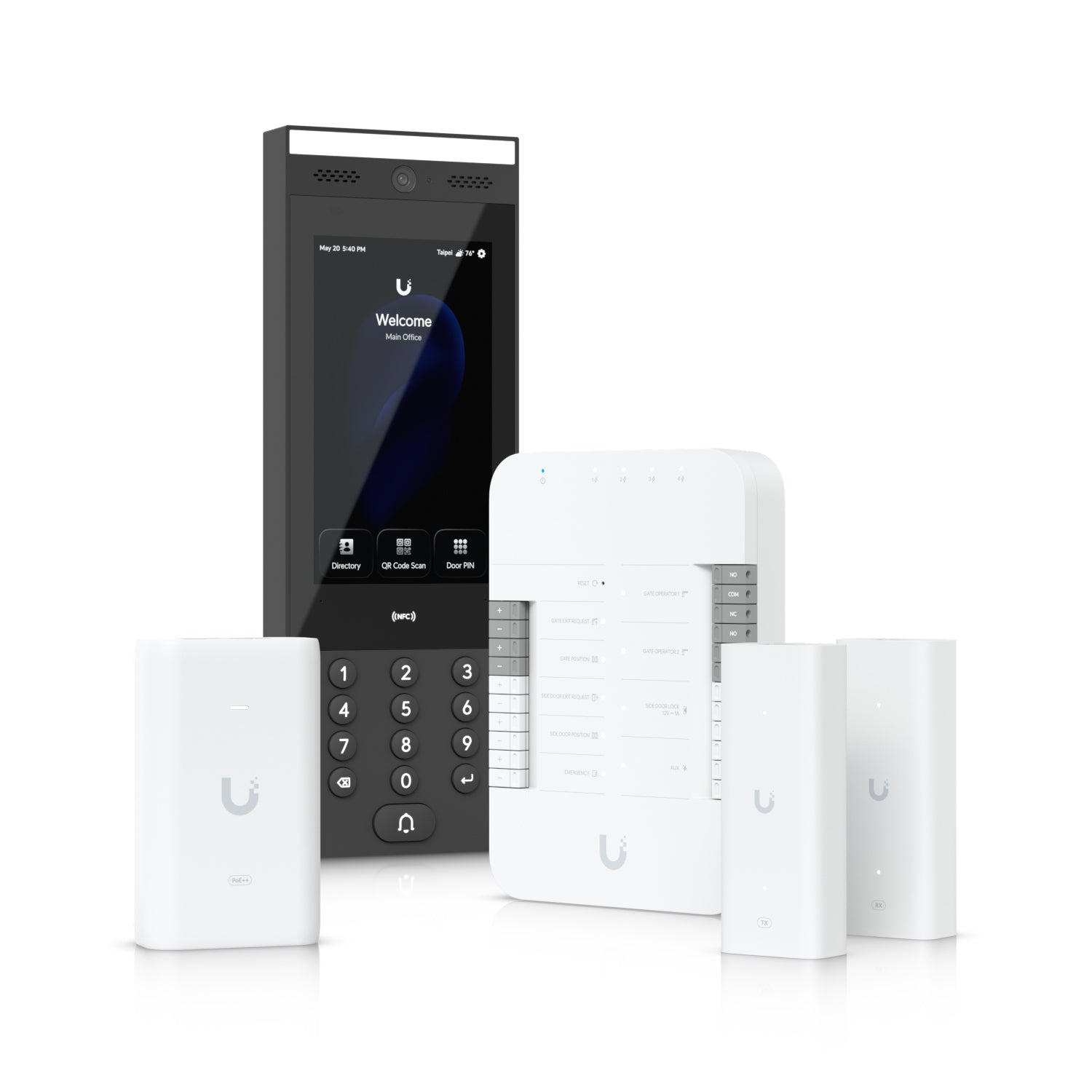

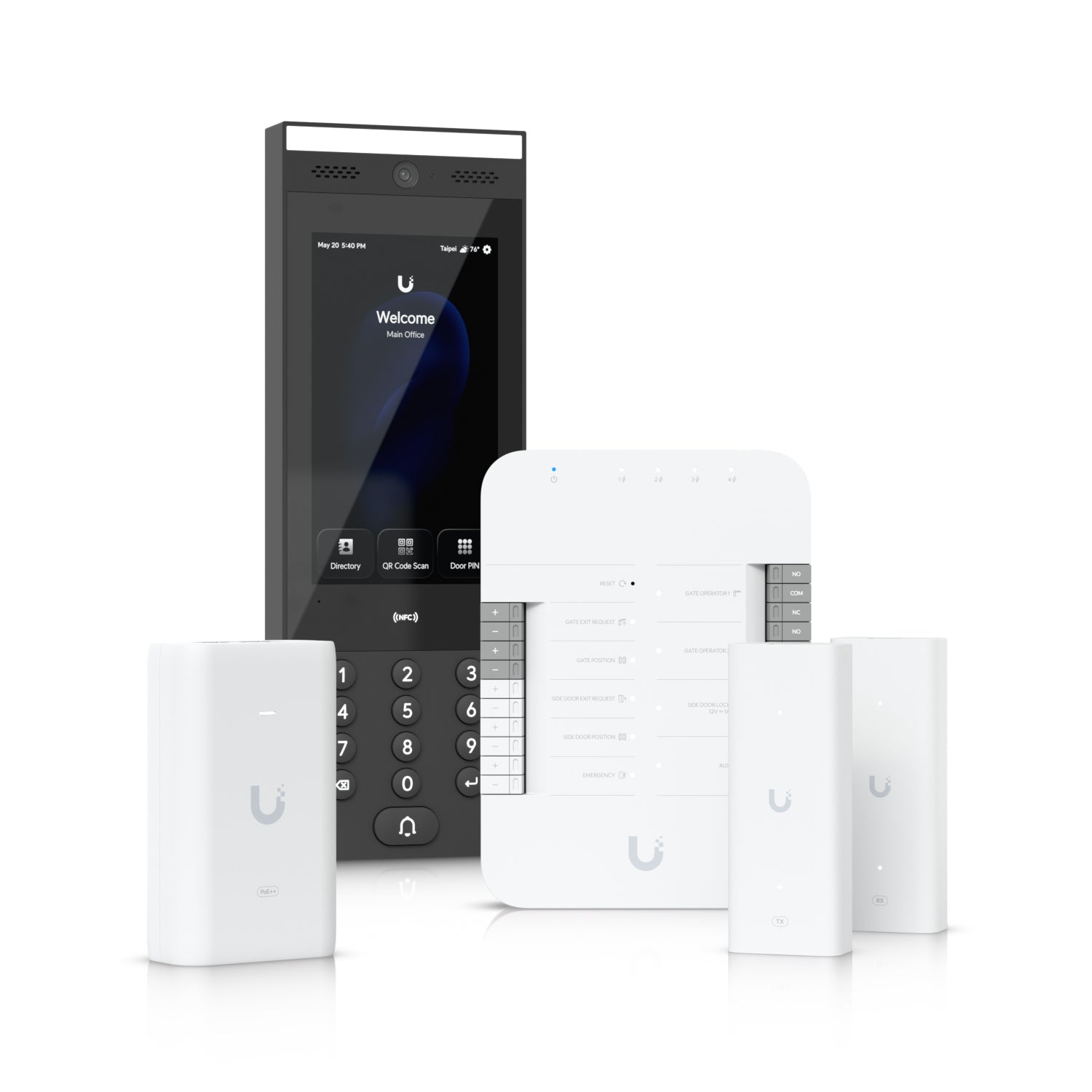

• 1 x Gate Hub

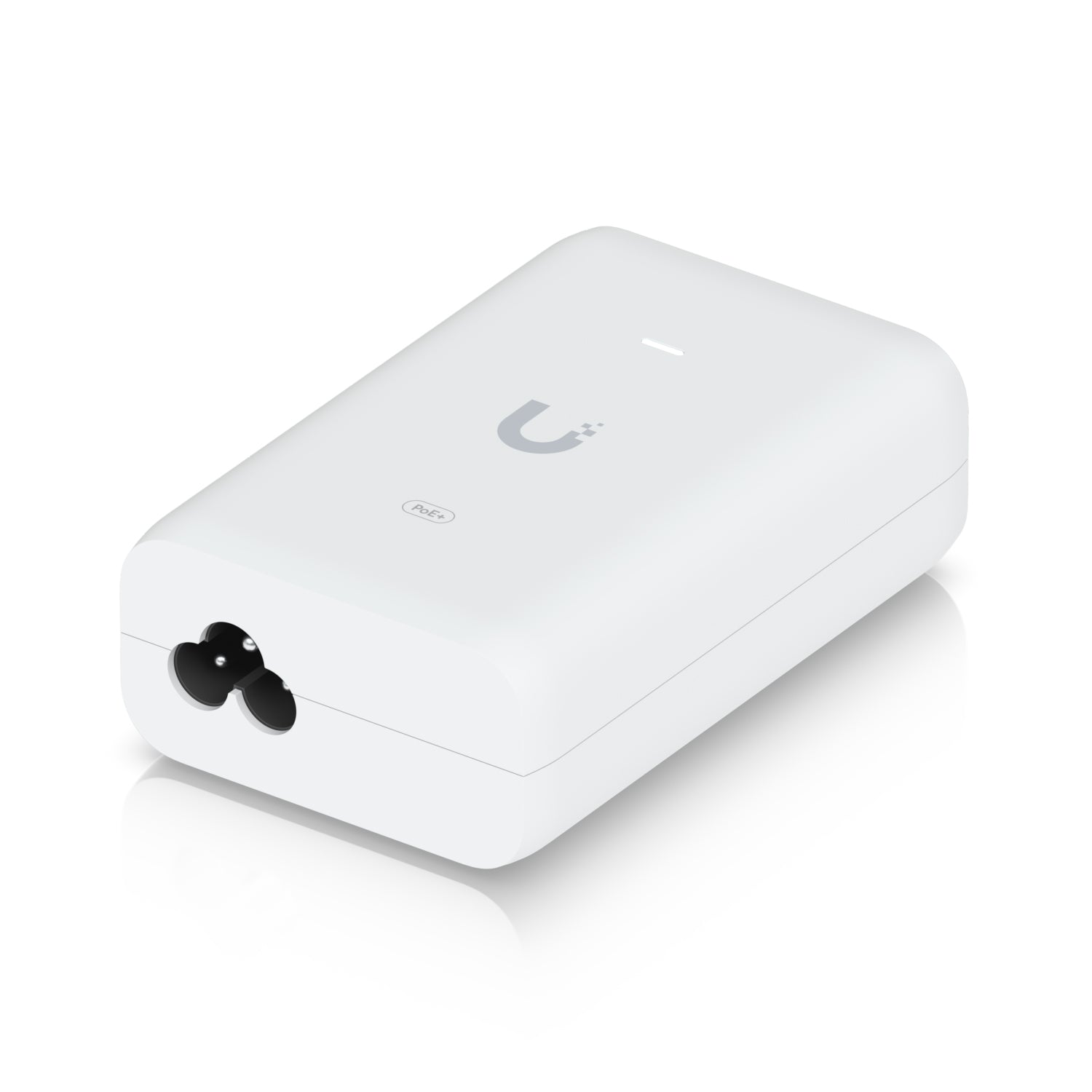

• 1 x PoE++ adapter
• 1 x PoE++ adapter

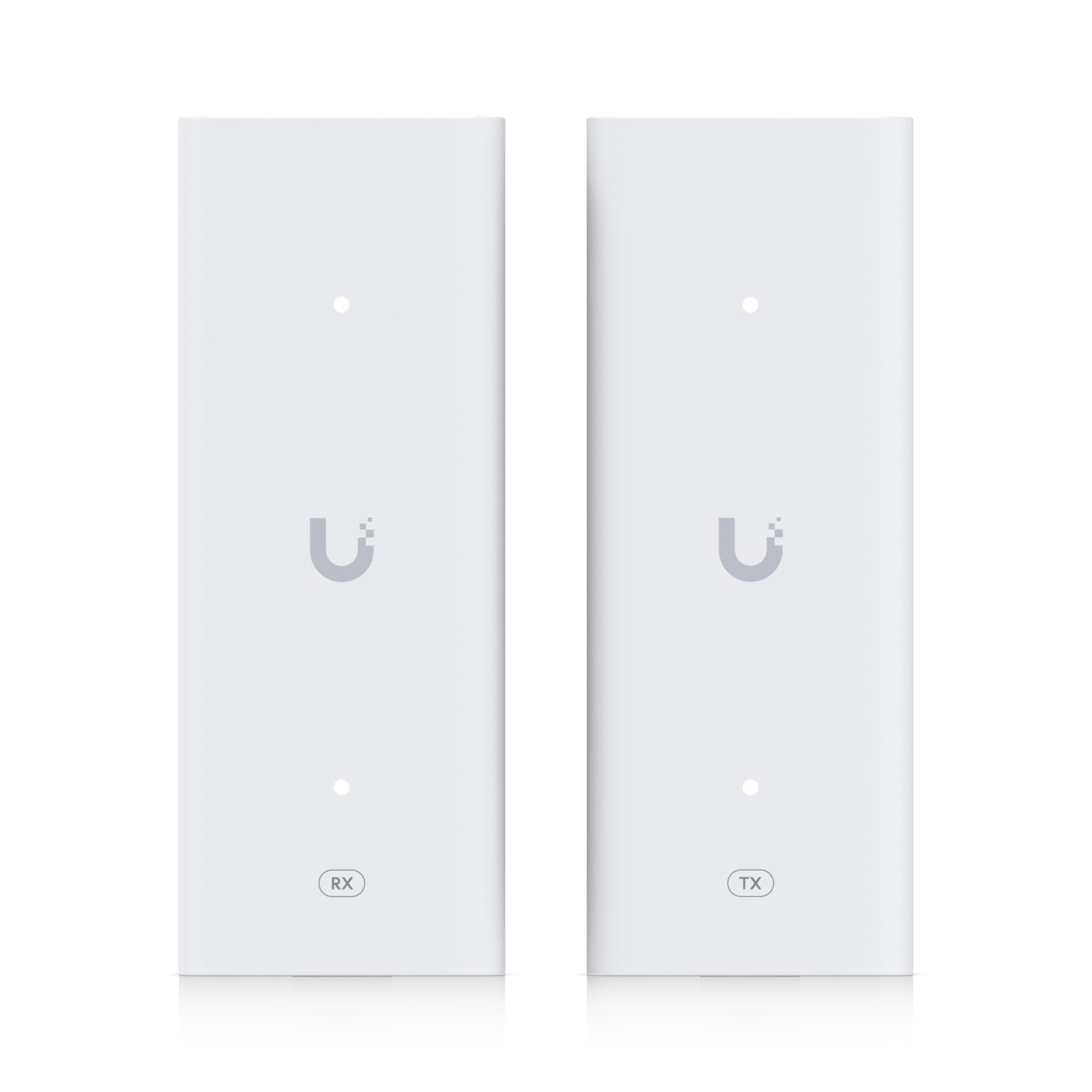

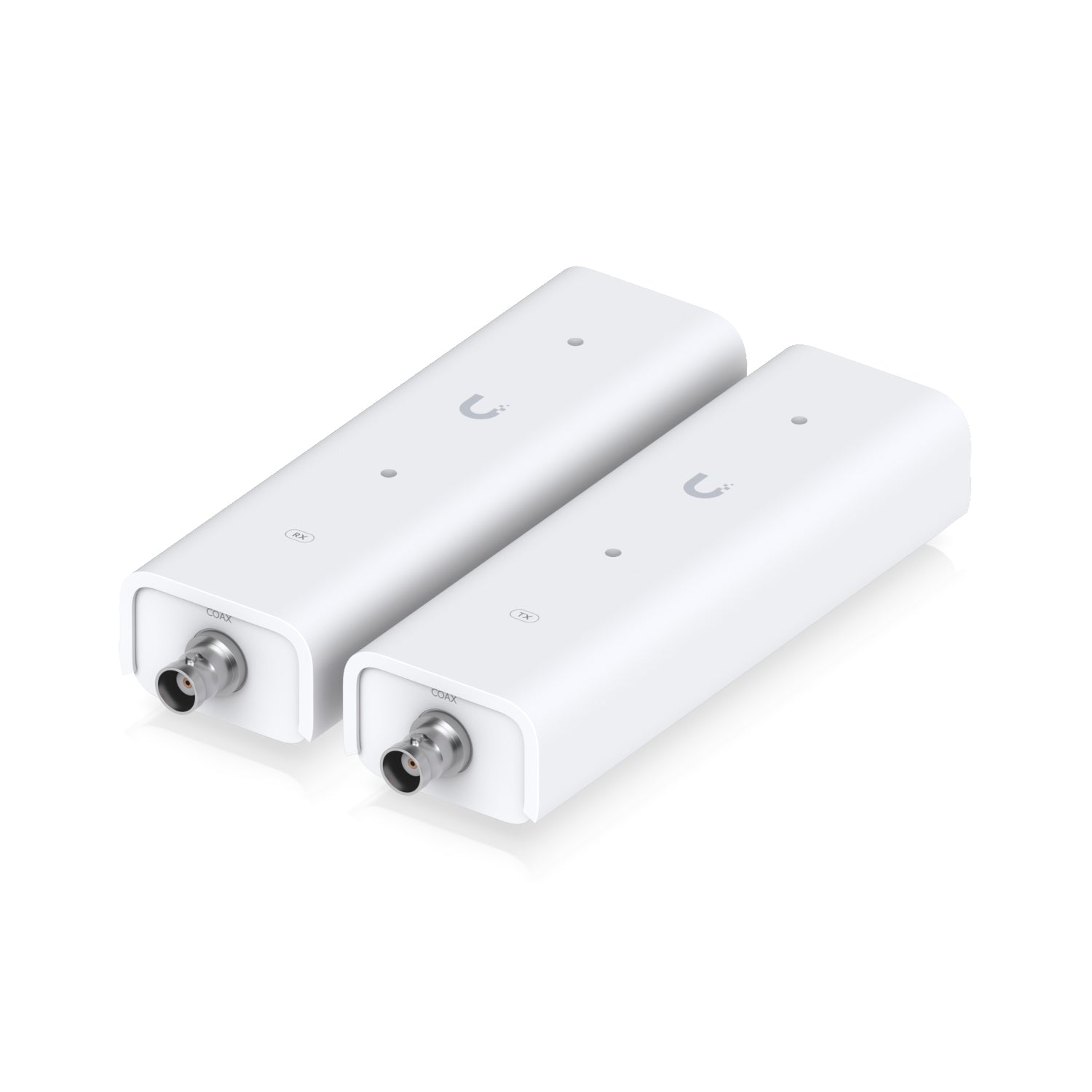

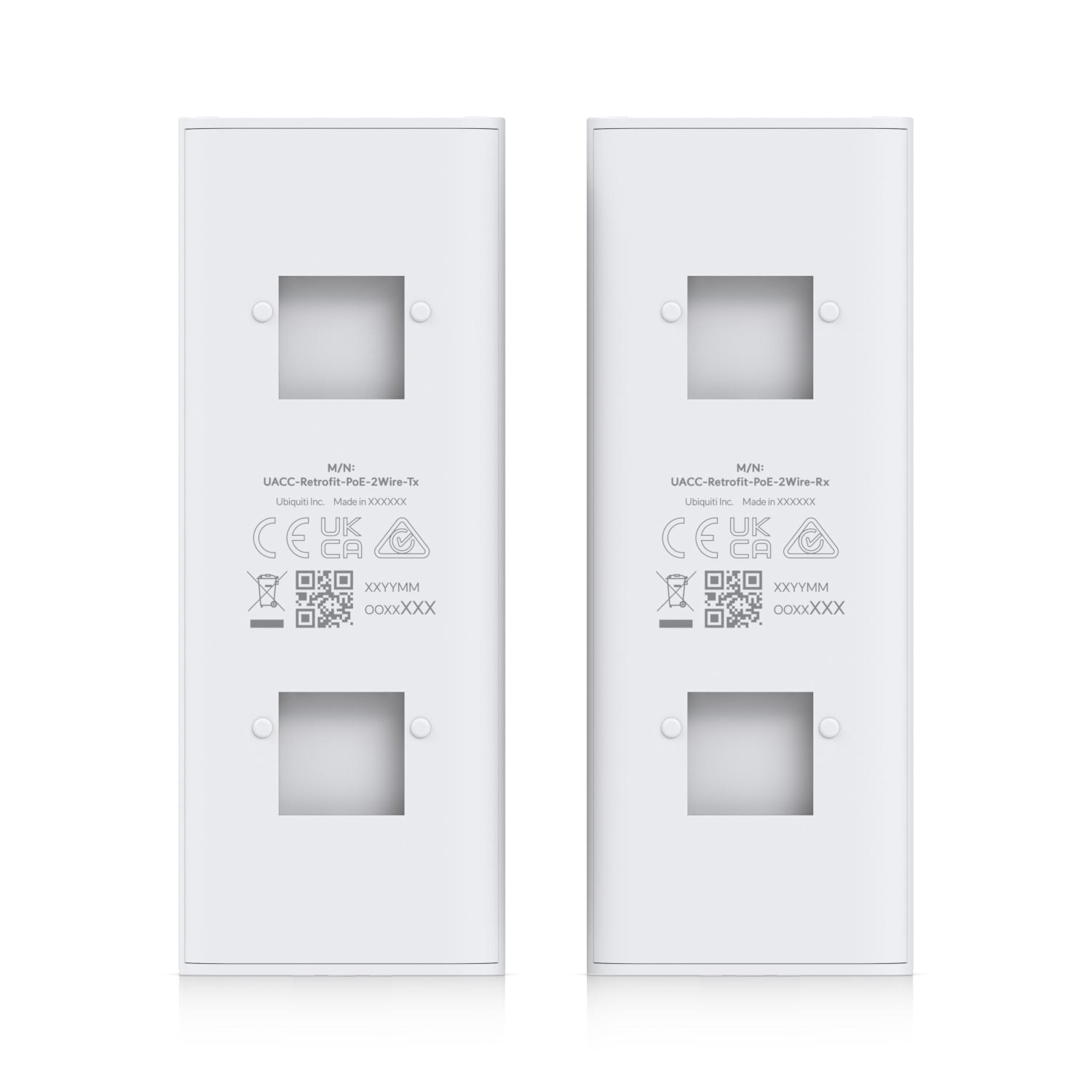

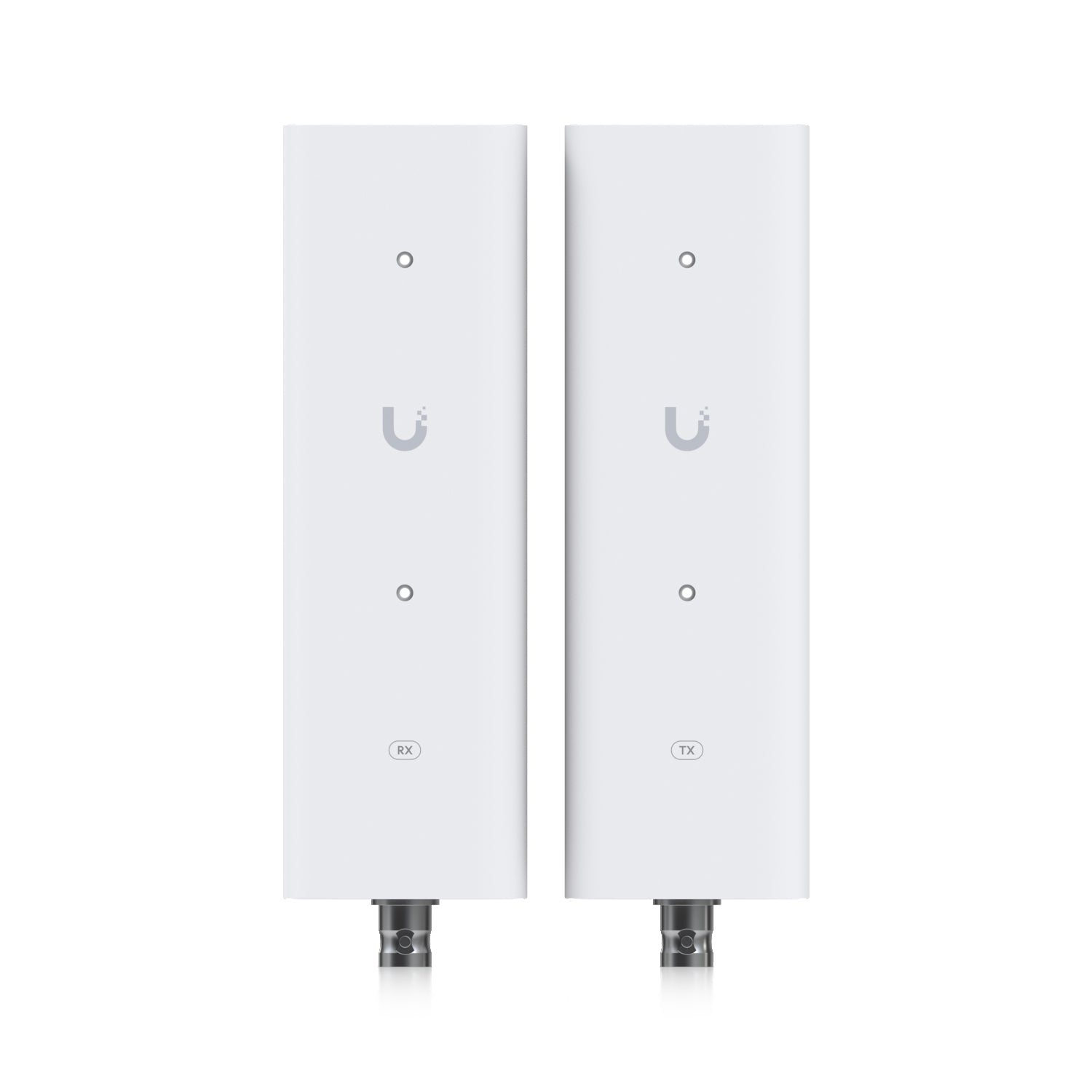

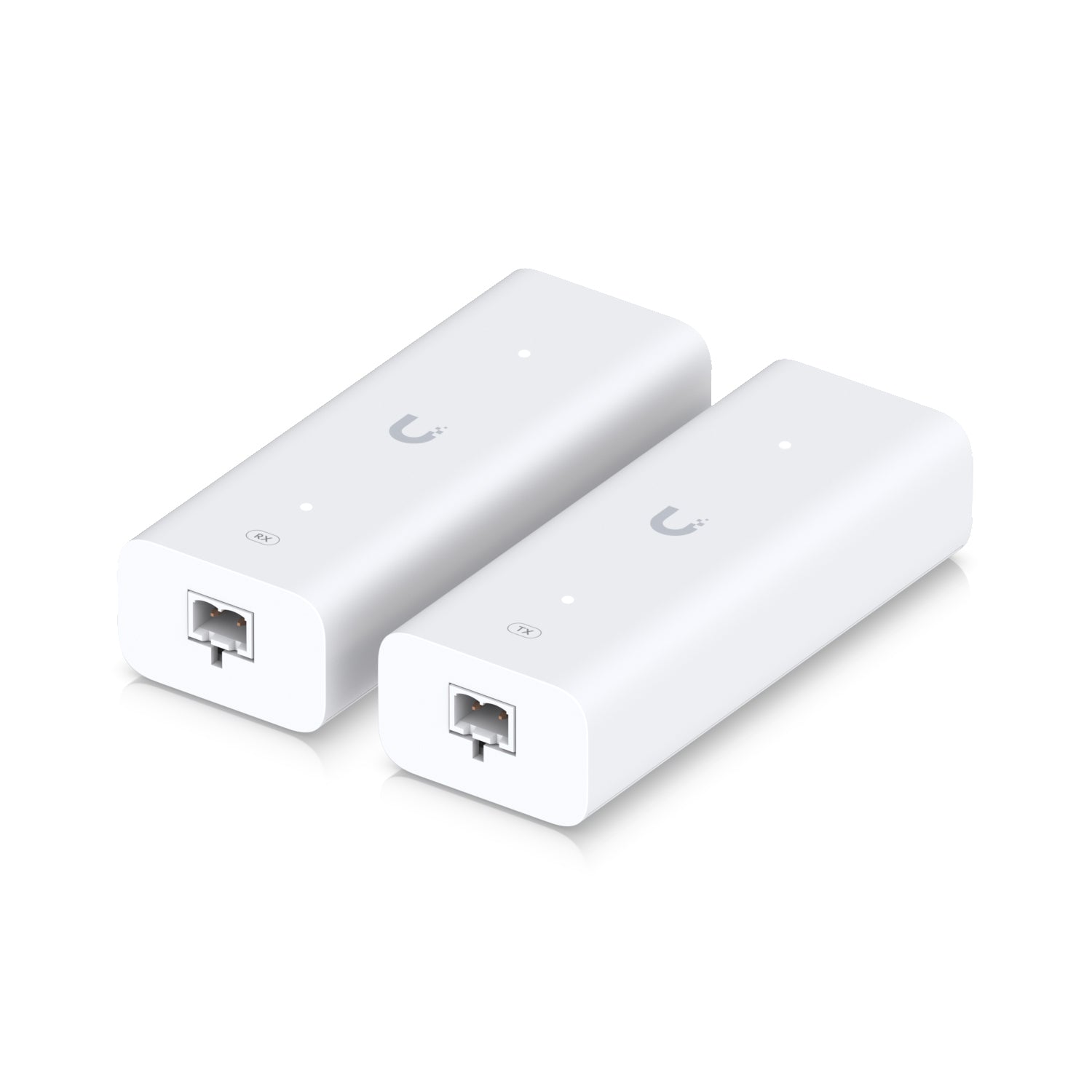

• 2 x 2-wire Retrofit Extenders

1 lbs

6.9-in x 5-in x 1-in
