•12V powered and dry relays compatible with most locks

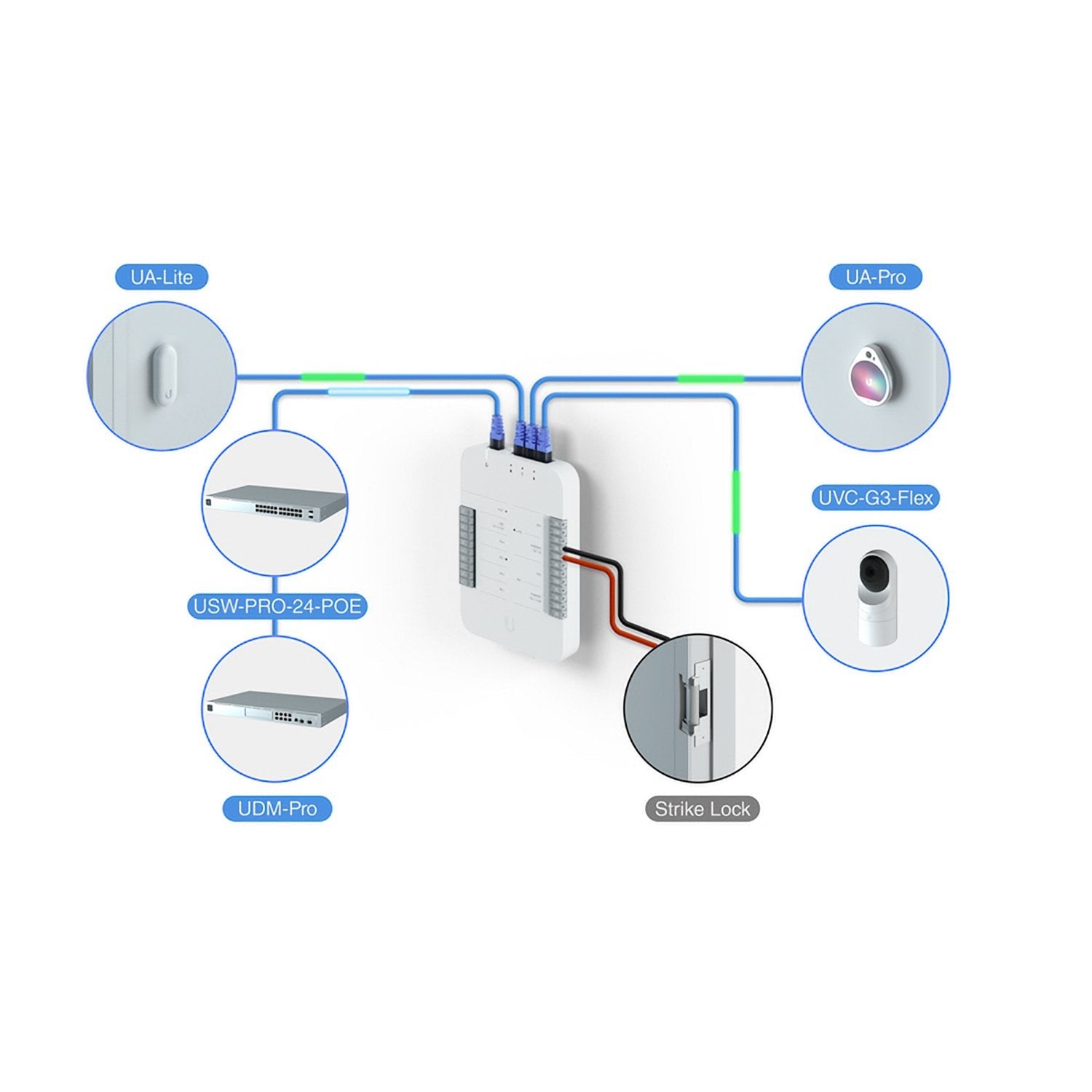

•Three 802.33af PoE ports for UniFi readers and G3 Flex surveillance camera
•Four inputs for motion sensors, request-to-exit devices and door position switch
•Managed with UniFi Access application in UDM-Pro

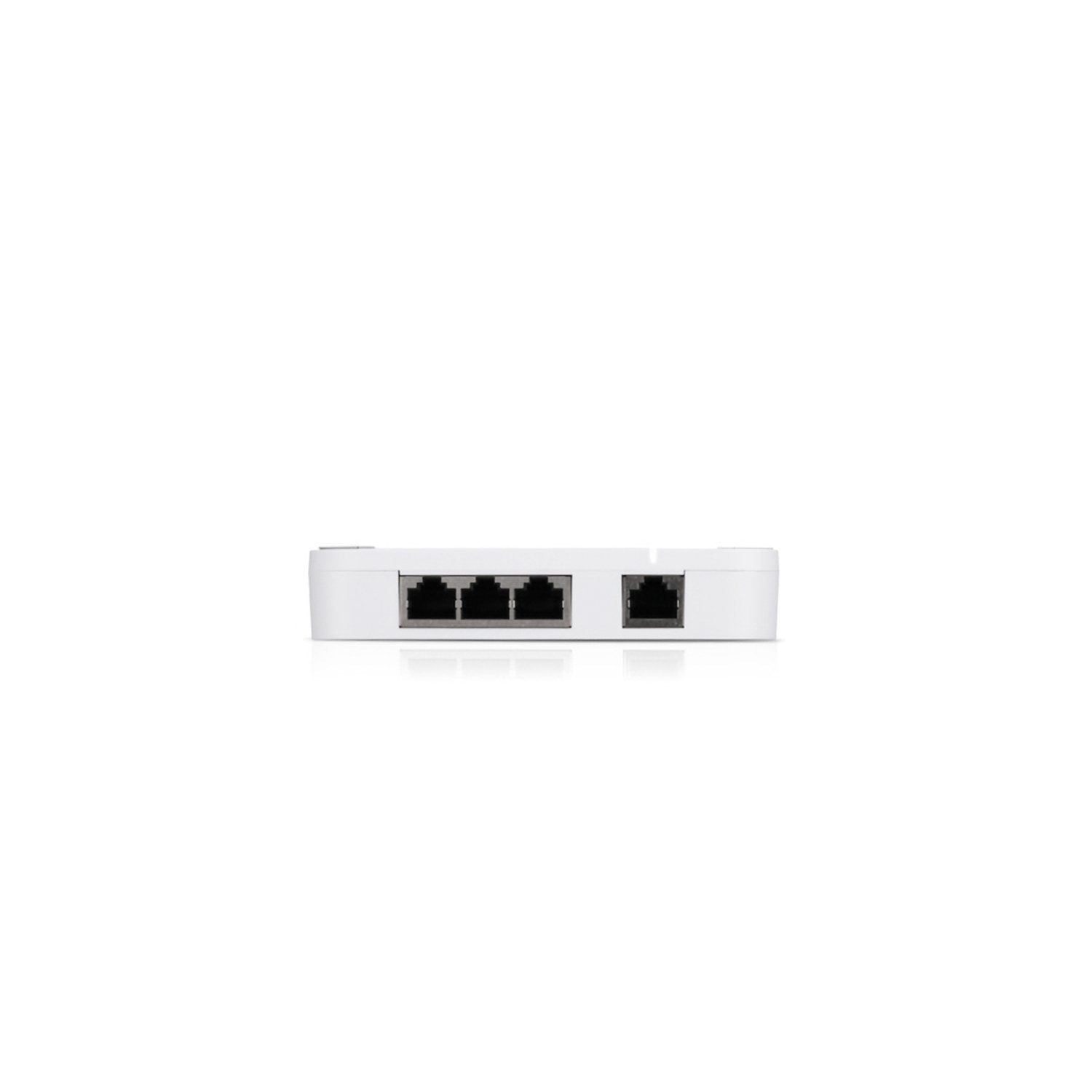

•Networking Interface: (4) 1 Gbps Ethernet
•Input Relays: REX - Request to Exit, REN - Request to Enter, REL - Remote Release, DPS - Door Position Sensor
•Dry Output Relay: Lock - Rated 30VDC, up to 1A; Aux - Rated 30VDC, up to 1A
•Powered Output Relay: Lock - 12VDC, up to 1A; Aux - 12VDC, up to 0.33A; Line - 12VDC, up to 0.33A
•LEDs: 1 x System, 3 x PoE Out, 4 x Input, 2 x Output Relays, 1 x 12VDC Out
•Buttons: Terminal Blocks, Reset
•Maximum Power Consumption: 40W
•Power Method: 802.3bt PoE
•Operating Temperature: 0°C to 40°C (32°F to 104°F)
•Operating Humidity: 5 to 90% Noncondensing
•Certifications: CE, FCC, IC

•1x Ubiquiti UniFi Access Hub
