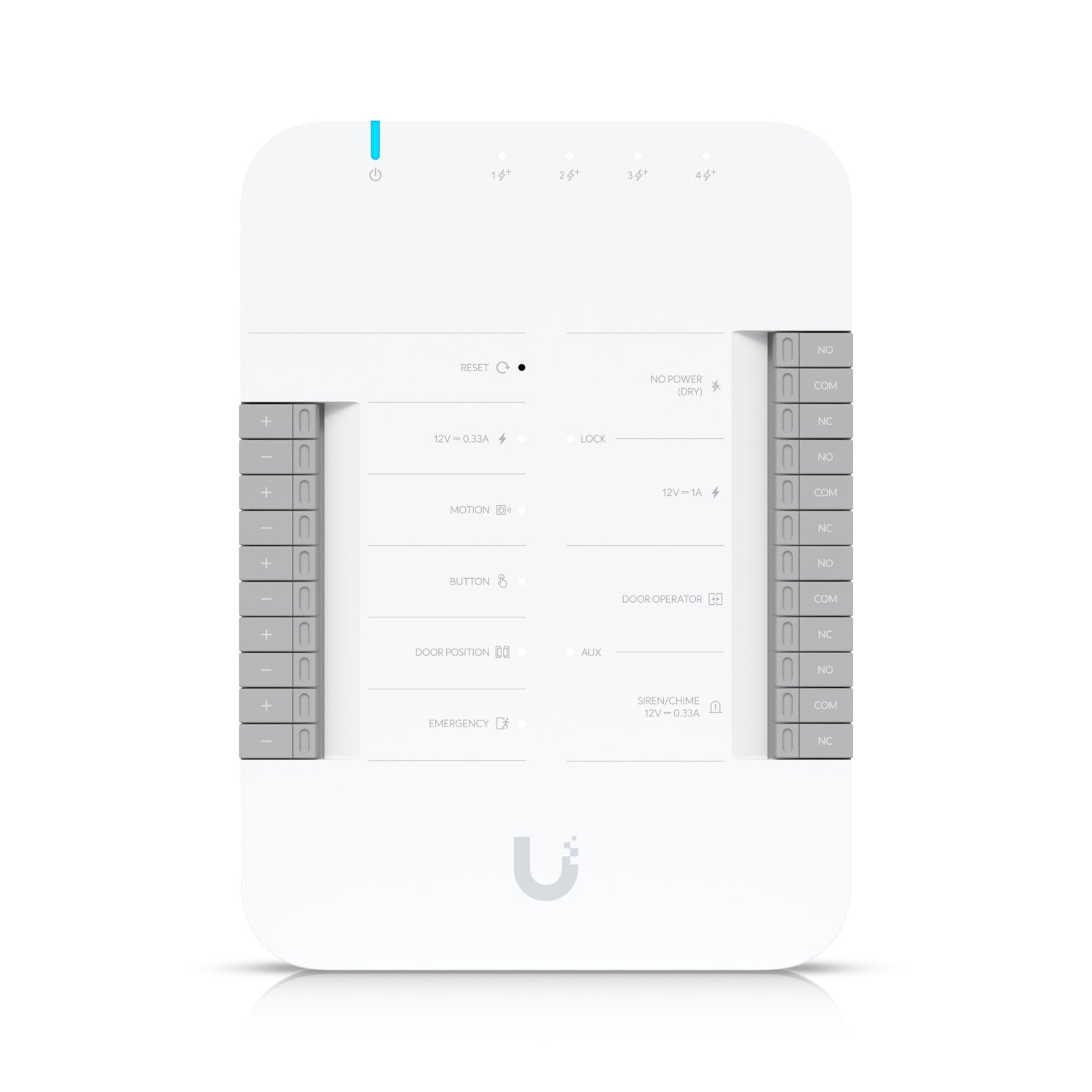

• 4 x inputs for push buttons, motion sensors, emergency alarm and door position sensors
• 2 x Lock relays to support 12V -powered and dry options
• 2 x AUX output relays to connect an external siren and automatic door opener
• 12V line output for accessories
• DIN rail mount

• Maximum User Count: 6,000
• Input Terminals: 2 x Door exit request, 1 x Door position, 1 x Emergency
• Power Method: PoE++, UL 294 Power-limited Class 2 PSU, UL 60950-1/62368-1 LPS/PS2 PSU
• UL 294 Level: Destructive attack - Level I; Line security - Level I; Endurance - Level I; Standby power - Level I

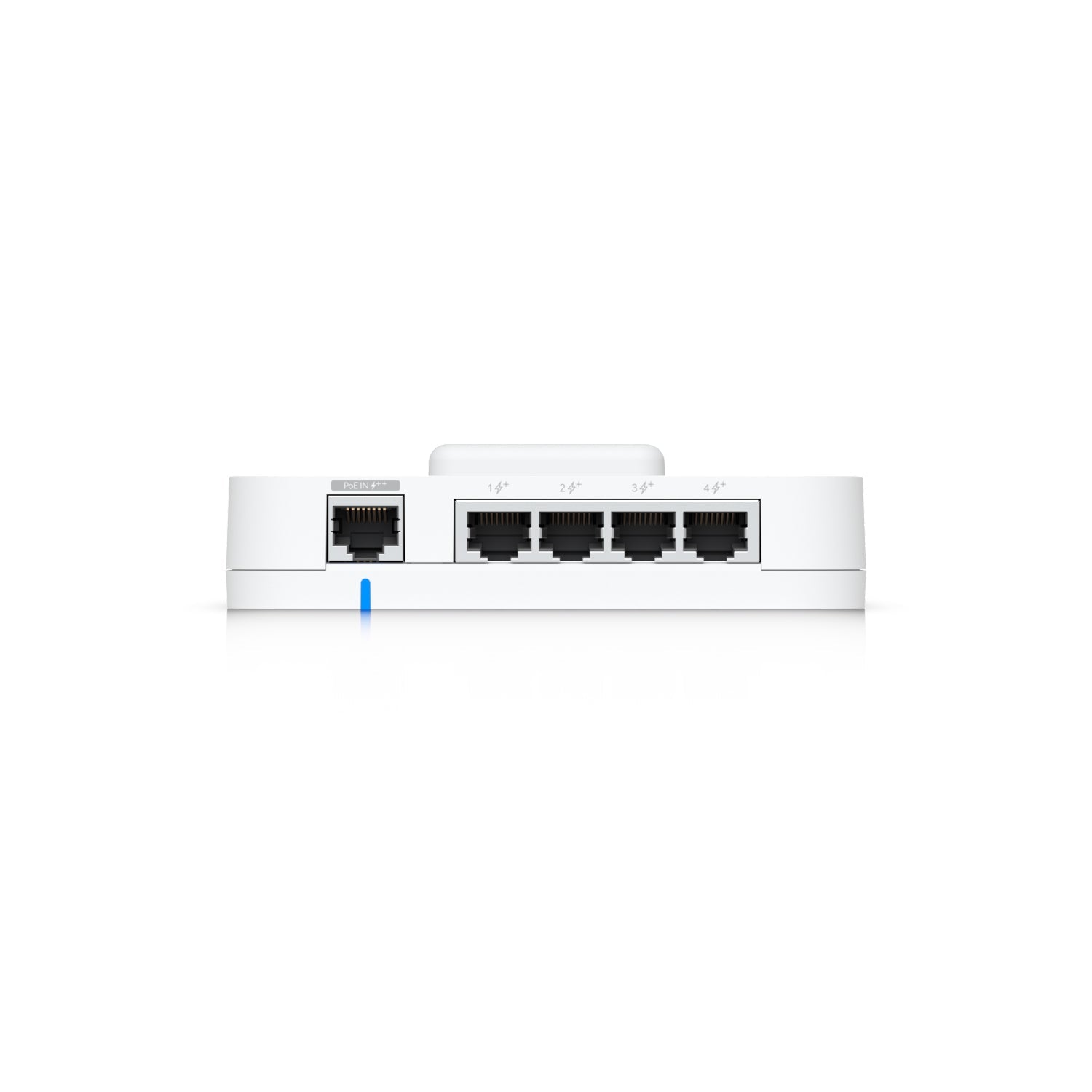

• Networking Interface: 5 x 10/100/1000 Base-T
• PoE Interface: 1 x PoE++ input, 50V DC, 1A; 4 x PoE+ outputs, 50V DC, 30W per port (Max 45W aggregated)
• Max. Power Consumption: 30W (Without PoE output); 50W (With PoE output)
• Enclosure/Mount Material: Polycarbonate
• Operating Temperature: 0°C to 40°C (32°F to 104°F)
• Operating Humidity: 5% to 95% noncondensing
• Certifications: CE, FCC, IC, UL 294, CAN/ULC-60839-11-1

• 1 x Door Hub
• 1 x DIN rail mount
• Mounting Hardware
