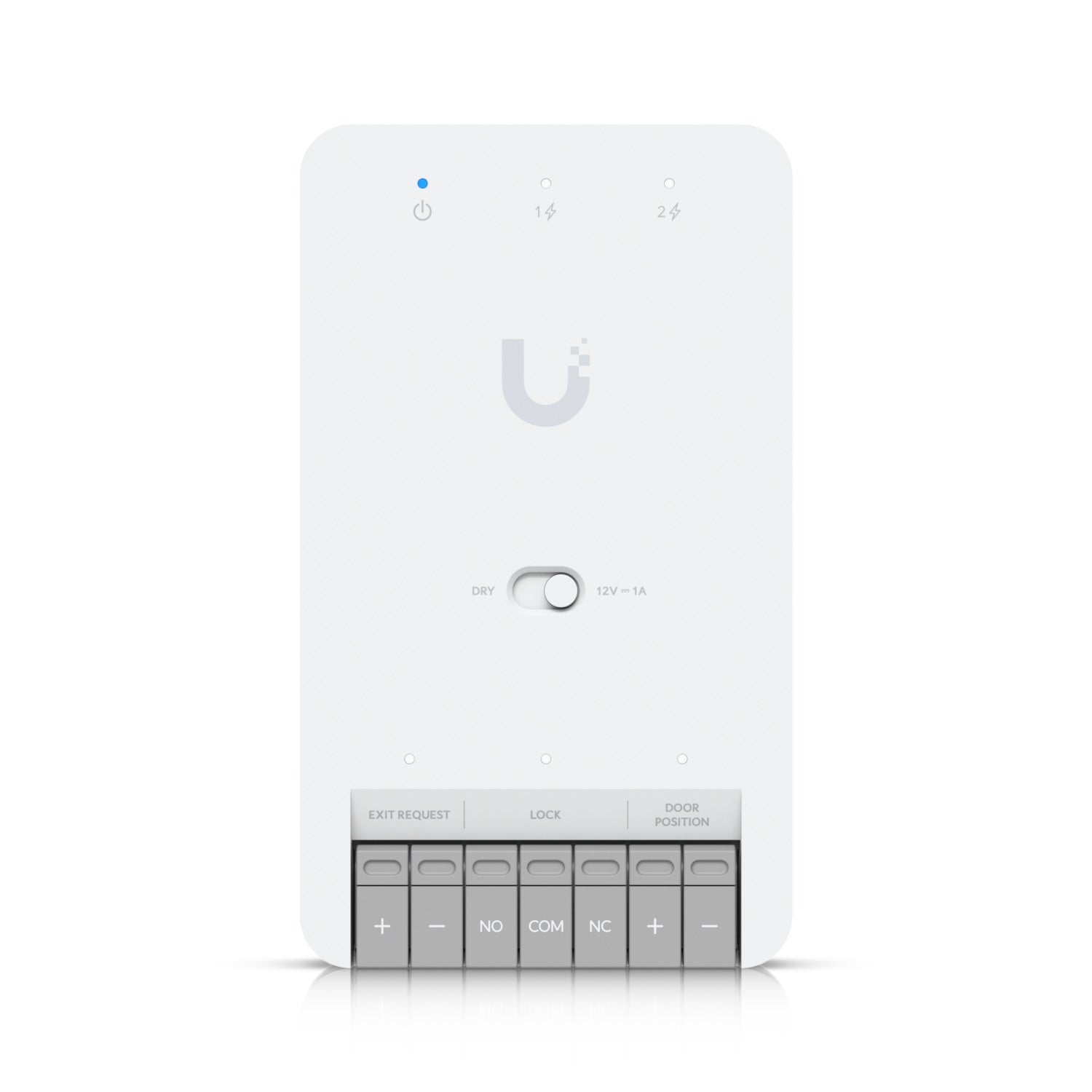

• Lock terminal (12V and Dry switchable)
• Two additional inputs (sensor and button)
• Connect and power via PoE++
• Connect up to two UniFi Access Readers or Protect Cameras

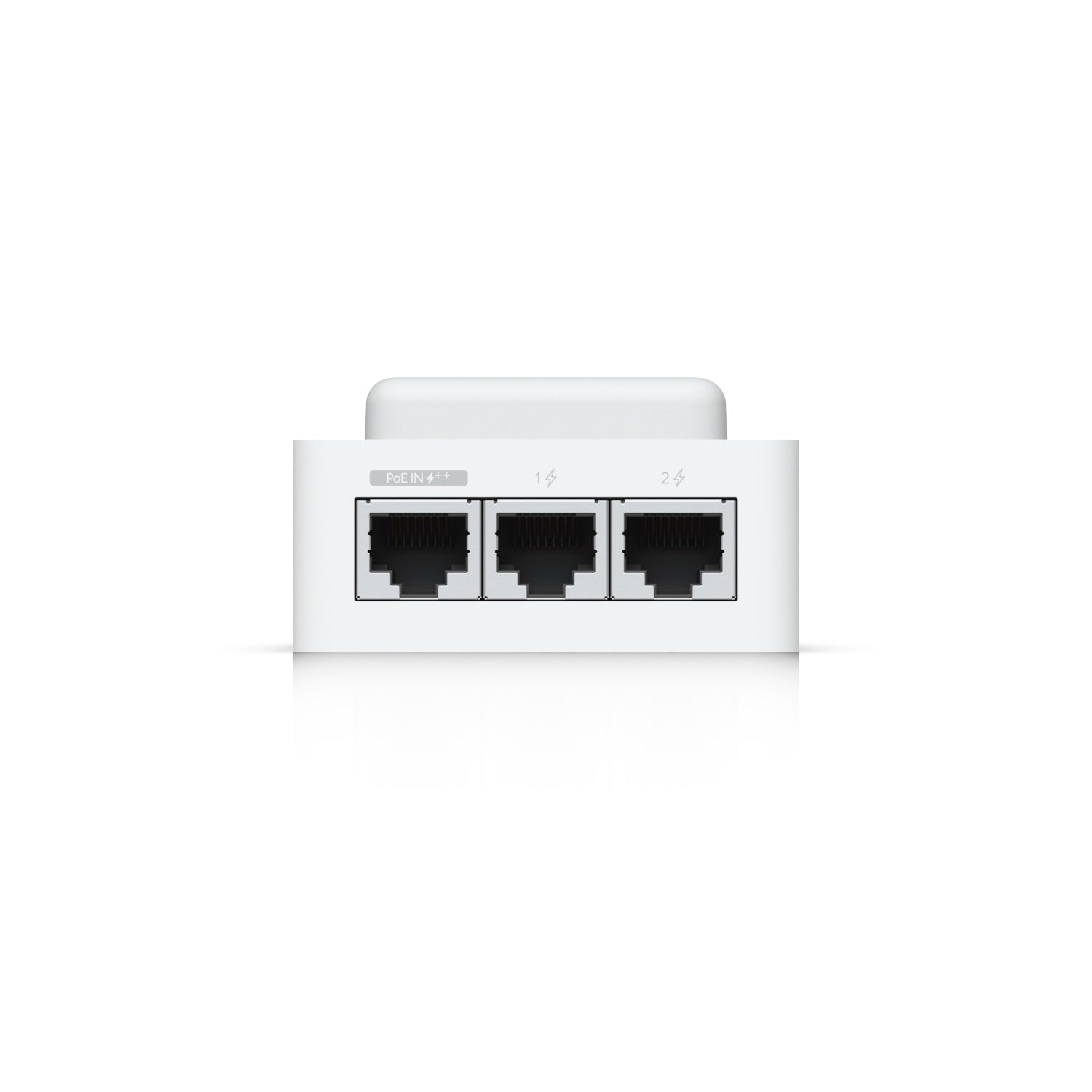

• Networking Interface: 3 x GbE RJ45 ports
• Power Method: PoE++
• Max. Power Consumption: Without PoE output - 19W; with PoE output - 50W
• PoE Input: 50V DC, 1A
• PoE Output: 2 x PoE ports, total 31W
• Output Relay: Dry - 30V DC, 1A; Wet - 12V DC, 1A
• PoE Cabling Requirements: Cable 5e cabling is the minimum performance category recommended
• Operating Environment: Indoor use only; Temperature -10°C to 40°C (14°F to 104°F); Humidity 5 to 90% noncondensing
• Certifications: CE, FCC, IC
• Management Application: UniFi Access Version 2.5.2 and later
• Enclosure Material: Polycarbonate, metal
• Dimensions: 113mm x 66mm x 27.6mm (4.4" x 2.6" x 1.1")

• 1 x Door Hub Mini
• Mounting hardware

4.4-in x 2.6-in x 1.1-in 0.42 lbs
