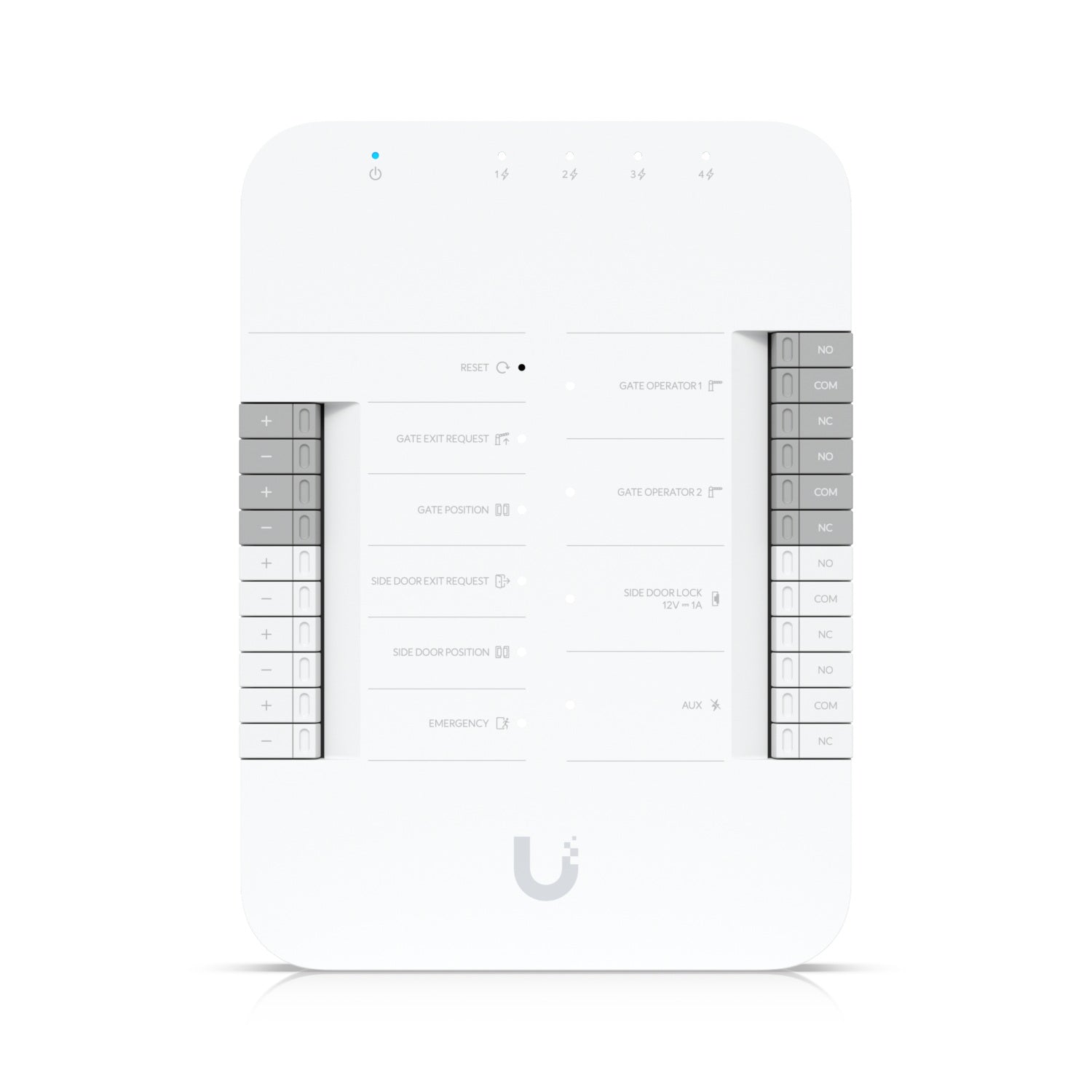

• Two gate operator terminals (dry)
• Lock terminal (12V) for side door
• AUX terminal for an external siren
• Five additional inputs (sensors and emergency)
• License plate unlock (when paired with AI Camera)
• Connect and power using PoE++
• Connect up to four UniFi Access readers or UniFi Protect cameras

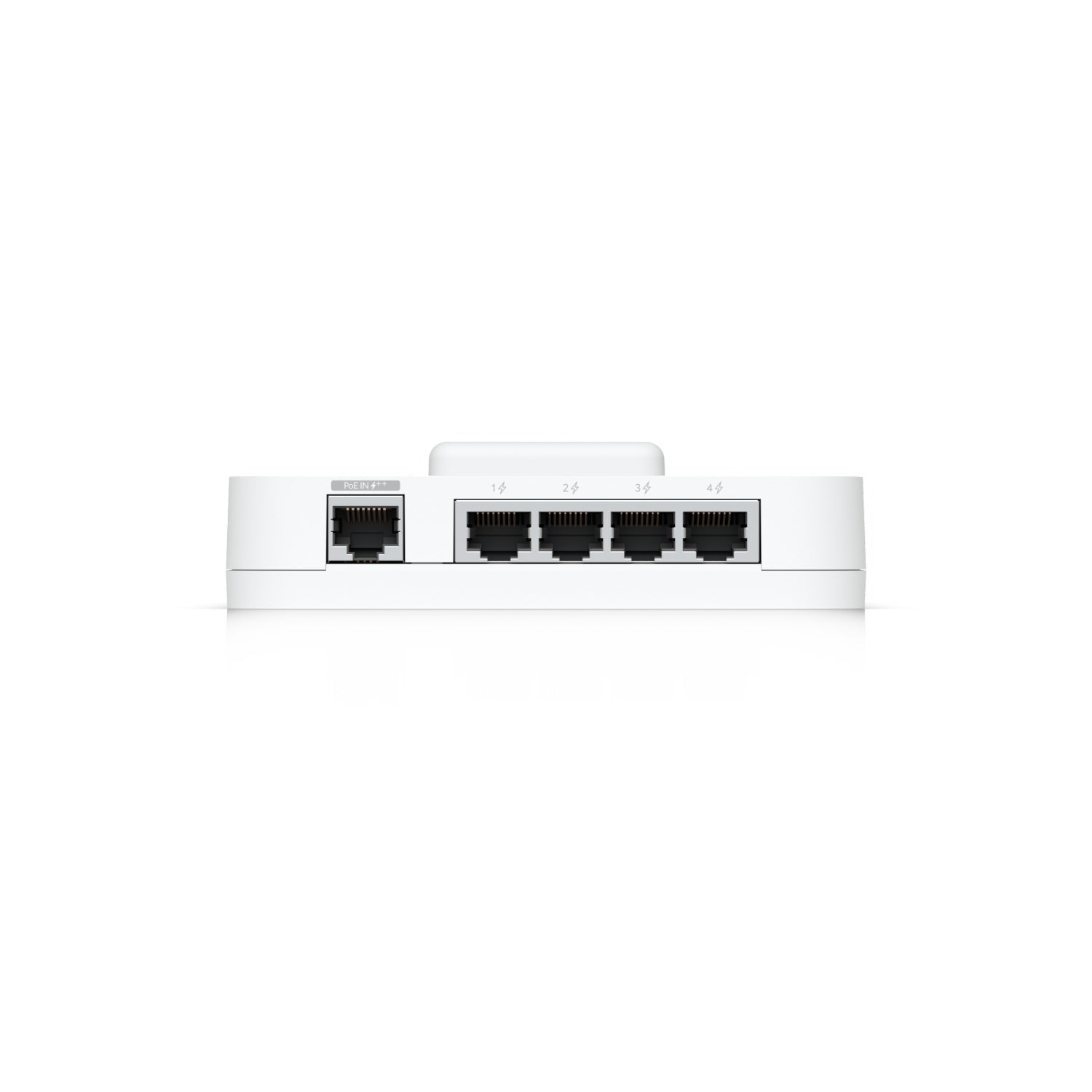

• Networking Interface: 5 x 10/100/1000 Base-T
• Power Method: PoE++, UL 294 Power-limited Class 2 PSU, UL 60950-1/62368-1 LPS/PS2 PSU
• Max. Power Consumption: Without PoE output - 22W; with PoE output - 50W
• PoE Input: 50V DC, 1A
• PoE Output: PoE passthrough, 4 x PoE, 50V DC, Max. 28W
• Output Relay: Side door lock - 12V DC, up to 1A
• PoE Cabling Requirements: Cable 5e cabling is the minimum performance category recommended
• Location: Indoor use only with device itself; Outdoor use with waterproof junction box
• Operating Environment: Temperature -30°C to 60°C (-22°F to 104°F); Humidity 5 to 90% noncondensing
• UL 294 Level: Level I (Destructive Attack/Line Security/Endurance/Standby Power)
• Certifications: CE, FCC, IC, UL 294, CAN/ULC-60839-11-1
• Dimensions: 175mm x 126mm x 26mm (6.9" x 5" x 1")

• 1 x Gate Hub

6.9-in x 5-in x 1-in

1 lbs
