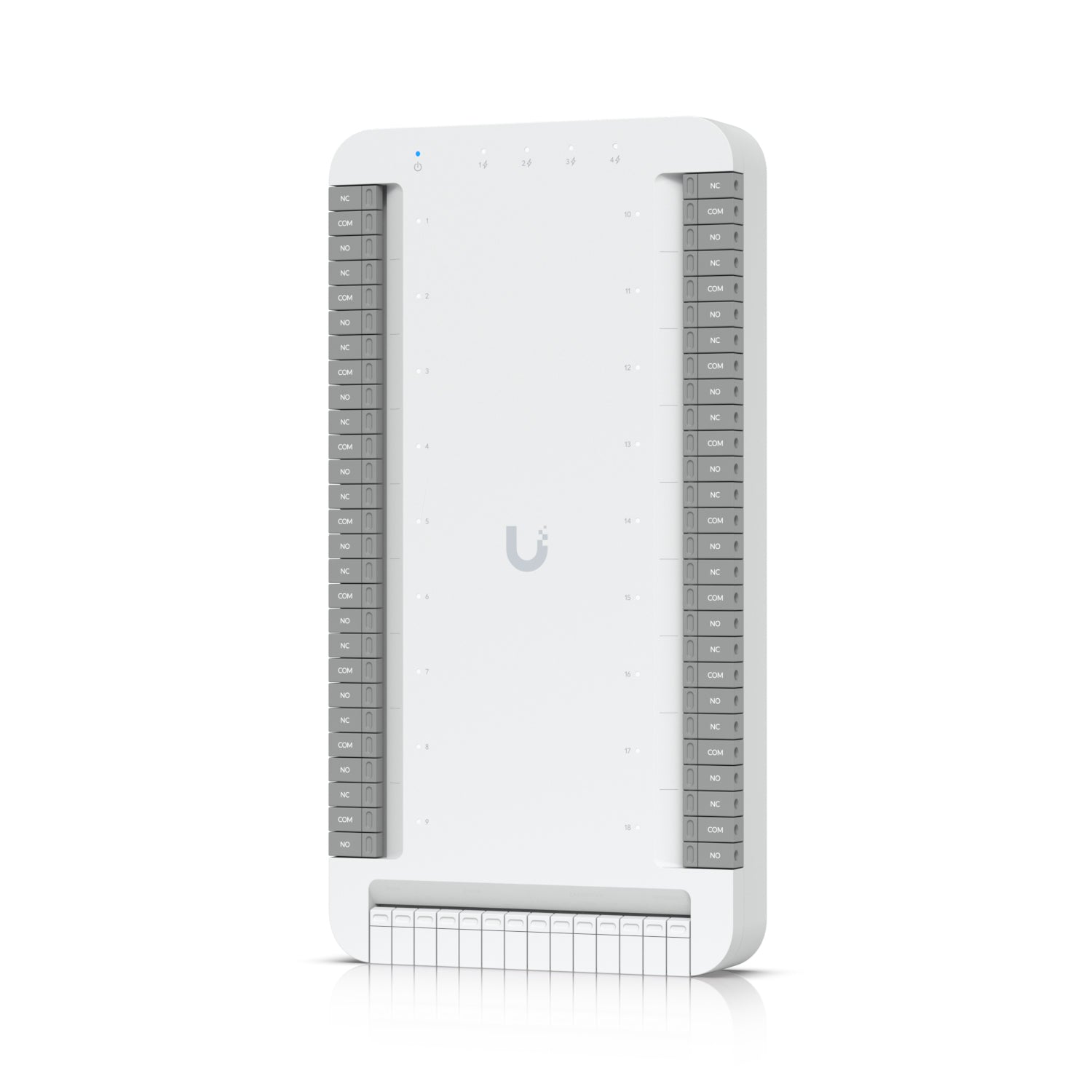

• Elevator hub has 18 relays to support 18 floors
• Elevator Hub is DIN rail mountable

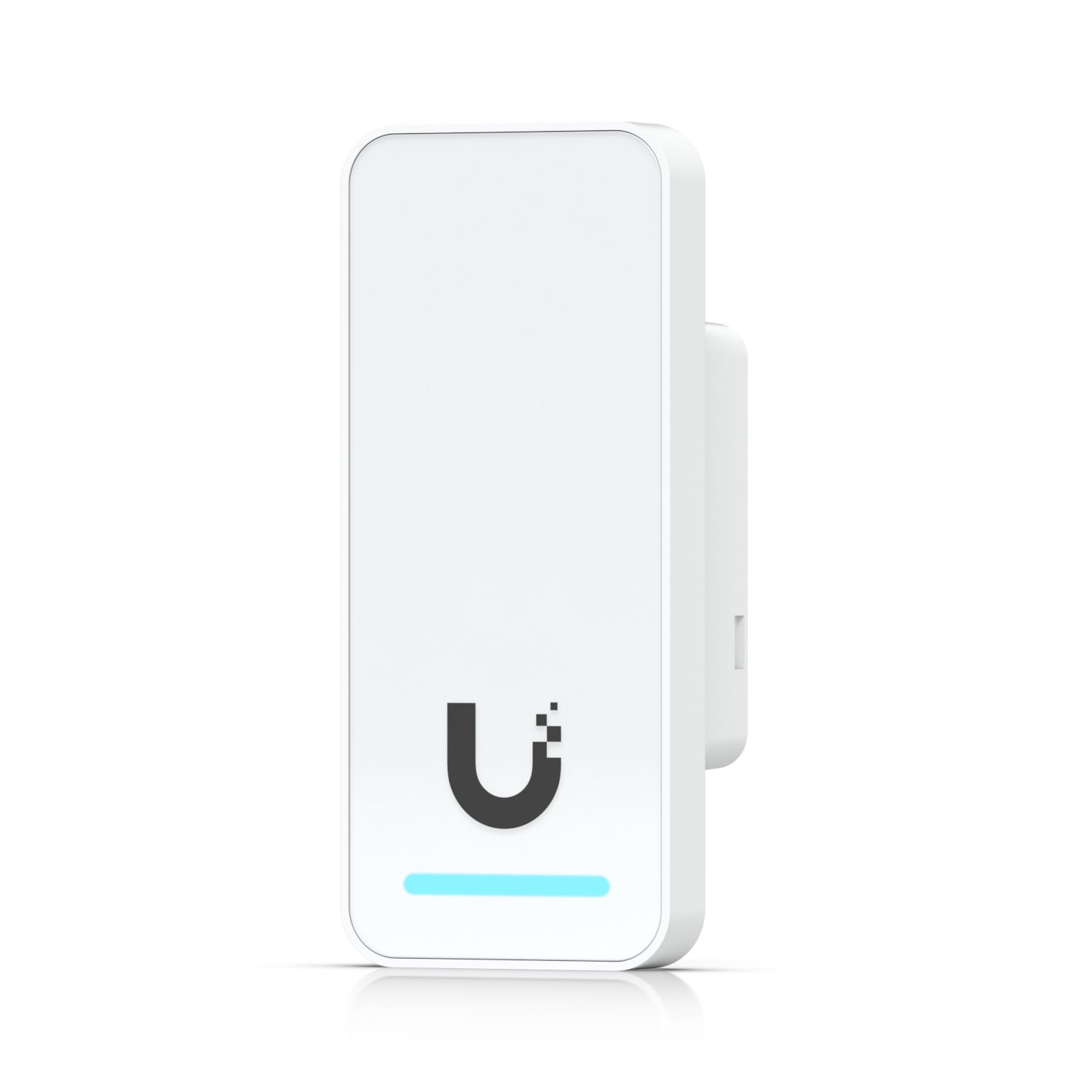

• G2 Reader is wall/gangbox mountable and weatherproof IP55 rated
• Unlock using NFC card/keyfob and Mobile App
• Request to exit via handwave

• Elevator Hub Networking Interface: 4 x 10/100/1000 Base-T
• Elevator Hub PoE Interface: 1 x PoE++ input, 50V DC, 1.2A; 4 x PoE outputs, 50V DC, 30W per port (Max 45W aggregated)
• Elevator Hub Management: 1 x 10/100/1000 Base-T

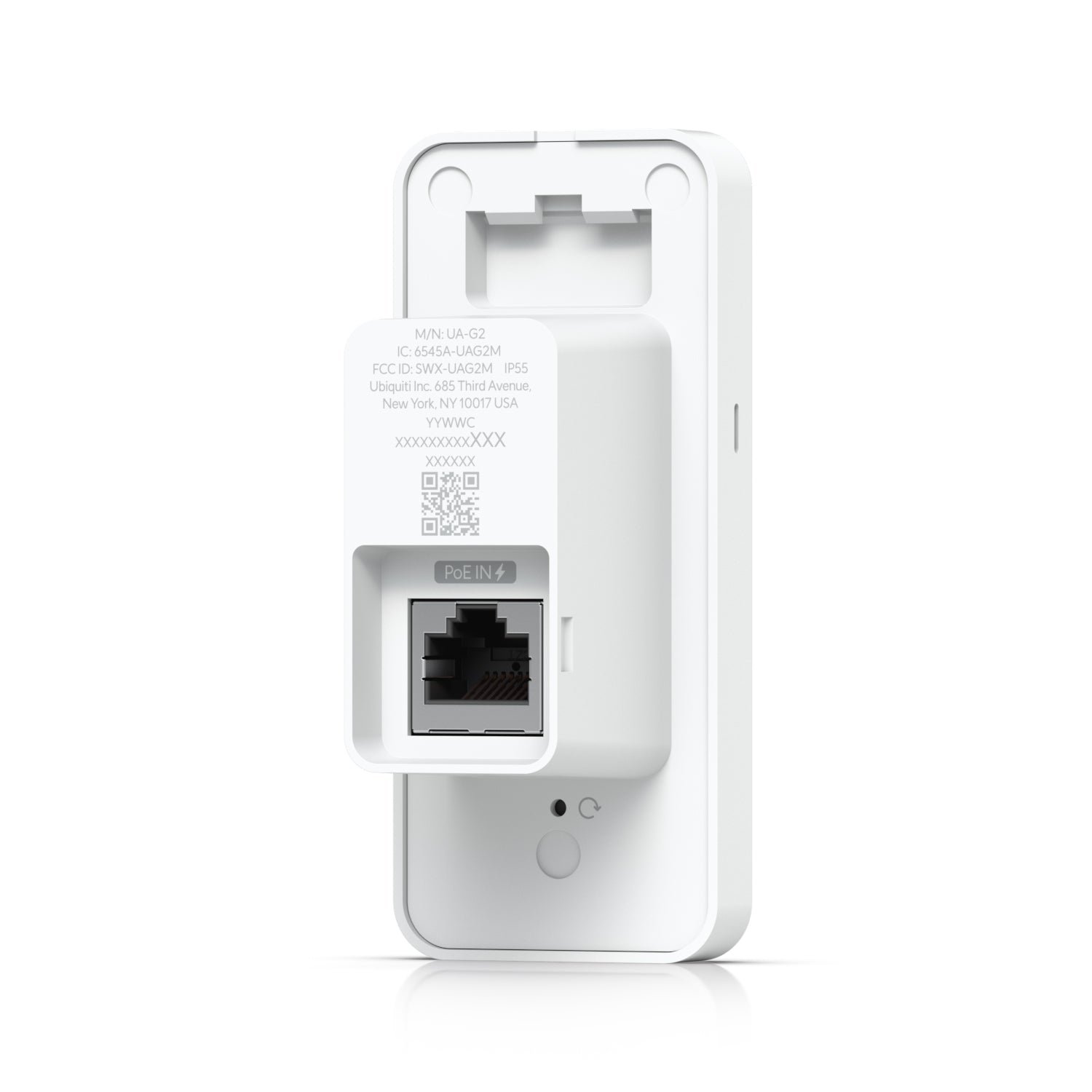

• G2 Reader Networking Interface: 1 x 10/100 MbE RJ45 port
• G2 Reader Connectivity: BLE 4.1, NFC
• G2 Reader Power Method: PoE; UL 294 Power-limited Class 2 PSU; UL 60950-1/62368-1 LPS/PS2 PSU
• Access Card Format: ISO 7810 ID-1
• Access Card NFC Frequency: 13.56 MHz
• Access Card NFC Technology: ISO/IEC 14443 Type A, MIFARE DESFire, UniFi Access Proprietary Security Protocol
• Wire PoE Extender Networking Interface: 1 x 10/100 MbE; 1 x Homeplug AV
• Wire PoE Extender PoE Interface: PoE input: 1 x PoE++, 50V DC, Max. 1.2A; PoE output: 1 x PoE+, 48V DC, 0.72A
• Wire PoE Extender Management: 1 x 10/100 MbE

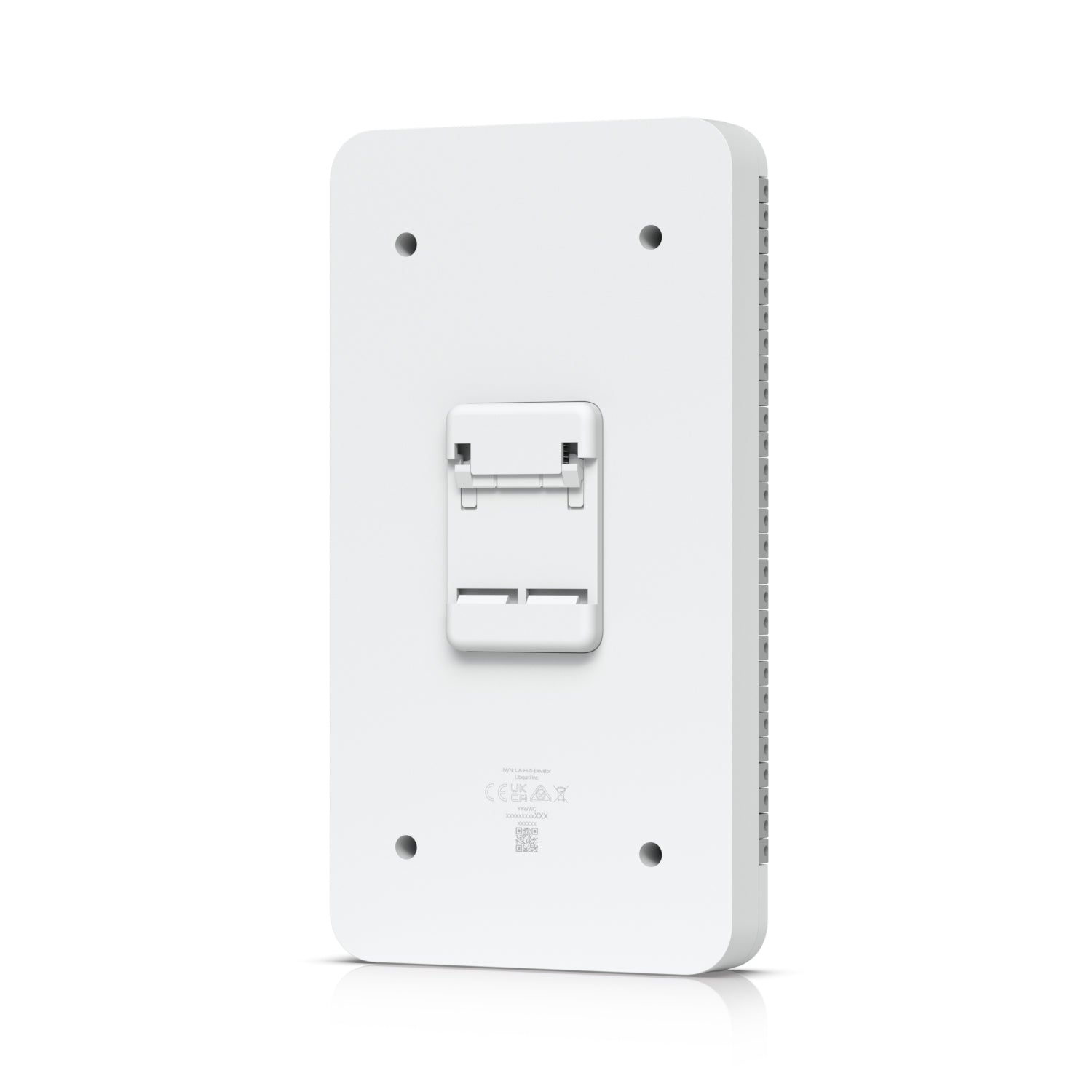

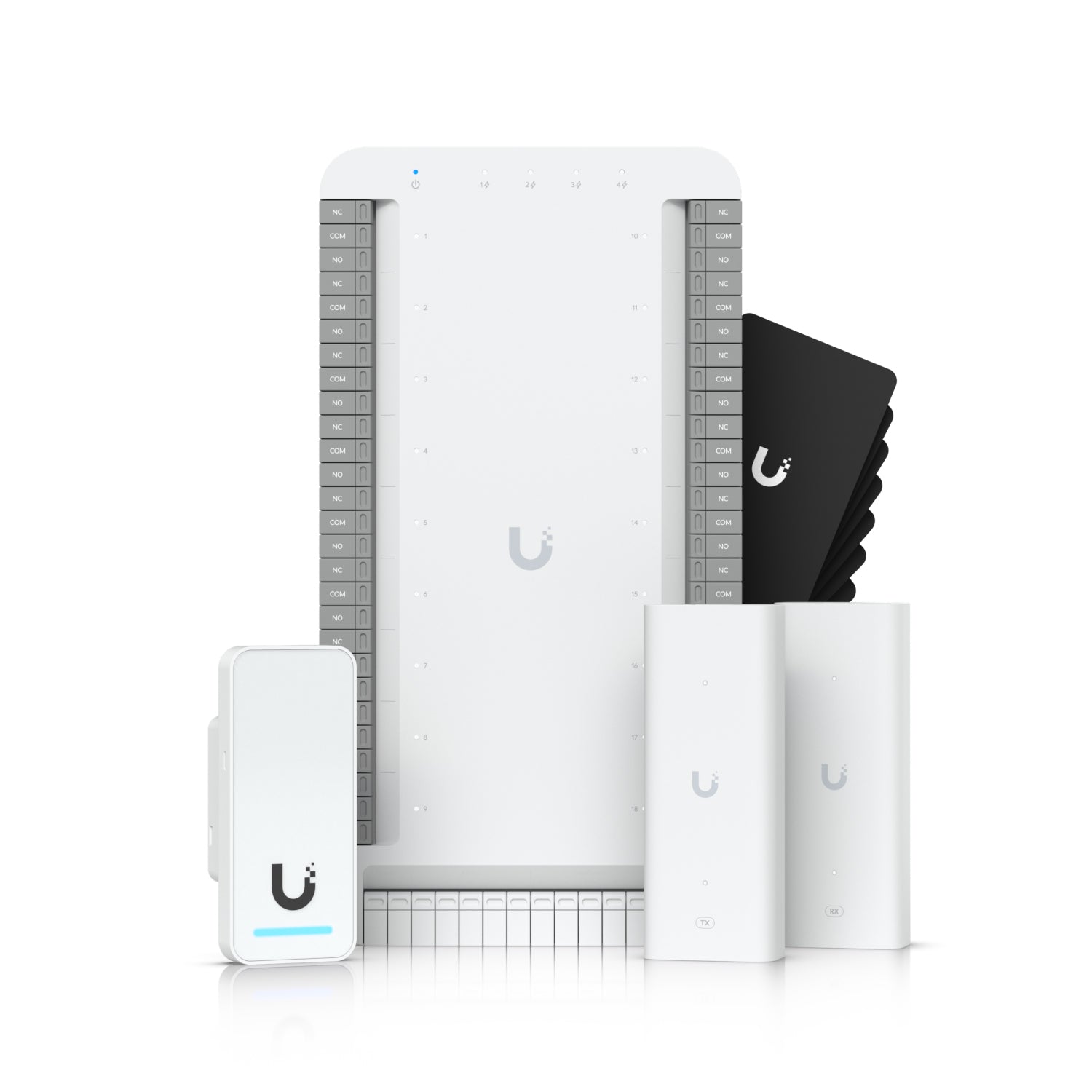

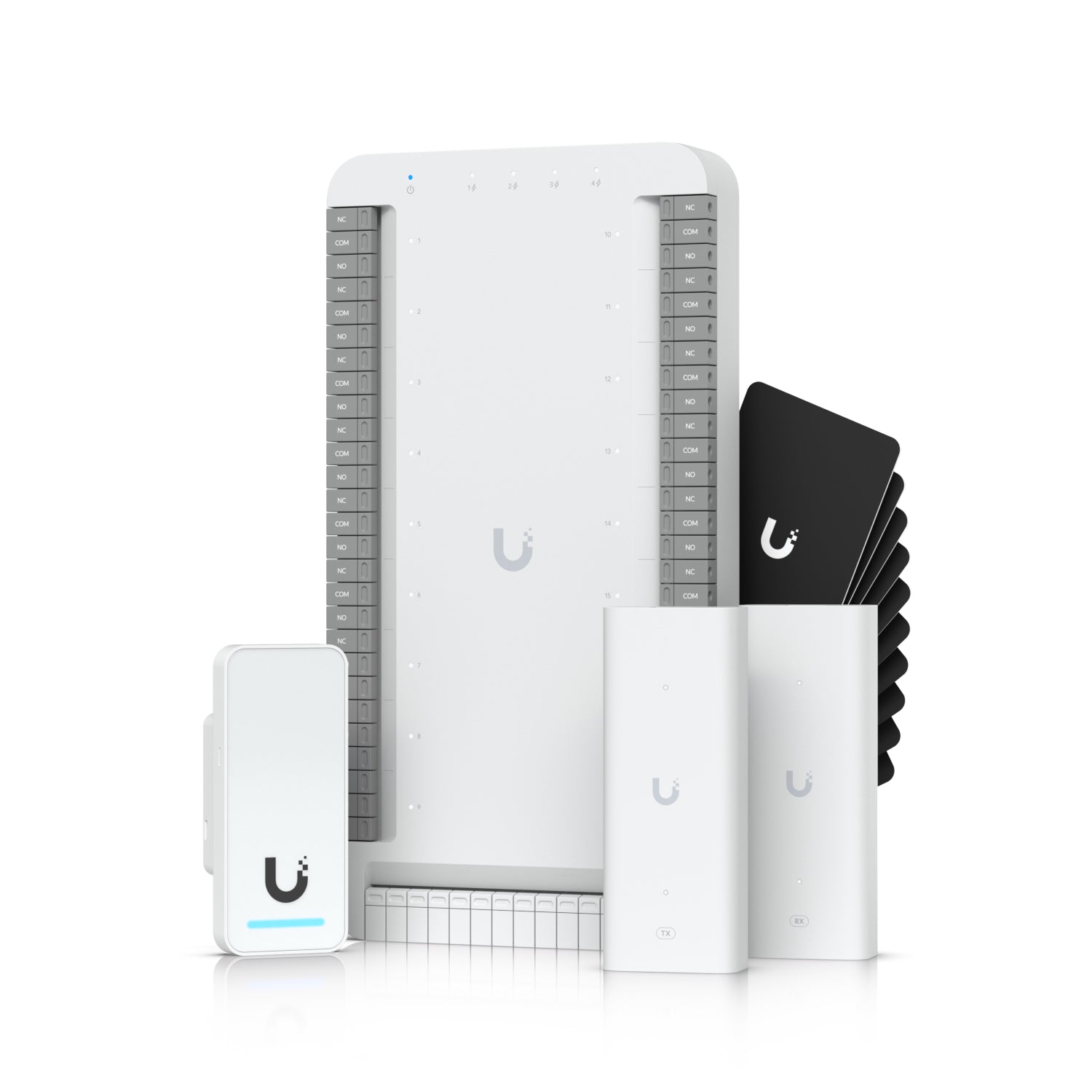

• 1 x Elevator Hub
• 1 x G2 Reader

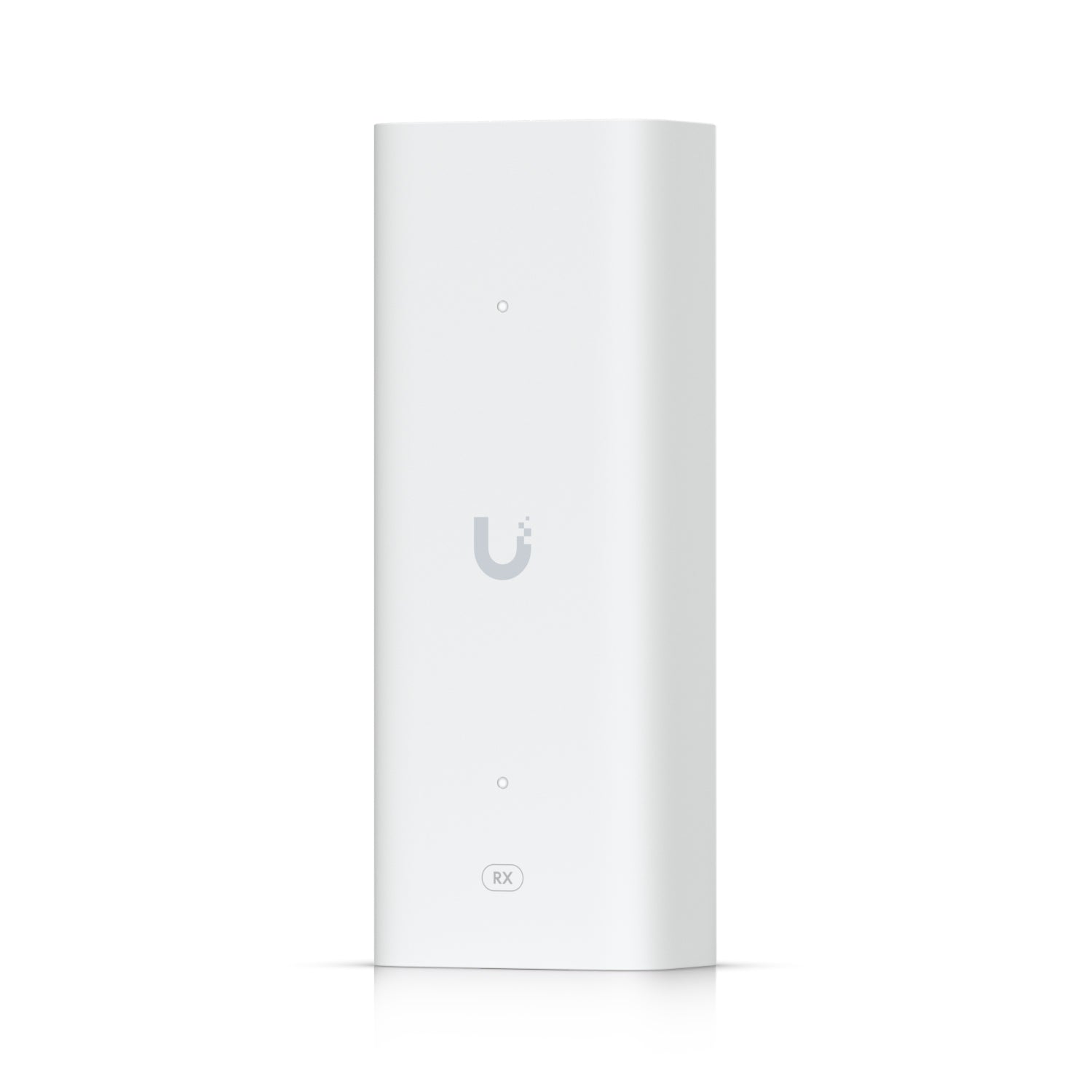

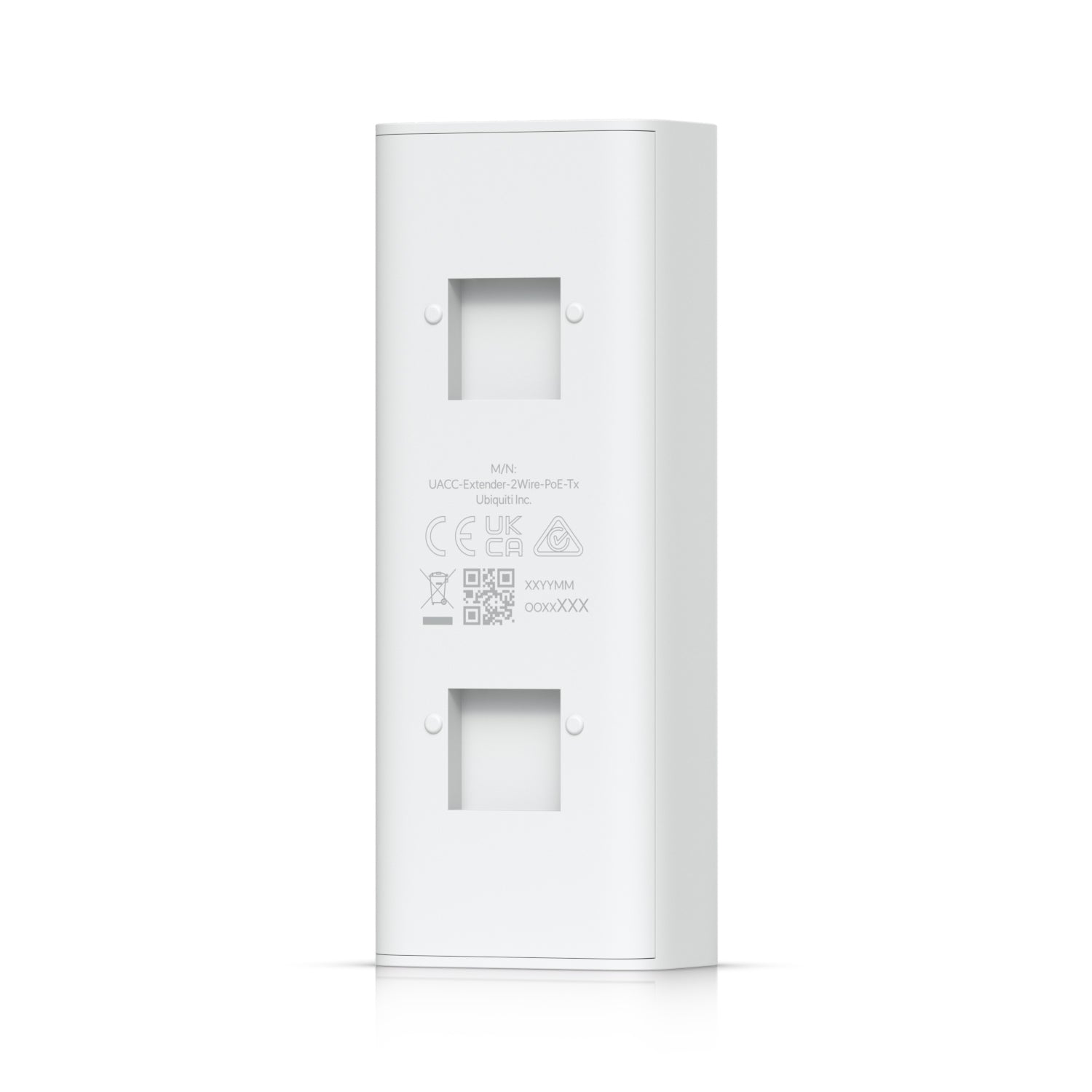

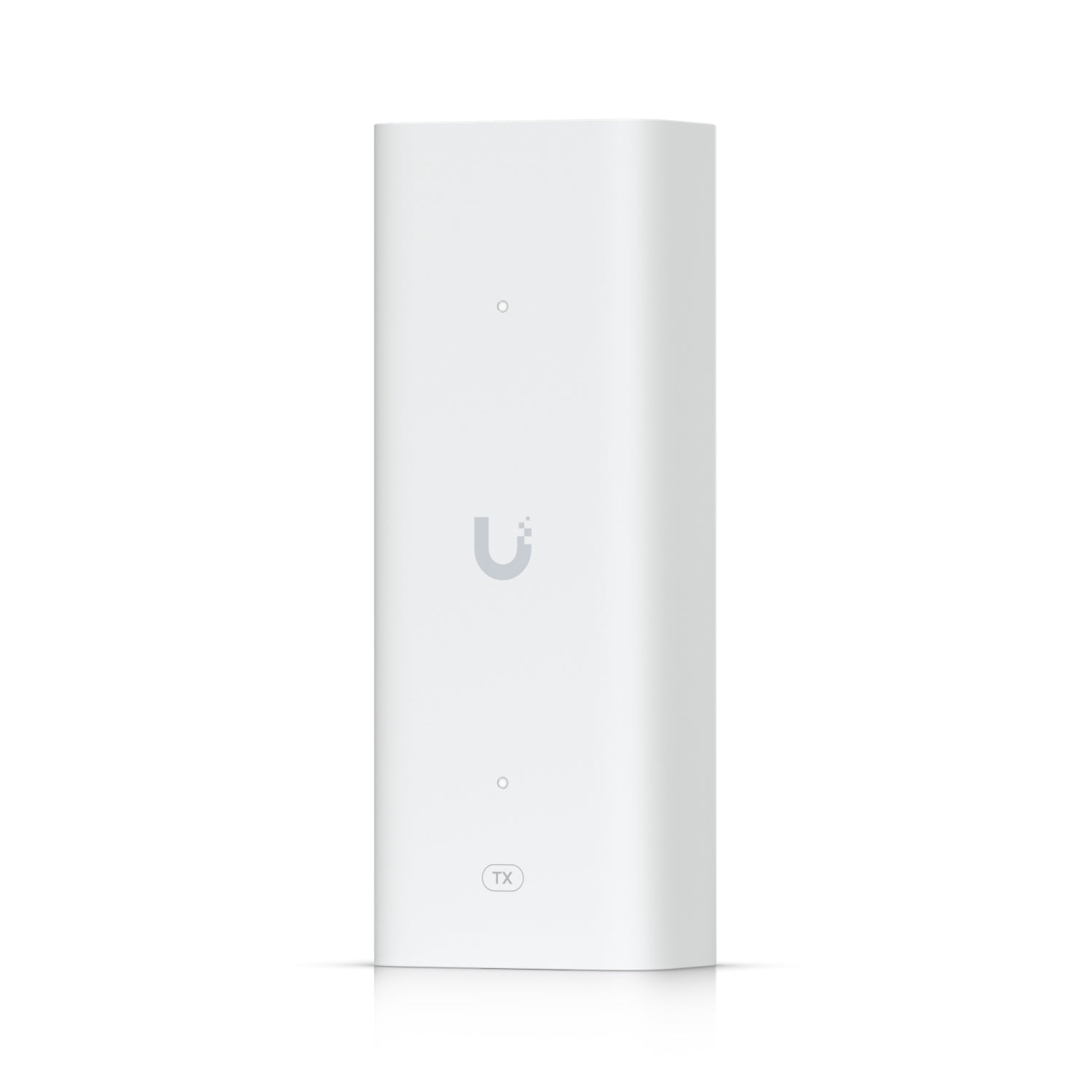

• 2 x 2-wire PoE extenders

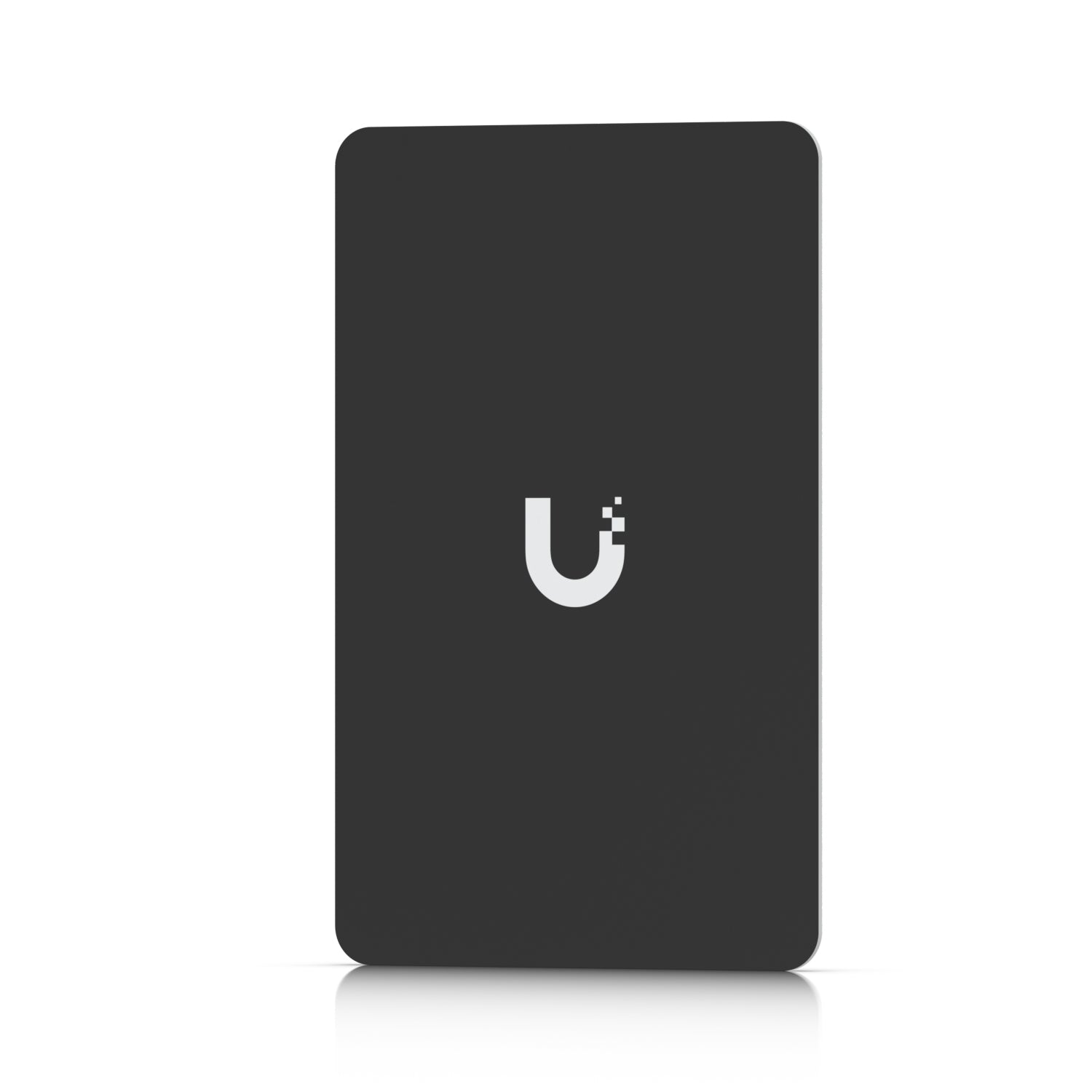

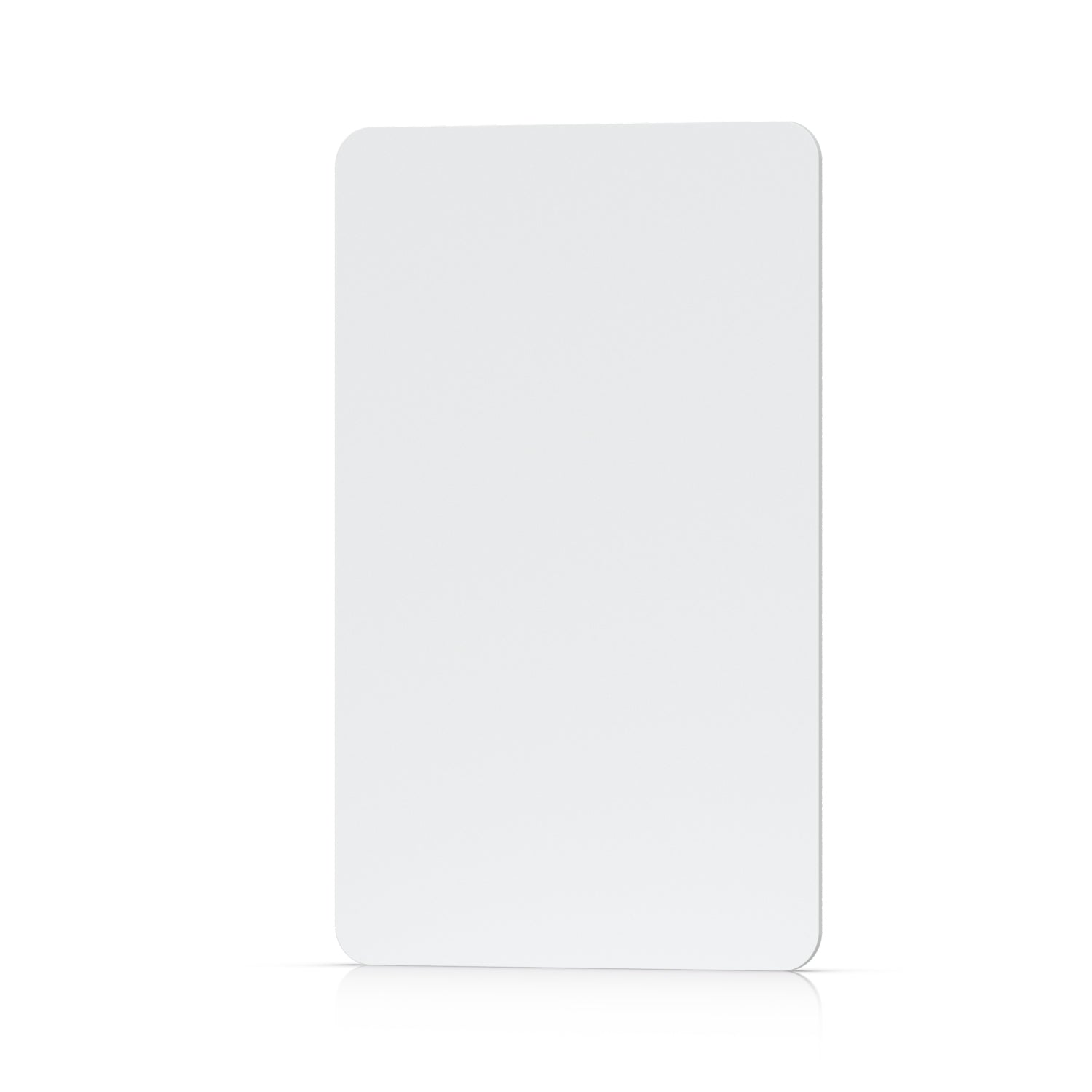

• 10 x Access Cards

1.2 lbs

5.1-in x 9.6-in x 1.3-in
