• Support H.265/H.264 video formats
• Support audio over coaxial cable (only for TVI cameras)
• Control the dual-light of UNV analog cameras under TVI
• Support TVI, AHD, CVI, CVBS, IP cameras with adaptive access
• 16-channel BNC input
• Support 1-ch CVBS output, 1-ch VGA output, 1-ch HDMI output at up to 4K (3840 x 2160)
• HDMI and VGA simultaneous output
• Long transmission distance over coaxial cable
• Support mainstream cameras of ONVIF and RTSP protocol

• Analog Video Input: 16-ch, BNC
• IP Video Input: 8-ch (Max 24-ch with analog disabled)
• RCA Audio Input: 1-ch
• Recording Resolution: 8MP Lite/5MP Lite/4MP Lite/1080P/720P/D1
• Incoming Bandwidth: 80Mbps (Up to 112Mbps after all analog channel conversion)
• Outgoing Bandwidth: 160Mbps
• Remote Users: 128
• SATA: 2 SATA interfaces (Up to 16 TB for each HDD)
• Network Interface: 1 x RJ45 10 M/100 M/1000 M self-adaptive Ethernet Interface
• Alarm In/Out: 4‑ch/1‑ch
• Power Consumption (without HDD): ≤ 12W
• Operating Environment: -10°C to 55°C (14°F to 131°F ), Humidity: ≤ 90% RH (non-condensing

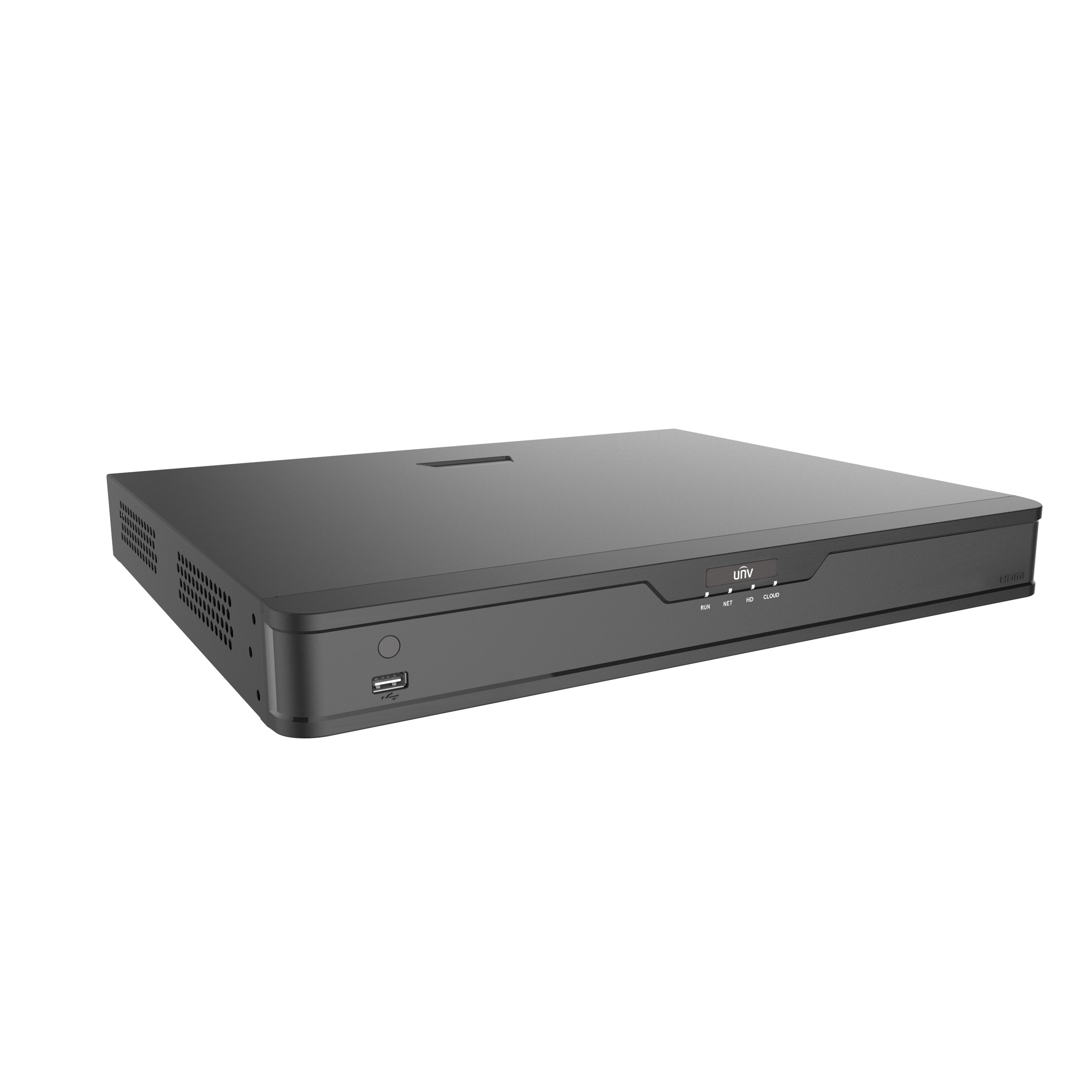

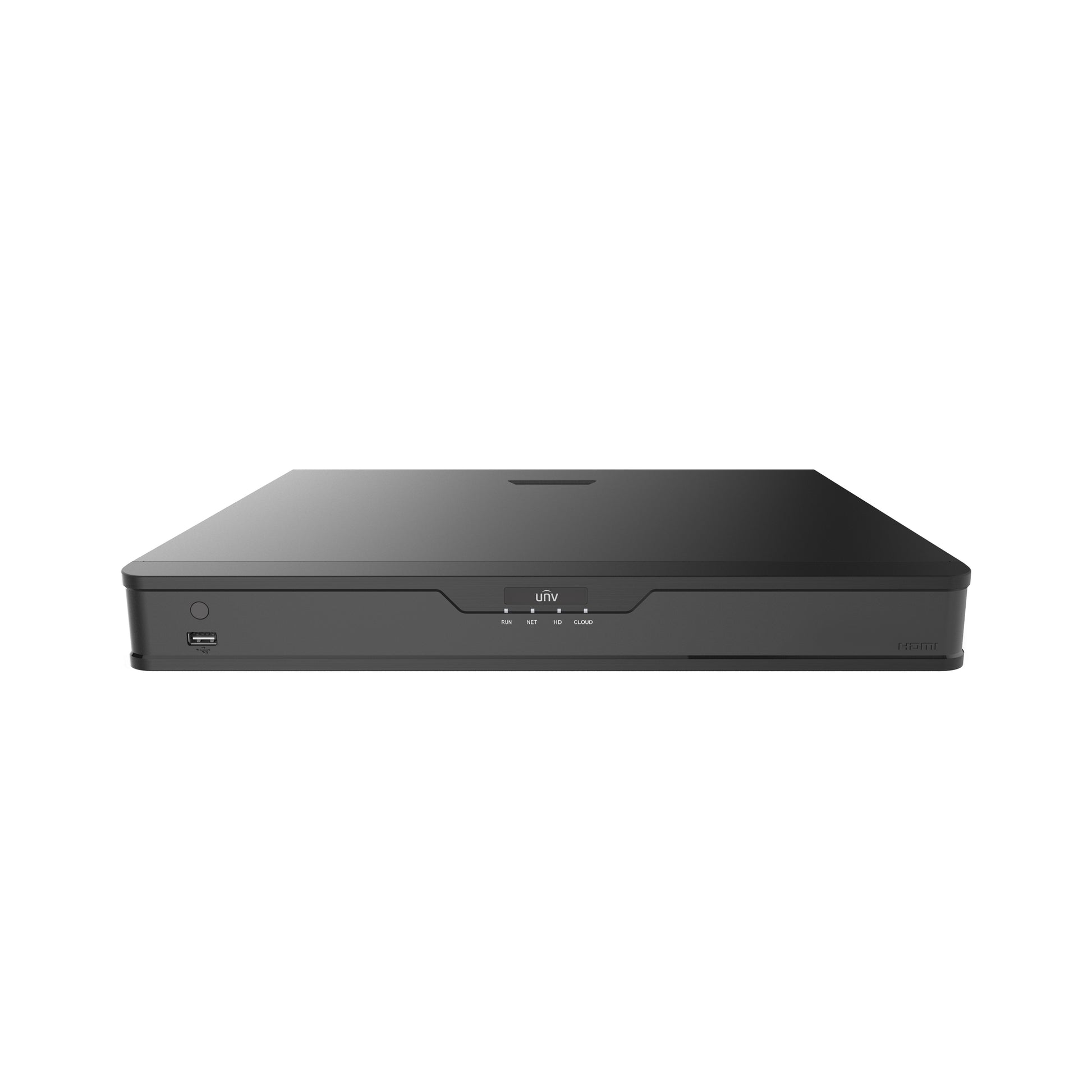

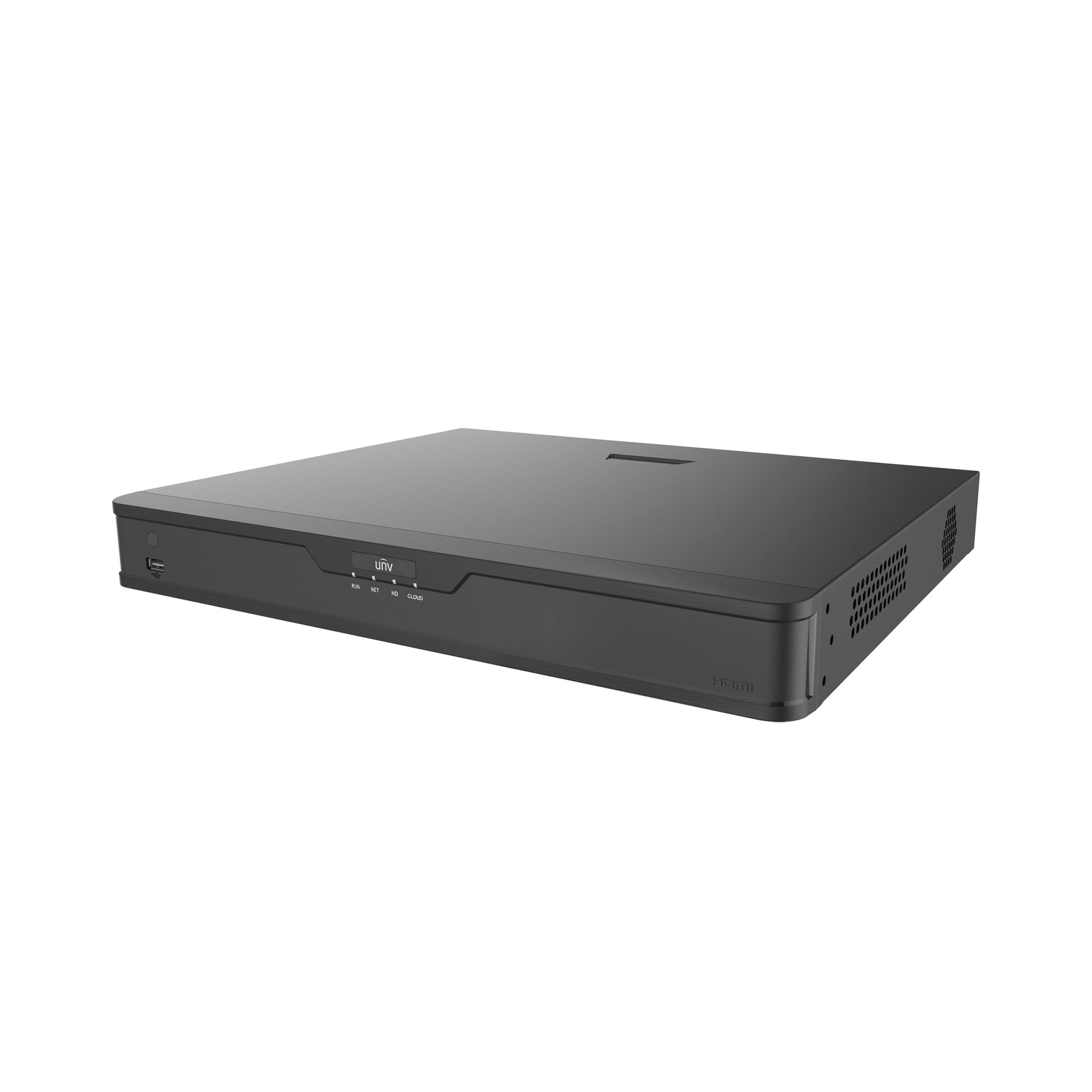

• 1 x Uniview Analog Encoder/Hybrid NVR

4.4 lbs

15-in x 12.8-in x 2.1-in
