•Dynamic Range - 23dB
•Lowest Cost OTDR in the Industry
•Easy Operation with Soft Key Menus
•Small, Lightweight and Rugged
•Includes Interchangeable Adapters
•Event Table and Auto-Test Modes
•USB Data Transfer
•Backlight Keypad and Screen for Easy Use in Dim Lighting Conditions
•Multimode Units Designed to Work with Both 50/125um and 62.5/125um Fiber

•Wavelength of Operation: 850, 1300nm
•Dynamic Range: 23dB
•Distance Accuracy: +/- (1mtr + .01% x distance)
•Loss Modes: 2 Point, Splice Loss, dB/km
•Group IOR Range: 1.024 - 2.048
•Vertical Expansion: 0.5, 1, 2, 4 dB/div
•Units of Measure: Meters/Kilofeet
•Pulse Widths: Short Pulse (SP) 4m/13ft; Medium Pulse (MP) 50m/164ft; Long Pulse (LP)100m/330ft
•Distance Range: 1Km/3.3Kft 4Km/8Kft(SP); 4Km/13Kft, 16Km/53Kft(MP); 16Km/53Kft, 64Km/215Kft(LP)
•Computer Interface: USB
•AC Power: 120 VAC standard
•Batteries: 8 AA NiMH Cells with 12 hour battery life

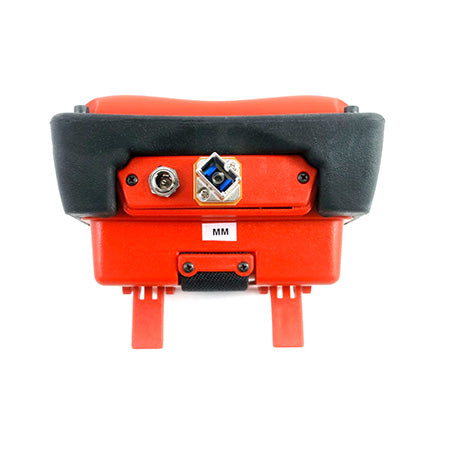

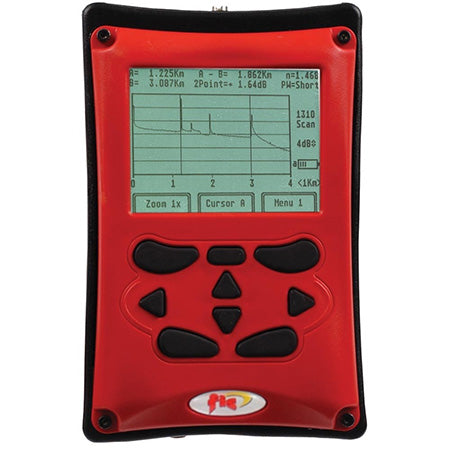

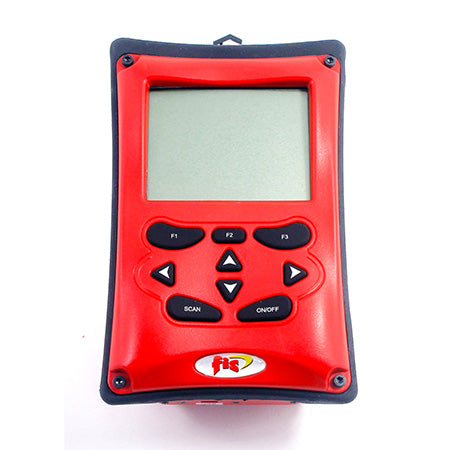

•FIS Firecat Optical Time Domain Reflectometer (OTDR) Multimode 850/1300nm
•110v AC Adapter
•Certification Software
•Data Transfer Cable
•SC Interchangeable Adapter
•Soft Carry Case
•Instruction Manual
