•Compatible with the XR-3 Modular Test Instrument base unit
•Satellite ID by "align-to-lock" or "automatic scan"
•The ID multi-lock algorithm helps eliminates false positives
•High sensitivity assures alignment optimization
•Featuring an impressively fast operating system, the boot-up time is less then 5 seconds
•Displays antenna settings (AZ / EL / Skew) based on user's postal code or latitude and longitude coordinates
•Manually tune to custom transponders using front panel keypad

•Frequency Range: 950 - 2150 MHz
•Tuning Resolution: 4 kHz
•Signal Level Range: -65 to -25 dBm (+44 to +84 dBμV)
•RF Level Accuracy: +/- 2 dB typical, 3 dB max
•Signal Lock Formats: DVB-S (QPSK), DVB-S2 & DVB-S2X (QPSK, 8PSK, 16APSK, 32APSK, CCM, VCM, ACM) DSS / DIRECTV Legacy (QPSK)
•Impedance: 75 Ohm
•LNB Power: 13VDC fpr V/R, 18VDC for H/L 21VDC for DIRECTV SWiM LNBs, 29VDC
•Switch Control: 22 kHz, DiSEqC
•RF Connector: F Barrel, field replaceable

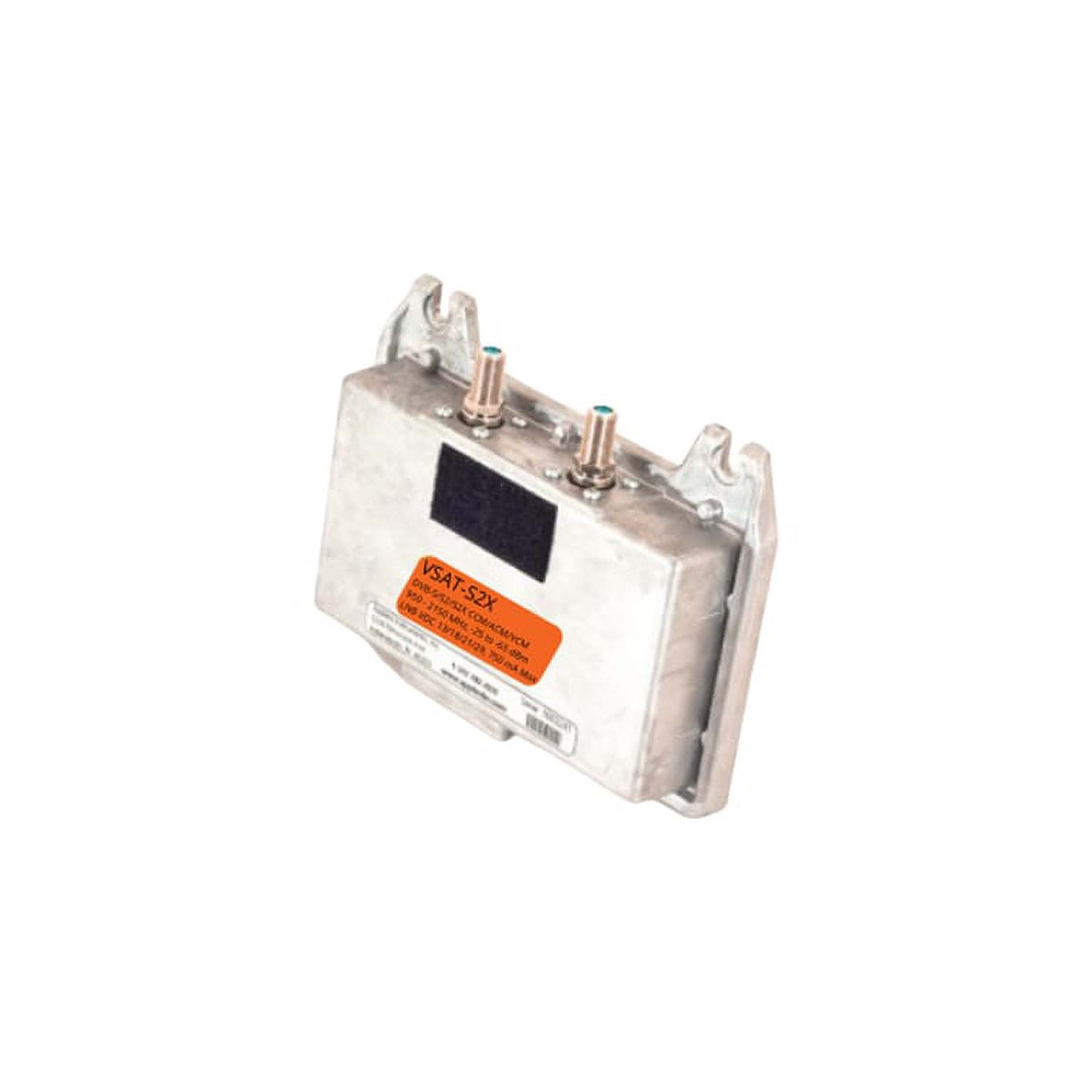

•1x XR-S2XACM-01
•Quick Start Guide
