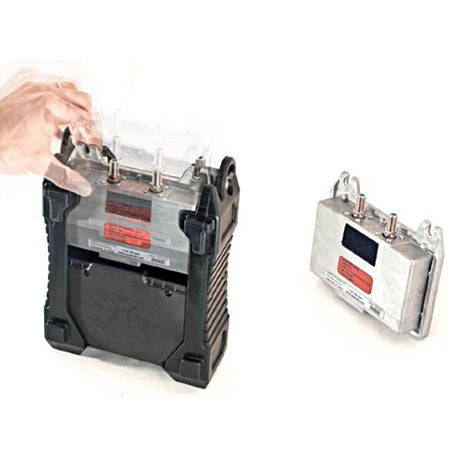

•Compatible with XR-3 Modular Test Instrument
•Friendly user interface
•Satellite ID by "align-to-lock" or "automatic scan"
•ID multi-lock algorithm eliminates false positives
•Powers LNBs and multi-switches
•Use for L, C, X, Ku, or Ka band applications
•High sensitivity assures alignment optimization
•Geo-sensitive "Field Guide" software database stores all compatible satellites and transponders per global region
•Program and store up to 256 custom transponders
•Controls multi-LNBs/switches with 22kHz DiSEqC tone
•Manually tune to custom transponders using front panel keypad
•Audible tone for signal lock or peak

•Frequency Range: 250-2150 MHz
•Tuning Resolution: 4 kHz
•Signal Level Range: -75 to -15 dBm (+34 to +94 dBuV)
•RF Level Accuracy: +/- 2 dB typical, 3 dB max
•Signal Lock Formats: DVB-S (QPSK), Digicipher 2 (QPSK & OQPSK), DVB-S2 (QPSK & 8PSK, CCM), DSS / DIRECTV Legacy (QPSK), Turbo (QPSK & 8PSK)
•Impedance: 75 Ohm
•LNB Power: 13VDC for V/R, 18VDC for H/L
•21VDC for DIRECTV SWiM, 29VDC
•Switch Control: 22 kHz, DiSEqC
•RF Connector: Type F barrel, field rep

•1 x Signal Level Meter Module
•Quick Start Guide
