• Protects outdoor Ethernet devices, up to 20kA discharge current
• (2) Passive, surge-protected RJ45 connections
• Quick and easy installation
• Compatible with 10 GbE networks

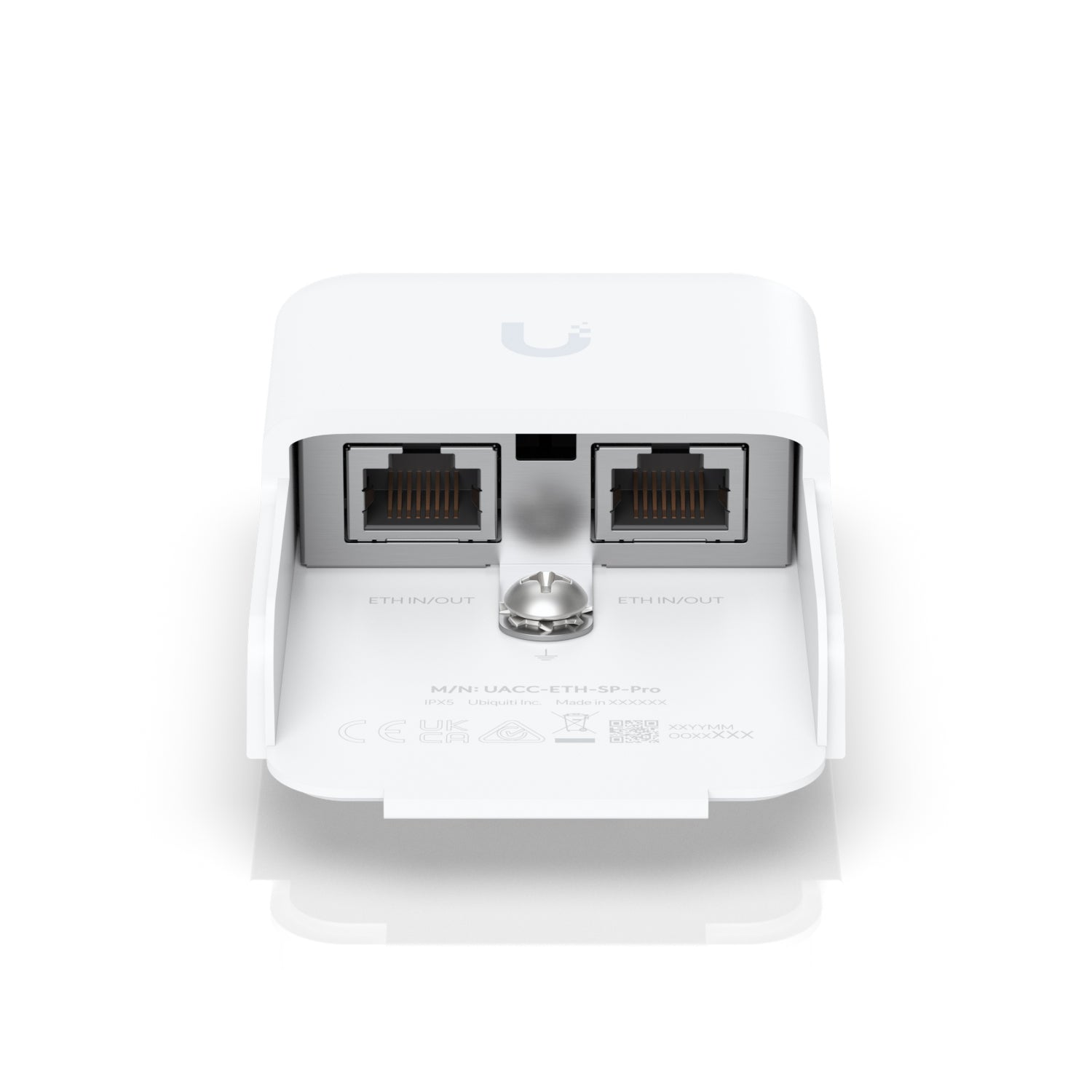

• Networking Interface: 2 x RJ45 female connectors
• DC Spark-Over Voltage: 90V @ 100V/s
• Max. Impulse Spark-Over Voltage: 600V @ 1kV/µs
• Discharge Current: 20kA
• Insulation: Max. Resistance - 1G ohm @ 50V
• Max. Capacitance: 1.0 pF @ 1 MHz
• Data Line Protection: Up to 10 Gbps
• ESD/EMP Protection: Absorbing transient current with response to surge voltage from 100V/s to 1kV/µs
• Shock and Vibration Certification: ETSI300-019-1.4 Standard
• Weatherproofing: IPX5
• Enclosure Material: Polycarbonate
• Operating Environment: Temperature -30°C to 65°C (-22°F–149°F); Humidity 10-90% (non condensing)

• 1 x Ethernet Surge Protection Outdoor
• 1 x Mounting Template
• 1 x Pole Mount Kit
• 1 x Wall Mount Kit
