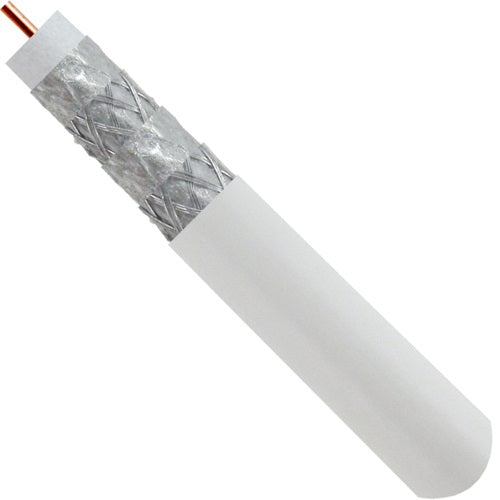

Vertical Cable RG6 Quad Shield Coaxial Cable Pull Box

Features

•Sweep Tested to 3GHz
•ETL Listed
•RoHS Compliant

Technical Specifications

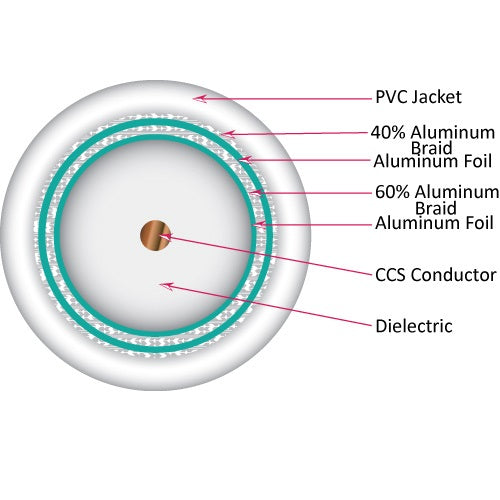

•Conductor Material: Copper Clad Steel (Solid)
•Size: 18 AWG
•Insulation Material: Foamed PE
•Diameter: 4.57±0.01mm
•First Shield Material: Aluminum Foil Bonded
•Second Shield Material: Aluminum Alloy Braid (5x16x0.12mm 60%)
•Third Shield Material: Aluminum Foil
•Fourth Shield Material: Aluminum Alloy Braid (3x16x0.12mm 40%)
•Jacket Material: PVC
•Impedance: 75±3 Ohms
•Capacitance: 54±3.0 pF/m
•Operating Temperature: -30°C to 75°C (-22°F to 167°F)

Box Contents

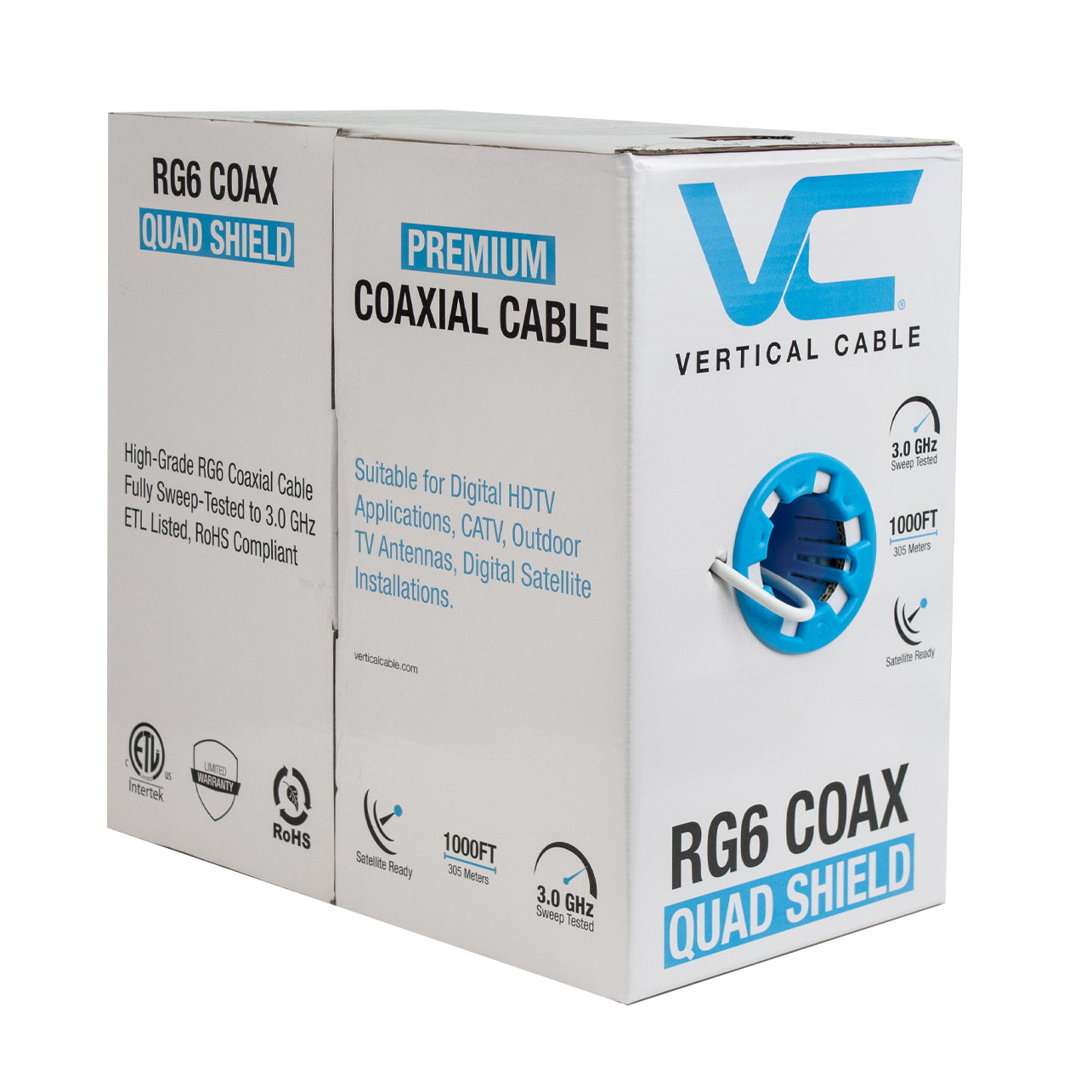

•1 x 1000-ft RG6 Coax Pull Box

Weights & Dimensions

Datasheets

Vertical Cable RG6 Quad Shield Coaxial Cable Pull Box

Vendor: Vertical Cable

SKU: WI107-1953WH6Q1B

Vendor SKU: 107-1953WH6Q1BX

Shipping calculated at checkout.

Special Order Item

Manufacturer's Warranty: 1-Year

Length: 304.8-meter (1000-ft) Pull Box

304.8-meter (1000-ft) Pull Box

Colour: White

This premium coaxial cable is suitable for Digital HDTV applications, CATV, TV antennas and Satellite TV.

Same day shipping available for orders placed before noon. Please make note on your order.
Free returns within 30 days for defective items
